Fixing Screws F,G
(at the side of the metal
tray)
Hard Disk
Drive Module
Mental HDD
Tray
4-4
8. Lift up the mental HDD tray 'til an angle of approximately
30 degrees and pull it up as the following illustration.
Hard Disk
Drive Module
Connecter-A
Illustation 4-1
9. Note the orientation of the HDD module connector-A and
carefully remove it from the hard disk drive. (Refer to the
illustration <4-2> shawn as next page)
10. Locate and remove the rest 2 fixing screws, F and G,
securing the metal HDD tray and HDD.
11. Remove the mental HDD tray from the HDD Module.
Note the green PC board of the hard disk drive is facing
down.
12. Now you may place the new drive unit on the mental tray
and replace the fixing screws, B, C, F and G.

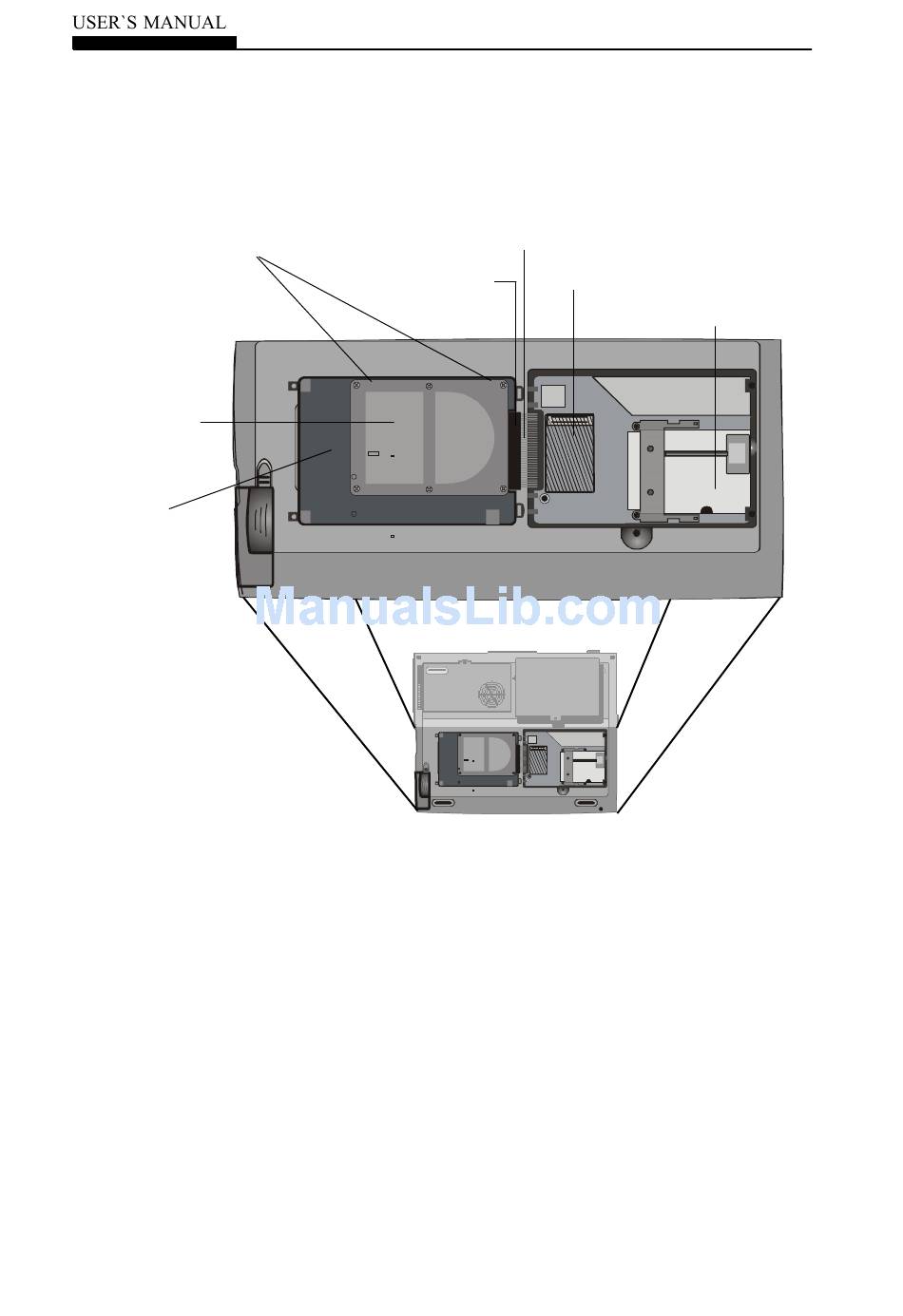

Flexible PCB
Modem Module
Inserted PCMCIA Card
