Infrared Problems - MAXDATA VISION 450T Manual

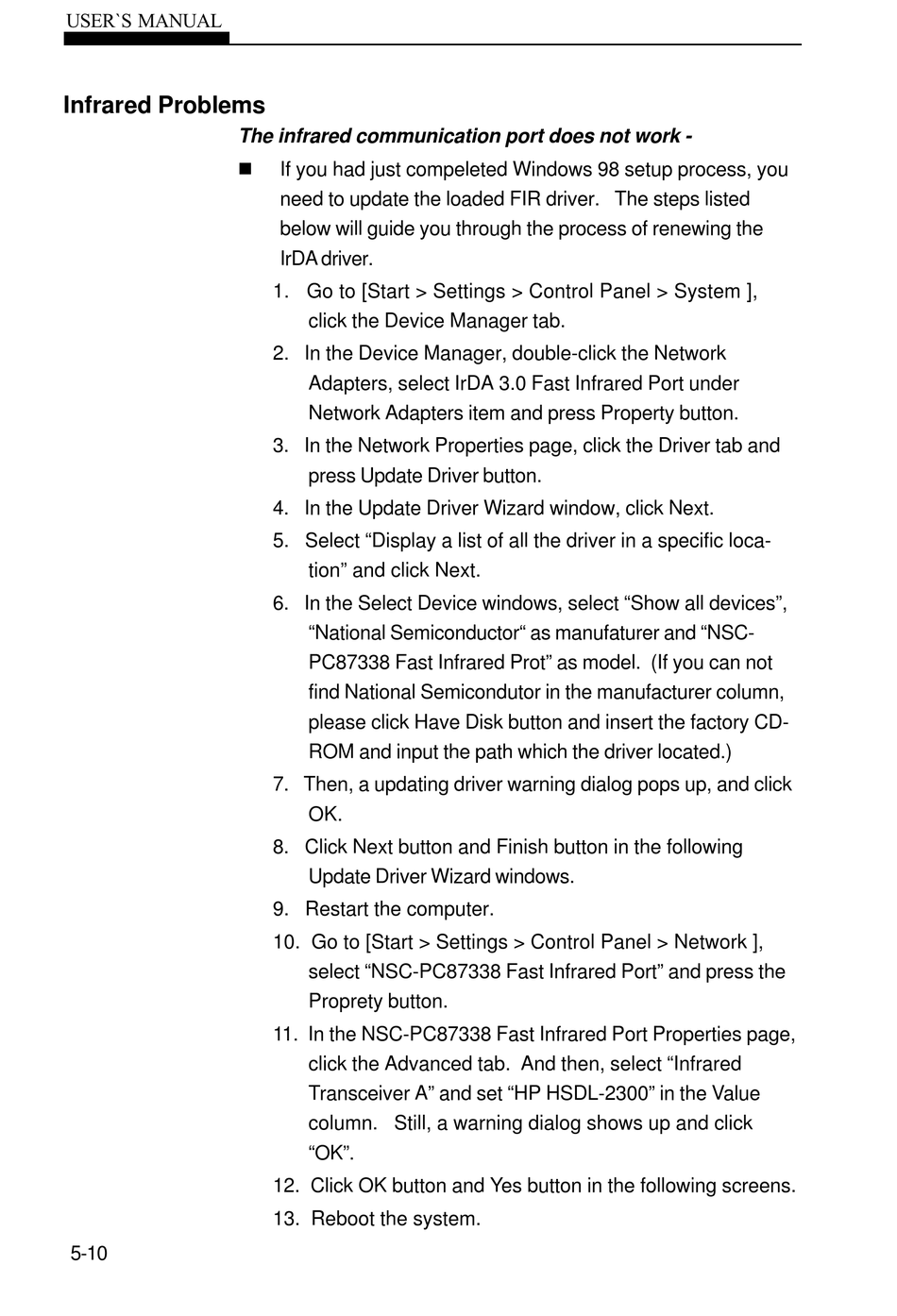

Infrared Problems

5-10
The infrared communication port does not work -
n
If you had just compeleted Windows 98 setup process, you
need to update the loaded FIR driver. The steps listed
below will guide you through the process of renewing the
IrDA driver.
1. Go to [Start > Settings > Control Panel > System ],
click the Device Manager tab.
2. In the Device Manager, double-click the Network
Adapters, select IrDA 3.0 Fast Infrared Port under
Network Adapters item and press Property button.
3. In the Network Properties page, click the Driver tab and
press Update Driver button.
4. In the Update Driver Wizard window, click Next.
5. Select "Display a list of all the driver in a specific loca-
tion" and click Next.
6. In the Select Device windows, select "Show all devices",
"National Semiconductor" as manufaturer and "NSC-
PC87338 Fast Infrared Prot" as model. (If you can not
find National Semicondutor in the manufacturer column,
please click Have Disk button and insert the factory CD-
ROM and input the path which the driver located.)
7. Then, a updating driver warning dialog pops up, and click
OK.
8. Click Next button and Finish button in the following
Update Driver Wizard windows.
9. Restart the computer.
10. Go to [Start > Settings > Control Panel > Network ],
select "NSC-PC87338 Fast Infrared Port" and press the
Proprety button.
11. In the NSC-PC87338 Fast Infrared Port Properties page,
click the Advanced tab. And then, select "Infrared
Transceiver A" and set "HP HSDL-2300" in the Value
column. Still, a warning dialog shows up and click
"OK".
12. Click OK button and Yes button in the following screens.
13. Reboot the system.
