3. Connect scanner

1. Turn off your computer.
Note: Before performing the next step, you must have
an ASPI-compliant SCSI interface card already
installed in your computer and working properly. If
you need help in setting up the ASPI-compliant SCSI
interface card in your computer, please view the
digital file SCSI_card_PC.pdf in the SCSI Card
Installation Guide folder on your Microtek CD-
ROM.

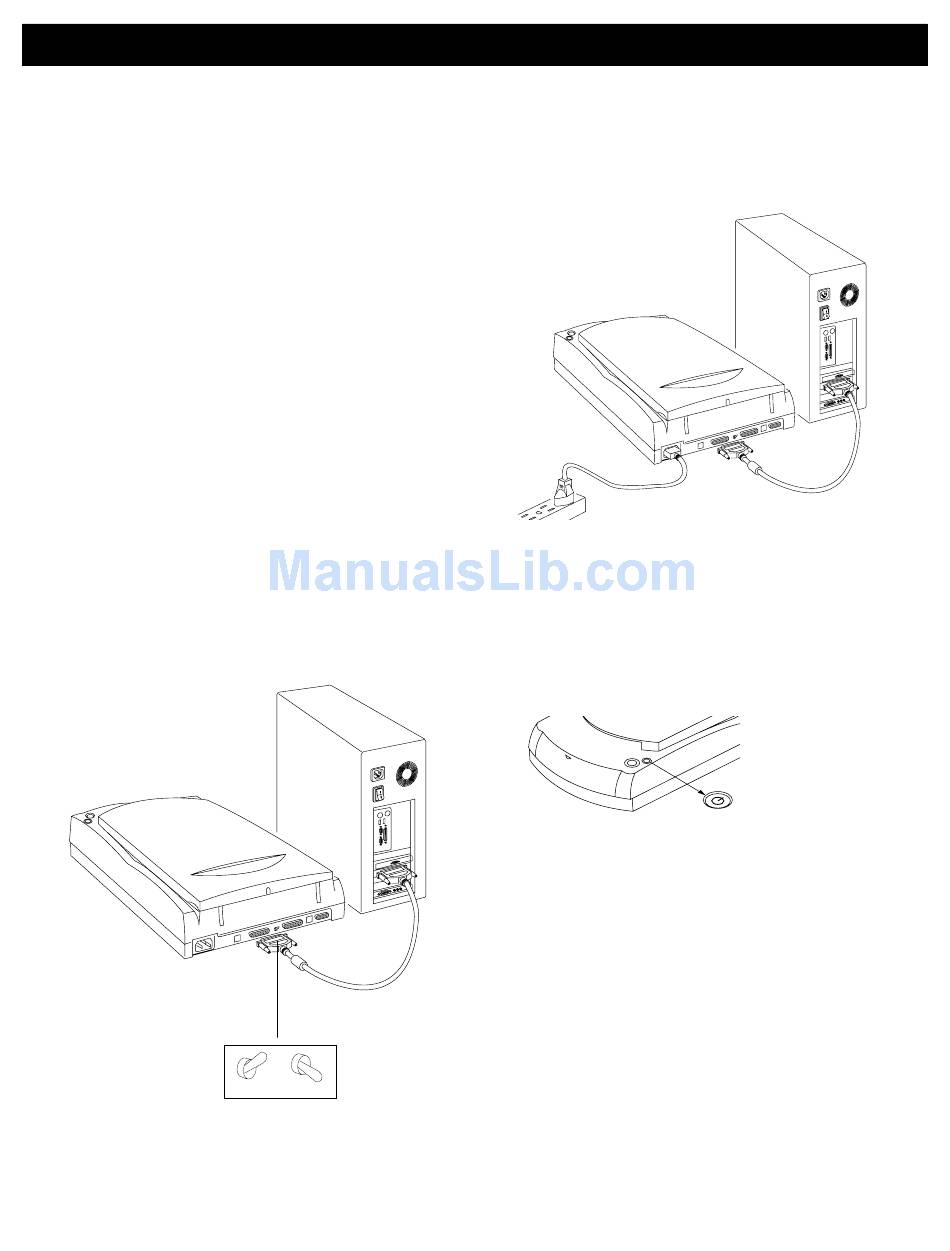

2. Connect the SCSI cable from one of the
scanner' s SCSI ports to the SCSI interface card
on the back of your computer. Then set the
terminator switch to the "ON" position.
: Make sure you connect to the SCSI
Important
card on the back of your computer — not to the
parallel printer port. The SCSI port may be
indicated by this symbol:
Terminator
Switch
SCSI Installation on the PC
ON OFF
3. Plug the power cord into the back of the
scanner, and plug the other end into a wall
outlet or power source.
4. Press the scanner' s power button; this will turn
on the scanner. The green light on the front of
the scanner will blink for a few seconds and
then stay on solid.
5. Turn on your computer. The system will find
your scanner automatically.
3
Power button
Press the scanner's
power button to turn
the scanner on/off.
