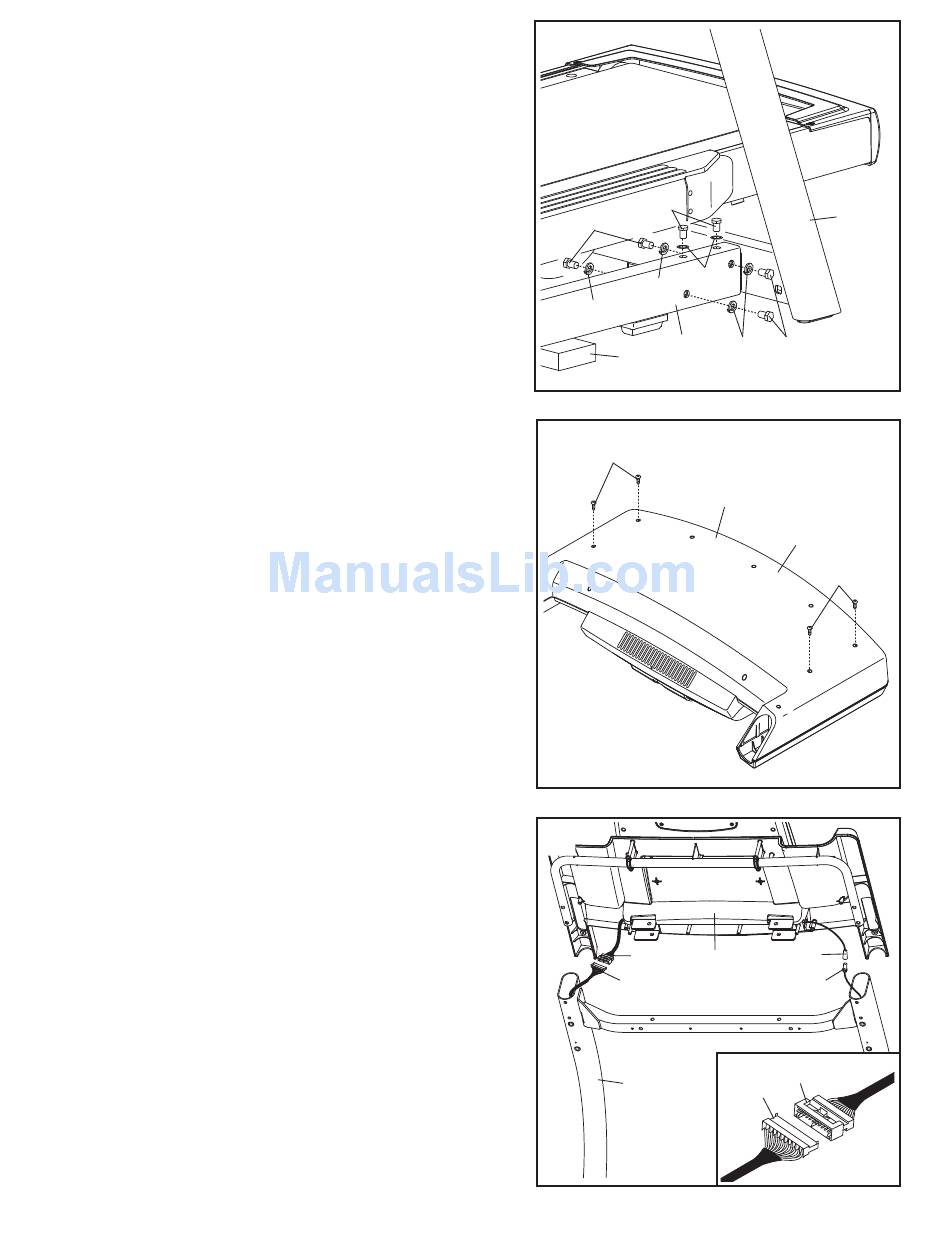

3. Partially tighten six 1/2" x 1" Screws (35) with four 1/2"
Split Washers (49) and two 1/2" Star Washers (83)
through the bracket near the right Upright (93) and into
the Base Frame (56) as shown; do not tighten the
Screws yet. Be careful not to pinch any wires.
Repeat this step on the left side of the incline
trainer. After all twelve Screws have been started,
tighten them.
Remove the pieces of wood (A) from under the Base
Frame (56).
4. Set the console assembly face down on a soft surface to
avoid scratching the console.
Remove and discard the four indicated screws (B) from
the console assembly.
Remove the Console Back Cover (104).
5. With the help of a second person, hold the console as-
sembly near the Upright (93). Connect the Upright Wire
(116) and the console wire (C). See the inset drawing.
The connectors should slide together easily and
snap into place. If they do not, turn one connector and
try again. IF YOU DO NOT CONNECT THE CONNEC-
TORS PROPERLY, THE CONSOLE MAY BECOME
DAMAGED WHEN YOU TURN ON THE POWER.
Connect the Upright TV Cable (130) and the console
TV cable (D). Insert the wires downward into the Upright
(93).
3
35
49
49
A
4
B
5
C
116
93
9
35
83
56
49 35
Console
Assembly
104
D
Console
Assembly
130
C
116
93
B
