The following entries are displayed on this screen:
Global Config
NTDP:
NTDP Interval Time:
NTDP Hops:
NTDP Hop Delay:
NTDP Port Delay:
Port Status

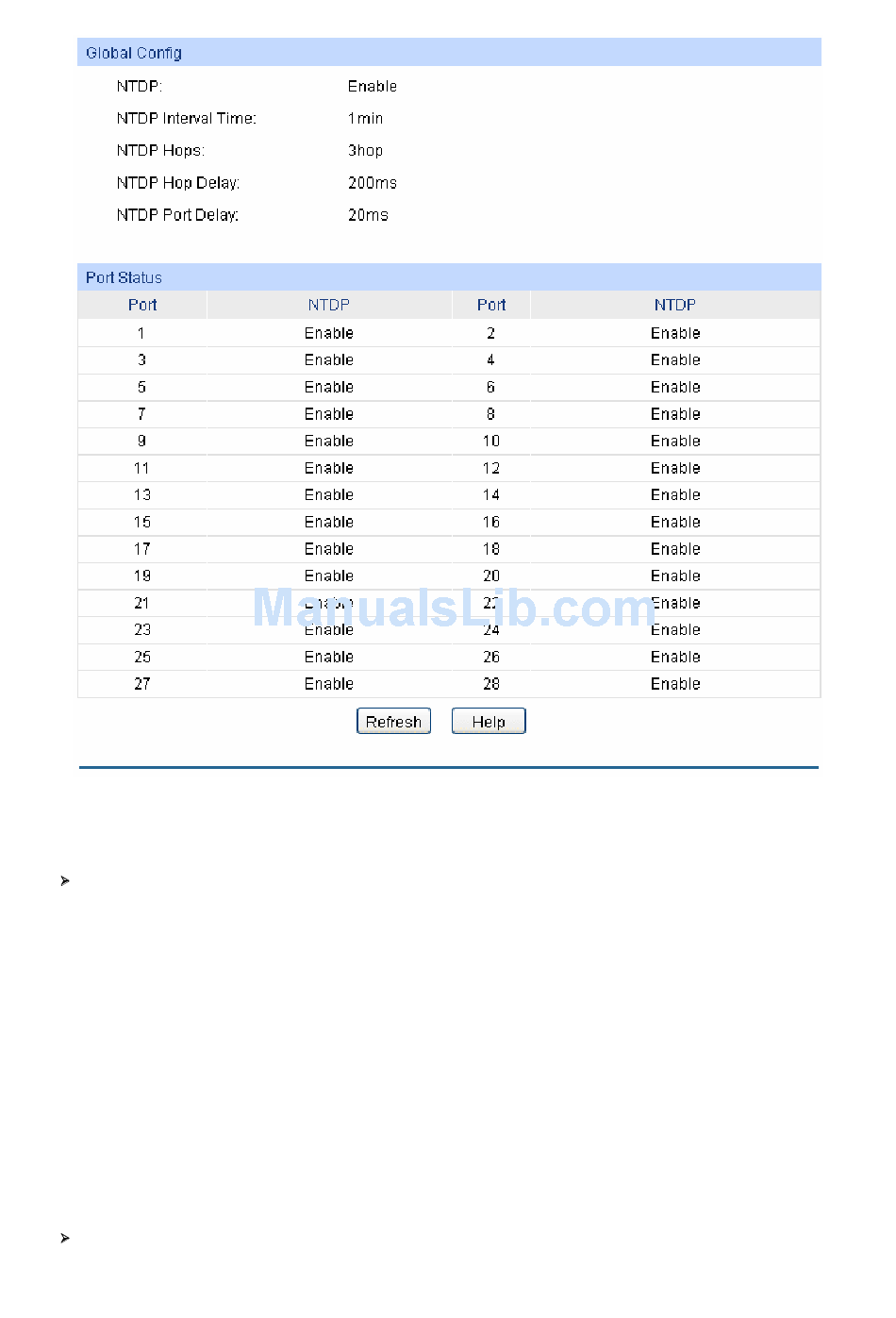

Figure 13-7 NTDP Summary
Displays the NTDP status (enabled or disabled) of the switch
globally.
Displays the interval to collect topology information.
Displays the hop count the switch topology collects.
Displays the time between the switch receiving NTDP request
packets and the switch forwarding NTDP request packets for the
first time.
Displays the time between the port forwarding NTDP request
packets and its adjacent port forwarding NTDP request packets
over.
