The ACL Config function can be implemented on ACL Summary, ACL Create, MAC ACL,
Standard-IP ACL and Extend-IP ACL pages.
10.2.1 ACL Summary
On this page, you can view the current ACLs configured in the switch.
Choose the menu ACL→ACL Config→ACL Summary to load the following page.
The following entries are displayed on this screen:
Search Option
Select ACL:
ACL Type:
Rule Order:
Rule Table
Display the rule table of the ACL you have selected. Here you can edit the rules, view the details of
them, and move them up and down.
10.2.2 ACL Create
On this page you can create ACLs.
Choose the menu ACL→ACL Config→ACL Create to load the following page.
The following entries are displayed on this screen:
Create ACL

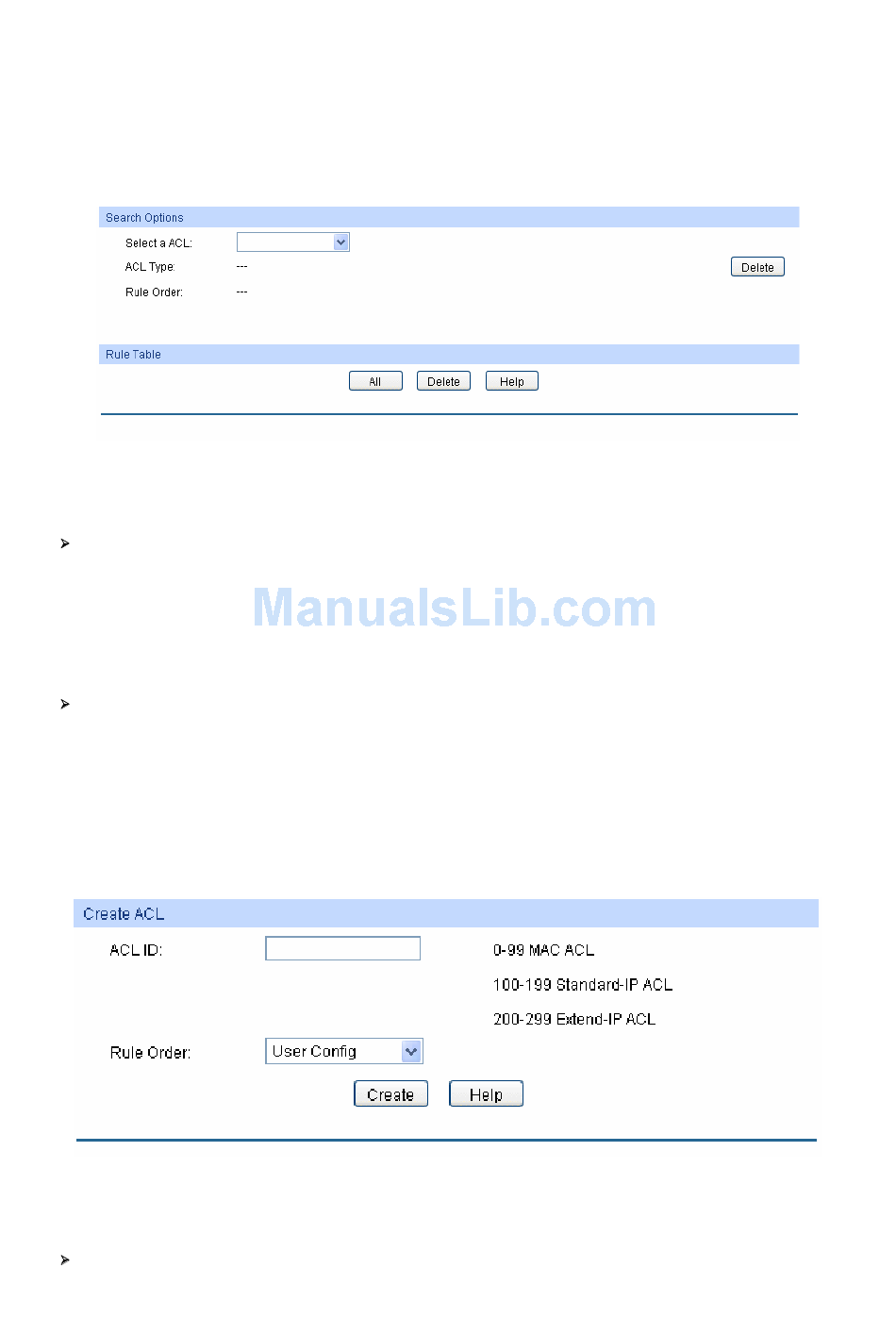

Figure 10-4 ACL Summary
Select the ACL you have created
Displays the type of the ACL you select.
Displays the rule order of the ACL you select.
Figure 10-5 ACL Create
