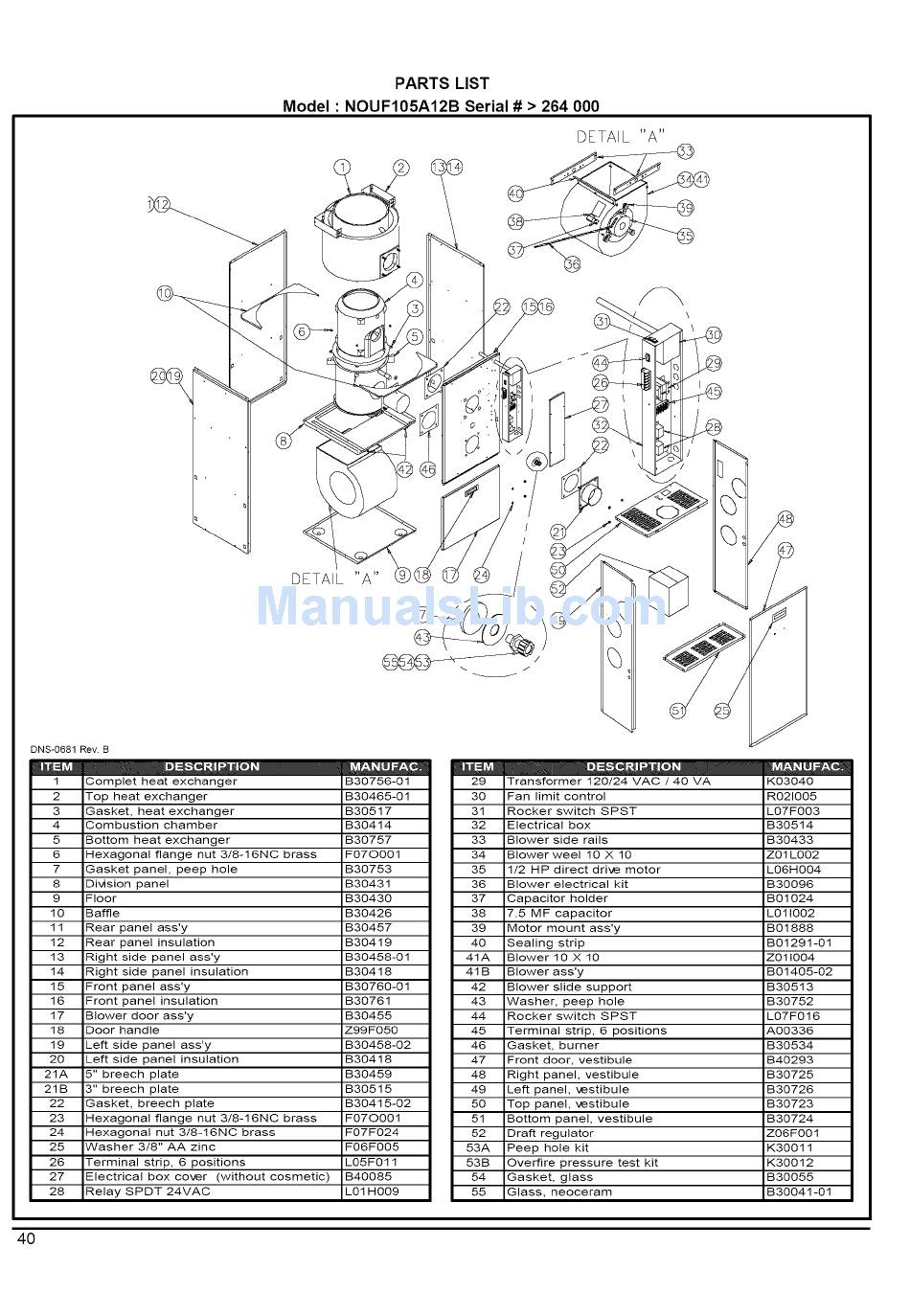

ICP OLR105A12B Installation Instructions And Owner's Manual page 39

PARTS
LIST
Model : NOUF105A12B Serial # > 264 000
DETAIL "A"
\
DNS-0681 Rev B
1 Complet heat exchanger
2 Top heat exchanger
3 Gasket, heat exchanger
4 Combustion chamber
5 Bottom heat exchanger
6 Hexagonal flange nut 3/8-16NC brass
7 Gasket panel, peep hole
8 Division panel
9 Floor
10 Baffle
11 Rear panel ass'y
12 Rear panel insulation
13 Right side panel ass'y
14 Right side panel insulation
15 Front panel ass'y
16 Front panel insulation
17 Blower door ass'y
18 Door handle
19 Left side panel ass'y
20 Left side panel insulation
21A 5" breech plate
21B 3" breech plate
22 Gasket, breech plate
23 Hexagonal flange nut 3/8-16NC brass
24 Hexagonal nut 3/8-16NC brass
25 Washer 3/8" AA zinc
26 Terminal strip, 6 positions
27 Electrical box cover (without cosmetic)
28 Relay SPDT 24VAC
B30756-01
B30465-01
B30517
B30414
B30757
F070001
B30753
B30431
B30430
B30426
B30457
B30419
B30458-01
B30418
B30760-01
B30761
B30455
Z99F050
B30458-02
B30418
B30459
B30515
B30415-02
F070001
F07F024
F06F005
L05F011
B40085
L01H009
\
/
29 Transformer 120/24 VAC / 40 VA
30 Fan limit control
31 Rocker switch SPST
32 Electrical box
33 Blower side rails
34 Blower weel 10 X 10
35 1/2 HP direct drive motor
36 Blower electrical kit
37 Capacitor holder
38 7.5 MF capacitor
39 Motor mount ass'y
40 Sealing strip
41A Blower 10 X 10
41B Blower ass'y
42 Blower slide support
43 Washer, peep hole
44 Rocker switch SPST
45 Terminal strip, 6 positions
46 Gasket, burner
47 Front door, vestibule
48 Right panel, vestibule
49 Left panel, vestibule
50 Top panel, vestibule
51 Bottom panel, vestibule
52 Draft regulator
53A Peep hole kit
53B Overfire pressure test kit
54 Gasket, glass
55 Glass, neoceram
K03040
R021005
L07F003
B30514
B30433
Z01L002
L06H004
B30096
B01024
L011002
B01888
B01291-01
Z011004
B01405-02
B30513
B30752
L07F016
A00336
B30534
B40293
B30725
B30726
B30723
B30724
Z06F001
K30011
K30012
B30055
B30041-01
4O
