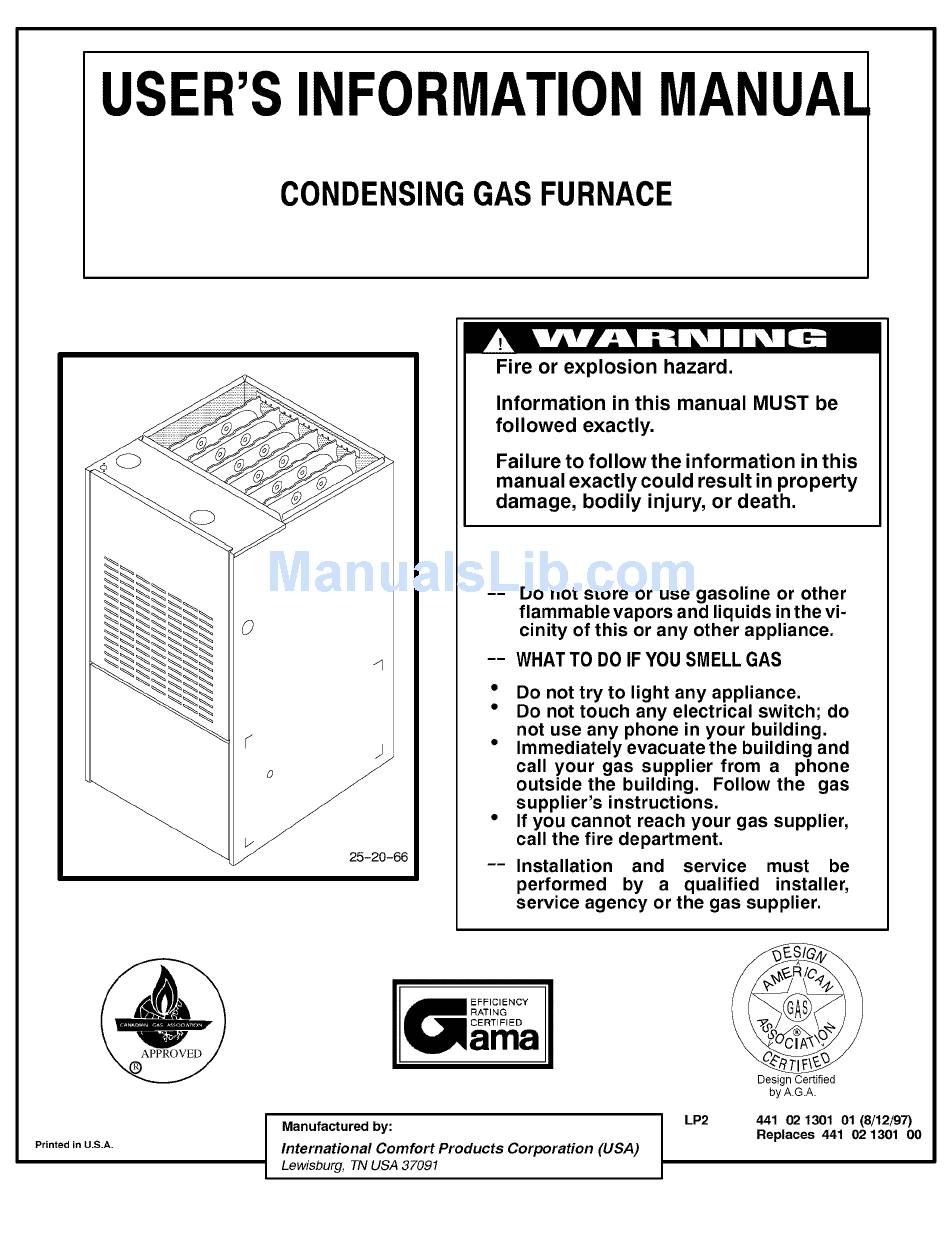

USER'SINFORMATION MANUAL] CONDENSING GASFURNACE Fire or explosion hazard. Information in this manual MUST be followed exactly. Failure to follow the information in this manual exactly could result in property damage, bodily injury, or death. Do not store or use gasoline or other flammable vapors...
Page 2
CondensingGas Furnace User's InformationManual Contents Danger,Warning and Caution ....OperatingYour Unit ....... Unit Maintenance ......Safety Rules ......Combustion Air (Your safety) ....Danger,Warning and Caution Danger Label White lettering on a black background except the word DANGER which is white with a red background. The signal words DANGER, WARNING and CAUTION are used to identify levels of hazard seriousness.
User's InformationManual CondensingGas Furnace Do not use this unit if any part has been under water. Immediately call a qualified service techni- Readthis manualand followits instructions and adhere cian to inspect the unit and to replace any part of the to all Cautionsand Warningsin the manualand on the control system and any gas control which has been unit.
CondensingGas Furnace User's InformationManual appliance, or remodel the structure, a combustion CombustionAir (Your Safety) check MUST be accomplished after the addition. Makethe inspectionas follows: Close all doors and windows. If you have a fireplace, All fuel-burning appliances must be provided with start a fire and wait until flames are burning vigorous- enough fresh air for proper combustion and ventilation of flue gases.
User's InformationManual CondensingGas Furnace If you have kitchen and bathroom exhaust fans, turn air intakes must be installed to provide air directly to them OFF and check for spillage. the area around the unit. These MUST comply with If spillage stops, do not use exhaust fans until you local and state building codes or in their absence can supply fresh air by a permanent duct.
CondensingGas Furnace User's InformationManual Air Filters FreezingTemperaturesAnd Your Structure Your unit is equipped with safety devices that may keep it The air filter(s) should be inspected at least monthly and from operating if sensors detect abnormal conditions such cleaned or replaced as required. There are two types of fil- as clogged exhaust flues.
Page 7
User's InformationManual CondensingGas Furnace Reinstall the filter in the filter rack. Inspect the filter(s) and replace or clean washable types. If filter is aluminum mesh it should be re- Some filters are marked with an arrow to indicate coated with filter coating spray. the proper direction of air flow through the filter.
Page 8
CondensingGas Furnace User's InformationManual Inspect pilot flame (if equipped). While main burner ensure safe and efficient operation. A brief monthly in- is on, the flame should envelop the upper part of the spection is recommended that does not require disassem- flame sensor as shown in Fig ure 6A.
