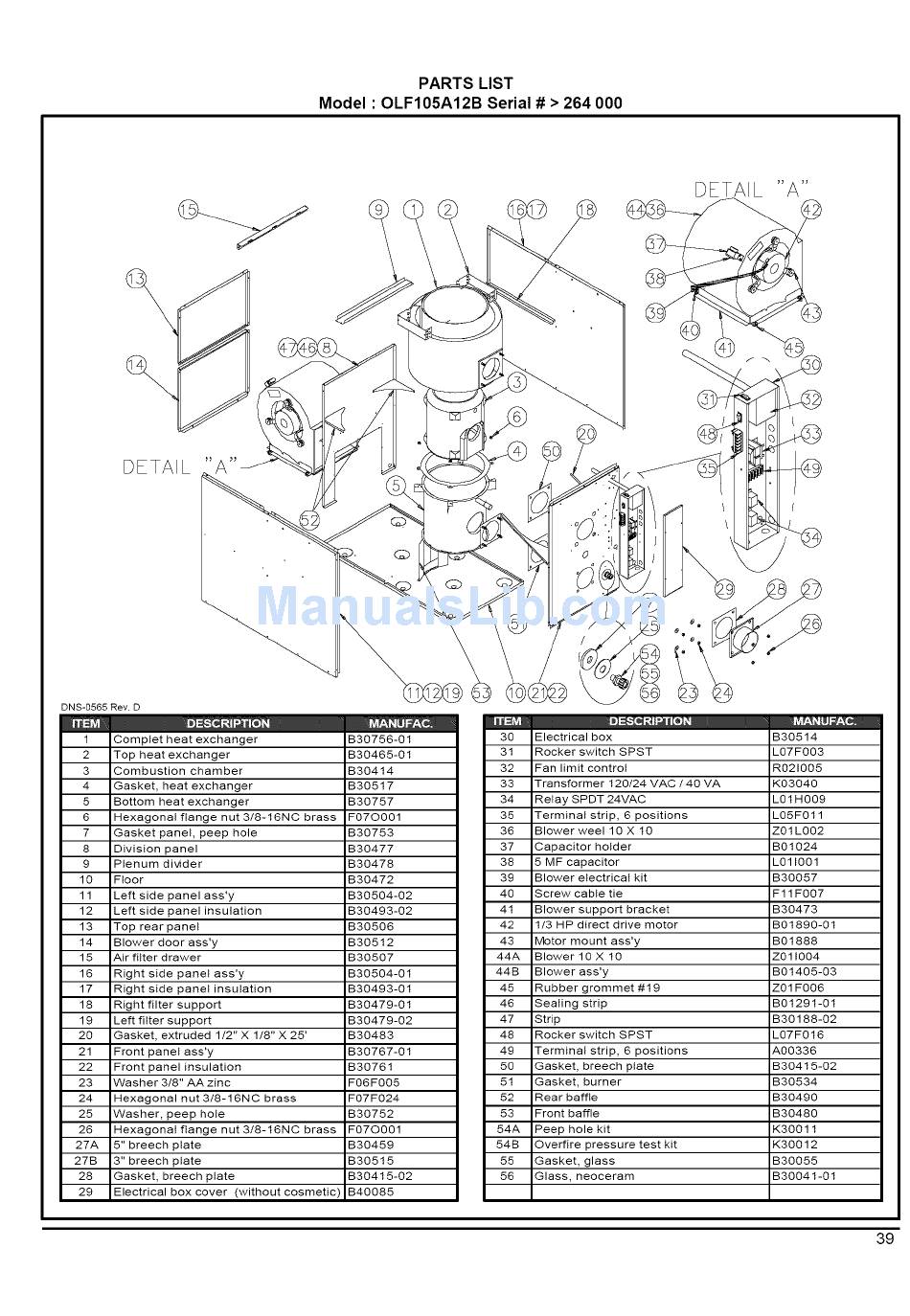

PARTS
LIST
Model : OLF105A12B Serial # > 264 000
DETAIL "A"
%
DNS-0565 Rev. D
mm_ ¸ Eii!l
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2o
21
22
23
24
25
26
27A
27B
28
29
Complet heat exchanger
Top heat exchanger
Combustion chamber
Gasket, heat exchanger
Bottom heat exchanger
Hexagonal flange nut 3/8=16NC brass
Gasket panel, peep hole
Division panel
Plenum divider
Floor
Left side panel ass'y
Left side panel insulation
Top rear panel
Blower door ass'y
Air filter drawer
Right side panel ass'y
Right side panel insulation
Right filter support
Left filter support
Gasket, extruded 1/2" X 1/8" X 25'
Front panel ass'y
Front panel insulation
Washer 3/8" AA zinc
Hexagonal nut 3/8-16NC brass
Washer, peep hole
Hexagonal flange nut 3/8=16NC brass
5" breech plate
3" breech plate
Gasket, breech plate
Electrical box cover (without cosmetic)
B30756-01
B30465-01
B30414
B30517
B30757
F070001
B30753
B30477
B30478
B30472
B30504-02
B30493-02
B30506
B30512
B30507
B30504-01
B30493-01
B30479-01
B30479-02
B30483
B30767-01
B30761
F06F005
F07F024
B30752
F070001
B30459
B30515
B30415-02
B40085
30 Electrical box
31 Rocker switch SPST
32 Fan limit control
33 Transformer 120/24 VAC / 40 VA
34 Relay SPDT 24VAC
35 Terminal strip, 6 positions
36 Blower wee110 X 10
37 Capacitor holder
38 5 MF capacitor
39 Blower electrical kit
40 Screw cable tie
41 Blower support bracket
42 1/3 HP direct drive motor
43 Motor mount ass'y
44A Blower 10 X 10
44B Blower ass'y
45 Rubber grommet #19
46 Sealing strip
47 Strip
48 Rocker switch SPST
49 Terminal strip, 6 positions
50 Gasket, breech plate
51 Gasket, burner
52 Rear baffle
53 Front baffle
54A Peep hole kit
54B Overfire pressure test kit
55 Gasket, glass
56 Glass, neoceram
B30514
L07F003
R021005
K03040
L01H009
L05F011
Z01L002
B01024
L011001
B30057
F11F007
B30473
B01890-01
B01888
Z011004
B01405-03
Z01F006
B01291-01
B30188-02
L07F016
A00336
B30415-02
B30534
B30490
B30480
K30011
K30012
B30055
B30041-01
