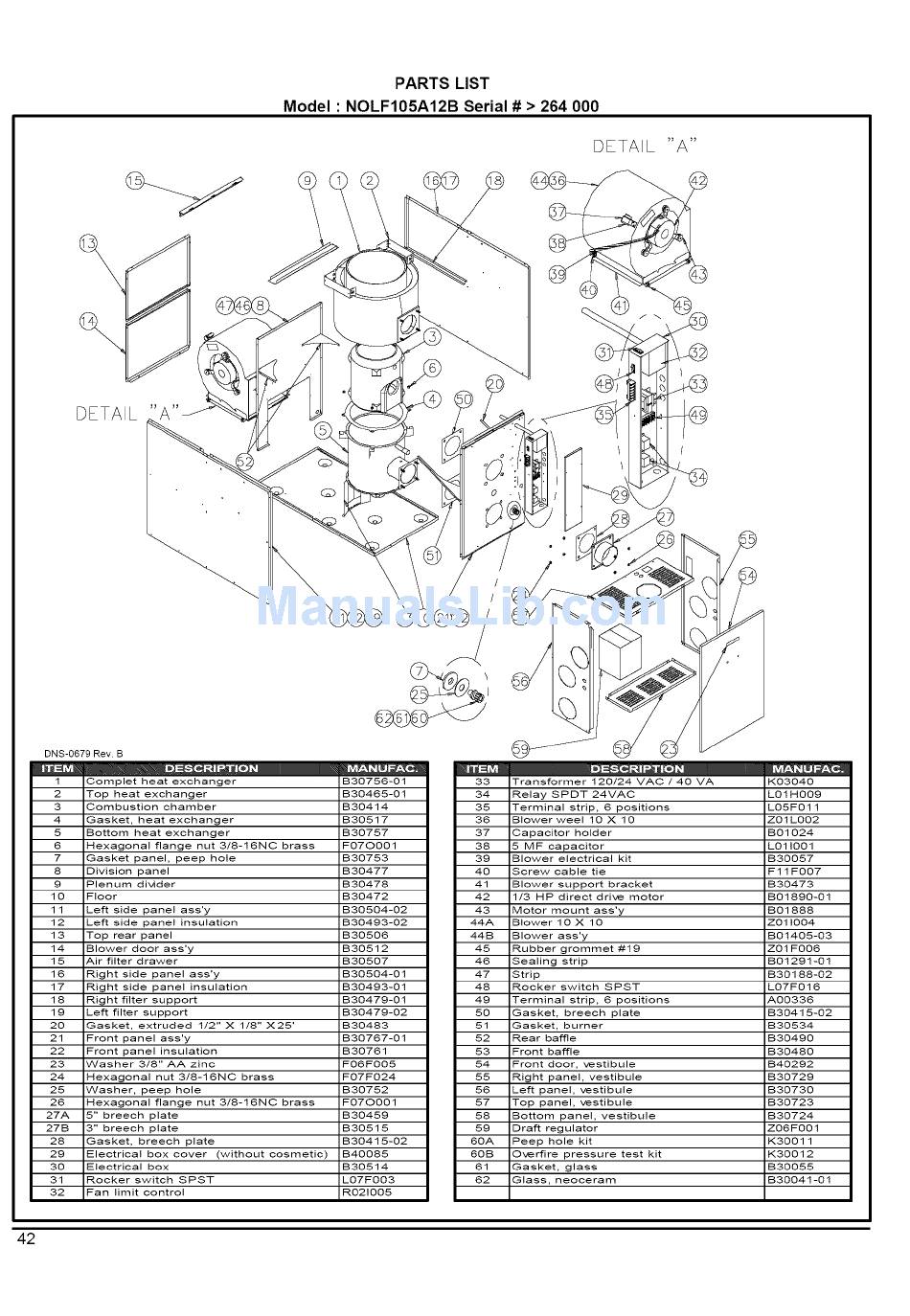

ICP OLR105A12B Installation Instructions And Owner's Manual page 41

PARTS
LIST
Model : NOLF105A12B Serial # > 264 000
DETAIL "A"
%
DETAIL A
DNS-0679 Rev B
1 Complet heat exchanger B30756-01 88 Transformer 120/24 VAC / 40 VA K08040
2 Top heat exchanger B30465-0! 34 Relay SPDT 24VAC L01H009
3 Combustion chamber B30414 35 Terminal strip, 6 positions L05F0! !
4 Gasket, heat exchanger B30517 36 Blower weeI 10 X 10 Z01L002
5 Bottom heat exchanger B30757 37 Capacitor holder B01024
6 Hexagonal flange nut 3/8-16N0 brass F070001 38 5 MF capacitor L011001
7 Gasket panel, peep hole B80758 89 Blower electrical kit 880057
8 Division panel B30477 40 Screw cable tie F11F007
9 Plenum divider B30478 41 Blower support bracket 830473
10 Floor B30472 42 1/3 HP direct drive motor 801890-01
11 Left side panel ass'y B30504-02 43 Motor mount ass'y 801888
12 Left side panel insulation B30493-02 44A Blower 10 X 10 Z011004
13 Top rear panel B30506 448 Blower ass'y B01405-03
14 Blower door ass'y B30512 45 Rubber grommet #19 Z01F006
15 Air filter drawer B30507 46 Sealing strip 801291-01
16 Right side panel ass'y B30504-01 47 Strip 830188-02
17 Right side panel insulation B30493-0! 48 Rocker switch SPST L07F016
18 Right filter support B30479-0! 49 Terminal strip, 6 positions A00336
19 Left filter support B30479-02 50 Gasket, breech plate 830415-02
20 Gasket, extruded 1/2" X 1/8" X25' B30483 51 Gasket, burner 830534
21 Front panel ass'y B30767-01 52 Rear baffle 830490
22 Front panel insulation B30761 53 Front baffle 830480
23 Washer 3/8" AA zinc F06F005 54 Front door, vestibule 840292
24 Hexagonal nut 3/8-16N0 brass F07F024 55 Right panel, vestibule 830729
25 Washer, peep hole B30752 56 Left panel, vestibule 830730
26 Hexagonal flange nut 3/8-16N0 brass F070001 57 Top panel, vestibule 830723
27A 5" breech plate B30459 58 Bottom panel, vestibule 830724
278 3" breech plate B30515 59 Draft regulator Z06F001
28 Gasket, breech plate B30415-02 60A Peep hole kit K30011
29 Electrical box cover (without cosmetic) B40085 608 Overfire pressure test kit K30012
30 Electrical box B30514 61 Gasket, glass 830055
31 Rocker switch SPST L07F003 62 Glass, neoceram 830041-01
32 Fan limit control R021005
