♦ Remark: It shows the note of this rule.
♦ Setting: 4 actions are available; "Del" denotes to delete the rule, "Ed" denotes to edit the rule, "In" denotes
to insert a rule, and "Mv" denotes to move the rule.
>>To delete a specific rule,
"Del" in "Setting" column of firewall list will lead to the following page for removal confirmation. After "SAVE"
button is clicked and system reboot, the rule will be removed.
>>To edit a specific rule,
"Ed" in "Setting" column of firewall list will lead to the following page for detail configuration.
From this page, the rule can be edited from scratch or from an existing rule for revision.
♦ Rule ID: The numbering of this specific rule will decide its priority among available firewall rules in the
table.
♦ Rule name: The rule name can be specified here.

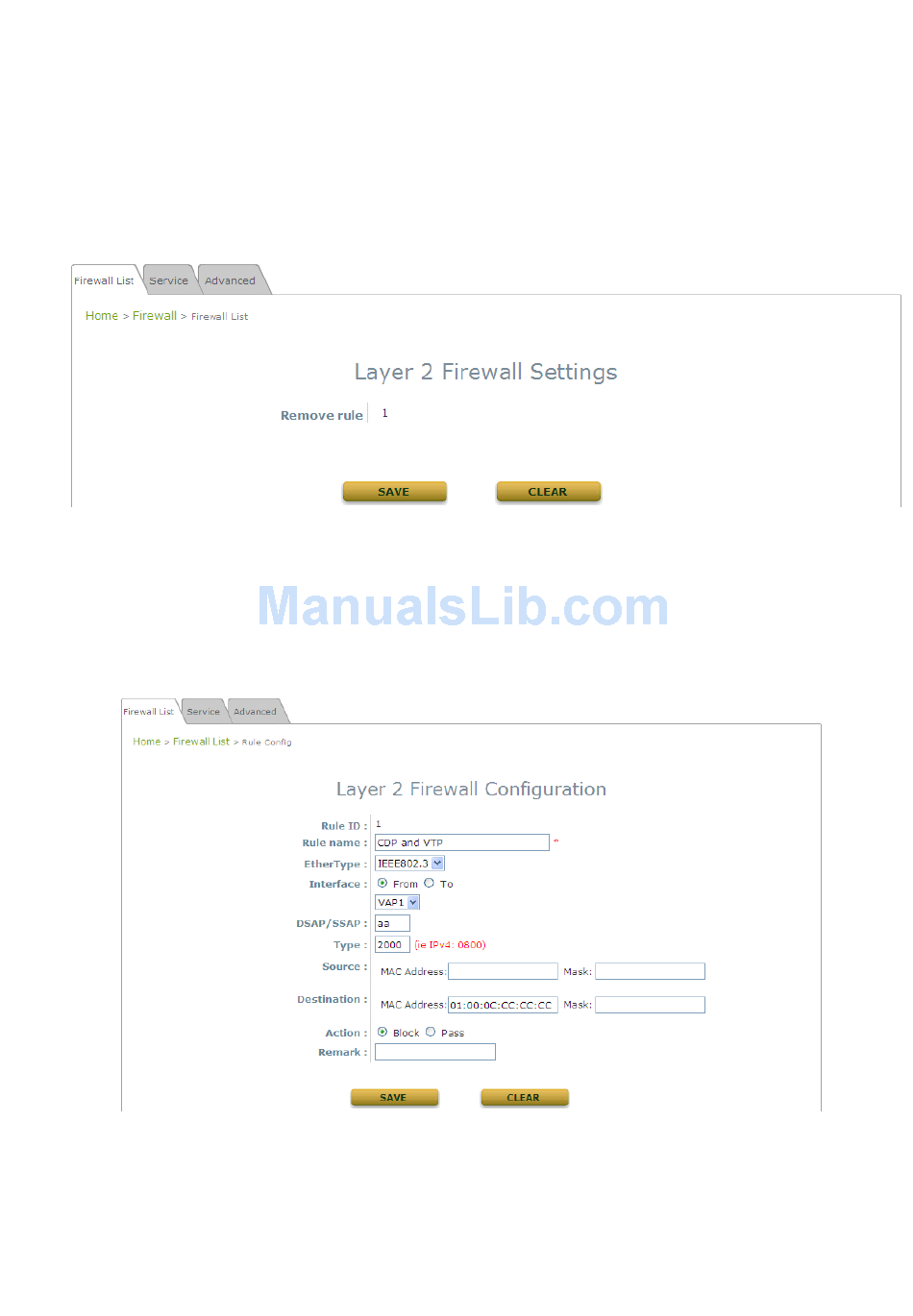

Layer 2 Firewall Settings Screen (Remove rule)
Layer 2 Firewall Configuration Screen (Edit)
NP727 User's Manual V1.00
