Quick Start Guide
NP720
Wireless Access Point

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NP720 and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NP720

Summary of Contents for NetComm NP720

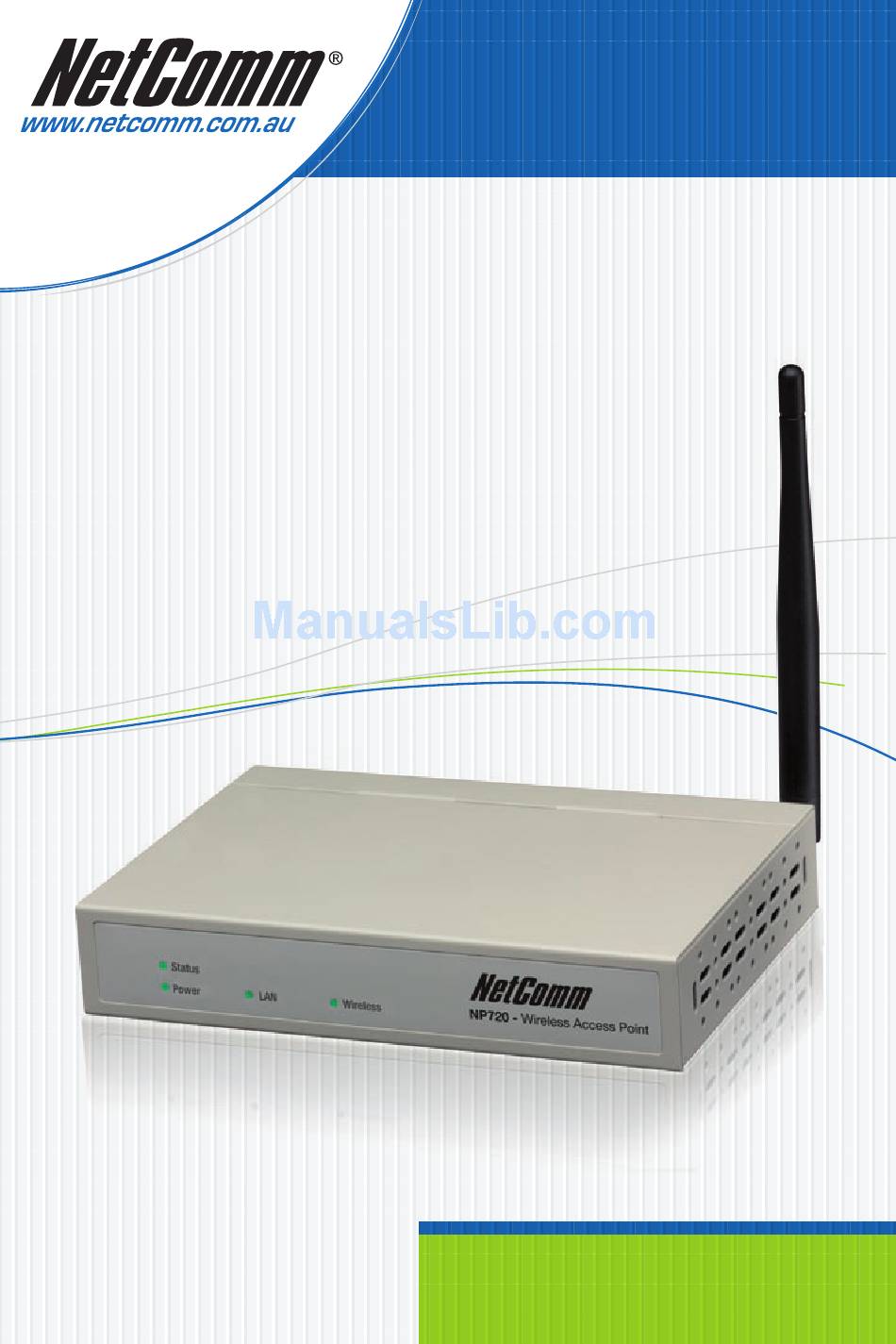

  • Page 1 Quick Start Guide NP720 Wireless Access Point...

  • Page 2: Package Contents

    1. Introduction Package Contents The following items should be included: If any of the above items are damaged or missing, please contact your dealer immediately. Physical Details Front Panel LEDs Status On - Error condition. Off - Normal operation. Blinking - This LED blinks during start up, or when the Firmware is being upgraded.
  • Page 3 "network traffic" as well as user data. Rear Panel Antenna One antenna (aerial) is supplied. Best results are usually obtained with the antenna in a vertical position. Console DB9 female RS232 port. Reset Button This button has two (2) functions: Reboot.
  • Page 4 2. Installation 1. Select a suitable location for the installation of your Wireless Access Point. To maximize reliability and performance, follow these guidelines: • Use an elevated location, such as wall mounted or on the top of a cubicle. • Place the Wireless Access Point near the center of your wireless coverage area.
  • Page 5 Note: To use PoE (Power over Ethernet), the Wireless Access Point should be connected as shown below, rather than using steps 2 and 3 above. 4. Check the LEDs: • The Status LED should flash, then turn OFF. • The Power, Wireless LAN, and LAN LEDs should be ON.
  • Page 6 • Until the Wireless Access Point is configured, establishing a Wireless connection to it may be not possible. • If your LAN contains a Router or Routers, ensure the PC used for configuration is on the same LAN segment as the Wireless Access Point. 3.
  • Page 7 4. Client (PC) Configuration WEP/WPA-PSK Mode Each Wireless Station must have the same settings as the Wireless Access Point. Mode On each PC, the mode must be set to Infrastructure. SSID (ESSID) This must match the value used on the Wireless Access Point.

  • Page 8: Product Warranty

    Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
