3.3 Basic Configuration

The NP727 supports web-based configuration. Upon the completion of the hardware installation, the NP727 can be
configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0 and
the above.
The default values of the LAN IP address and subnet mask of the NP727 are:
IP Address: 192.168.27.1
Subnet Mask: 255.255.255.0
•
To access the web management interface, connect the administrator PC to the LAN port of the NP727 via an
Ethernet cable. Then, set a static IP address on the same subnet mask as the NP727 in the TCP/IP of your PC,
such as the following example (Please note that the IP address used shall not be duplicated with the IP
address of other devices within the same network.):
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
•
Launch the web browser on your PC by entering the IP address of the NP727 (http://192.168.27.1) in the

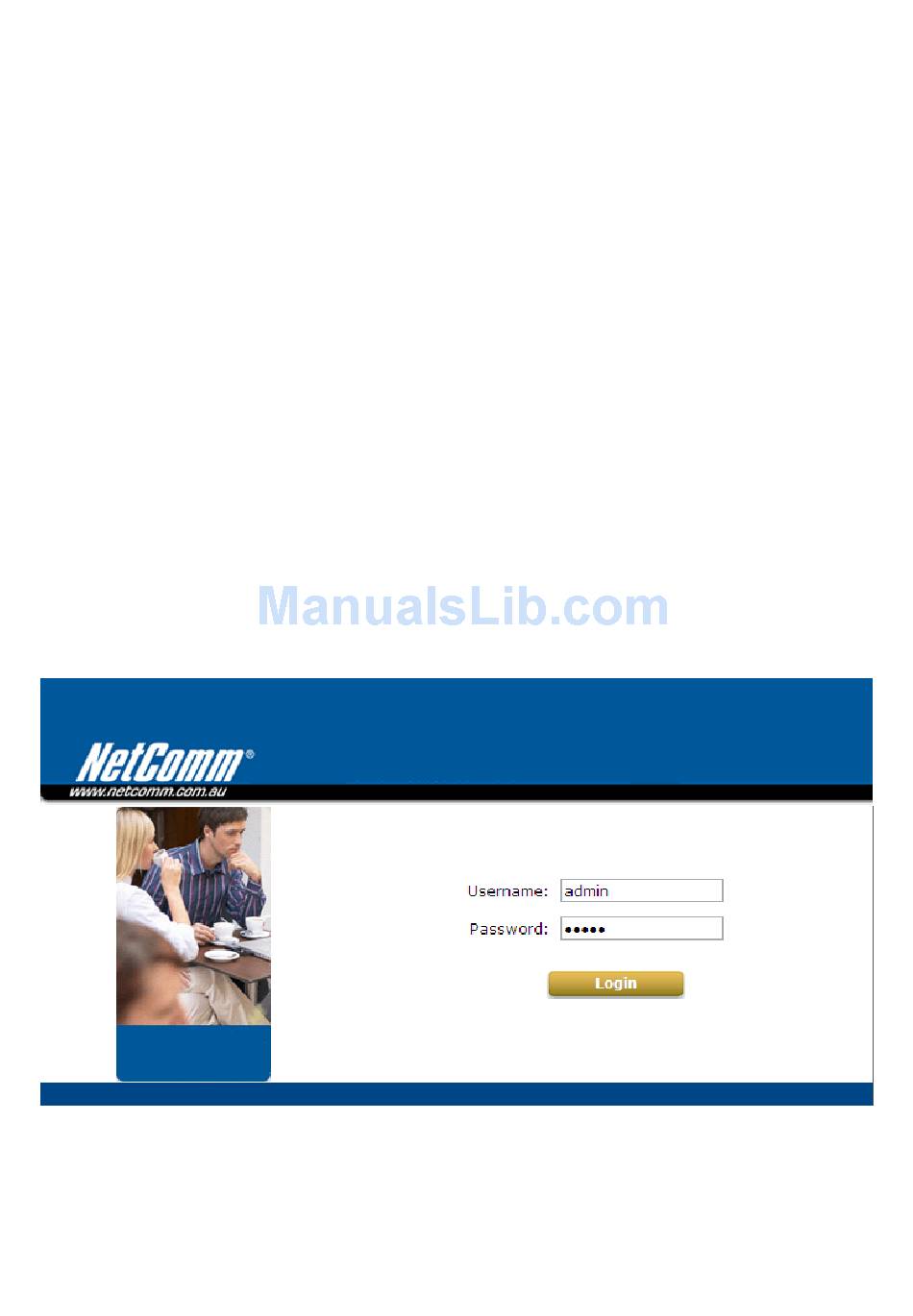

address field, and then press Enter. The following Administrator Login Page will then appear. Enter "admin"
for both the User name and Password fields, and then click Login to log in.
User name: "admin"
Password: "admin"
•
After a successful login into the NP727, a System Overview page of the web management interface will
appear. To logout, simply click on the Logout button in the upper right hand corner of the interface to return to
the Administrator Login Page.
