Step 5. Configure WDS (Wireless Distribution System) Settings
To extend its wireless coverage, the NP727 is capable of creating WDS links for connection to other WDS-capable
APs (peer APs). The NP727 supports up to 4 WDS links; by default, all WDS profiles are disabled.

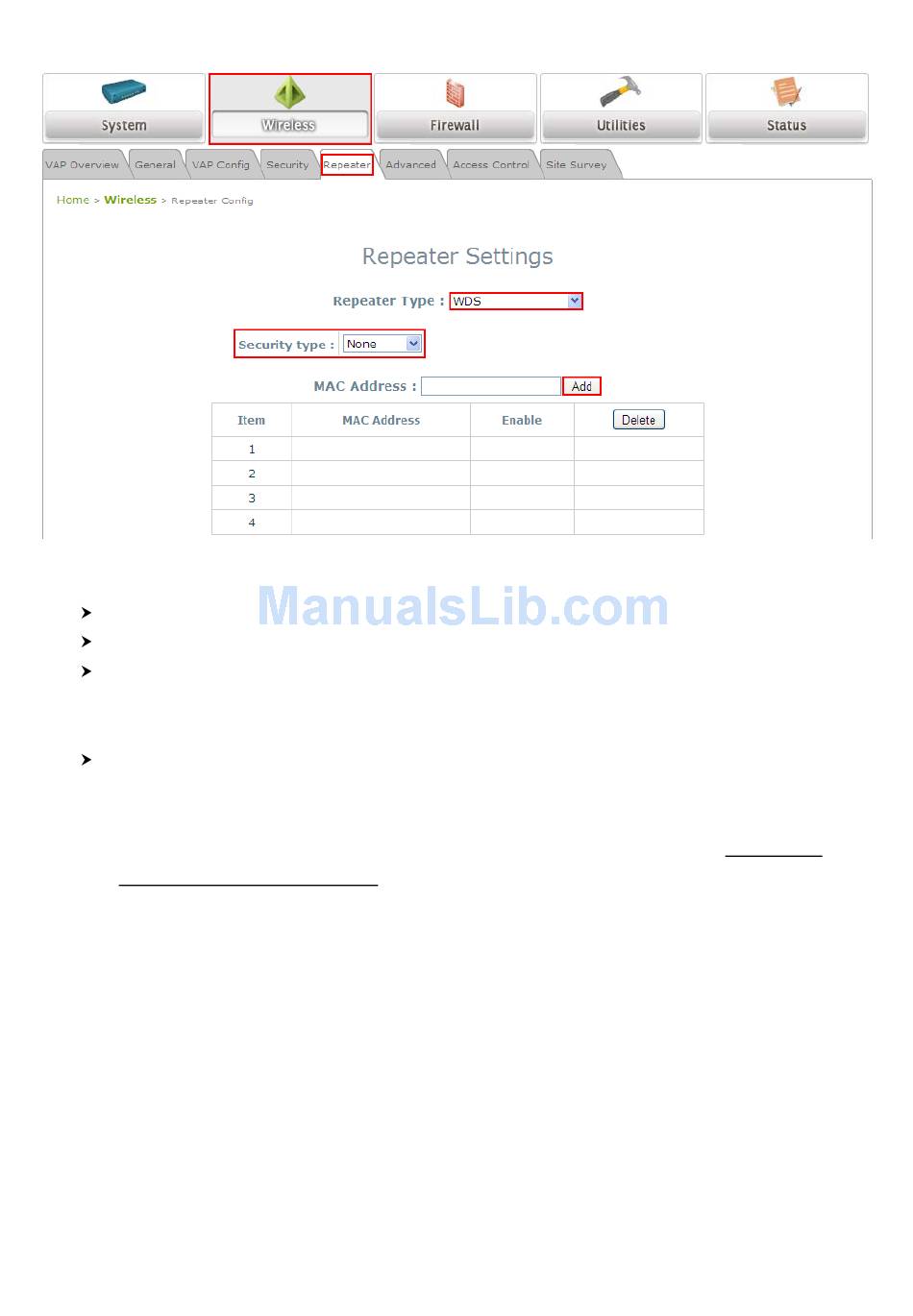

Click on the Repeater tab.
Select WDS from the drop-down list of Repeater Type.
Configure WDS link parameters:
(a) Select preferred Security Type
(b) Enter MAC Address of Remote AP (peer AP) and click Add
To configure peer AP(s):
After completing the WDS settings for the NP727 (functioning as a "primary WDS station"), you must
also configure the settings of its peer AP(s).
If you use another NP727 as the peer AP, simply repeat the above-mentioned steps with the MAC
Address of the primary WDS station for setting WDS link parameters of the peer AP(s).
NP727 User's Manual V1.00
