10
en | Unpacking
The LTC 2382/90 also offers programmable camera titles of up to 8 characters.
The LTC 2382/90 allows recording in Full or Quad modes of individual cameras. Quad
recorded images can be viewed in full screen using the built-in zoom playback. In addition,
you can remotely control the LTC 2382/90, as well as synchronize the unit with external time/
date signals through an RS-232 connection.
Several units may be daisy chained together so that all can be controlled from one PC.
Individual units are identified by setting the UNIT ID parameter.
Other features include a flashing alarm indicator, programmable audible alarm, a video loss
output relay and an alarm output relay for control of a VCR or other device. Also available are
front panel alarm clear, user programmable alarm dwell time, and a video loss indicator.
2.3

Installing the Video Quad

These units allow user-friendly on-screen programming for quick-and-easy setup. The
following figures illustrate connecting cameras, monitors, alarms and video recording devices
to the units.
NOTICE! It may be necessary to connect a separate ground connection to the grounding
i
screw on the rear panel to eliminate electrical interference on the video images.

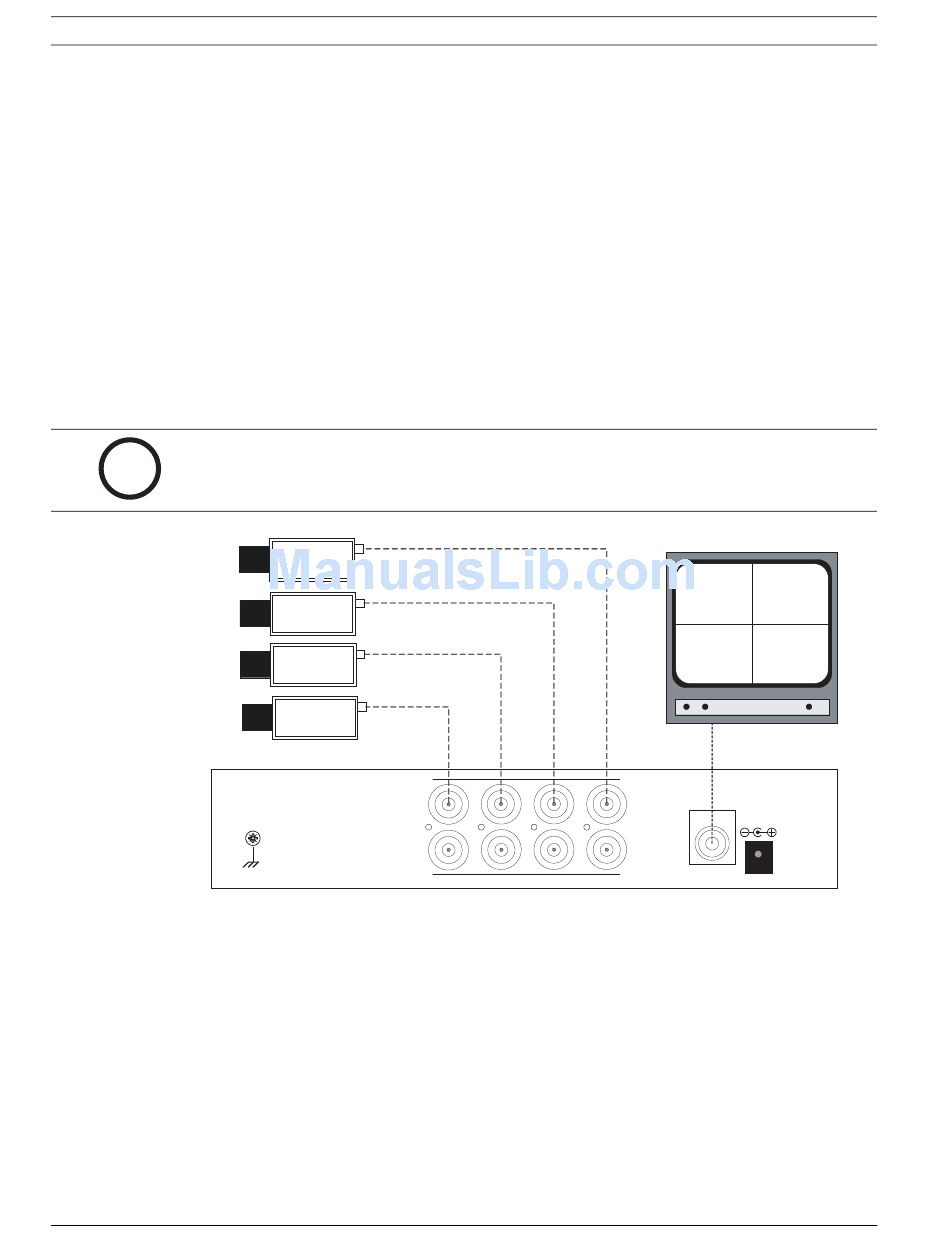

Figure 2.1 Typical Installation Configuration for LTC 2380/90
F.01U.090.110 | 3.0 | 2010.04
OUT
GND
IN
3
4
1
2
1
2
3
4
User's Guide
Digital Video Quad Processor
MON
MON
5V DC
Bosch Security Systems, Inc.
