Bosch MADI Card Plus Series User Manual

Multichannel audio digital interface card.
Hide thumbs

Advertisement

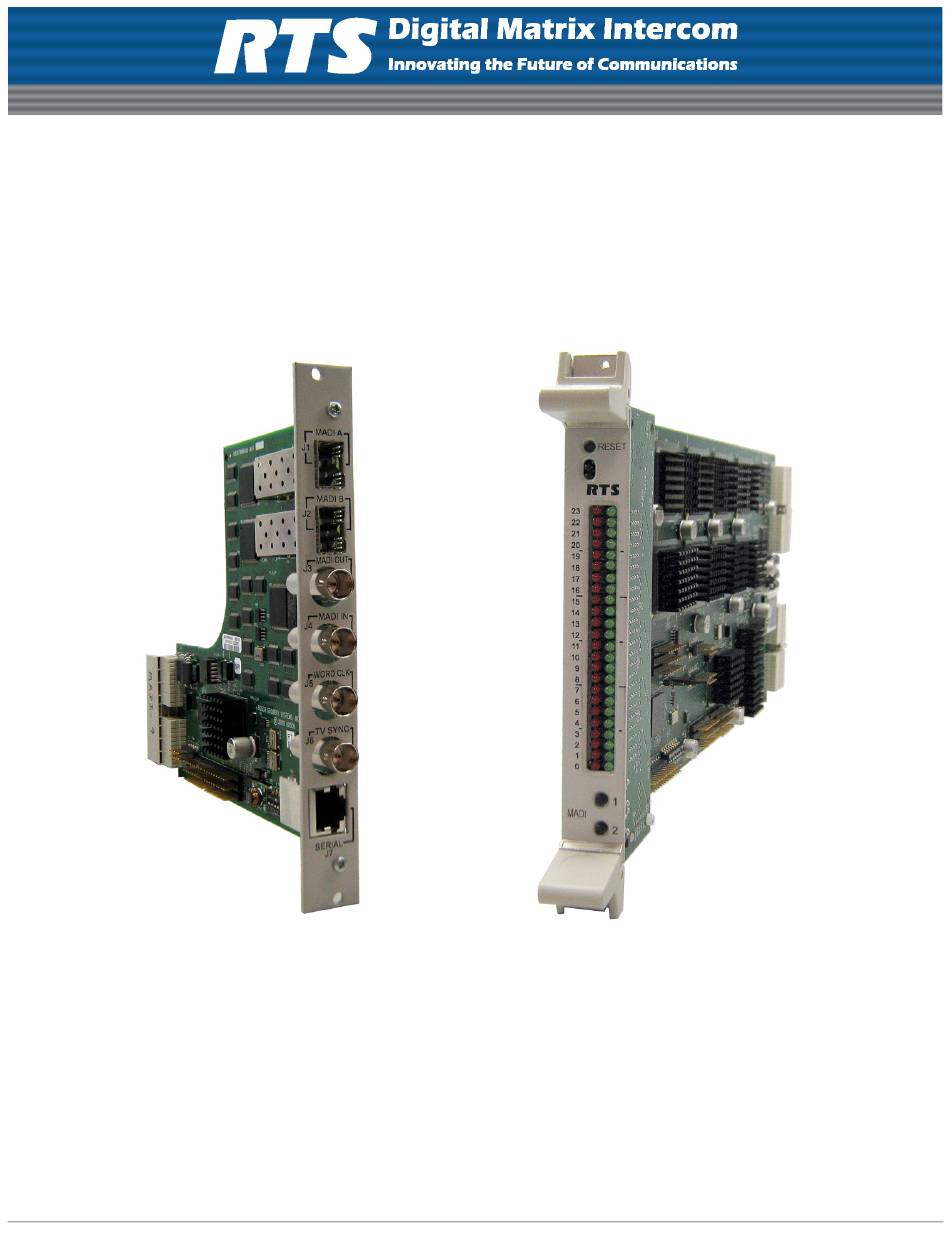

MADI Card Plus
Multichannel Audio Digital Interface Card
User Manual
MADI
MADI
Back Card
Front Card
93507896000 Rev B
08/2010

Advertisement

Table of Contents

   Related Manuals for Bosch MADI Card Plus Series

   Summary of Contents for Bosch MADI Card Plus Series

  • Page 1 MADI Card Plus Multichannel Audio Digital Interface Card User Manual MADI MADI Back Card Front Card 93507896000 Rev B 08/2010...
  • Page 2 OTICE The product information and design disclosed herein were originated by and are the property of Bosch Security Systems, Inc. Bosch reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.
  • Page 3 MADI C VAILABLE PTIONS MADI-16 Card ..................................F01U169843 MADI-32 Card ..................................F01U169844 MADI-48 Card ..................................F01U169845 MADI-64 Card ..................................F01U169846 MADI-16 to 32 Upgrade ................................F01U169847 MADI-16 to 48 Upgrade ................................F01U169848 MADI-16 to 64 Upgrade ................................F01U169849 MADI-32 to 48 Upgrade ................................F01U169850 MADI-32 to 64 Upgrade ................................
  • Page 5: Table Of Contents

    Table Contents INTRODUCTION ........................... 3 Features ................................3 Reference Views ..............................4 Specifications ..............................6 Connection Pin Outs ............................7 RJ-45 Pin Outs ..................................7 Front Card DIP Switch ............................8 Back Card DIP Switch ............................9 System Configuration Schemes ......................... 10 Word Clock Configuration .............................10 Fiber Configuration .................................11 Coaxial Configuration ..............................11...
  • Page 6 Card Slot Drop Down List ..............................20 Show MADI Cards Only Check Box ..........................20 Entry Display Column ..............................20 Port Display Column ...............................20 Alpha Display Column ..............................21 MADI Channel Drop Down Column ..........................21 Muted? Check Box Column ............................21 Show Unavailable Channels Check Box ........................21 MADI Card Status Window ..........................22 Slot Display Column ...............................22 Description Display Column ............................22...
  • Page 7 List Figures FIGURE 1. MADI 16 Plus Back Card Reference View ..................5 FIGURE 2. Front Card DIP Switch Location ....................8 FIGURE 3. Back Card DIP Switch Location ..................... 9 FIGURE 4. 3 Card Word Clock Daisy Chain Wiring ..................10 FIGURE 5.
  • Page 9: Introduction

    CHAPTER 1 Introduction The MADI 16 Plus card (9000-7896-000) expands the ADAM system configuration capabilities by utilizing MADI (Multi-channel Audio Digital Interface) technology to connect any AES-10 compliant device over coaxial or fiber connections at sampling rates of 44.1kHz and 48kHz. The MADI is a point-to-point configuration which provides for little or no delay in the transmission of audio across lines.
  • Page 10: Reference Views

    Reference Views Reference Views MADI 16 Plus Front Card LED Reference View TABLE 1. Red LEDs LED # Green LEDs TXing on Control Bus RXing on Control Bus Processing RX Message Link Fault – Fiber A Using Fiber A Link Fault – Fiber B Using Fiber B Link Fault –...
  • Page 11 Reference Views MADI 16 Plus Back Card Reference View FIGURE 1.
  • Page 12: Specifications

    Specifications NOTE: The fiber optic transceivers provide Class 1 eye Specifications safety by design and do not emit accessible laser radiation levels in excess of the Power acceptable emission limit (AEL) within the Input Power inherent design or intended use of the laser. Exempt, do not pose a hazard under normal 5.2Amps @ 5V (MADI Front/Back Card operating conditions.
  • Page 13: Connection Pin Outs

    Connection Pin Outs Connection Pin Outs RJ-45 Pin Outs RJ-45 Function TXD RS-232 Received Data or RS-485+ RXD RS-232 Transmitted Data or RS-485-...
  • Page 14: Front Card Dip Switch

    Front Card DIP Switch Front Card DIP Switch Front Card DIP Switch Location FIGURE 2. DIP Switch Description Switch Position Debug Only Mode Must be left in off position Debug Only Mode Must be left in off position Must be left in off position Must be left in off position Must be left in off position Must be left in off position...
  • Page 15: Back Card Dip Switch

    Back Card DIP Switch Back Card DIP Switch Back Card DIP Switch Location FIGURE 3. DIP Switch Description Switch Position Selects either RS-485 or Off (default) - RS-485 RS-232 for the serial On - RS-232 pass-through port.
  • Page 16: System Configuration Schemes

    System Configuration Schemes System Configuration Schemes Word Clock Configuration 3 Card Word Clock Daisy Chain Wiring FIGURE 4. 3 Card Word Clock Hub Wiring FIGURE 5.
  • Page 17: Fiber Configuration

    System Configuration Schemes Fiber Configuration 3 Card Fiber Module A and Module B Wiring FIGURE 6. Coaxial Configuration 3 Card Coaxial Wiring FIGURE 7.
  • Page 18: Tv Sync Configuration

    System Configuration Schemes TV Sync Configuration 3 Card TV Sync Hub Wiring FIGURE 8. Serial Pass-Through Configuration Serial Pass-Through Wiring FIGURE 9.
  • Page 19: Trunking Configuration

    System Configuration Schemes Trunking Configuration MADI-16 Plus – Trunking Configuration FIGURE 10.
  • Page 20 System Configuration Schemes...
  • Page 21: Installation

    CHAPTER 2 Installation Requirements You must have the following: AZedit v3.9.0 or later • Master Controller v2.2.0 or later • MADI 16 Plus v2.0.0 or later • If using a multi frame system, with DBX: • DBX v1.23.0 or later PeriphII-e v 1.23.0 or later How to Install Use the following instructions for your initial setup of a MADI 16 Plus Card.
  • Page 22: Cable The System

    Installation Cable the System Using the information in “System Configuration Schemes” on page 10, determine what type of configuration you are going to use for your system. Configure your MADI 16 Plus Card To configure your MADI 16 Plus Card, do the following: Step 1 Select your Channel Allocation Scheme, see “Channel Allocation Scheme”...
  • Page 23: Window Descriptions

    CHAPTER 3 Window Descriptions MADI Card Configuration Window MADI Card Configuration Page FIGURE 11. Slot Display Column The Slot display column shows the location of the card in relation to the frame the card resides and its position in the frame. For example, 2:017 indicates the card is in frame two (2) and slot 17 of the card in the frame.
  • Page 24: Description Display Column

    MADI Card Configuration Window Description Display Column The Description display column shows the unique description of the card. This description can be created or modified in the I/O Status Description window. To create or modify the description, do the following: From the Alpha menu in AZedit, select I/O Card.
  • Page 25: Sample Rate Drop Down Column

    MADI Card Configuration Window Sample Rate Drop Down Column The Sample Rate drop down column is used to select the speed the MADI card references for transmission. IMPORTANT: When Word Clock is selected as the type of clock, the sample rate must match the Word Clock driver. •...
  • Page 26: Madi Channel Mapping Window

    MADI Channel Mapping Window MADI Channel Mapping Window The MADI Channel Mapping window, shown in Figure 13, is used to map the available MADI channels to available intercom ports in the system. MADI Channel Mapping Window FIGURE 13. Card Slot Group Box Card Slot Drop Down List The Card Slot drop down list is used to select the card you want to configure.
  • Page 27: Alpha Display Column

    MADI Channel Mapping Window Alpha Display Column The Alpha display column shows the alpha of the selected port. Alphas can be 4-, 6-, or 8-character names depending on the configuration of AZedit. REFERENCE: For more information on configuring AZedit, see the AZedit User Manual (P/N 93507769000). MADI Channel Drop Down Column The MADI Channel drop down column is used to select the MADI channel associated with the intercom port.
  • Page 28: Madi Card Status Window

    MADI Card Status Window MADI Card Status Window MADI Card Status Window FIGURE 14. Slot Display Column The Slot display column shows the slot location of the card in the intercom system. Description Display Column The Description display column shows the description assigned to the slot. Ports Display Column (1) The Ports display column shows the first eight (8) channels assigned to the slot.
  • Page 29: Active Link Display Column

    MADI Card Status Window Active Link Display Column The Active Link display column shows the status of the active link (Fiber A, Fiber B, or Coax). There are two (2) status message possibilities: OK and Bad Backup Link Display Column The Backup Link display column shows the status of the backup link, if configured.
  • Page 30 MADI Card Status Window...
  • Page 31: Configuration

    CHAPTER 4 Configuration The MADI-16 Plus is almost entirely configured using RTS’ AZedit configuration software. You can set the channel allocation scheme, set the speed, set the synchronization source, select the channel size, map channels, configure a redundant fiber connection, set the volume, and upgrade MADI firmware. IMPORTANT: A maximum of four (4) MADI 16 Plus cards can be used in a single frame.
  • Page 32: Base 16

    Configuration Base 8 Channel Number Scheme Example FIGURE 15. Base 16 Unlike the Base 8 channel numbering scheme, where the channels are split into an upper and lower set of eight (8), the Base 16 channel numbering scheme puts all 16 channels in one (1) slot. This means, when you configure your intercom system to support Base 16, slot 1 in the ADAM holds channels 1–16, slot 2 holds channels 17–32, slot 3 holds 33 through 48, and so on.
  • Page 33 Configuration To set the port configuration scheme, do the following: From the Options menu in AZedit, select Frame Mapping Table..The Frame Mapping Table window appears. Base Sixteen Check Box FIGURE 17. Clear the Base 16 check box for the frame you want Base 8 channel configuration. Select the Base 16 check box for the frame you want Base 16 channel configuration.
  • Page 34: Reference Clock

    Configuration Reference Clock The Reference Clock for the MADI stream can come from one (1) of four (4) different sources: Internal - The MADI stream is set by the internal clock on the MADI card. MADI Stream - The MADI stream is set by the incoming MADI stream. NTSC/PAL - The MADI stream is set by the NTSC/PAL (TV Sync) source.
  • Page 35: Sample Rate

    Configuration Sample Rate The MADI-16 Plus has two (2) sampling speeds it can run—44.1kHz and 48.0kHz. To set the sample rate, do the following: From the System menu in AZedit, select Miscellaneous|MADI Configuration. The MADI Configuration window appears. On the MADI configuration tab, find the MADI card you are configuring. Sample Rate Drop Down Menu FIGURE 19.
  • Page 36: Channel Size

    Configuration Channel Size MADI devices support either 56 or 64 channels. When connecting a MADI device to the ADAM frame, you must configure AZedit with the channel size of the MADI device. This is so you can map the MADI channels correctly. To set the channel size, do the following: From the System menu in AZedit, select Miscellaneous|MADI Configuration.
  • Page 37: Channel Mapping

    Configuration Channel Mapping Channel Mapping allows you to assign specific MADI channels to particular ports. For example, if your MADI device has 56 channels of audio and each ADAM slot supports 16 channels, you may need to assign channels on the same MADI device to different ports.
  • Page 38 Configuration Click the Channel drop down menu. A list of available MADI device channels appear. MADI Device Channel Menu FIGURE 22. Select the MADI device channel you want to assign. Click the activate icon to send the assignment to the matrix.
  • Page 39 Configuration To map multiple MADI device channels at the same time, do the following: From the System menu in AZedit, select Miscellaneous | MADI Configuration. The MADI Configuration window appears. Click the MADI Channel Mapping tab. The MADI Channel Mapping page appears. Channel Mapping Page FIGURE 23.
  • Page 40 Click the Channel drop down menu. A list of available channel ranges appear. MADI Device Channel Ranges FIGURE 24. Select the channel range you want to assign. Click the activate icon to send the assignment to the matrix.
  • Page 41: Merge Channels

    Configuration Merge Channels A Merge is where an certain amount of MADI channels from one (1) MADI device is combined with a certain amount of channels from another MADI device to build a total system of up to 64 channels. MADI channel mapping and merging associates ADAM channels to MADI channels.
  • Page 42: Download Firmware

    Configuration Download Firmware To download new firmware to the MADI 16 Plus card, do the following: From the Status menu in AZedit, select Software Versions|I/O Cards. The I/O Card Versions window appears. I/O Card Version Information Window FIGURE 26. Right-click the MADI card you want download firmware to. A Download Firmware menu option appears.
  • Page 43: Download License File To Madi Card

    Configuration Click OK. The success message and the Download Device Firmware window close. Success Message FIGURE 28. From the Status menu, select I/O Cards. The I/O Card Status window appears. Verify the MADI 16 Plus firmware has been updated. IMPORTANT: Do not power down the frame or remove the MADI 16 Plus card from the frame until you have verified the new version information from AZedit.
  • Page 44 Configuration Navigate to the license file. Click Open. The Download License File window appears. Download License File Window FIGURE 30. Click Begin. The license file is downloaded. A success message appears once the file is done downloading. From the Status menu, select I/O Card Status. The I/O Card Status window appears.
  • Page 45: Port Allocation Table

    APPENDIX A Port Allocation Table Introduction The Port Allocation Table is used to support I/O cards with more than 16 ports. It allows you to select which card types occupy which intercom slots and which ports are allocated to each card. Ports can be allocated in groups of four (4). Each group contains 16 ports.
  • Page 46: Port Allocation Table Window

    Port Allocation Table Window Port Allocation Table Window Port Allocation Table Window FIGURE 31. Slot Column The Slot column displays the number of the slot where the card resides. This field is not editable. Type Column The Type column is used to select the type of card in the slot. Use the drop down menu to select the type of card in the slot. Available options are: AIO-8, AIO-16, RVON-8, RVON-16, MADI-16, MADI-32, MADI-48, MADI-64, and AES-3.
  • Page 47: Allocated Column

    Port Allocation Table Window Allocated Column The Allocated column is used to select the number of ports to allocate. Use the drop down menu to select the number of ports you want to allocate. Available options are: Used to allocate 8 ports in a Base 8 system. 8+8 - Used to allocate 16 ports in a Base 8 system.
  • Page 48: Ports Columns (4)

    Port Allocation Table Window Ports Columns (4) The Ports column is used to assign ports in either groups of eight (8) or 16 ports, depending on what is selected in the Allocated column. Up to four (4) groups of 16 ports are allowed. TIP: To assist in setup and configuration debug, assign consecutive port numbers for multi-group port columns.
  • Page 49: Warning Field

    Port Allocation Table Window Warning Field The Warning field displays warnings pertaining to the intercom system as a whole. Warning Field FIGURE 35. Apply Button The Apply button is used to apply any modifications made to the port allocation table to the intercom system while the window remains open.
  • Page 50 Bosch Security Systems, Inc. 12000 Portland Avenue South Burnsville, MN 55337 U.S.A. www.boschcommunications.com...
