3. Connector module

The has a dedicated connector module:
ADC-SDI-CC
rear of the sub-rack. The module is shown in Figure 2 .

3.1 Correspondence of connectors and signals

The ADC-SDI-CC-C1 connector module has 7 BNC's:
CVBS/Y Analogue input: CVBS, SYNC for RGB or S-Video Luma.
R/Pr Analogue input: Red or component Pr.
G/Y Analogue input: Green or component Y.
B/Pb/C Analogue input: Blue, component Pb or S-Video Chroma.
SDI-OUT Digital SDI output
SDI-OUT Digital SDI output
SDI-OUT Digital SDI output
SDI1, SDI2 and SDI3 are equivalent SDI outputs.
Note: The analogue inputs are internally terminated with 75Ω on the ADC-SDI-CC card.

3.2 Mounting the connector module

The details of how the connector module is mounted, is found in the user manual for the sub-rack frame
FR-2RU-10-2.
This manual is also available from our web site: http://www.network-electronics.com/
Network Electronics AS, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98
E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/
Technical specifications are subject to be changed without notice.

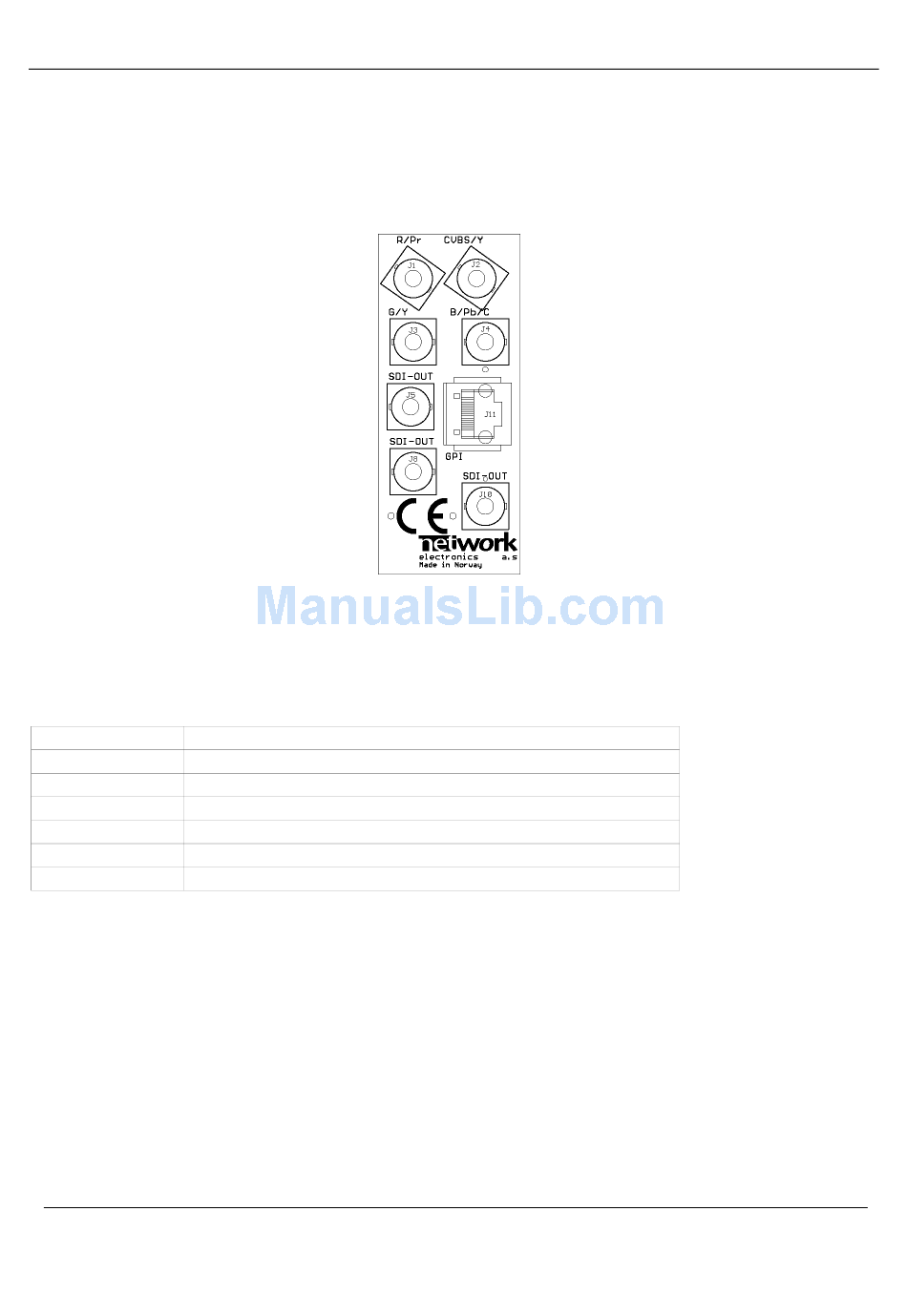

Figure 2 - ADC-SDI-CC-C1 connector module.
