5. Module status

The status of the module can be monitored in two ways.
1. GYDA System Controller (optional).
2. LED's at the front of the sub-rack.
The LED's are mounted on the module itself, whereas the GYDA System Controller is a separate module
which gives detailed information on the card status. The functions of the LED's are described on the next
page. The GYDA controller is described in a separate user manual. This manual is available on our web
site: http://www.network-electronics.com/
5.1 GPI ALARM – Module Status Outputs
These outputs can be used for wiring up alarms for third party control systems. The GPI outputs are open
collector outputs, sinking to ground when an alarm is triggered. The GPI connector is shown in Figure 4 .
Electrical Maximums for GPI outputs
Max current: 100mA
Max voltage: 30V
ADC-SDI-CC module GPI pinning:
Signal Name
Status General error status for the module.
Input No video input detected
VCXO Module not gen-locked to video input Pin 3 Open Collector
SDI Output No SDI output present
Ground 0 volt pin
Network Electronics AS, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98
E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/
Technical specifications are subject to be changed without notice.
Pin # Mode
Pin 1 Open Collector
Pin 2 Open Collector
Pin 4 Open Collector
Pin 8 0V.
Rev. 3
DATE: 23 July 2008

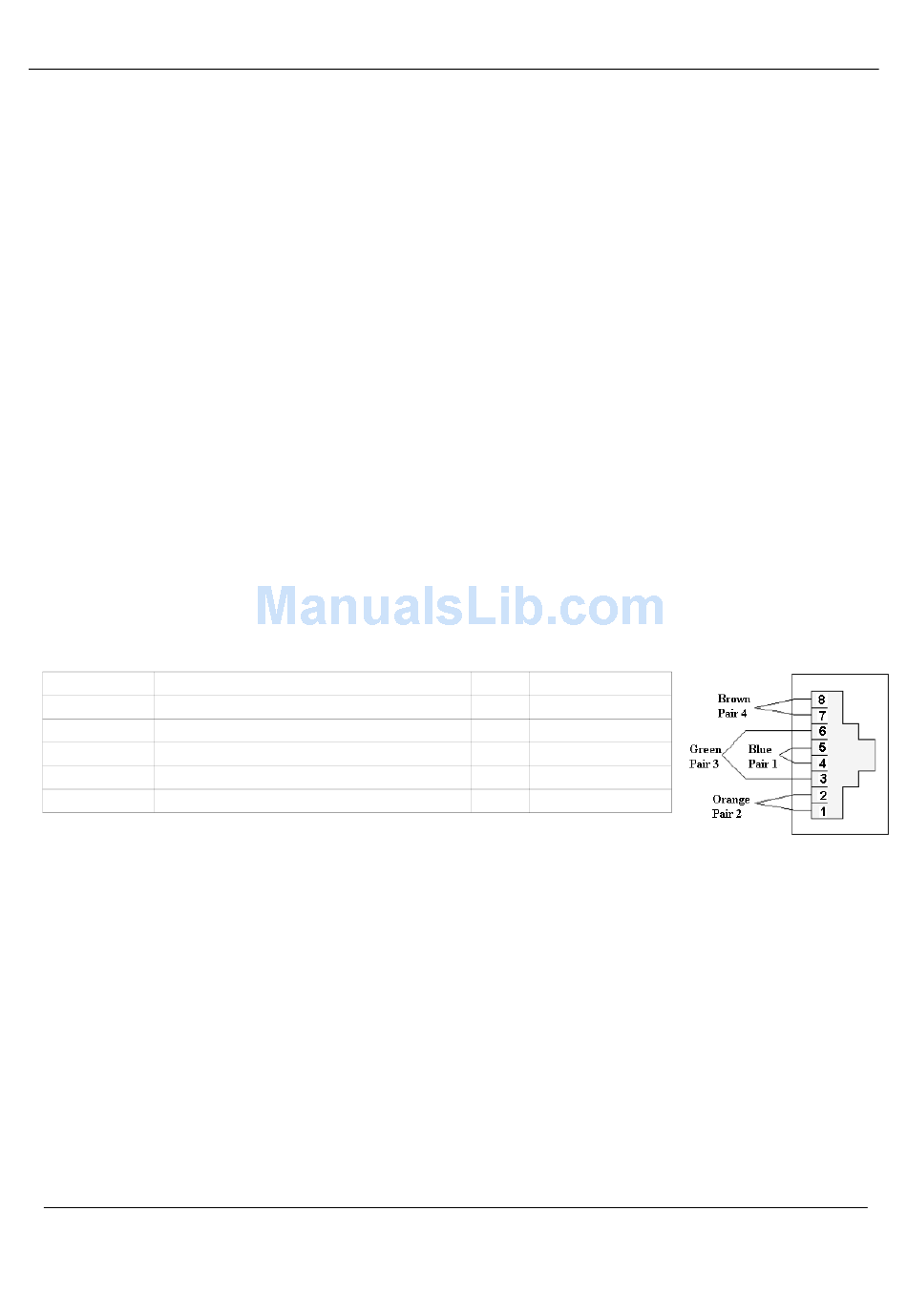

Figure 4 - GPI Outlet
