5.2 Front Panel - Status Monitoring

The status of the module can be easily monitored visually by the LED's at the front of the module. The
LED's are visible through the front panel as shown in Figure 5 below.
(Text not printed on the front panel).
The ADC-SDI-CC has 4 LED's each showing status information. The position of the different LED's is
shown in Figure 5 .
Diode \ state Red LED
Card State Module is faulty
Input No video input
detected
VCXO No input detected Input signal is detected.
SDI Output No SDI output
Network Electronics AS, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98
E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/
Technical specifications are subject to be changed without notice.

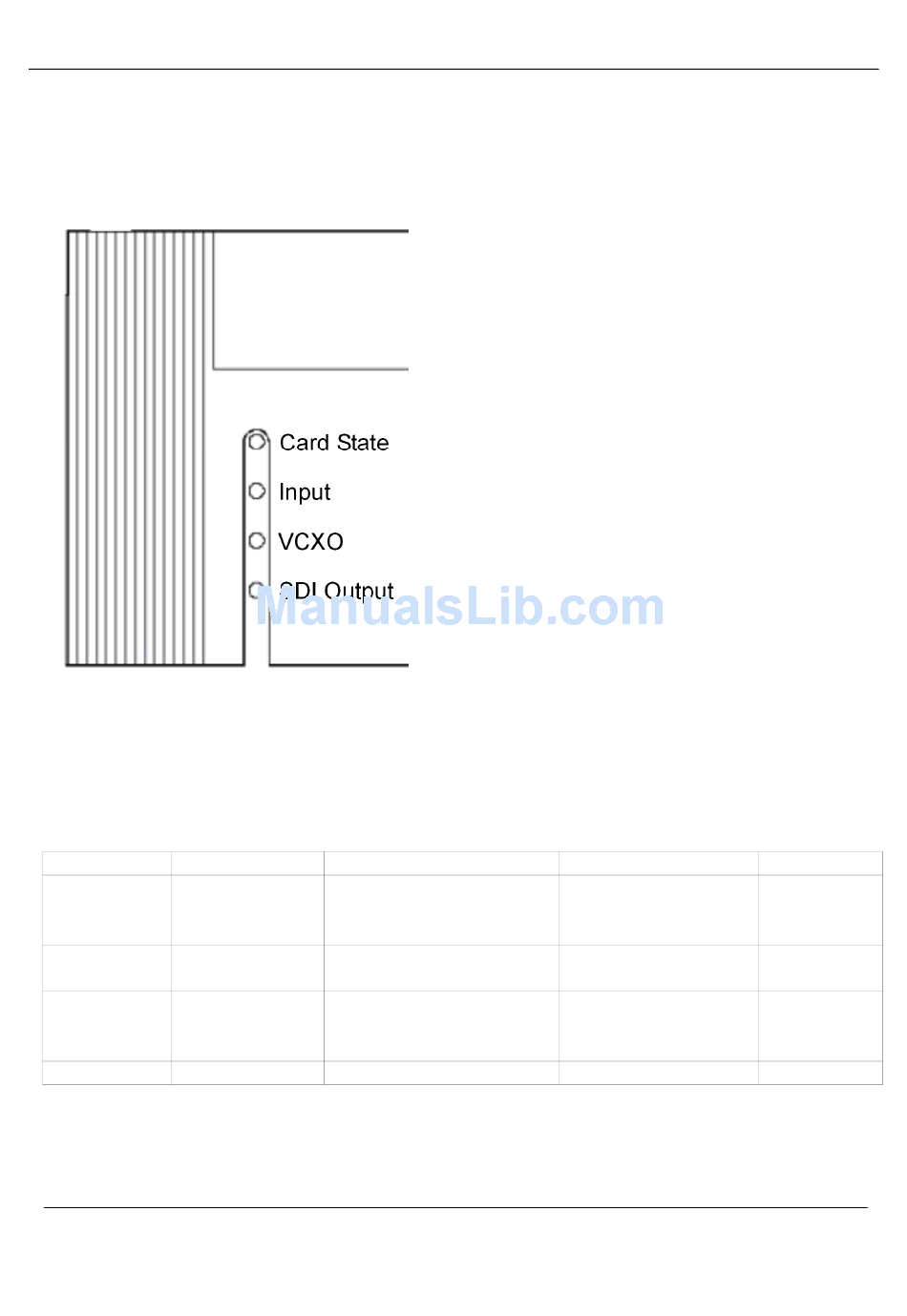

Figure 5 - Front panel indicator for ADC-SDI-CC
Yellow LED
Start-up-sequence is running Module is OK
Video not yet locked or input
comes from a VCR
Table 4 - Front panel LED indicator overview
DATE: 23 July 2008
Green LED
Module power is OK
Video input detected
Input signal is detected,
and properly locked
Correct SDI output
Rev. 3
No light
Module has no
power or
memory fault
