4 Connector module

The HD-EO-2 has a dedicated connector module: HD-EO-2-C1. This module is

mounted at the rear of the sub-rack. The module is shown in the figure below.

In typical use a HD-EO-2 / HD-OE-2 module at each end will be used. Two

channels simultaneously can be converted from optical to electrical channels.

The electrical input signal is connected to the INx input on the transmitting

HD-EO-2, and the electrical output is connected to the corresponding OUTx+

or OUTx- output BNC on the receiving HD-OE-2. The fiber cable is connected

to the corresponding optical port (OPT1 uses IN1/OUT1- and OUT1+ and

OPT2 uses IN2/OUT2- and OUT2+). Please note that OUT1- and OUT2- have

inverted signal versions, so formats like DVB-ASI can not use be used on this

output.

The details of how the connector module is mounted, is found in the user

manual for the sub-rack frame FR-2RU-10-2.

This manual is also available from our web site:

http://www.network-electronics.com/.

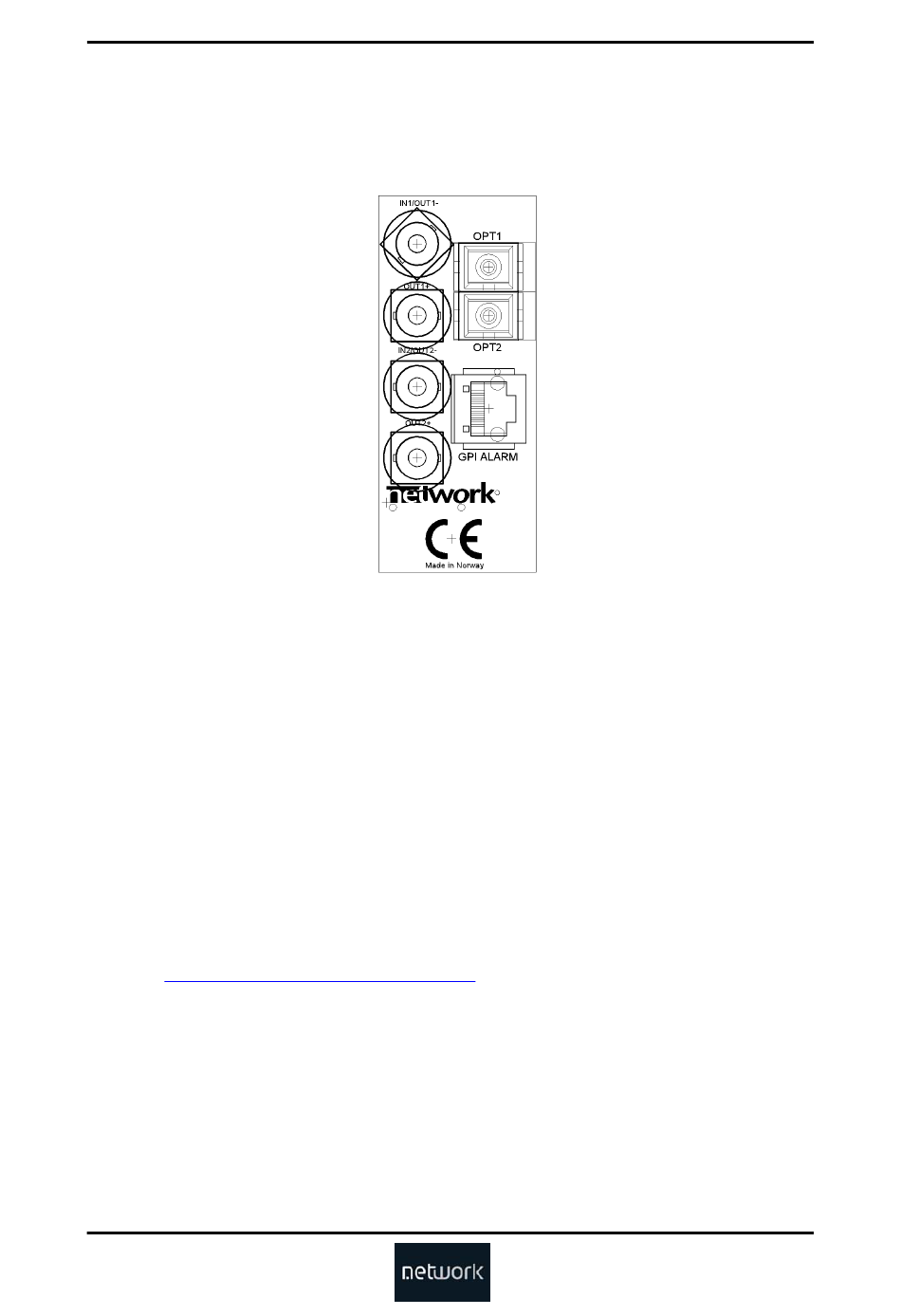

Figure 3: Connector module for HD-EO-2.
