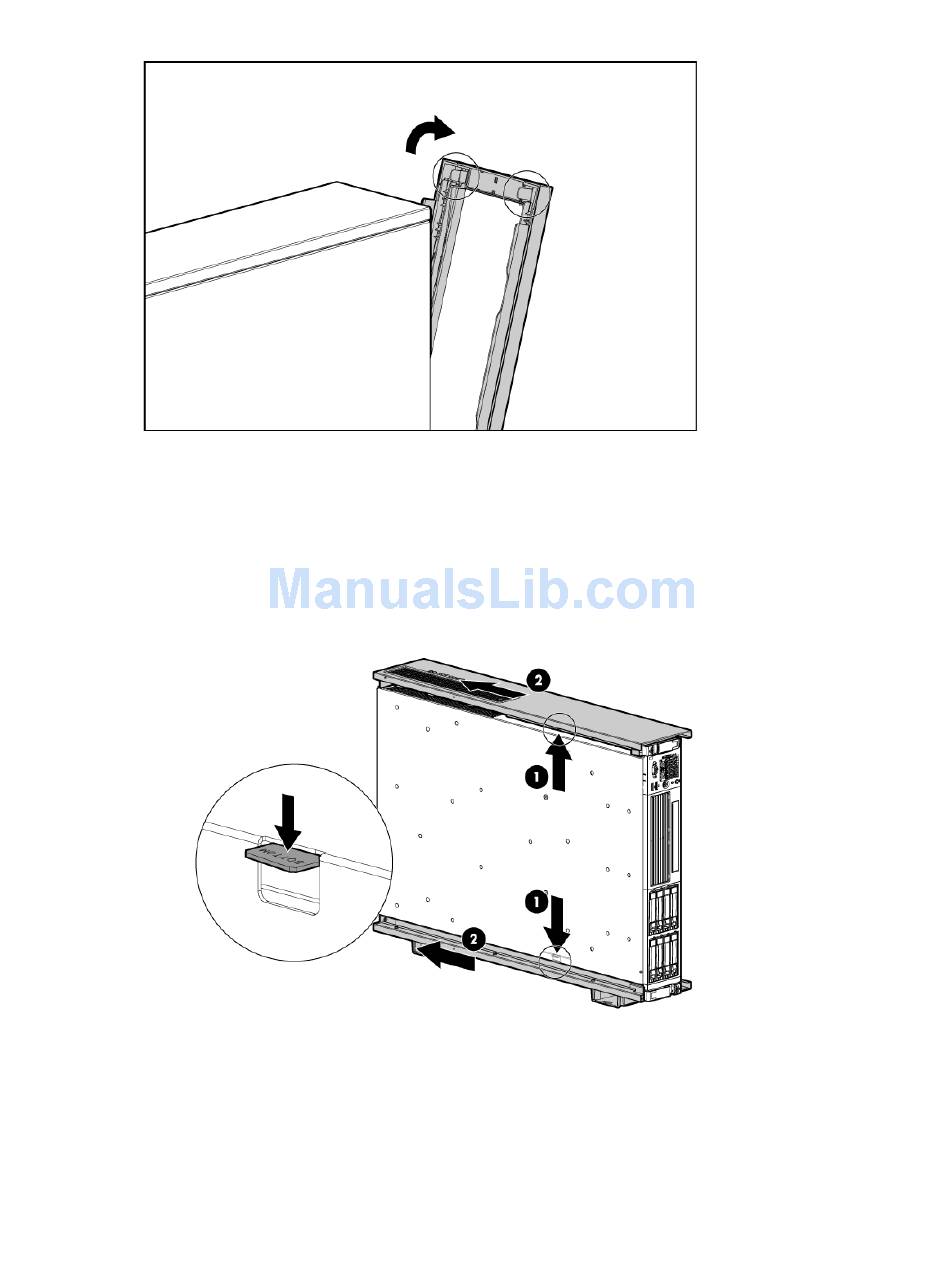

Figure 35 Removing the bezel cover
4. Remove the pedestal top piece.
a. With the server still in the vertical position, look at the left side of the server (server bottom)
to locate the lock release tab.
b. Press the lock release tab on the pedestal top piece away from the chassis to unlock the
pedestal top piece from the server. See
lock release locations.
Figure 36 Removing the pedestal top piece
c. Slide the pedestal top piece toward the back of the server to release it from the server.
d. Once the pedestal component has moved about 1/4 inch, the lock releases, and you
can release the tab.
e. Pull the pedestal kit top piece away from the server.
f. Repeat these steps for the bottom piece.
102 Removal and replacement procedures
Figure 36 for the pedestal top and bottom piece
