Removing and replacing the cache module

NOTE: The cache module is required to enable the full feature firmware stack for RAID support,
and certain levels of RAID support also require the super capacitor module and a Advanced Pack
license key.
To enable Advanced Pack licensing, see
1. Power off the server
2. Extend or remove the server from the rack
or "Extending the server from the rack" (page
3. Remove the access panel
4. Remove the PCI riser cage
5. Disconnect the cable to the super capacitor pack.

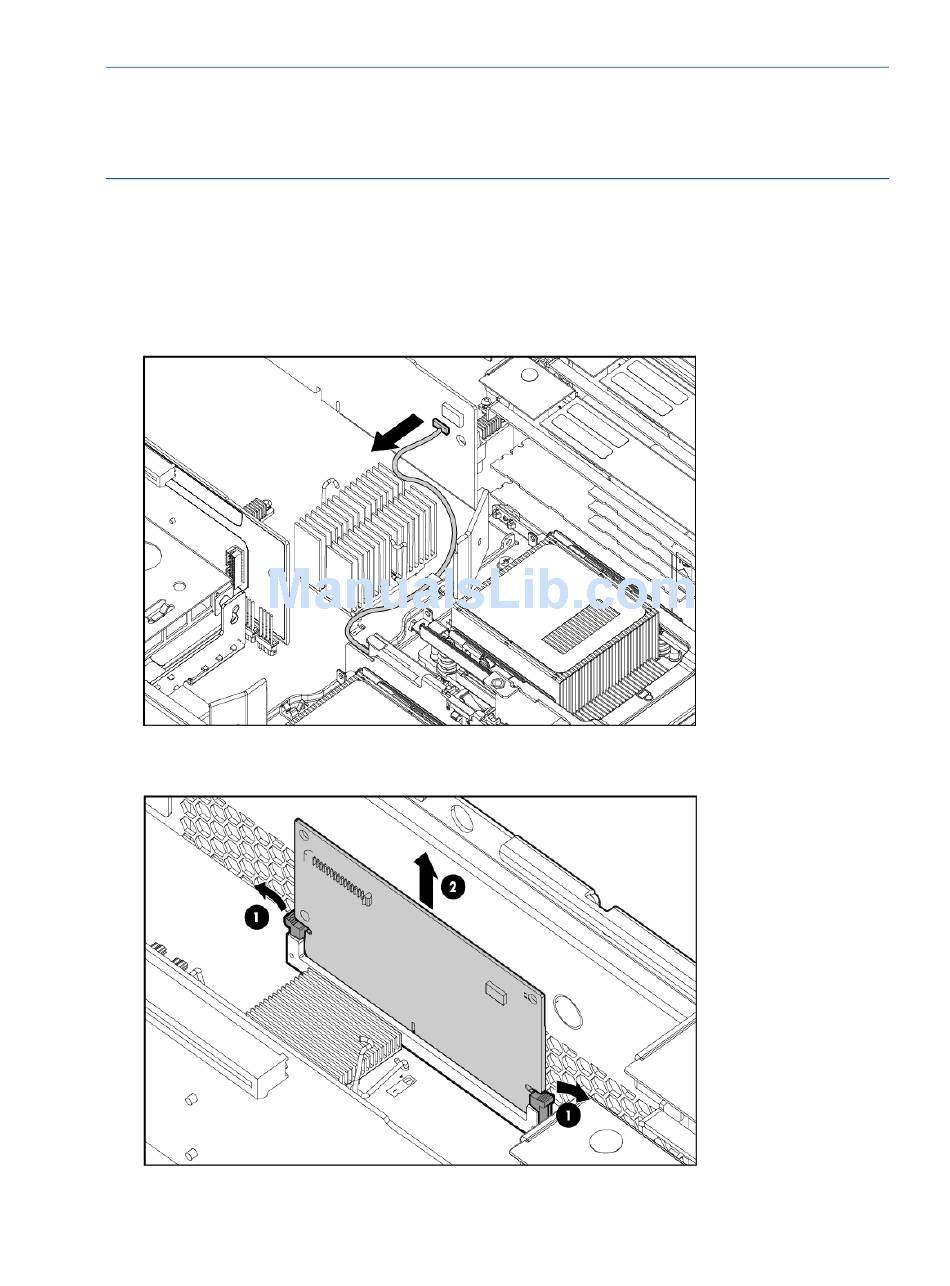

6. Remove the cache module.
1 14 Removal and replacement procedures
"Adding a RAID Advanced Pack license key" (page
("Powering off the server" (page
("Removing the server from the rack" (page
("Removing and replacing the access panel" (page
("Removing and replacing the PCI riser cage" (page
99)).
95)).
140).
99))
106)).
111)).
