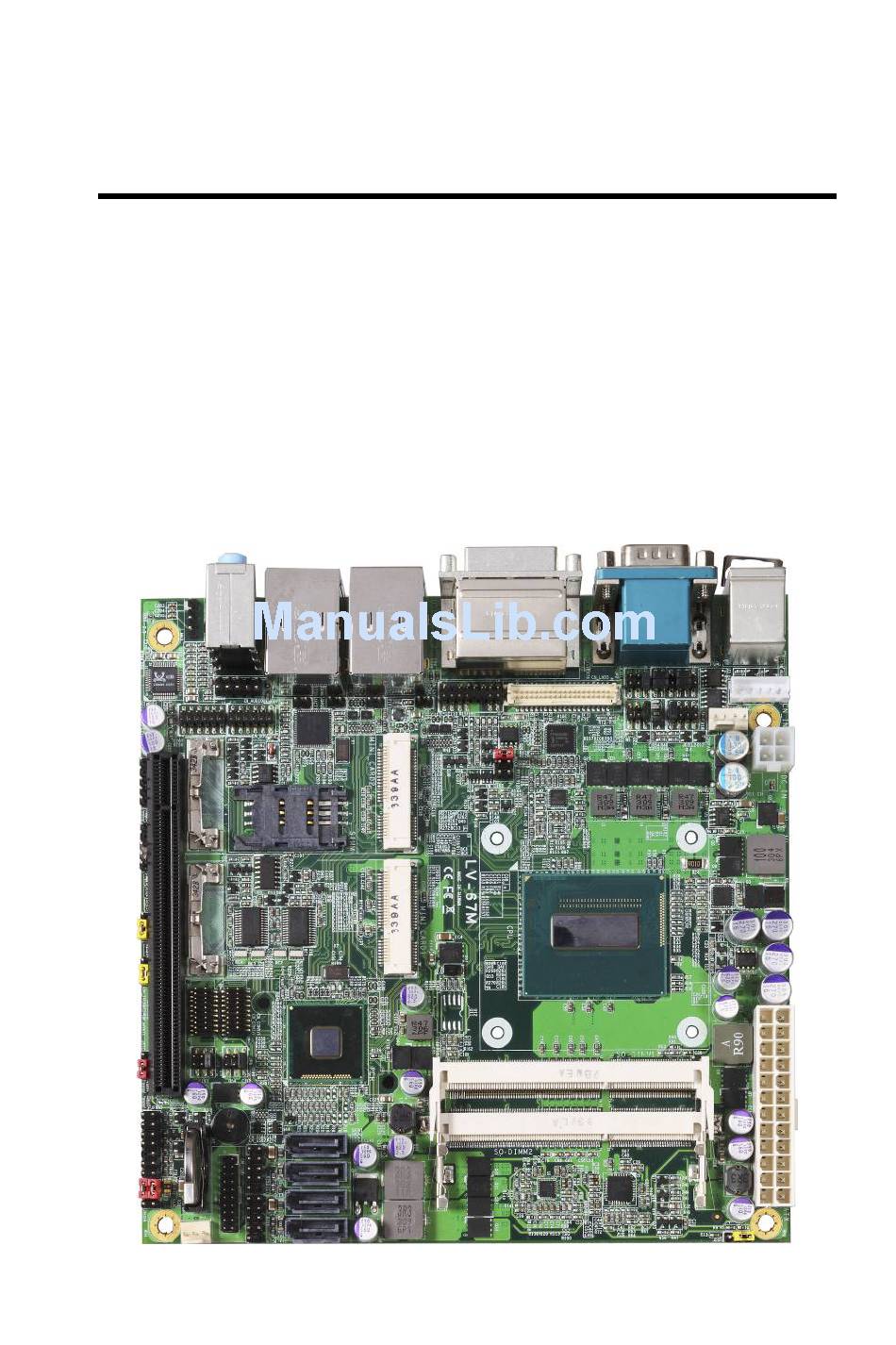

- Page 1 LV-67M Mini-ITX Motherboard User’s Manual Edition 1.0 2013/10/30...
- Page 3 LV-67M User’s Manual Copyright Copyright 2013, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Sata Cable X
LV-67M User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67M Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA3-L) (OALDC-A) (1040529) (1040433) Power Cable x 1... - Page 5 LV-67M User’s Manual Index Chapter 1 <Introduction> ................6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup>..............10 2.1 <Connector Location> ................10 2.2 <Jumper Location & Reference>..............11 2.3 <Connector Reference> ................12 2.3.1 <Internal Connectors>...
- Page 6 LV-67M User’s Manual 2.14.3 <Fan connector> ................37 2.15 <Switch and Indicator> ................38 Chapter 3 <System Setup> .................39 3.1 <Audio Configuration> ................39 3.2 <Display Properties Setting> ..............40 3.3 <SATA configuration> .................42 3.4 <SATA RAID Configuration> ...............43 Chapter 4 <BIOS Setup> ................45 Appendix A <I/O Port Pin Assignment>...
- Page 7 LV-67M User’s Manual (This page is left for blank)
-
Page 8: Product Overview

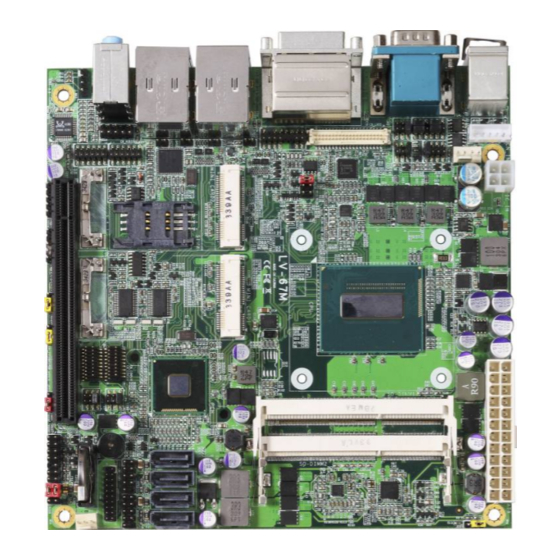

LV-67M User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67M the 4 Generation Intel of the Mini-ITX Motherboard , supports 4 Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel DH82QM87 chipset, integrated HD Graphics, DDR3L memory, REALTEK High Definition Audio, Serial ATA with AHCI and RAID function for a system and Intel Gigabit LAN. -
Page 9: Product Specification
LV-67M User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor Package type: FCBGA1364 2 x DDR3L SO-DIMM 1333/1600 MHz up to 16GB Memory Support Non-ECC, unbuffered memory only... -
Page 10: Mechanical Drawing
LV-67M User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
LV-67M User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor 1 x PCI Express x16 2 x 204-pin DDR3L SO-DIMM 1333/1600 MHz up to 16GB 1 x Display Port DH82QM87 1 x CRT 2 x PCI Express mini card 1 x LVDS 6 x USB 3.0... -
Page 12: Connector Location
LV-67M User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> JCSEL1 CN_CRT CN_LVDS CN_AUDIO CD_IN CN_INV CN_DIO CN_LPC CPUFAN MINI_CARD2 DC_IN JCSEL2 CN_SMBUS JVLCD SIMM PCIE x16 CN_IR MINI_CARD1 JMSATA COM3/4 COM5/6 JRTC JP3 JP4 JFRNT JVUSB SYSF SATA3-2 CN_USB3... -
Page 13: Jumper Location & Reference
LV-67M User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 14: Connector Reference
LV-67M User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark FCBGA1364 CPU SO-DIMM 1/2 204 -pin DDR3L SO-DIMM socket SATA 1/2/3/4 7-pin Serial ATA3 connector DC_IN DC 9~24V input connector 24-pin power input connector ATX P/S Mode 24-pin power output connector... -
Page 15: Memory Setup
LV-67M User’s Manual 2.4 < Memory Setup> The board provides 2 x 204-pin DDR3L SO-DIMM to support 1333/1600nb MHz up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM2 SO-DIMM1... -
Page 16: Cmos & Atx Setup
LV-67M User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 17: Serial Ata Interface
LV-67M User’s Manual 2.6 <Serial ATA Interface> LV-67M has four Serial ATA3 interfaces with RAID function, the transfer rate of the Serial ATA3 can be up to 600MB/s. Please go to http://www.serialata.org/ for more about Serial ATA technology information. Based on Intel® PCH, it supports Intel® Rapid Storage Technology with combination of RAID 0,1,5 and 10. -
Page 18: Ethernet Interface
LV-67M User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel I210 Gigabit Ethernet & one Intel I217-LM controllers, as the PCI Express bus. The Intel I210 & I217-LM supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 19: Onboard Display Interface
LV-67M User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, The board provides one Haswell Bridge DVI-I and DisplayPort on the external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and internal 16-pin VGA interface. -
Page 20: Digital Display
LV-67M User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV... - Page 21 LV-67M User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 22 LCD Installation Guide: Preparing the LV-67M, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the p nel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 23 LV-67M User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 24: Vga Interface
LV-67M User’s Manual 2.8.3 <VGA Interface> Connector: CN_CRT Connector type: 16-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment -CRTATCH IOGND1 IOGND1 IOGND1 -CRTATCH 5VCDA 5HSYNC 5VSYNC 5VCLK CN_CRT... -
Page 25: Integrated Audio Interface
LV-67M User’s Ma nual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 26 LV-67M User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 27: Usb Interface
LV-67M User’s Manual 2.10 <USB Interface> LV-67M integrates six USB3.0 ports and four USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel® QM87 Controller Transfer Rate Up to 5Gb/s Voltage USB1/2/3/4 Type: USB3.0 The specifications of USB2.0 are list: Interface USB2.0... - Page 28 LV-67M User’s Manual Connector: CN_USB3 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB2-1/2-2 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
-
Page 29: Serial Port
LV-67M User’s Manual 2.11 <Serial Port> The board supports Five RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM2 COM1 Connector: COM1 Type: 9-pin D-sub male connector on bracket for COM1... - Page 30 LV-67M User’s Manual Connector: COM3/4/5/6 Type: 20-pin(2 x 10)header pitch = 2.54 x 1.27mm Description Description DCD1 RXD1 TXD1 DTR1 GND1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 GND2 DSR2 RTS2 CTS2 JCSEL1 COM5/6 JCSEL2 COM3/4...
- Page 31 LV-67M User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 32: Pcie Mini Card And Sim Interface
LV-67M User’s Manual 2.12 <PCIE Mini Card and SIM Interface> The board provides two PCIE mini card sockets and a SIM socket. MINI_CARD1 is the first Mini-PCIe slot for long size Mini-PCIe cards. MINI_CARD1 support mSATA. MINI_CARD2 is the second Mini-PCIe slot for long size Mini-PCIe cards. - Page 33 LV-67M User’s Manual Connector: JMSATA Type: onboard 3-pin header JMSATA Mode Support mSATA Normal Operation Default setting: 2-3...
-
Page 34: Sim Setup
LV-67M User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 35 LV-67M User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 36: Gpio And Smbus Interface
LV-67M User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 37: Power Supply And Fan Interface
LV-67M User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 24-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 38: Power Output
LV-67M User’s Manual 2.14.2 <Power Output> The board provides one 24-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! -
Page 39: Fan Connector
LV-67M User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 40: Switch And Indicator
LV-67M User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 41: Chapter 3
LV-67M User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM87 with REALTEK® ALC888 code. It can support 7.1-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 42: Display Properties Setting
LV-67M User’s Manual 3.2 <Display Properties Setting> Based on Intel QM87 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 43 LV-67M User’s Manual 3. This setup options can let you define each device settings. Click Display Settings to setup the monitor for Resolution and Refresh Rate Click Multiple Displays to setup the triple display mode as same screen -41-...
-
Page 44: Sata Configuration
LV-67M User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode, AHCI mode or RAID mode. The RAID mode requires more than one HDD before use. -
Page 45: Sata Raid Configuration
LV-67M User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM87 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 46 LV-67M User’s Manual When you boot, press <CTRL+I> to enter the RAID configuration menu. If you are installing Windows 7, when the installation is complete, please install the Intel® Rapid Storage Technology. If you are installing Windows XP, first, you need to install the RAID driver in the installation screen (need a floppy disk).
-
Page 47: Chapter 4
LV-67M User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 48 LV-67M User’s Manual (This page is left for blank)
-
Page 49: Appendix A
LV-67M User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 50: A.5
LV-67M User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 51: Appendix B
LV-67M User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Fpt.exe”, it’s the utility that can write the data into the BIOS... -
Page 52: Appendix C
LV-67M User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 53: Appendix D
LV-67M User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 54: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
