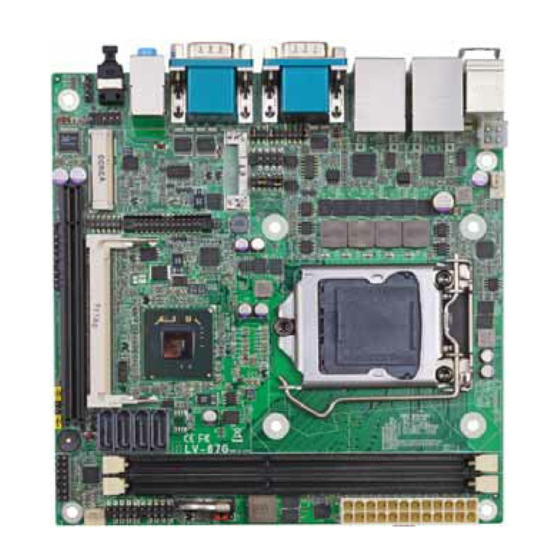

Lv-67g mini-itx motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

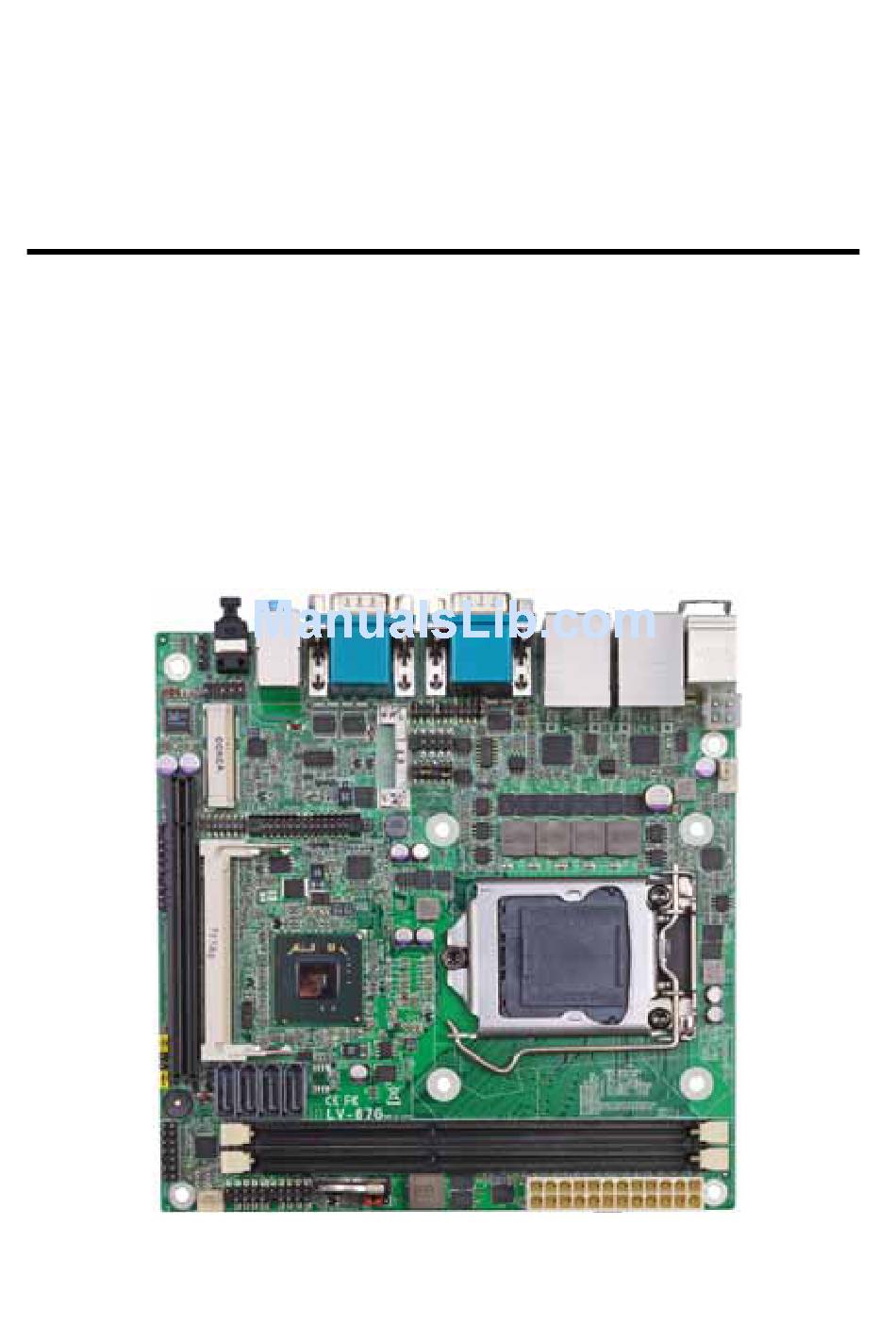

LV-67G
Mini-ITX motherboard
User's Manual
Edition: 1.1
2011/09/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV-67G and is the answer not in the manual?

Questions and answers

Related Manuals for Commell LV-67G

Summary of Contents for Commell LV-67G

  • Page 1 LV-67G Mini-ITX motherboard User’s Manual Edition: 1.1 2011/09/09...
  • Page 2 LV-67G User’s Manual Copyright Copyright 2011 All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    LV-67G User’s Manual Packing List Please check package component before you use our products. Hardware: LV-67G Mini-ITX motherboard x 1 Cable Kit: SATA Cable x 2 (OALSATA-L) USB Cable x 1 DVI module with bracket x 1 (OALUSBA-1) (OALDVI-P& BADPDVIP_A)
  • Page 4 LV-67G User’s Manual Index Chapter1 <Introduction> ..................7 1.1 <Product Overview>................. 7 1.2 <Product Specification> ................8 1.3 <Block Diagram>..................10 1.4 <Mechanical Drawing >................11 Chapter 2 <Hardware Setup>................12 2.1 <Connector Location>................12 2.2 <Jumper Reference> ................13 2.3 <Connector Reference>.................
  • Page 5 LV-67G User’s Manual 3.3 <Audio Configuration> ................37 3.4 <Display Properties Setting>..............38 Chapter 4 <BIOS Setup> ..................40 Appendix A <I/O Port Pin Assignment>............42 A.1 <Serial ATA Port>................... 42 A.2 <IrDA Port> .................... 42 A.3 <Serial Port> ..................43 A.4 <VGA Port>....................
  • Page 6 LV-67G User’s Manual (This Page is Left for Blank...

  • Page 7: Product Overview

    LV-67G User’s Manual Chapter1 <Introduction> 1.1 <Product Overview> LV-67G is the motherboard with last Intel desktop technology with Mini-ITX form factor. ® ® Based on Intel Q67, the board integrates I3/I5/I7/Pentium/Xeon processor 1155-pin ® socket, DDR3 memory socket, Intel HD Graphic technology, Serial ATA II with RAID function for a powerful desktop system.

  • Page 8: Product Specification

    LV-67G User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard ® Intel® I3/I5/I7/Pentium/Xeon processor With LGA1155 socket Package type: FCLGA 1155 Memory 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 16GB Unbufferred, none-ECC memory supported only Chipset Intel® BD82Q67 PCH...
  • Page 9 LV-67G User’s Manual Ethernet Interface Controller Two Intel 82574L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on rear I/O panel Audio Interface Chipset Intel® integrated Q67with Realtek ALC888HD Audio...

  • Page 10: Block Diagram

    LV-67G User’s Manual 1.3 <Block Diagram> 2 x 240-pin DDR3 1066/1333MHz up to 16GB 4 x Serial ATAII ports Intel 82574L 8 x USB2.0 ports 2 x GLAN Intel Q67 Mini-PCI card slot/PCI-E x16 HD Audio Mini-PCI slot 2 x Serial ports...

  • Page 11: Mechanical Drawing

    LV-67G User’s Manual 1.4 <Mechanical Drawing >...

  • Page 12: Connector Location

    LV-67G User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB1/2 DDRIIIA/B SYSFAN JFRNT S_ATA1~4 CN_SMBUS CN_IR CPUFAN CN_12V CN_AUDIO CDIN CN_COM2 CN_DVI CN_DIO Audio COM3+COM4 SPDIF CDIN USB_RJ45_1/2 COM1 + CRT...

  • Page 13: Jumper Reference

    LV-67G User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting COM1 signal mode switch (For Pin-1 & Pin-9) COM2 signal mode switch (For Pin-1 & Pin-9) Power mode select CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2 CN_IR IrDA Setting...

  • Page 14: Connector Reference

    LV-67G User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA1155 CPU socket DDRIIIA/B 240 –pin DDR3 SDRAM DIMM socket S_ATAII1/2/3/4/ 7-pin Serial ATA II connector 24-pin power supply connector CN_12V 4-pin +12V additional power supply connector CN_AUDIO...

  • Page 15: Cpu And Memory Setup

    LV-67G User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> LV-67G has a LGA1155 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67G need RMA please Keep CPU socket cover on the CPU Socket.

  • Page 16: Memory Installation

    LV-67G User’s Manual 2.4.2 <Memory installation> LV-67G has two 240-pin DDR3 DIMM support up to 16GB of memory capacity. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is supported. DDRIII A/B 96-pin 144-pin Please check the pin number to match the socket side well...

  • Page 17: Cmos Setup

    LV-67G User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

  • Page 18: Serial Ata Installation

    2.6 <Serial ATA installation> LV-67G has Two Serial ATA II & Two Serial ATA III interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/...

  • Page 19: Lan Installation

    LV-67G User’s Manual 2.7 <LAN installation> The board integrates with two Intel 82574L Gigabit Ethernet controllers, as the PCI Express bus. The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. LAN1 LAN2 LAN Installation...

  • Page 20: Onboard Display Interface

    LV-67G User’s Manual 2.8 <Onboard Display Interface> Based on Intel Q67 chipset with built-in graphics, the board provides one DB15 Connector on real external I/O port and the board also provides 26-pin DVI interface Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically.

  • Page 21: Dvi Display

    LV-67G User’s Manual 2.8.2 <DVI Display > The board also comes with a DVI interface with Chrontel for digital video interface. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground...

  • Page 22: Audio Installation

    LV-67G User’s Manual 2.9 <Audio Installation> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.
  • Page 23 LV-67G User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R ACZ_DET Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...

  • Page 24: Gpio And Smbus Interface

    LV-67G User’s Manual 2.10 <GPIO and SMBUS interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground...

  • Page 25: Usb Installation

    LV-67G User’s Manual 2.11 <USB Installation> LV-67G integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Controller Intel Q67 PCH Transfer Rate Up to 480Mb/s Voltage The Intel® Q67 contains two Enhanced Host Controller Interface (EHCI) and five Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically.
  • Page 26 LV-67G User’s Manual Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB5/6 Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground CN_USB1/2...

  • Page 27: Power And Fan Installation

    LV-67G User’s Manual 2.12 <Power and Fan Installation> The LV-67G provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip.
  • Page 28 LV-67G User’s Manual Connector: ATX Type: 24-pin ATX power connector PIN assignment 3.3V 3.3V 3.3V -12V PS_ON PW_OK 5V_SB 3.3V Connector: CN_12V Type: 4-pin standard Pentium 4 additional +12V power connector Description Description Ground Ground +12V +12V Connector: CPUFAN Type: 4-pin fan wafer connector...

  • Page 29: Serial Port

    LV-67G User’s Manual 2.13 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for CN_COM2. COM1 COM3 COM4 Connector: CN_COM2 Type: 9-pin header connector for COM2...
  • Page 30 LV-67G User’s Manual Setting RS-232 & RS-422 & RS-485 for CN_COM2C JCSEL1 CN_COM2 JP1 JP2 JCSEL2...
  • Page 31 LV-67G User’s Manual Function JCSEL2 JCSEL1 RS-422 RS-485 RS-232 Default setting: JCSEL2: (1-2) JCSEL1: (1-3, 2-4, 7-9, 8-10) Jumper: JP1 (COM 1)/ JP2(COM2) Type: onboard 3 x 2-pin header JP1/JP2 Mode Standard COM Port Pin1 with 5V signal Pin9 with 12V signal...

  • Page 32: Switch And Indicator

    LV-67G User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 33 LV-67G User’s Manual (This Page is Left for Blank)

  • Page 34: Sata Configuration

    LV-67G User’s Manual Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied.

  • Page 35: Sata Raid Configuration

    LV-67G User’s Manual 3.2 <SATA RAID Configuration> The board integrates Intel® Q67 PCH with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance.
  • Page 36 LV-67G User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.

  • Page 37: Audio Configuration

    LV-67G User’s Manual 3.3 <Audio Configuration> The board integrates Intel® Q67 PCH with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager.

  • Page 38: Display Properties Setting

    LV-67G User’s Manual 3.4 <Display Properties Setting> Based on Intel Q67 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 39 LV-67G User’s Manual This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...

  • Page 40: Chapter 4

    LV-67G User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 41 LV-67G User’s Manual (This Page is Left for Blank)

  • Page 42: Appendix A

    LV-67G User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: S_ATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground...

  • Page 43: A.3

    LV-67G User’s Manual A.3 <Serial Port> Connector: COM1/3/4 Type: 9-pin D-sub male connector on bracket Description Description Ground A.4 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground DDC_DA BLUE Ground HSYNC...

  • Page 44: Appedix B

    LV-67G User’s Manual Appedix B <System Resources> B.1 <I/O Port Address Map>...
  • Page 45 LV-67G User’s Manual...

  • Page 46: B.2

    LV-67G User’s Manual B.2 <Memory Address Map>...

  • Page 47: B.3

    LV-67G User’s Manual B.3 <System IRQ Resources>...

  • Page 48: Appendix C

    LV-67G User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 07 -o 2F 09 ;enale GPIO function...

  • Page 49: Appendix D

    LV-67G User’s Manual Appendix D <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...

  • Page 50: Contact Information

    Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
