LV-67J User’s Manual Copyright Copyright 2012 All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
LV-67J User’s Manual Packing List Please check package component before you use our products. Hardware: LV-67J Mini-ITX motherboard x 1 Cable Kit: SATA Cable x 2 (OALSATA-L) COM Cable x 1 (OAL1S) (Option) USB Cable x 1 DVI Module With DVI Cable x 1...

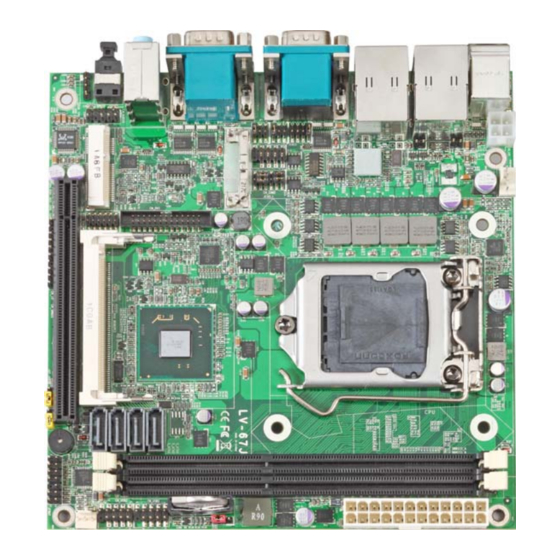

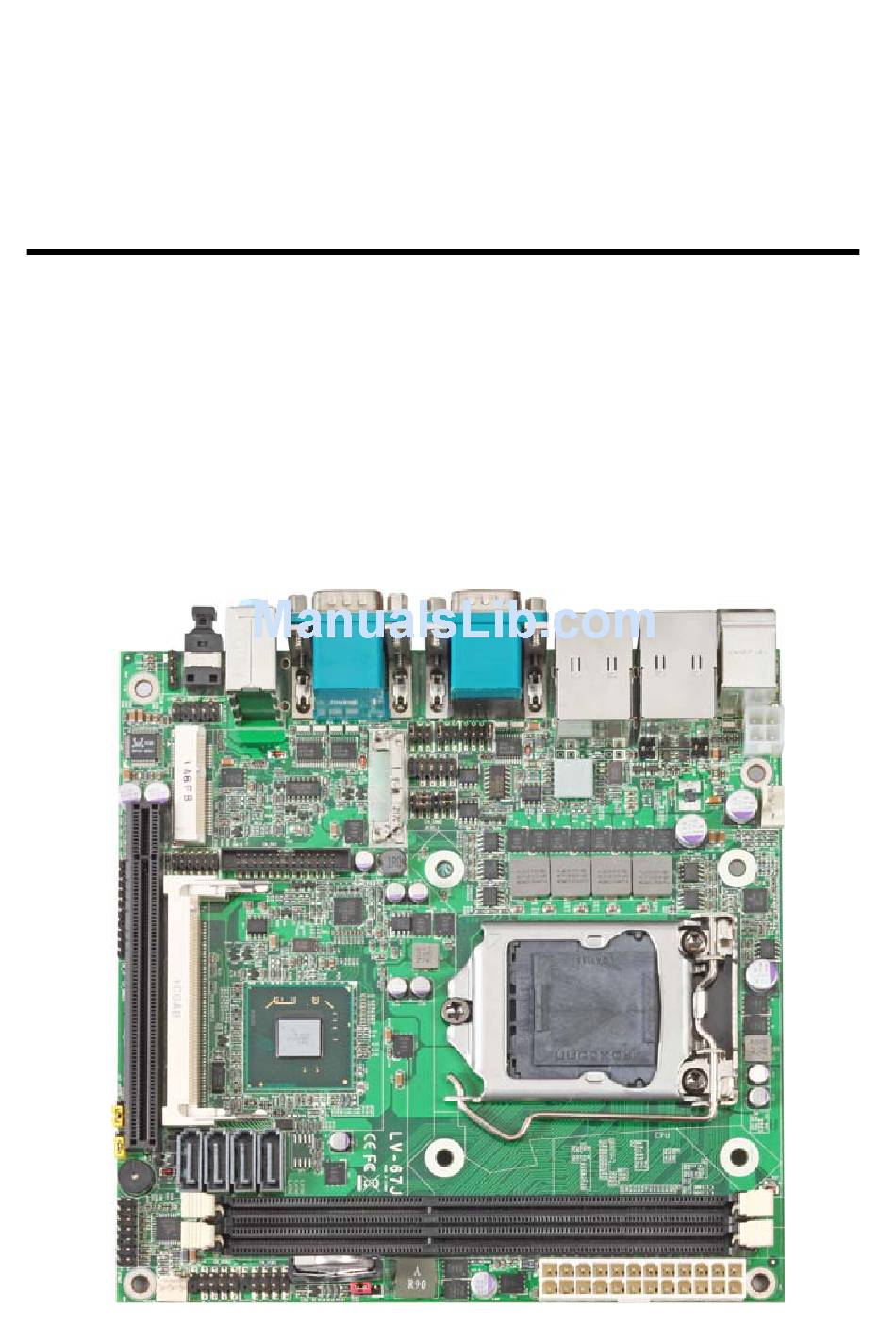

LV-67J User’s Manual Chapter1 <Introduction> 1.1 <Product Overview> LV-67J is the motherboard with last Intel desktop technology with Mini-ITX form factor. ® ® Based on Intel Q77, the board 3 Generation I3/I5/I7 processor 1155-pin socket, DDR3 ® memory socket, Intel HD Graphic technology, Serial ATA II with RAID function for a powerful desktop system.
LV-67J User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard ® Intel® I3/I5/I7 processor With LGA1155 socket Package type: FCLGA 1155 Memory 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 16GB Unbufferred, none-ECC memory supported only Chipset Intel® BD82Q77 PCH...
Page 9
LV-67J User’s Manual Ethernet Interface Controller One Intel 82574L Gigabit Ethernet controller One Intel® integrated Q77with Intel 82579LM Gigabit Ethernet Type Triple speed 10/100/1000Base-T Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on rear I/O panel...
LV-67J User’s Manual 1.3 <Block Diagram> 2 x 240-pin DDR3 1066/1333MHz up to 16GB 2 x Serial ATAII ports 2 x Serial ATAlll ports Intel 82574L x 1 4 x USB2.0 ports Intel 82579LM x 4 x USB3.0 ports Intel Q77...
LV-67J User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> LV-67J has a LGA1155 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67J need RMA please Keep CPU socket cover on the CPU Socket.
LV-67J User’s Manual 2.4.2 <Memory installation> LV-67J has two 240-pin DDR3 DIMM support up to 16GB of memory capacity. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is supported. DDRIII A/B 96-pin 144-pin Please check the pin number to match the socket side well...
LV-67J User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
2.6 <Serial ATA installation> LV-67J has Two Serial ATA II & Two Serial ATA III interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/...
LV-67J User’s Manual 2.7 <LAN installation> The board integrates with one Intel 82574L Gigabit Ethernet controllers and One Intel® integrated Q77with Intel 82579LM Gigabit Ethernet, as the PCI Express bus. The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
LV-67J User’s Manual 2.8 <Onboard Display Interface> Based on Intel Q77 chipset with built-in graphics, the board provides one DB15 Connector on real external I/O port and the board also provides 20-pin DVI interface Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically.
LV-67J User’s Manual 2.8.2 <DVI Display > The board also comes with a DVI interfac. Connector: CN_DVI Connector type: HIROSE DF13-40DP-1.25V Pin Number Assignment Pin Number Assignment +3.3V Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P Ground TMDSTX2N TMDSTX2P Ground TMDSTXCN TMDSTXCP...
LV-67J User’s Manual 2.9 <Audio Installation> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.
Page 23
LV-67J User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R ACZ_DET Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...
LV-67J User’s Manual 2.10 <GPIO and SMBUS interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground...
LV-67J User’s Manual 2.11 <USB Installation> LV-67J integrates Four USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Controller Intel Q77 PCH Transfer Rate Up to 480Mb/s Voltage The specifications of USB3.0 are listed below: Interface USB3.0 Intel® Q77...
LV-67J User’s Manual 2.12 <Power and Fan Installation> The LV-67J provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip.
LV-67J User’s Manual 2.13 <Serial Port> The board supports Three RS232 serial port and one jumper select able RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for CN_COM2. COM1 COM3 COM4 Connector: CN_COM2...
LV-67J User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
Page 33
LV-67J User’s Manual (This Page is Left for Blank)
LV-67J User’s Manual Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied.
LV-67J User’s Manual 3.2 <SATA RAID Configuration> The board integrates Intel® Q77 PCH with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance.
Page 36
LV-67J User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
LV-67J User’s Manual 3.3 <Audio Configuration> The board integrates Intel® Q77 PCH with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager.
LV-67J User’s Manual 3.4 <Display Properties Setting> Based on Intel Q77 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
Page 39
LV-67J User’s Manual This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...
LV-67J User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
Page 41
LV-67J User’s Manual (This Page is Left for Blank)
LV-67J User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 07 -o 2F 09 ;enale GPIO function...
LV-67J User’s Manual Appendix D <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
