  • Page 1 LV-67I Mini-ITX motherboard User’s Manual Edition: 1.0 2012/04/09...
  • Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw.

  • Page 3: Oales-Bku

    LV-67I User’s Manual Packing List Please check package component before you use our products. Hardware: LV-67I Mini-ITX motherboard x 1 Cable Kit: SATA Cable x 1 DC Power Cable x 1 (OALDC-2) (OALSATA-L) ATX Power Output Cable x 1 (OALATX-P3S2) COM port &...
  • Page 4 LV-67I User’s Manual Optional Cable: Dual COM Port Cable x 1 USB Cable x 1 (OALES-BKU2) (OALUSBA-3) Other Accessories: Divers CD (including User’s Manual) x 1...
  • Page 5 LV-67I User’s Manual Index Chapter1 <Introduction>............8 1.1 <Product Overview> .....................8 1.2 <Product Specification> ..................9 1.3 <Block Diagram> ....................11 1.4 <Mechanical Drawing > ..................12 Chapter 2 <Hardware Setup> .........13 2.1 <Connector Location>..................13 2.2 <Jumper Reference> ..................14 2.3 <Connector Reference>..................15 2.3.1 <Internal Connectors>............15 2.3.2 <External Connectors>............15...
  • Page 6 LV-67I User’s Manual Chapter 3 <System Configuration> .........38 3.1 <Audio Configuration> ..................38 3.2 <Display Properties Setting>................40 Chapter 4 <BIOS Setup> ..........43 Appendix A <I/O Port Pin Assignment> ......45 A.1 <Serial ATA Port >....................45 A.2 < IrDA Port >.......................45 A.3 < GPIO Port >.....................45 A.4 <...
  • Page 7 LV-67I User’s Manual (This Page is Left for Blank...

  • Page 8: Product Overview

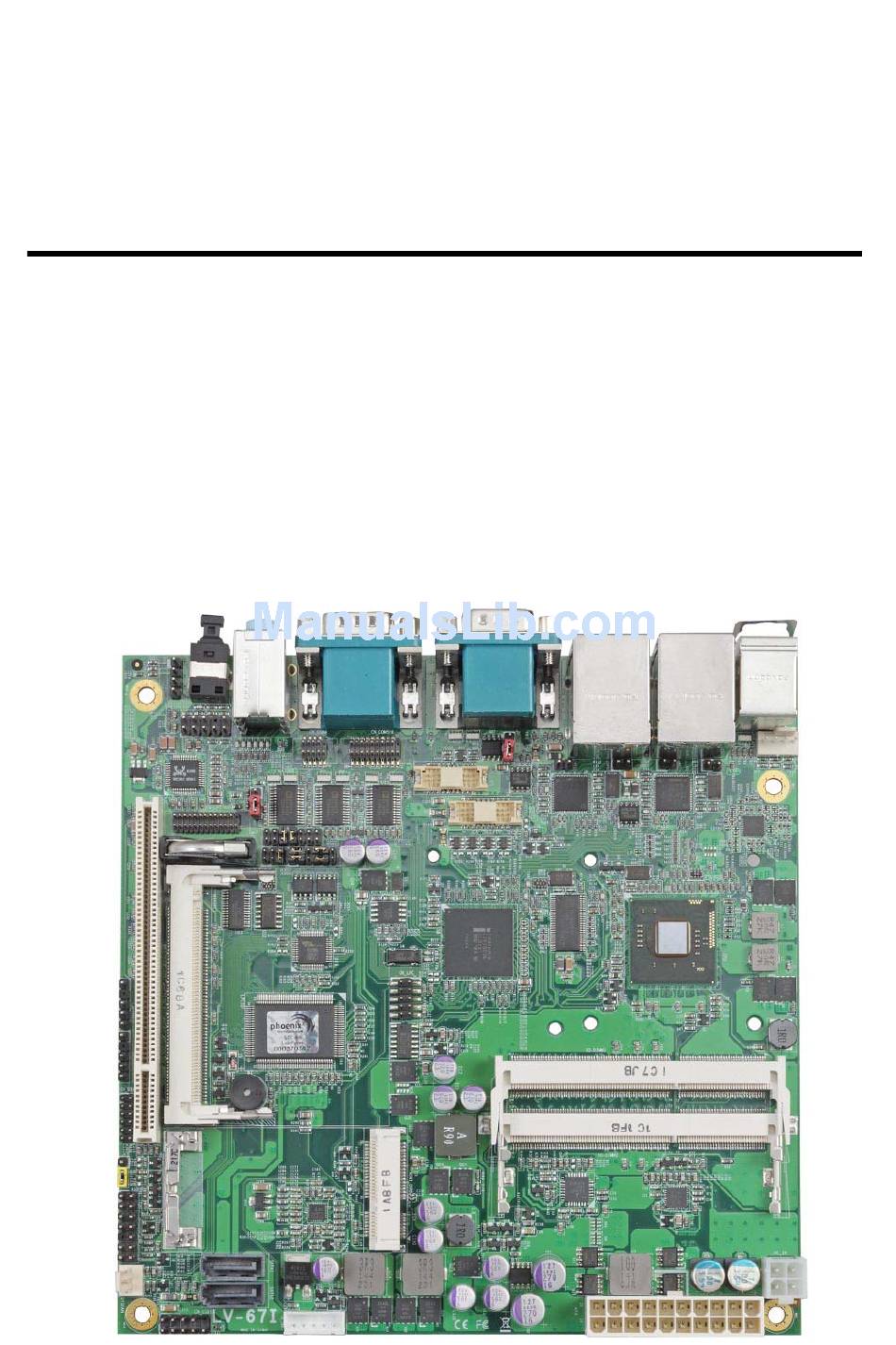

    Chapter1 <Introduction> 1.1 <Product Overview> LV-67I is the Mini-ITX miniboard with Intel® Atom™ CedarTrail Processor with optional D2700 or N2800 platform, Intel® NM10, integrated Intel® GMA 3650 graphics, DDR3 SO-DIMM memory, Realtek ALC888 HD Codec audio and two Intel® 82583V Giga LAN.

  • Page 9: Product Specification

    LV-67I User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Intel® Atom™ CedarTrail Processor with optional D2700 or N2800 Package type: Micro-FCBGA8 Memory 2 x 204-pin DDR3 SO-DIMM 800/1066MHz up to 4GB,(SO-DIMM2 Primary) Support Non-ECC, unbufferred, memory only Chipset Intel®...
  • Page 10 LV-67I User’s Manual Expansive Interface PCI slot (32-bit, 33MHz) Power supply: +3.3V, +5V, 3VSB +12V, -12V Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz) Power supply: +3.3V, +5V, 3VSB PCIE mini card One PCIE mini card socket Power supply: +1.5V, 3VSB...

  • Page 11: Block Diagram

    LV-67I User’s Manual 1.3 <Block Diagram> 2 x DDR3 SO-DIMM 4GB max. Intel® Atom CRT / DVI D2700/N2800 18/24bit Single Channel LVDS 2 x serial ATAII 1 x PCIE mini card socket Mini-PCI Slot NM10 6 x USB2.0 port PCI Slot...

  • Page 12: Mechanical Drawing

    LV-67I User’s Manual 1.4 <Mechanical Drawing >...

  • Page 13: Connector Location

    LV-67I User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> S_ATA1/2 Mini-Card CN_INV CN_USB1/2 CN_12V SYSFAN JFRNT DDRIII CN DIO CN_IR Mini-PCI CN_SMBUS CN_LPC CN_DVI CN_LPT CN_LVDS CPUFAN CN_AUDIO CDIN CN_COM4 CN_COM5/6 USB_RJ45_1/2 udio PDIF COM1 + CRT COM3+COM2 Connector Reference...

  • Page 14: Jumper Reference

    LV-67I User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting JP39 COM3 signal mode switch (For Pin-9) JP49 COM4 signal mode switch (For Pin-9) Power mode select CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2...

  • Page 15: Connector Reference

    LV-67I User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark DDRIII1/2 204 -pin DDR2 SO-DIMM SDRAM slot SATAII1/2 7-pin Serial ATA II connector 24-pin power supply connector CN_12V 4-pin +12V additional power supply connector CN_AUDIO 5 x 2-pin audio connector...

  • Page 16: Memory Setup

    LV-67I User’s Manual 2.4 <Memory Setup> Non-ECC, unbuffered memory is supported only. LV67I provides two 204-pin DDR3 SO-DIMM to support DDR3 800/1066 memory modules support up to 4GB of capacity. Suggestion: DDR3 SO-DIMM Modules: –Raw Card C = Single-sided x 8 –Raw Card F = Double-sided x 8...

  • Page 17: Cmos & Atx Setup

    LV-67I User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

  • Page 18: Serial Ata Interface

    LV-67I User’s Manual 2.6 <Serial ATA Interface> Based on Intel® NM10, the board provides Three Serial ATAII interfaces with up to 300MB/s of transfer rate. S_ATA1/2...

  • Page 19: Network Interface

    LV-67I User’s Manual 2.7 <Network Interface> The board integrates with two Intel® 82583V Gigabit Ethernet controllers, as the PCI Express bus. The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. LAN2 LAN1 LAN Installation...

  • Page 20: Onboard Display Interface

    Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically. 2.8.1 <Analog Display> Please connect your CRT or LCD monitor with DB15 male connector to the onboard DB15 female connector on rear I/O port. LV-67I supports 1920 x 1200(WUXGA) resolution displays.

  • Page 21: Digital Display Interface

    LV-67I User’s Manual 2.8.2 <Digital Display Interface> The board provides one 20-pin LVDS connector for 18-bit single channel panels. LV-67IN supports 1366 x 768 (WUXGA) of resolution, and LV-67ID supports 1400 x 900 (WUXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting.
  • Page 22 LV-67I User’s Manual Connector: CN_INV Jumper: JVLCD Type: 5-pin Inverter power connector Type: 3-pin Power select jumper Connector model: molex_53261-5pin Description Description +12V CTLBKL +3.3V Default: 2-3 ENABKL Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V...
  • Page 23 LCD Installation Guide: Preparing the LV-67I, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
  • Page 24 LV-67I User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LV-67I BIOS panel type selection form On board Single channel LVDS 18bit Output format...

  • Page 25: Audio Interface

    LV-67I User’s Manual 2.9 <Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.
  • Page 26 LV-67I User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC2_L Ground MIC2_R AVCC FP_OUT_R MIC2_JD SENSE FP_OUT_L LINE2_JD Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD – Right...

  • Page 27: Gpio And Smbus Interface

    LV-67I User’s Manual 2.10 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground...

  • Page 28: Usb Interface

    LV-67I User’s Manual 2.11 <USB Interface> LV-67I integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel®NM10 Controller Transfer Rate Up to 480Mb/s Voltage The Intel® NM10 contains one Enhanced Host Controller Interface (EHCI) and four Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically.
  • Page 29 LV-67I User’s Manual Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB5/6 Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground CN_USB1/2...

  • Page 30: Power Supply And Fan Interface

    LV-67I User’s Manual 2.12 <Power Supply and Fan Interface> 2.12.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 8V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix.

  • Page 31: Power Output

    LV-67I User’s Manual 2.12.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! Connector: ATX (When DC-IN be used) Type: 20-pin ATX connector for +3.3V/+5V/+12V...

  • Page 32: Fan Connector

    LV-67I User’s Manual 2.12.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. SYSFAN CPUFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V...

  • Page 33: Serial Port

    LV-67I User’s Manual 2.13 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM2 Type: 9-pin D-sub male connector on bracket for COM2...
  • Page 34 LV-67I User’s Manual Setting RS-232 & RS-422 & RS-485 for COM2 JCSEL1 JP39/JP49 JCSEL2 CN_COM5/6 CN_COM4...
  • Page 35 LV-67I User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP39/JP49 (COM3/4) Type: onboard 6-pin header Power Mode JP39/JP49 Pin 9 with 5V Power Pin 9 with 12V Power Default setting: 5-6...

  • Page 36: Switch And Indicator

    LV-67I User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 37 LV-67I User’s Manual (This Page is Left for Blank)

  • Page 38: Audio Configuration

    LV-67I User’s Manual Chapter 3 <System Configuration> 3.1 <Audio Configuration> The board integrates Intel® NM10 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver.
  • Page 39 LV-67I User’s Manual Select the sound mode to meet your speaker system.

  • Page 40: Display Properties Setting

    LV-67I User’s Manual 3.2 <Display Properties Setting> Based on Intel® Atom D2700/N2800 with GMA3650 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 41 LV-67I User’s Manual 2. Click Advanced button for more specificity setup. Click Graphics Properties... for advanced setup...
  • Page 42 LV-67I User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...

  • Page 43: Chapter 4

    LV-67I User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers.
  • Page 44 LV-67I User’s Manual (This Page is Left for Blank)

  • Page 45: Appendix A

    LV-67I User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port > Connector: S_ATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 < IrDA Port > Connector: CN_IR Type: 5-pin header for SIR Ports...

  • Page 46: A.4 < Usb Interface

    LV-67I User’s Manual A.4 < USB Interface > Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for dual USB Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground A.5 < Serial Port > 5 4 3 2 1 9 8 7 6...

  • Page 47: A.6 < Parallel Port

    LV-67I User’s Manual A.6 < Parallel Port > Connector: CN_LPT Type: 26-Pin box header Connector on bracket Assignment Assignment -PSTB AFD- PRO0 ERR- PRO1 INT- PRO2 SLIN- PRO3 Ground PRO4 Ground PRO5 I/O Ground PRO6 Ground PRO7 Ground ACK- Ground...

  • Page 48: A.8 < Lan Port

    LV-67I User’s Manual A.8 < LAN Port > Connector: RJ45_1/2 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.9 < SMBus > Connector: CN_SMBUS Type: 4-pin SMBus connector Description Description SMBDATA...

  • Page 49: Appedix B

    LV-67I User’s Manual Appedix B <System Resources> B.1 < I/O Port Address Map >...
  • Page 50 LV-67I User’s Manual...

  • Page 51: B.2 < Memory Address Map

    LV-67I User’s Manual B.2 < Memory Address Map >...

  • Page 52: B.3 < System Irq Resources

    LV-67I User’s Manual B.3 < System IRQ Resources >...
  • Page 53 LV-67I User’s Manual...
  • Page 54 LV-67I User’s Manual...
  • Page 55 LV-67I User’s Manual...

  • Page 56: B.4 < System Dma Resources

    LV-67I User’s Manual B.4 < System DMA Resources >...

  • Page 57: Appedix C

    LV-67I User’s Manual Appedix C <Flash BIOS> C.1 <BIOS Auto Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com...

  • Page 58: Appendix D

    LV-67I User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 07 -o 2F 09 ;enable GPIO function...

  • Page 59: Appendix E

    LV-67I User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...

  • Page 60: Contact Information

    Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
