- Page 1 LV-671 Mini-ITX Motherboard User’s Manual Edition: 1.41 2005/03/24...
- Page 2 LV-671 User’s Manual...
- Page 3 LV-671 User’s Manual...
- Page 4 LV-671 User’s Manual Copyright © Copyright 2003 - 2004. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 5: Packing List
LV-671 User’s Manual Packing List Please check the package before you use this product Hardware: LV-671 Mini-ITX motherboard x 1 Cable Kit: 40-pin ATA100 IDE Cable x 1 26-pin Slim Type Floppy Cable x 1 4-pin to 4-pin Power Cable x 1... - Page 6 LV-671 User’s Manual Chapter 1 <Introduction> ... 9 <Product Overview>... 9 1.2 <Product Specification> ... 10 1.3 <Component Placement> ... 13 1.4 <Block Diagram>... 14 Chapter 2 <Hardware Setup>... 15 2.1 <Connector Location>... 15 2.2 <Jumper Reference> ... 16 2.3 <Connector Reference>... 17 2.3.1 <Internal Connector>...
- Page 7 LV-671 User’s Manual Chapter 3 <System Setup> ... 37 3.1 <Watchdog Timer Setting>... 37 3.2 <Audio Setting>... 38 3.3 <Display Device Setup>... 39 Chapter 4 <BIOS Setup> ... 43 Appendix A <I/O Port Pin Assignment>... 45 A.1 <IDE Port> ... 45 A.2 <Floppy Port>...
- Page 8 LV-671 User’s Manual (This Page is Left for Blank)
-
Page 9: Chapter 1

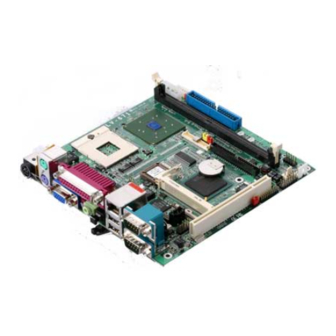

LV-671 is an all-in-one industrial compact Pentium-M level motherboard based on Mini-ITX form factor at 170 x 170 mm of dimension. Based on Intel 855GME and ICH4 chipset, LV-671 offers the compact, embedded, value and high performance solution with Intel... -
Page 10: Product Specification
Mini-ITX motherboard at 170 x 170 mm (L x W) Package: 478 pin PGA/ 479 pin BGA L2 Cache: 512KB/1MB/2MB FSB: 400MHz ( The Intel® Celeron® M Processor 4xx series have been designed to work with the Mobile Intel® 945 Express Chipset Family only .) Memory... - Page 11 LV-671 User’s Manual Frame Buffer Intel DVMT (Dynamic Video Memory Technology) 2.0 up to 64Mbytes shared with system* Display Type CRT and LCD monitors for analog display 24-bit single/dual channel LCD panel for digital display Connector External DB15 female connector on rear I/O panel Internal 40-pin LVDS connector *Under Windows 98/ME/2000/XP/Server2003 or Linux kernel 2.4 later...
- Page 12 Storage within -20 ~ 85 Ordering Code LV-671-MA Mini-ITX Socket 479 Pentium-M processor Motherboard with Intel Extreme VGA, LAN, 5.1-CH/SPDIF Audio, Hi-Speed USB 2.0, mini-AGP socket and LVDS interface. LV-671-MP Mini-ITX Socket 479 Pentium-M processor Motherboard with Intel Extreme VGA, LAN, 5.1-CH/SPDIF Audio, Hi-Speed USB 2.0, mini-PCI socket and LVDS interface.
-
Page 13: Component Placement
LV-671 User’s Manual 1.3 <Component Placement> 1 x 184-pin DDR266/333 DIMM up to 1GB Intel ICH4 (Southbridge) Intel 855GME (Northbridge) Socket479 For 478-pin PGA Pentium M/Celeron M Onboard DC to DC inverter Intel 82540EM Gigabit LAN Onboard 479-pin BGA Pentium M/Celeron M... -
Page 14: Block Diagram
LV-671 User’s Manual 1.4 <Block Diagram> Intel Pentium M processor with FC-PGA2/FC-BGA2 LVDS LVDS AGP 4x Mini-AGP DVO B/C UltraATA100 ATAPI Devices USB Devices 480Mb/s Audio AC97 Codec IrDA PS/2 COM Port Parallel Port Floppy 400MHz FSB 855GME USB2.0 ICH4... -
Page 15: Chapter 2
LV-671 User’s Manual Chapter 2 <Hardware Setup> This chapter contains the information for installation of hardware. The install procedure includes jumper settings, CPU and memory installation, fan, I/O and panel connections. 2.1 <Connector Location> CN_BPWR CN_INV DIMM MINI_AGP MINIPCI CN_IR... -
Page 16: Jumper Reference
LV-671 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC COMS Operate / Clear Setting JLAN LAN1 Enable/Disable JVLCD LCD Panel Voltage Setting JCFSEL Compact Flash Address Setting JDOM IDE1 5V Voltage Enable/Disable JDOM JCFSEL JVLCD Hardware Setup JRTC JLAN Jumper Reference... -
Page 17: External I/O Connector
LV-671 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function DIMM IDE1 IDE2 CN_USB1 CN_USB2 CN_IR CN_12V CN_BPWR CN_SPWR JFRNT CPUFAN SYSFAN CN_AUDIO CDIN CN_WOL CN_LVDS CN_INV CN_DIO CN_LAN2 CN_2ND_IO PCMCIA 2.3.2 <External I/O connector> Connector Function DC_IN Printer... -
Page 18: Cpu Installation
2.4 <System Setup> 2.4.1 <CPU Installation> The board supports Intel Pentium M/ Celeron M processor with 400MHz of front side bus, 512KB/1MB/2MB of L2 cache, there are two package type of the processor, 478-pin PGA for socket479 onboard version; 479-pin BGA for embedded processor version. Please check installation steps below for onboard socket479 version. -
Page 19: Memory Installation
LV-671 User’s Manual 2.4.2 <Memory Installation> The board supports one 184-pin DDR266/333 (PC2100/PC2700) SDRAM up to 1GB of capacity, and supports ECC (Error Correcting Code), unbufferred memory modules. Please check the pin number to match the socket side well before installing memory module. -
Page 20: Cpu Cooler Installation
Cooler Specification: Rated Voltage Consumption Max 0.12Amp The Cooler can compete with up to 2.0GHz of Intel Pentium M processor, if user needs to use more upper frequency, please replace other coolers. Cooler Installation Guide: 2. Put the base through the fixing holes 4. -
Page 21: Cmos Setup
LV-671 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 22: Ide Interface
LV-671 User’s Manual 2.6 <IDE Interface> The board supports two IDE interface up to 4 ATAPI devices, base on Intel ICH4, the IDE interface supports ATA66/100 ATAPI drives. The IDE1 supports +5V on pin-20 for DOM (Disk on Module), the jumper JDOM can let you select enable/disable this support. -
Page 23: Compact Flash Interface
LV-671 User’s Manual 2.7 Compact Flash Interface The board supports Compact Flash Type I socket for storage flash disk only, the jumper JCFSEL can let you to setup the flash card operate on secondary master or slave mode. Jumper: JCFSEL... -
Page 24: Digital Display Interface
The board is integrated with Intel 855GM GMCH chipset built-in Intel Extreme Graphics 2 with 266 MHz VGA core, 256-bit 3D engine and Intel Dynamic Video Memory up to 64MBytes shared with system memory. The CRT / analog VGA interface includes one external DB15 female connector on bracket on board. - Page 25 LV-671 User’s Manual Connector: CN_INV Type: 5-pin LVDS Power Header Description +12V ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V To setup the LCD, you need the components below: A panel (support up to 24-bit dual channel) with LVDS interfaces.
- Page 26 LV-671 User’s Manual LCD installing guide: Prepare a panel, inverter and LV-671. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V. Prepare a LVDS type LCD cable Panel side Connect all the devices well.
- Page 27 LV-671 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form For 18-bit color Output format 640 x 480 800 x 600...
-
Page 28: Audio Interface
LV-671 User’s Manual 2.9 <Audio Interface> The board integrates Intel ICH4 with REALTEK ALC655 codec for AC97 Rev 2.3; it comes with the features below: ● Microsoft WHQL/WLP 2.0 audio compliance ● Software selectable for 2-channel/5.1-channel sound ● 16-bit Stereo full-duplex CODEC with 48KHz sampling rate ●... - Page 29 LV-671 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54-pitch header Description Line – Right Line – Left Line Out – Right Connector: CDIN Type: 4-pin header Description CD – Left Ground Ground CD – Right Audio Interface Description...
-
Page 30: Ethernet Interface
LV-671 User’s Manual 2.10 <Ethernet Interface> The board integrates 10Base-T/100Base-TX/1000Base-T auto-switching Ethernet with full duplex and IEEE 802.3U compliant. The LAN function comes with a RJ45 jack on the rear I/O panel. The CN_WOL is for the Wake-Up-On-LAN function link with PCI LAN Card. -
Page 31: Power And Fan Connector
LV-671 User’s Manual 2.11 <Power and Fan connector> The board comes with a 4-pin Mini-DIN power connector for DC 12V/19V auto-switching input, it also has one 4-pin P4 additional use power connector for internal power supply, you can choose one pf them to meet your application. - Page 32 LV-671 User’s Manual Connector: CN_12V Type: 4-pin standard Pentium 4 +12V power connector Description +12V Ground Connector: DC_IN Type: 4-pin DC power connector Description +12V +12V Connector: CPUFAN, SYSFAN Type: 3-pin fan wafer connector Pin Description Ground Connector: CN_BPWR Type: 4-pin P-type connector for +5V/+12V Description Note: Maximum output voltage: 12V/5A &...
-
Page 33: Gpio Interface
LV-671 User’s Manual 2.12 <GPIO Interface> The board offers 16-bit digital I/O to customize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS. -
Page 34: Expansive Interface
LV-671 User’s Manual Hardware Setup 2.13 <Expansive Interface> The board comes with one slim type PCI slot and one optional Mini-AGP or Mini-PCI interface. The slim PCI slot supports up to 2 PCI devices through an optional riser card. For Mini-PCI interface, you can obtain a wireless LAN card for potable system. -
Page 35: Switch And Indicator
LV-671 User’s Manual 2.14 <Switch and Indicator> Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function IDE LED Reset Power Button Switch and Indicator Signal Vcc (+) Active Reset PWRBT 5VSB Hardware Setup Signal Function (+) Vcc Power... - Page 36 LV-671 User’s Manual (This Page is Left for Blank)
-
Page 37: Watchdog Timer Setting
LV-671 User’s Manual Chapter 3 <System Setup> 3.1 <Watchdog Timer Setting> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 38: Audio Setting
LV-671 User’s Manual 3.2 <Audio Setting> The board integrates Intel® ICH4 with REALTEK® ALC655 codec. It can support 2-channel or 5.1 channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK AC97 Audio driver. -
Page 39: Display Device Setup
LV-671 User’s Manual System Setup 3.3 <Display Device Setup> This chapter shows you how to setup the display device under Windows OS. Before you using your display device: 1. Check your software Before you can use the display device properly, please install the VGA driver. - Page 40 LV-671 User’s Manual System Setup For advanced display settings, please click Advanced… button and choose Intel(R) Extreme Graphics. Please click Graphics Properties button to enter the advanced setup. Display Device Setup...
- Page 41 LV-671 User’s Manual While you entering the Graphics Properties, you will see the options below: Display Device Setup System Setup This option can let you configure the CRT monitors for Colors, Screen Area (Resolution) and Refresh Rate. This option can let you configure...
- Page 42 LV-671 User’s Manual System Setup This option can let you configure the Dual Display for clone mode (same display on two devices) This option can let you configure the Dual Display for Extended Desktop mode Display Device Setup...
-
Page 43: Chapter 4
The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems. - Page 44 LV-671 User’s Manual (This Page is Left for Blank)
-
Page 45: Appendix A
LV-671 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 40-pin (20 x 2) box header Description Reset Ground IOW-/STOP IOR-/HDMARDY IORDY/DDMARDY DACK- CS1 (MASTER CS) LED ACT- IDE Port I/O Port Pin Assignment Description... - Page 46 LV-671 User’s Manual Connector: IDE2 Type: 44-pin (22 x 2) box header Description Reset Ground IOW-/STOP IOR-/HDMARDY IORDY/DDMARDY DACK- IDEACT- Ground I/O Port Pin Assignment Description Ground Ground Ground Ground IDESEL Ground CBLID Ground Ground IDE Port...
-
Page 47: A.3 < Usb Interface
LV-671 User’s Manual A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description DRV1 MTR1 Ground Ground Ground Ground A.3 < USB Interface > Connector: CN_USB1, CN_USB2 Type: 10-pin (5 x 2) header for dual USB Ports Description Data0- Data0+ Ground PS. -
Page 48: A.4
LV-671 User’s Manual A.4 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX A.5 < VGA Port > Connector: VGA Type: 15-pin D-sub female connector on bracket Description GREEN BLUE Ground A.6 < LAN Port >... -
Page 49: A.7 < Serial Port
LV-671 User’s Manual A.7 < Serial Port > Connector: COM1 Type: 9-pin D-sub male connector on bracket Description MDCD1- MSIN1- MSO1- MDTR1- Ground Connector: COM2 Type: 9-pin D-sub male connector on bracket Description MDCD2- MSIN2- MSO2- MDTR2- Ground Output Voltage: +/- 9V. - Page 50 LV-671 User’s Manual (This Page is Left for Blank)
-
Page 51: B.2
LV-671 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the... - Page 52 LV-671 User’s Manual (This Page is Left for Blank)
-
Page 53: Appendix C
Programmable Interrupt Controller Motherboard Resource Direct Memory Access Controller Motherboard Resource Numeric Data Processor Intel(R) 82801DB Ultra ATA Storage Controller - 24CB Secondary IDE controller (dual fifo) Intel(R) 82801DB Ultra ATA Storage Controller - 24CB Primary IDE controller (dual fifo) Motherboard Resource... - Page 54 Intel(R) 82801DB/DBM USB Universal Host Controller Intel(R) 82852/82855 GM/GME Graphics Controller Realtek AC'97 Audio Realtek AC'97 Audio Primary IDE controller (dual fifo) Intel(R) 82801DB Ultra ATA Storage Controller - 24CB Secondary IDE controller (dual fifo) System Resource I/O Address Map...
-
Page 55: C.2
System board extension for ACPI BIOS Intel(R) 82852/82855 GM/GME Graphics Controller Intel(R) 82852/82855 GM/GME Graphics Controller Ricoh RL5C475 CardBus Controller Intel(R) 82801DB PCI Bridge - 244E Intel(R) PRO/1000 MT Network Connection Intel(R) PRO/1000 MT Network Connection Intel(R) 82852/82855 GM/GME Graphics Controller Intel(R) 82852/82855 GM/GME Graphics Controller Intel USB 2.0 Enhanced Host Controller... -
Page 56: C.3
Ricoh RL5C475 CardBus Controller ACPI IRQ Holder for PCI IRQ Steering SCI IRQ used by ACPI bus Intel(R) 82801DB/DBM USB Universal Host Controller - 24C7 Intel(R) 82801DB/DBM USB Universal Host Controller - 24C2 Intel(R) 82852/82855 GM/GME Graphics Controller ACPI IRQ Holder for PCI IRQ Steering... - Page 57 LV-671 User’s Manual C3.2 DMA Channel Device (free) (free) Standard Floppy Disk Controller (free) Direct Memory Access Controller (free) (free) (free) System IRQ and DMA Resource System Resource...
-
Page 58: Contact Information
LV-671 User’s Manual Contact Information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business Taiwan Commate Computer Inc.
