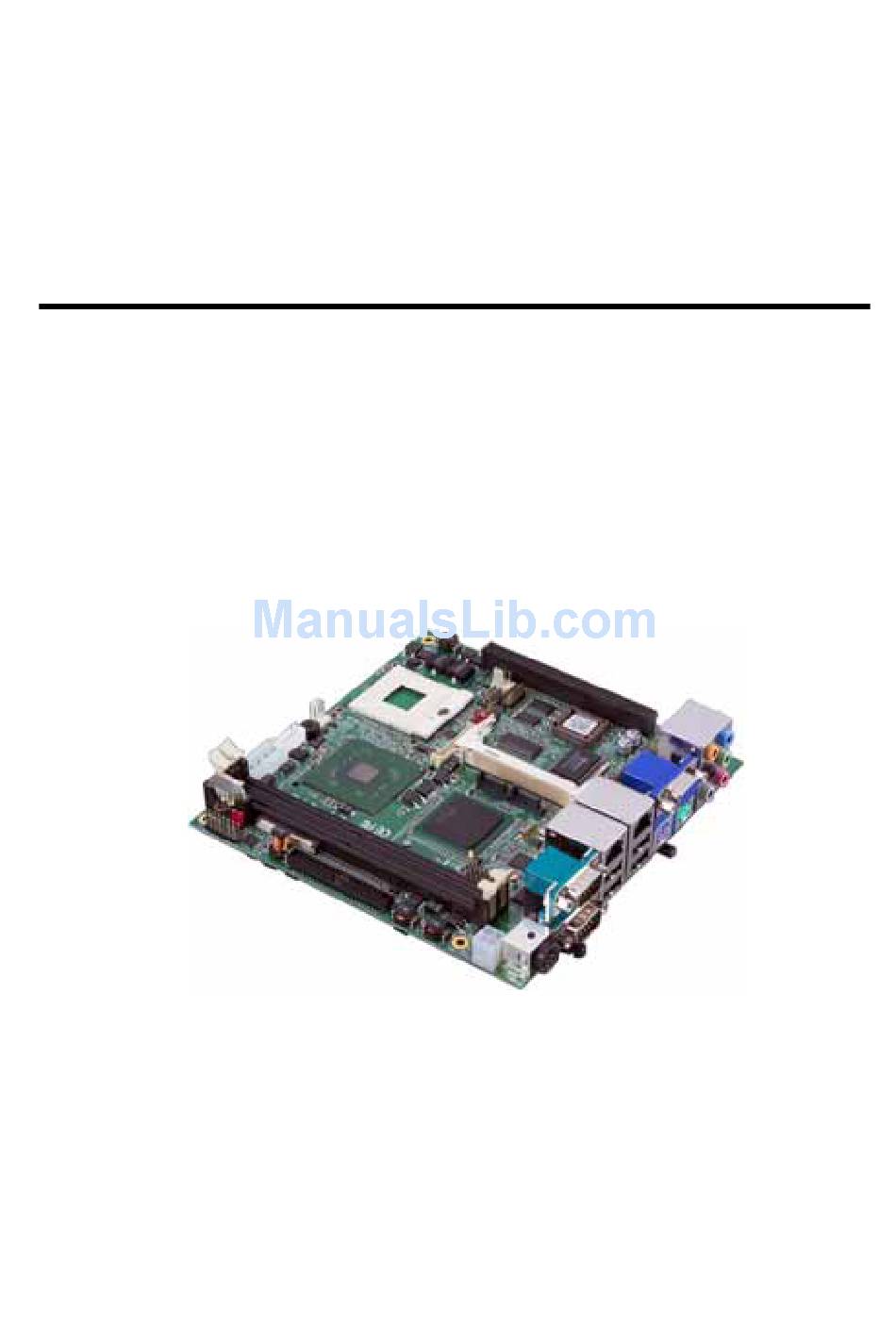

- Page 1 LV-673(E) Serial Mini-ITXexpress Motherboard User’s Manual Edition 1.3 2009/01/12...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
-
Page 3: Cable Kit
LV-673(E) User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-673(E) motherboard x 1 Cable Kit: 44-pin 44-pin 40-pin ATA33 IDE Cable x1 Floppy Cable x 1 SATA Cable x 1 CPU Cooler x 1 SDTV Cable x 1 (Only LV-673) YPbPr Cable x 1... -
Page 4: Table Of Contents
LV-673(E) User’s Manual Index Chapter 1 <Introduction> ............... 7 1.1 <Product Overview> ..............7 1.2 <Product Specification> ............8 1.3 <Mechanical Drawing>............10 1.4 <Block Diagram> ..............11 Chapter 2 <Hardware Setup> ............ 13 2.1 <Connector Location>............. 13 2.2 <Jumper Location & Reference> ..........14 2.3 <Connector Reference>............ - Page 5 LV-673(E) User’s Manual Chapter 3 <System Setup> ............34 3.1 <Video Memory Setup> ............34 Chapter 4 <BIOS Setup> .............. 36 Appendix A <I/O Port Pin Assignment> ......38 A.1 <IDE Port>................38 A.2 <Serial ATA Port> ..............39 A.3 <Floppy Port> .................39 A.4 <IrDA Port>...
- Page 6 LV-673(E) User’s Manual (This Page is Left for Blank)
-
Page 7: Chapter 1
LV-673(E) User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-673(E) is the new generation of the Mini-ITX motherboard, with supporting last Intel Pentium M processors for 533MHz front side bus, Intel 915GM(E) and ICH6-M chipset, integrated GMA900 graphics, DDR2 memory, REALTEK High Definition Audio, Serial ATA, PCI Express 16x interface and dual Gigabit LAN. -
Page 8: Product Specification
LV-673(E) User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Intel® Pentium M / Celeron M processors Package type: FC-PGA478 L2 Cache: 512KB/1MB/2MB Front side bus: 400/533MHz ( The Intel® Celeron® M Processor 4xx series can not be used on LV-673(E) series .) Memory 2 x 240-pin DDR2 400/533MHz SDRAM up to 2GB... - Page 9 4 x COM LV-673(E) not supports TV out function. PCIE-SDVOD PCI-Express add-on card for single DVI interface The specifications may be different as the actual production. For further product information please visit the website at T U h ttp://www.commell.com.twU T Product Specification...
-
Page 10: Mechanical Drawing
LV-673(E) User’s Manual 1.3 <Mechanical Drawing> Mechanical Drawing... -
Page 11: Block Diagram
LV-673(E) User’s Manual 1.4 <Block Diagram> Intel Pentium M/Celeron M Processors Intel GMA900 Graphics PCI-Express x16 2 x 240-pin DDR2 LVDS 400/533MHz up to 915GM(E) CompactFlash 2 x Serial ATA ports UltraDMA33 IDE PCI Express 1x ICH6-M 6 x USB2.0 ports Marvell E8053 Gigabit LAN HD Audio... - Page 12 LV-673(E) User’s Manual (This Page is Left for Blank)
-
Page 13: Chapter 2
LV-673(E) User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> Solder side: CARDBUS CN_AUDIO SPDIF CDIN CN_IR MINIPCI CN_USB PWRIN SATA1 SATA2 CN_LVDS CN_DIO CN_COM34 CPUFAN CN_TV SYSFAN CN_INV CN_BPWR DDRIIB/A JFRNT DC_IN COM1/2 USB_RJ45_A/B AUDIO Connector Location... -
Page 14: Jumper Location & Reference
LV-673(E) User’s Manual Hardware Setup 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL CF with IDE mode selection JVLCD Panel Voltage Setting JCFSEL JRTC JVLCD Jumper Location & Reference... -
Page 15: Connector Reference
LV-673(E) User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket479 for CPU Standard DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket Standard 44-pin IDE connector Standard 26-pin slim type floppy connector Standard S_ATA1/2 7-pin Serial ATA connector Standard PWRIN 4-pin power input connector... -
Page 16: Cpu And Memory Setup
LV-673(E) User’s Manual Hardware Setup 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket479 for Intel Pentium M/Celeron M processors, it supports new generation of Intel Pentium M processors with 533MHz of front side bus and 2MB L2 cache. -
Page 17: Memory Setup
LV-673(E) User’s Manual Hardware Setup 2.4.2 <Memory Setup> The board provides two 240-pin DDR2 DIMMs to support DDR2 400/533 memory modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only. While applying two same modules, dual channel technology is enabled automatically for higher performance. -
Page 18: Cmos Setup
LV-673(E) User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Enhanced Ide Interface
LV-673(E) User’s Manual Hardware Setup 2.6 <Enhanced IDE Interface> The board has one UltraDMA33 IDE interface to support up to 2 ATAPI devices, and one CompactFlash Type I socket on the solder side, with jumper JCFSEL for IDE master/slave mode selection. Jumper: JCFSEL Type: onboard 3-pin header JCFSEL... -
Page 20: Floppy Port
LV-673(E) User’s Manual Hardware Setup 2.8 <Floppy Port> The board provides one slim type floppy port. Lift up the brown plastic bar Slot the cable in (Blue paste for brown bar side) Press back the plastic bar Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside) Press back the plastic bar... -
Page 21: Ethernet Interface
LV-673(E) User’s Manual Hardware Setup 2.9 <Ethernet Interface> The board integrates with two Marvell E8053 PCI Express Gigabit Ethernet controllers, as the PCI Express 1x can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Marvell E8053 supports triple speed of 10/100/100Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 22: Onboard Display Interface
LV-673(E) User’s Manual Hardware Setup 2.10 <Onboard Display Interface> Based on Intel 915GM(E) chipset with built-in GMA (Graphic Media Accelerator) 900 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LCD. -
Page 23: Digital Display
LV-673(E) User’s Manual Hardware Setup 2.10.2 <Digital Display> The board provides one 40-pin LVDS connector for 18-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) and 1920 x 1200 (WUXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV CN_LVDS JVLCD... - Page 24 LV-673(E) User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Description Description +12V LCDVCC VCC3 ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Signal Signal LCDVCC LCDVCC ATX0-...
- Page 25 LV-673(E) User’s Manual Hardware Setup To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 26 LV-673(E) User’s Manual Hardware Setup After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form Single channel Dual channel Output format Output format 640 x 480 1024 x 768 800 x 600...
-
Page 27: Hdtv Interface> Lv-673(E) Not Supports Tv Out Function
LV-673(E) User’s Manual Hardware Setup 2.10.3 <HDTV Interface> LV-673(E) not supports TV out function. The board provides one HDTV interface up to 1024 x 768 resolution by NTSC/PAL supported, for three output types with Composite, S-Video and Component (YPbPr). Connector: CN_TV Connector type: 8-pin header TV-out connector (pitch = 2.54mm) Pin Number Assignment... -
Page 28: Integrated Audio Interface
LV-673(E) User’s Manual Hardware Setup 2.11 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC880 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former AC97 audio compliance. The main specifications of ALC880 are: High-performance DACs with 100dB S/N ratio 8 DAC channels support 16/20/24-bit PCM format for 7.1 audio solution... - Page 29 LV-673(E) User’s Manual Hardware Setup Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC_L Ground MIC_R Ground Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD –...
-
Page 30: Gpio Interface
LV-673(E) User’s Manual Hardware Setup 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 1.27mm x 2.54mm-pitch header Description Description Ground... -
Page 31: Power Supply
LV-673(E) User’s Manual Hardware Setup 2.13 <Power Supply> 2.13.1 <Power Input> The board requires DC 12V input with 4-pin mini DIN connector on rear I/O panel, or onboard 4-pin ATX2.0 12V connector, the input voltage range is from 10.5V to 13V, for the input current, please take a reference of the power consumption report on appendix. -
Page 32: Power Output
LV-673(E) User’s Manual Hardware Setup 2.13.2 <Power Output> The board provides one 4-pin AT connector for +5V/+12V output for powering your HDD, CDROM or other devices. Connector: CN_BPWR Type: 4-pin P-type connector for +5V/+12V output Description Description Description Description Ground Ground +12V Note: Maximum output voltage: 12V/5A &... -
Page 33: Switch And Indicator
LV-673(E) User’s Manual Hardware Setup 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function Signal Signal... -
Page 34: Chapter 3
LV-673(E) User’s Manual Hardware Setup Chapter 3 <System Setup> 3.1 <Video Memory Setup> Based on Intel® 915GM(E) chipset with GMA (Graphic Media Accelerator) 900, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 128MB. To support DVMT, you need to install the Intel GMA 900 Driver with supported OS. - Page 35 LV-673(E) User’s Manual System Setup Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting. On-Chip Fixed DVMT...
-
Page 36: Chapter 4
LV-673(E) User’s Manual System Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 37 LV-673(E) User’s Manual BIOS Setup (This Page is Left for Blank) BIOS Setup...
-
Page 38: Appendix A
LV-673(E) User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ IDE32 P66DET -CS1 -CS3 -HD LED1 Ground Ground... -
Page 39: Serial Ata Port
LV-673(E) User’s Manual I/O Port Pin Assignment A.2 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.3 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DRV0 DSKCHG DRV1 MTR1 MTR0 STEP Ground WRITE DATA... -
Page 40: Serial Port
LV-673(E) User’s Manual System Resources A.5 <Serial Port> Connector: COM1/COM2 Type: 9-pin D-sub male connector on bracket Description Description Ground Connector: CN_COM34 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header Description Description Serial ATA Port... -
Page 41: Vga Port
LV-673(E) User’s Manual I/O Port Pin Assignment A.6 <VGA Port> Connector: VGA Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground BLUE Ground HSYNC VSYNC Ground Ground 5VCLK A.7 <LAN Port> Connector: RJ451/2 Type: RJ45 connector with LED on bracket Description TRD0+ TRD0- TRD1+ TRD1- Description NC TRD2+ TRD2- TRD3+ TRD3-... -
Page 42: Appendix B
The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. -
Page 43: Appendix C
LV-673(E) User’s Manual Appendix C <System Resources> C1. <I/O Port Address Map>... - Page 44 LV-673(E) User’s Manual System Resources Watchdog Timer Setting...
-
Page 45: C2.
LV-673(E) User’s Manual C2. <Memory Address Map>... -
Page 46: C3.
LV-673(E) User’s Manual System Resources C3. <System IRQ & DMA Resources> DMA: IRQ: Watchdog Timer Setting... -
Page 47: C4.
LV-673(E) User’s Manual C4. <GPIO programmed> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 29 -o 4E 40 ;enale GPIO function -o 4E 07... -
Page 48: C5.
LV-673(E) User’s Manual System Resources C5. <Watchdog Timer Setting> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample... -
Page 49: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
