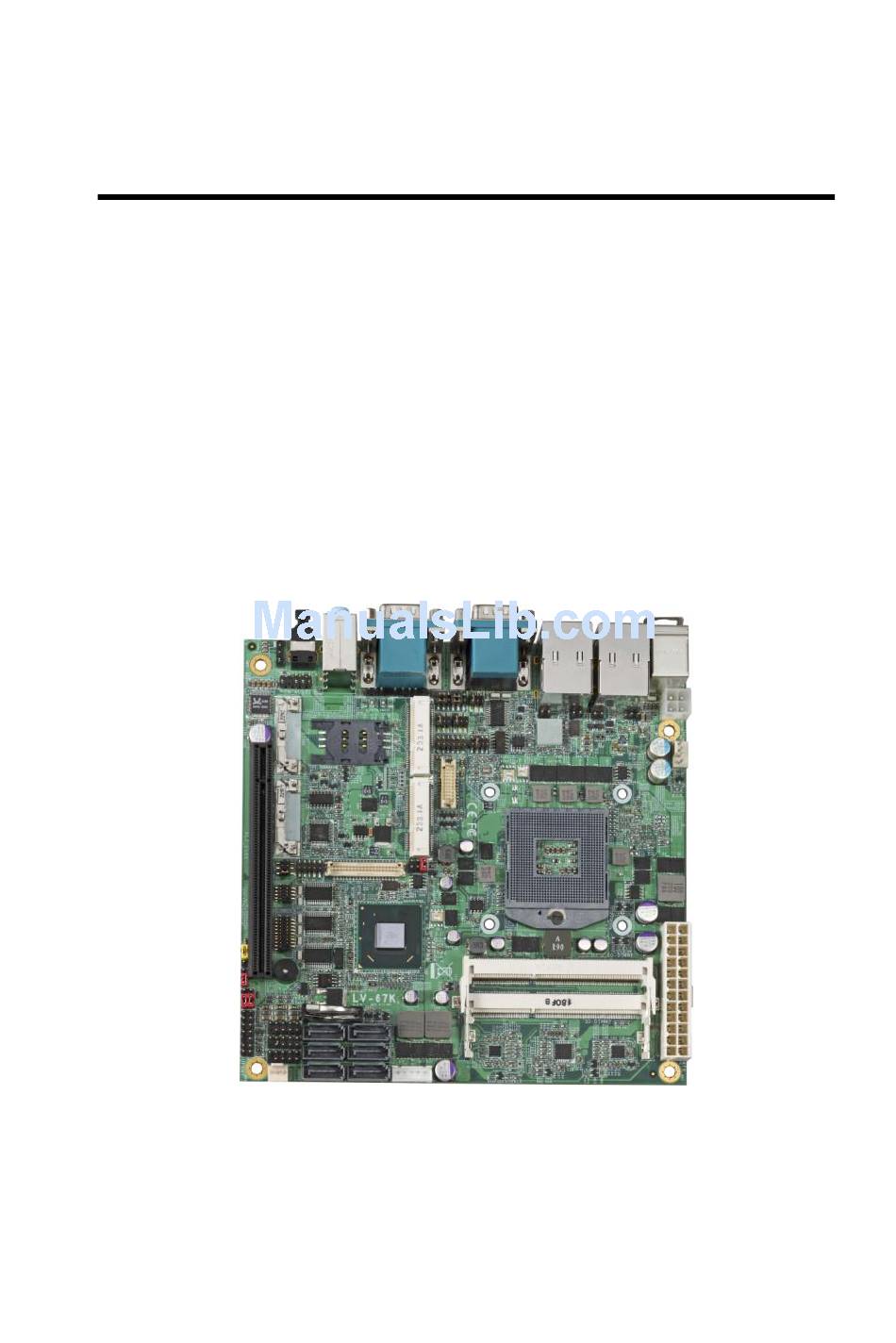

- Page 1 LV-67K Mini-ITX Motherboard User’s Manual Edition 1.2 2013/02/25...
- Page 3 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
-
Page 4: Sata Cable X
LV-67K User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67K Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA3-L) (OALDC-A) Power Cable x 1 DVI module with bracket x 1 (ADPDVI &... - Page 5 LV-67K User’s Manual Optional Cable: Dual COM PORT cable x 1 USB2.0 Cable x 1 (OALES-BKU2) (OALUSBA-1)
- Page 6 LV-67K User’s Manual Index Chapter 1 <Introduction> ............. 7 1.1 <Product Overview> ..................7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing> ................10 1.4 <Block Diagram> ..................11 Chapter 2 <Hardware Setup> ..........12 2.1 <Connector Location> ................12 2.2 <Jumper Location &...
- Page 7 LV-67K User’s Manual 2.14.2 <Power Output> ............... 39 2.14.3 <Fan connector> ..............40 2.15 <Switch and Indicator> ................41 Chapter 3 <System Setup> ............42 3.1 <Audio Configuration> ................42 3.2 <Display Properties Setting> ..............43 3.3 <SATA configuration> ................. 45 3.4 <SATA RAID Configuration>...
- Page 8 LV-67K User’s Manual (This page is left for blank)
-
Page 9: Chapter 1

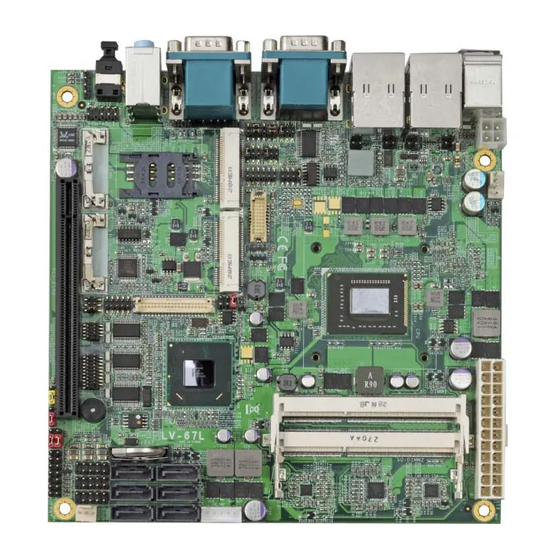

LV-67K User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67K the 3 Generation Intel of the Mini-ITX Motherboard , supports 3 Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel QM77 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 10: Product Specification
LV-67K User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB Support Non-ECC, unbuffered memory only... - Page 11 LV-67K User’s Manual The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw...
-
Page 12: Mechanical Drawing
LV-67K User’s Manual 1.3 <Mechanical Drawing>... -
Page 13: Block Diagram
LV-67K User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 Processor 1 x PCI Express x16 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x CRT 1 x LVDS 2 x PCI Express mini card... -
Page 14: Chapter 2
LV-67K User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_AUDIO CN_SMBUS JSPD2 JSPD1 CD_IN CN_IR CN_GPIO JACT2 JACT1 DC_IN MINI_CARD2 SIMM CPUFAN CN_DVI MINI_CARD1 PCIE x16 CN_LPC CN_LVDS COM4 COM5/6 JFRNT CN_USB3/4/5 SYSFAN SATA6 SATA3 CN_INV SO-DIMM2 SO-DIMM1 SATA5 SATA2... -
Page 15: Jumper Location & Reference
LV-67K User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 16: Connector Reference
LV-67K User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector DC_IN DC 9~24V input connector... -
Page 17: Cpu And Memory Setup
LV-67K User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel Ivy Bridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 18: Memory Setup
LV-67K User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM2 SO-DIMM1... -
Page 19: Cmos & Atx Setup
LV-67K User’s Manual 2.5 <CMOS & ATX Setup> The board‟s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 20: Serial Ata Interface
LV-67K User’s Manual 2.6 <Serial ATA Interface> LV-67K has Four Serial ATA II(SATA Port3/4/5/6) & Two Serial ATA III(SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 21: Ethernet Interface
LV-67K User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel 82574L Gigabit Ethernet & one Intel 82579LM controllers, as the PCI Express bus. The Intel 82574L & 82579LM supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 22: Onboard Display Interface
LV-67K User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one DB15 Ivy Bridge connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 20-pin DVI interface. -
Page 23: Digital Display
LV-67K User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_LVDS... - Page 24 LV-67K User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 25 LCD Installation Guide: Preparing the LV-67K, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 26 LV-67K User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 27: Dvi Interface
LV-67K User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI/DP Connector type: 20-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment +3.3V Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P Ground TMDSTX2N TMDSTX2P Ground TMDSTXCN TMDSTXCP Ground DVI_DA DVI_SL AUXN AUXP... -
Page 28: Integrated Audio Interface
LV-67K User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 29 LV-67K User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 30: Usb Interface
LV-67K User’s Manual 2.10 <USB Interface> LV-67K integrates four USB3.0 ports and six USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel® QM77 Controller Transfer Rate Up to 5Gb/s Voltage USB1/2/3/4 Type: USB3.0 The specifications of USB2.0 are list: Interface USB2.0... - Page 31 LV-67K User’s Manual Connector: CN_USB4/5/6 Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description (5V_SB/ 5V) (5V_SB/ 5V) Data0- Data1- Data0+ Data1+ Ground Ground Ground JVUSB Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 &...
-
Page 32: Serial Port
LV-67K User’s Manual 2.11 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM1/3 Type: 9-pin D-sub male connector on bracket for COM1/3... - Page 33 LV-67K User’s Manual JCSEL1 JCSEL2 COM4 COM5/6...
- Page 34 LV-67K User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 35: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 36 LV-67K User’s Manual Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 37: Sim Setup
LV-67K User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 38 LV-67K User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 39: Gpio And Smbus Interface
LV-67K User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 40: Power Supply And Fan Interface
LV-67K User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 24-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 41: Power Output
LV-67K User’s Manual 2.14.2 <Power Output> The board provides one 24-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! -
Page 42: Fan Connector
LV-67K User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 43: Switch And Indicator
LV-67K User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 44: Chapter 3
LV-67K User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM77 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 45: Display Properties Setting
LV-67J User’s Manual 3.2 <Display Properties Setting> Based on Intel QM77 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. 1. - Page 46 LV-67J User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen -44-...
-
Page 47: Sata Configuration
LV-67J User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -45-... -
Page 48: Sata Raid Configuration
LV-67J User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM77 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if one drive fails, the system would access the applications to the workable drive. - Page 49 LV-67J User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology. -47-...
-
Page 50: Chapter 4
LV-67K User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 51 LV-67K User’s Manual (This page is left for blank)
-
Page 52: Appendix A
LV-67K User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 53: A.5
LV-67K User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 54: Appendix B
LV-67K User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash.exe”, it‟s the utility that can write the data into the... -
Page 55: Appendix C
LV-67K User’s Manual Appendix C <Programming GPIO’s> The GPIO‟can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 56: Appendix D
LV-67K User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 57: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
