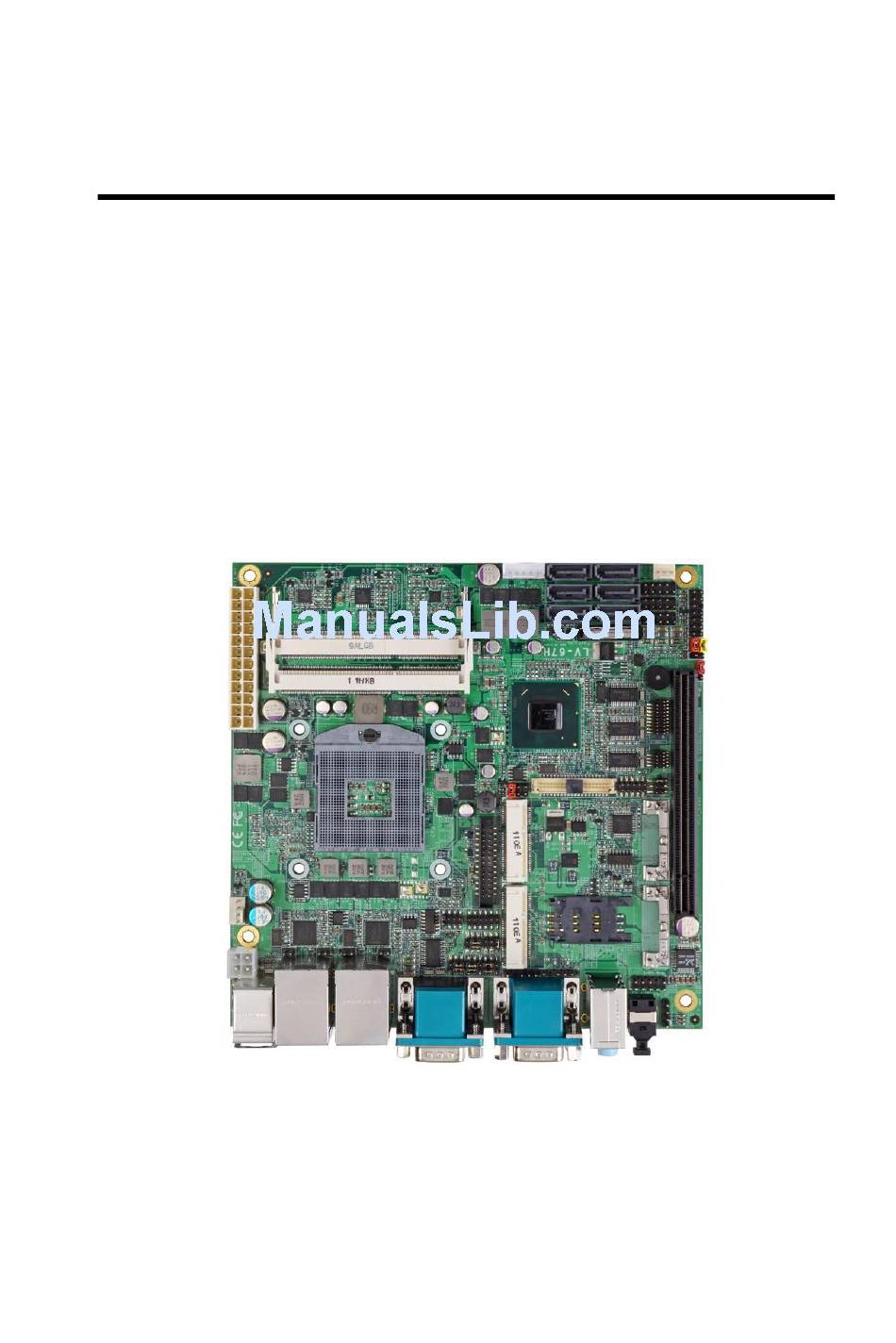

- Page 1 LV-67H Mini-ITX Motherboard User’s Manual Edition 1.5 2013/03/01...
- Page 3 LV-67H User’s Manual Copyright Copyright 2011, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Sata Cable X
LV-67H User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67H Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA-L) (OALDC-A) DVI module with bracket x 1... - Page 5 LV-67H User’s Manual Optional Cable: Dual COM PORT cable x 1 USB Cable x 1 (OALES-BKU2) (OALUSBA-1)
- Page 6 LV-67H User’s Manual Index Chapter 1 <Introduction> ............. 7 1.1 <Product Overview> ..................7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing> ................. 9 1.4 <Block Diagram> ..................10 Chapter 2 <Hardware Setup> ..........11 2.1 <Connector Location> ................11 2.2 <Jumper Location &...
- Page 7 LV-67H User’s Manual 2.14.2 <Power Output> ............... 39 2.14.3 <Fan connector> ..............40 2.15 <Switch and Indicator> ................41 Chapter 3 <System Setup> ............42 3.1 <Audio Configuration> ................42 3.2 <Display Properties Setting> ..............43 3.3 <SATA configuration> ................. 45 3.4 <SATA RAID Configuration>...
- Page 8 LV-67H User’s Manual (This page is left for blank)
-
Page 9: Chapter 1

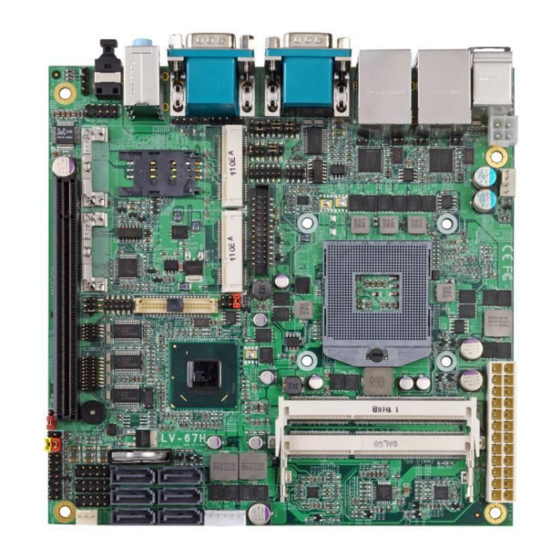

LV-67H User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67H the 2 Generation Intel of the Mini-ITX motherboard, supports 2 Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 10: Product Specification
LV-67H User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB Support Non-ECC, unbuffered memory only... -
Page 11: Mechanical Drawing
LV-67H User’s Manual 1.3 <Mechanical Drawing> Unit: inch... -
Page 12: Block Diagram
LV-67H User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 1 x PCI Express x16 and Celeron® Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x CRT 1 x LVDS 2 x PCI Express mini card... -
Page 13: Chapter 2
LV-67H User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1 SATA4 SATA2 SATA5 CN_INV SATA3 SATA6 SO-DIMM1 SO-DIMM2 SYSFAN CN_USB3/4/5 JFRNT COM5/6 COM4 CN_LVDS CN_LPC PCIE x16 MINI_CARD1 CN_DVI CPUFAN MINI_CARD2 SIMM DC_IN CN_AUDIO CD_IN JSPD1 JSPD2 CN_IR CN_GPIO... -
Page 14: Jumper Location & Reference
LV-67H User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 15: Connector Reference
LV-67H User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector DC_IN DC 9~24V input connector... -
Page 16: Cpu And Memory Setup
LV-67H User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 17: Memory Setup
LV-67H User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM2 SO-DIMM1... -
Page 18: Cmos & Atx Setup
LV-67H User’s Manual 2.5 <CMOS & ATX Setup> The board‟s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Serial Ata Interface
LV-67H User’s Manual 2.6 <Serial ATA Interface> LV-67H has Four Serial ATA II (SATA Port3/4/5/6) & Twor Serial ATA III (SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 20: Ethernet Interface
LV-67H User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Onboard Display Interface
LV-67H User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one Sandy Bridge DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 26-pin DVI interface. -
Page 22: Digital Display
LV-67H User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV... - Page 23 LV-67H User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 24 LCD Installation Guide: Preparing the LV-67H, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 25 LV-67H User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
- Page 26 LV-67H User’s Manual...
-
Page 27: Dvi Interface
LV-67H User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground Ground TXC+ TXC- Ground PVDD TX2+ TX2- Ground Ground TX0+ TX0- HPDET DDCDATA DDCCLK... -
Page 28: Integrated Audio Interface
LV-67H User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 29 LV-67H User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 30: Usb Interface
LV-67H User’s Manual 2.10 <USB Interface> LV-67H integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel® QM67 Controller Transfer Rate Up to 480Mb/s Voltage USB_RJ45_1 USB_RJ45_2 CN_USB3 CN_USB5 CN_USB5 Connector: CN_USB3/4/5 Type: 10-pin (2 x 5) header (pitch = 2.54mm) - Page 31 LV-67H User’s Manual JVUSB Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 & 4-6 Default: 1-3 & 2-4 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 Warning: others cause damages...
-
Page 32: Serial Port
LV-67H User’s Manual 2.11 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM1/3 Type: 9-pin D-sub male connector on bracket for COM1/3... - Page 33 LV-67H User’s Manual CN_COM5/6 CN_COM4 JCSEL2 JCSEL1...
- Page 34 LV-67H User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 35: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 36 LV-67H User’s Manual MINI_CARD1 MINI_CARD2 Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 37: Sim Setup
LV-67H User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 38 LV-67H User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 39: Gpio And Smbus Interface
LV-67H User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 40: Power Supply And Fan Interface
LV-67H User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 41: Power Output
LV-67H User’s Manual 2.14.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! -
Page 42: Fan Connector
LV-67H User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. SYSFAN CPUFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 43: Switch And Indicator
LV-67H User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 44: Chapter 3
LV-67H User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM67 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 45: Display Properties Setting
LV-67J User’s Manual 3.2 <Display Properties Setting> Based on Intel QM67 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. 1. - Page 46 LV-67J User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen -44-...
-
Page 47: Sata Configuration
LV-67J User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -45-... -
Page 48: Sata Raid Configuration
LV-67J User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM67 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if one drive fails, the system would access the applications to the workable drive. - Page 49 LV-67J User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology. -47-...
-
Page 50: Chapter 4
LV-67H User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 51 LV-67H User’s Manual (This page is left for blank)
-
Page 52: Appendix A
LV-67H User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 53: A.5
LV-67H User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 54: Appendix B
LV-67H User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash16.exe”, it‟s the utility that can write the data into the... -
Page 55: Appendix C
LV-67H User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 56 LV-67H User’s Manual...
-
Page 57: C.2
LV-67H User’s Manual C.2 <Memory Address Map>... -
Page 58: C.3
LV-67H User’s Manual C.3 <System DMA & IRQ Resources> DMA: IRQ:... -
Page 59: Appendix D
LV-67H User’s Manual Appendix D <Programming GPIO’s> The GPIO‟can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 60: Appendix E
LV-67H User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 61: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
