- Page 1 LV-67P Mini-ITX Motherboard User’s Manual Edition 1.1 2016/08/15...
- Page 2 LV-67P User’s Manual Copyright Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-67P User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LV-67P Motherboard 1 x DC Power Cable 2 x SATA Cable (OALDC-A) / (1040433) (OALSATA3-L) / (1040529) 1 x Power Cable 1 x I/O Shield... - Page 4 LV-67P User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............7 Chapter 2 <Hardware setup>............8 2.1 <Connector Location and Reference> ........ 8 2.1.1 <Internal connectors list> ..........9 2.1.2 <External connectors list>.........9...
-
Page 5: Chapter 1

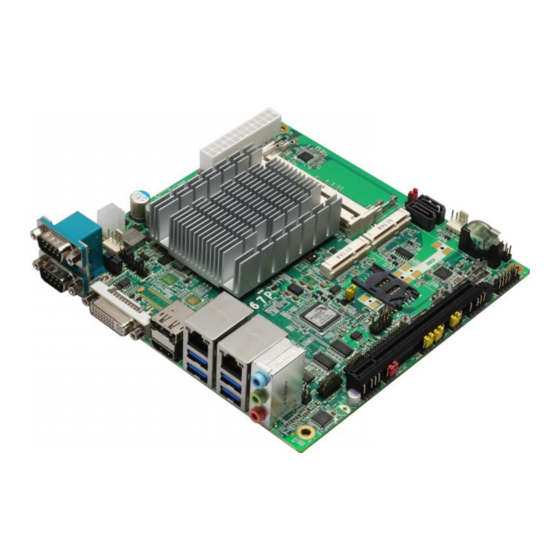

LV-67P User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67P is mini-ITX Motherboard which is design based on Intel® Pentium® Processor N3000 Series Processor(Braswell SoC), delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 14nm process... -
Page 6: Product Specification
LV-67P User’s Manual 1.2 <Product Specification> System Intel® Braswell Series Processor N3710/X5-E8000, Processor FCBGA1170 package Chipset Braswell SoC 2 x DDR3L DIMM 1600 MHz up to 8GB, Support Non-ECC, Memory unbuffered memory only (If you only use one DDR3L SO-DIMM, install memory on SO-DIMM1) (if you use two DDR3L SO-DIMM, need same memory) (Same memory means same capacity, same topology same raw card type.) -
Page 7: Mechanical Drawing
LV-67P User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LV-67P User’s Manual 1.4 <Block Diagram> PTN3460 DDR3L Channel A SO-DIMM 1 x LVDS DDR3L Channel B SO-DIMM Braswell PCIe x1 I210-AT 1 x DVI PCIe x1 I210-AT 1 x HDMI mSATA PCIe x1 1 x PCI_E16x SATA3 1 x SATA3... -
Page 9: Chapter 2
LV-67P User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_SATA3-2 CN_USB2 SO-DIMM1 SO-DIMM2 CN_SATA3-1 SYSFAN CN_USB1 JFRNT MSATA CN_I2C MINI_CARD PCI_E16X CN_PS2 CN_DIO CN_LPC CN_COM5/6 CN_SMBUS DC_IN CN_COM3/4 CPUFAN CN_INV CN_AUDIO CN_LVDS CN_CRT AUDIO I210-AT I210-AT COM2... -
Page 10: Internal Connectors List
LV-67P User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM1/2 204-pin DDR3L SO-DIMM slot CN_SATA3-1/2 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_DIO 6 x 2-pin digital I/O connector... -
Page 11: Jumper Location And Reference
LV-67P User’s Manual 2.2 <Jumper Location and Reference> JVSATA3-2 JUSBS2-1 JUSBS2-2 JMSATA JRTC JVLCD 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard Msata Setting JVSATA3-2 Set 5V to SATA3-2 pin 7... -
Page 12: Clear Cmos And Power On Type Selection
LV-67P User’s Manual 2.2.2 <Clear CMOS and Power on type selection> JRTC: Clear CMOS data jumper Jumper settings Function Clear CMOS Normal (Default) JAT: AT/ATX mode select jumper Jumper settings Function AT mode ATX mode (Default) JRTC 2.3 <Installing the Memory>... -
Page 13: I/O Interface
LV-67P User’s Manual 3. To remove the memory, push outward on both sides of the latch. Latch 2.4 <I/O interface> 2.4.1 <Serial ATA interface> SATA3-2 SATA3-1/2: SATA3 7-pin connector JVSATA3-2 Signal SATA3-1 JVSATA3-2: SATA3/SATADOM mode select jumper (change pin7 to 5V) -
Page 14: Display Interface
LV-67P User’s Manual I210-AT I210-AT 2.4.3 <Display interface> Based on the Braswell SoC with built-in HD Graphics, the DVI up to 1920x1080@60Hz, the DisplayPort up to 3840x2160 @ 30Hz, the HDMI resolution up to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @ 60Hz support 18/24-bit color depth and single/dual channel. - Page 15 LV-67P User’s Manual JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1-...
-
Page 16: Serial Port Interface
LV-67P User’s Manual CN_CRT: CRT 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK 2.4.4 <Serial Port interface> CN_COM5/6 JCSEL1 CN_COM3/4 JCSEL2 COM1: RS232 DB9 connector Signal Signal Set by JP2 -15-... - Page 17 LV-67P User’s Manual COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP1 Note: Use JCSEL1 and JCSEL2 to select communication mode CN_COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm) Signal...
-
Page 18: Usb Interface
LV-67P User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 RS485 RS422 2.4.5 <USB interface> CN_USB1 CN_USB2 JUSBS2-2 JUSBS2-1 CN_COM3/4 USB3.0 USB3.0 -17-... -
Page 19: Audio Interface
LV-67P User’s Manual CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ JUSBS2-1: Minicard usb singal setting Jumper settings Function CN_USB1 can work (Default) Change USB signal to minicard (PIN36 &38) JUSBS2-2: MSATA usb singal setting... -
Page 20: Expansion Slot
LV-67P User’s Manual 2.4.7 <Expansion slot> SATA3-2 MSATA PCI_E16X slot MINI_CARD SIMM JMSATA MINI_CARD connect SIM card with 3G module. JMSATA: Setting MSATA to support mSATA Jumper settings Function Support mSATA, and SATA3-2 cannot work SATA3-2 can work, and MSATA cannot work(Default) PCI_E16X slot: 16-lane (×16) links, but run 1x speed... -
Page 21: Other Interface
LV-67P User’s Manual JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- SYSFAN 2.4.9 <Other interface> CN_I2C CN_DIO CN_LPC CN_SMBUS CPUFAN -20-... - Page 22 LV-67P User’s Manual CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_SMBUS: SMBus 5-pin connector Signal...
-
Page 23: Power Supply
LV-67P User’s Manual SYSFAN: System cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: Terminal Block 4-pin power connector Signal Signal Power in The power support 9~24V wide voltage input. ATX: main power 24-pin connector... -
Page 24: Appendix A
LV-67P User’s Manual Appendix A <Flash BIOS> A.1 BIOS Auto Flash Tool The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com... - Page 25 LV-67P User’s Manual then input the “fs0:” command to switch to the root of the USB flash drive. 4. Type the ” fpt64.efi -y -f xxxxx.bin” command to start flash BIOS processes. ( xxx.bin means the BIOS file that you want to update) 5.
-
Page 26: Appendix B
LV-67P User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Advanced----->... -
Page 27: Appendix C
LV-67P User’s Manual Appendix C <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 28: Appendix D
LV-67P User’s Manual Appendix D <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 29: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -28-...
