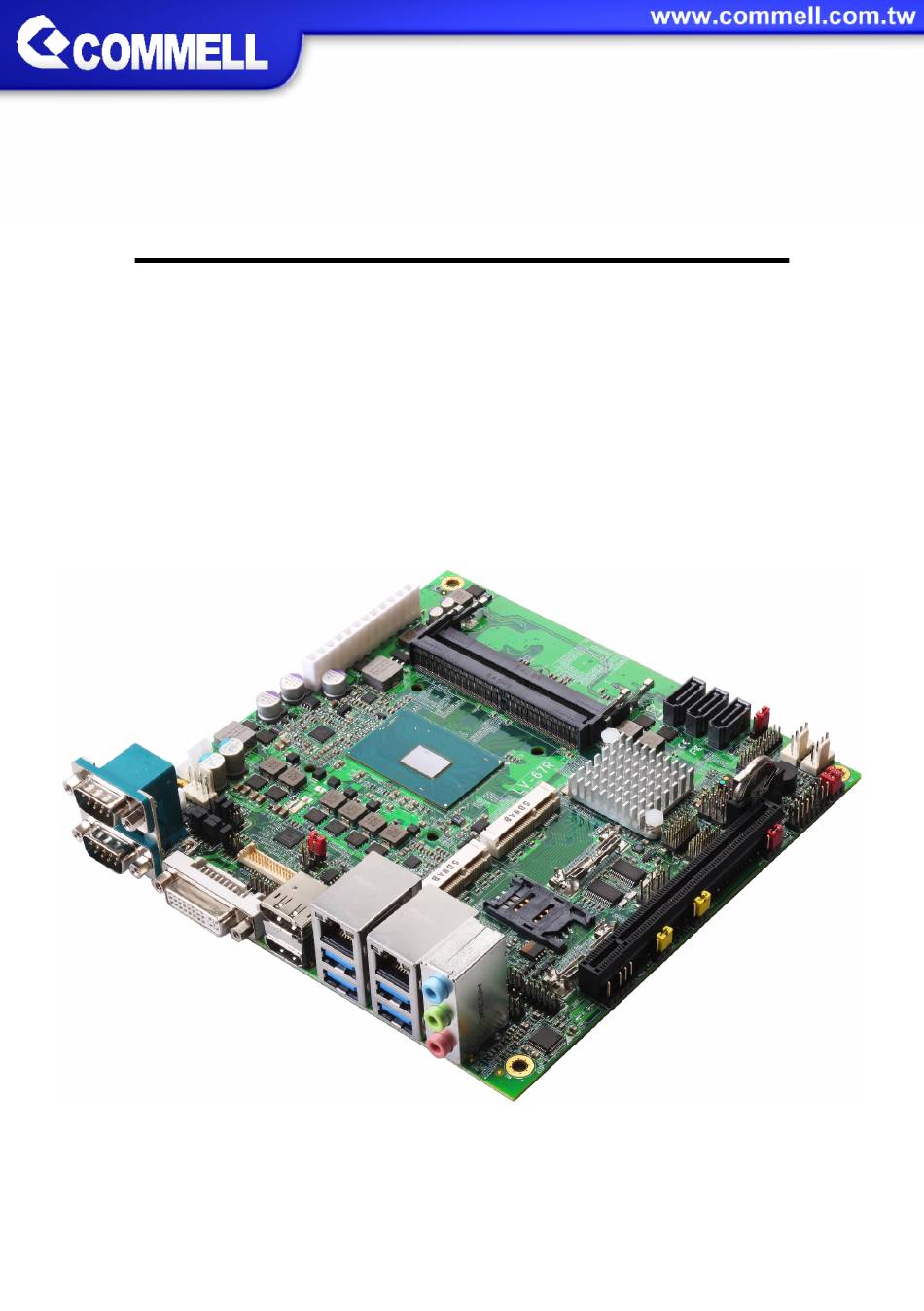

- Page 1 LV-67R Mini-ITX Mobile Motherboard User’s Manual Edition 3.1 2020/09/28...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
- Page 3 LV-67R User’s Manual Packing List: Please check the package content before you starting using the board. 1 x I/O Shield (OPLATE-CDILAT) / (1270067) 1 x LV-67R Mini-ITX Motherboard (include Cooler Fan) 1 x Power Cable 1 x VGA Cable (OALATX-P3S2 / 1040058) (OALVGA-SNB-7) / (1040557) 2 x SATA Cable 1 x DC Power Cable...
-
Page 4: Table Of Contents
LV-67R User’s Manual Index Chapter 1 <Introduction>..............4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............7 Chapter 2 <Hardware setup> ............8 2.1 <Connector Location and Reference> ........ 8 2.1.1 <Internal connectors list> ..........9 2.1.2 <External connectors list>.........9 2.2 <Memory Setup>............... -
Page 5: Chapter 1

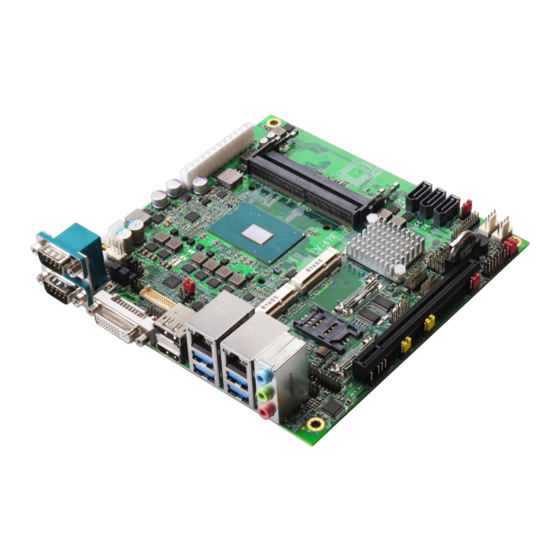

LV-67R User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67R is Mini-ITX Motherboard which supports Intel® 6th / 7th Gen Intel® Core™/ Xeon® H-series Processor with Intel® QM170 /QM175 /CM238 Chipset, integrated HD Graphics 530, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 The 6th / 7th Generation Intel®... -
Page 6: Product Specification
LV-67R User’s Manual 1.2 <Product Specification> System Processor Intel® 6th / 7th Gen Intel® Core™/ Xeon® H-series Processor, FCBGA1440 package Chipset Intel® QM170 /QM175 /CM238 Memory 2 x DDR4 SO-DIMM 2133 MHz up to 32GB, Support Non-ECC, unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Real Time Clock... -
Page 7: Mechanical Drawing
LV-67R User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LV-67R User’s Manual 1.4 <Block Diagram> 1 x HDMI Channel A DDR4 SO-DIMM 1.2V 1 x DisplayPort 6th / 7th Gen Channel B 1 x DVI-I DDR4 SO-DIMM 1.2V Processor PTN3355 PCI Express X16 1 x VGA PTN3460 DMI GEN3 1 x LVDS PCIe x1 I210-AT... -
Page 9: Chapter 2
LV-67R User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CPUFAN CN_DIO CN_LVDS CN_AUDIO CN _INV CN_LPC DC_IN MINI CARD2 PCI_E16X CN_SMBUS SIMM CN_PS2 MINI CARD1 CN_COM3/4 CN_COM5/6 CN_USB2-1 CN_USB2-2 SATA3-1 JFRNT CN_USB 3-1 SYSFAN SATA3-2 DDR4_B DDR4_A AUXFAN AUDIO SATA3-3... -
Page 10: Internal Connectors List
LV-67R User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/2/3 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_SMBUS 5-pin SMBus connector... -
Page 11: Memory Setup
LV-67R User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. Press down Mounting notch 3. -
Page 12: Jumper Location And Reference
LV-67R User’s Manual 2.3 <Jumper Location and Reference> JVLCD JCSEL2 JCSEL1 JMATA JRTC JVUSB JVSATA3-3 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard 2 MSATA Setting COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) JCSEL1 COM2 RS-232 RS422 RS485 Setting... -
Page 13: Clear Cmos And Power On Type Selection
LV-67R User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
LV-67R User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. The I219-LM support Intel® AMT 11.0 feature, if want to use, need to enable in the BIOS I219-LM I210-AT 2.4.3 <Display interface>... - Page 15 LV-67R User’s Manual CN_CRT CN_INV JVLCD CN_LVDS CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0-...
-
Page 16: Serial Port Interface
LV-67R User’s Manual A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.4 <Serial Port interface>... - Page 17 LV-67R User’s Manual JCSEL2 CN_COM3/4 JCSEL1 CN_COM5/6 COM1: RS232 DB9 connector Signal Signal Set by JP1 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Use JCSEL1 and JCSEL2 to select communication mode -16-...
- Page 18 LV-67R User’s Manual COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1...
-
Page 19: Usb Interface
LV-67R User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 (Default) RS485 RS422 2.4.5 <USB interface> USB3.0 USB3.0 LEFT RIGHT CN_USB2-1 CN_USB2-2 CN_USB3-1 JVUSB JVUSB -18-... - Page 20 LV-67R User’s Manual CN_USB 2-1/2-2: USB2.0 10-pin header Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7. CN_USB3-1 USB3.0 20-pin header (Pitch 2.00 mm) Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1-...
-
Page 21: Audio Interface
LV-67R User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out Mic in CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -20-... -
Page 22: Expansion Slot
LV-67R User’s Manual 2.4.7 <Expansion slot> SIMM MINI CARD2 PCIe x16 JMSATA MINI CARD1 MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD2 support mSATA by JMSATA, and connect SIM card with 3G module. -
Page 23: Front Panel Switch And Indicator
LV-67R User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -22-... -
Page 24: Gpio And Other Interface
LV-67R User’s Manual 2.4.9 <GPIO and Other interface> When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics 5V TTL-level Input Pin Parameter Unit Conditions... - Page 25 LV-67R User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK...
-
Page 26: Power Supply
LV-67R User’s Manual SYSFAN: System cooler fan 4-pin connector Signal Sensor Control AUXFAN: AUX cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: 4-pin 9~25V connector Signal Signal 9~25V 9~25V ATX: main power 24-pin connector (DC_IN and ATX can’t use at the same time) Signal Signal... -
Page 27: Power Output
LV-67R User’s Manual 2.5.1 <Power Output> It is supply to the HDD, CD-ROM or other device. If using DC_IN as input, that ATX will be the output. ATX: main power 24-pin connector (As output) Signal Signal 3.3V 3.3V 3.3V 3.3V -26-... -
Page 28: Appendix A
LV-67R User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. -
Page 29: Appendix B
LV-67R User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. You can find the setting from [Advanced] ... -
Page 30: Appendix C
LV-67R User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 31 LV-67R User’s Manual Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device -o 4E 30 -o 4F 01 ; activate WDTO# function -o 4E F0 -o 4F 00 ;set “00”...
-
Page 32: Appendix D
LV-67R User’s Manual Appendix D <Hardware monitor > Find the setting from [Misc] [SIO NCT6106D Hardware Monitor] -31-... -
Page 33: Appendix E
LV-67R User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device... -
Page 34: Appendix F
LV-67R User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Find the setting from [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] SATA And RST Configuration ... - Page 35 LV-67R User’s Manual If this screen stop time is too short, it can be set in the BIOS. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [Software Feature Mask Configuration] [OROM UI Normal Delay [ 8 sec] (Need to set RAID mode first) At boot time, press <CTRL + I>...
-
Page 36: Appendix G
LV-67R User’s Manual Appendix G <Setup ADP-3355,ADP-3460> LV-67RT & LV-67RTK series has a header for 2nd VGA or 2nd LVDS, it’s no need install extra driver. For further information, please refer to the manual. ADP-3355 manual Link ADP-3460 manual Link Appendix H <SuperIO Setting>... - Page 37 LV-67R User’s Manual There are 5 functions in the page 1. COM Port control 2. Watch dog timer select 3. Over Temperature System will restart when CPU Temperature at 60/70/80 Celsius 4. Power control Restore system when abnormal power condition occurs [Always Off] keep computer power off after AC power loss recovered.
-
Page 38: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -37-...
