Ltl-6210m (test) series mobile hd video scouting camera
Hide thumbs Also See for Ltl-6210M Series:

Advertisement

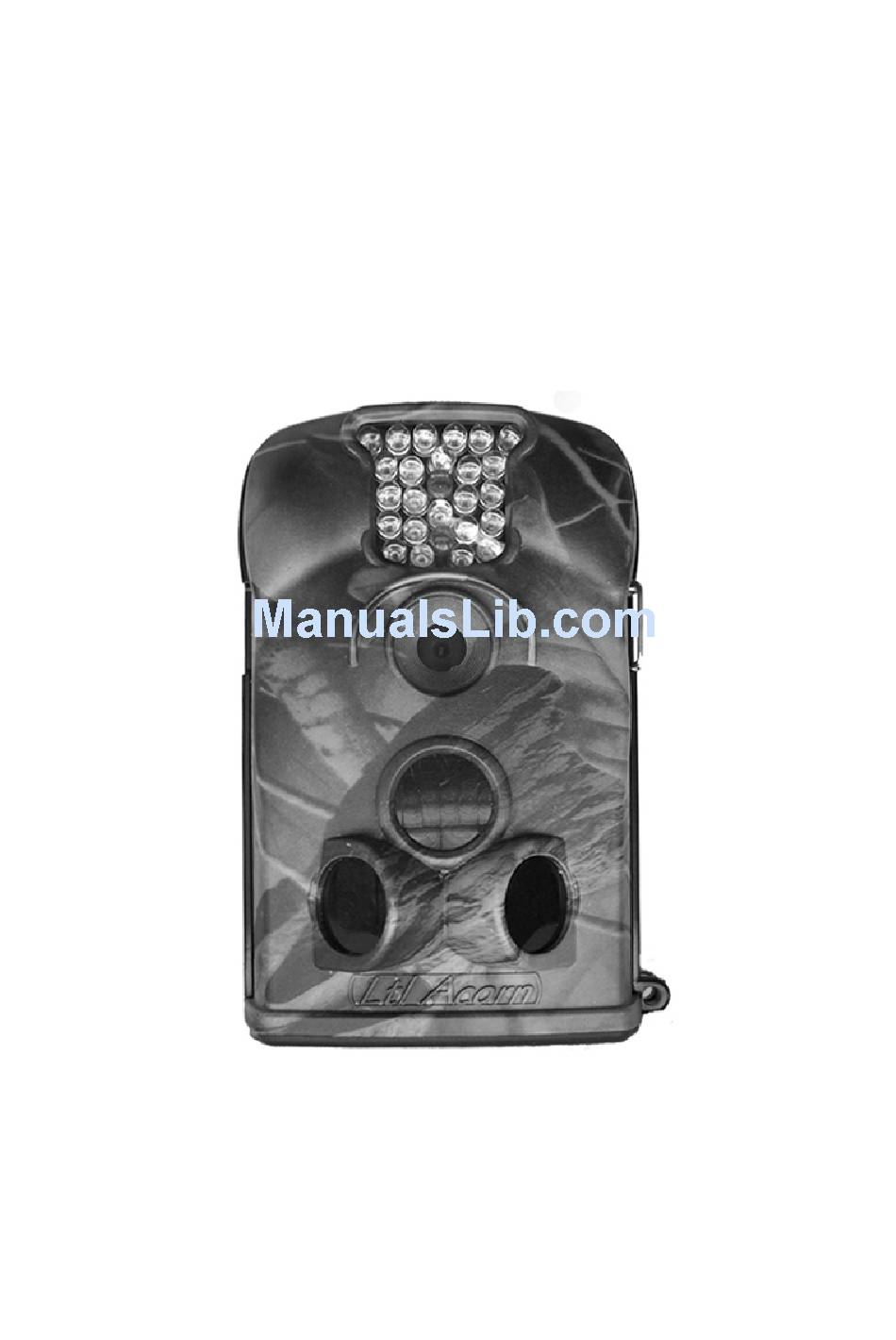

Ltl Acorn®
Mobile
Scouting Camera
HD Video
Ltl-6210M (Test) Series
USER'S MANUAL
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-6210M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ltl Acorn Ltl-6210M Series

  • Page 1 Ltl Acorn® Mobile Scouting Camera HD Video Ltl-6210M (Test) Series USER’S MANUAL - 0 -...
  • Page 2: Table Of Contents

    3.3 Set up Camera on PC 3.4 Set up MMS Function on PC 3.5 Camera Working with MMS 3.6 View Local MNOP Name and Signal Strength on TFT display Ltl-6210M Series Products 4.1 Parts 4.2 Models for Purchase Important Information 5.1 Prevent From Short-Circuits...
  • Page 3: General Information

    GENERAL INFORMATION 1.1 Introduction The Ltl Acorn M Series (Model Ltl-6210MC and Ltl-6210MM) is the first generation of our HD video scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM), the standard scouting camera (Part # Ltl-6210M) can be upgraded to work as a remote cellular camera.
  • Page 4: Application

    General Information If local area mobile signal is bad , Could not send MMS, Also can choose to send a text message(SMS). Message content is taking pictures time and Camera serial number. Our Advanced Remote Cellular Technology transmits images to your cell phone and email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market.
  • Page 5 General Information Figure 1.1: Front View of Ltl-6210M Figure 1.2: Bottom View of Ltl-6210M - 4 -...
  • Page 6 General Information The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera.
  • Page 7: Quick Start

    Quick Start QUICK START 2.1 Insert SIM Card (Only for Model Ltl-6210MM) You need to purchase the SIM card from your local Mobile Phone Network Operators (MPNO), making sure they provide Multimedia Messaging Service (MMS). Ask them for the relevant information to configure the MMS settings on your camera.
  • Page 8: Enter Test Mode

    Quick Start slot, please make sure the write-protect switch on the side of the SD card is “off” (NOT in the “Lock” position). The supported memory capacity is up to 32GB. If you use a card capable of above 32GB, make sure you test it before putting the camera in use. Figure 2-2 CAUTION: ALWAYS SWITCH THE CAMERA TO OFF MODE BEFORE YOU INSTALL OR REMOVE THE BATTERIES OR THE SD CARD.
  • Page 9: Enter Live Mode

    PIR sensor. By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground.
  • Page 10 Quick Start as short as 0.2 second. In the case the game browses only in the PIR area of the prep sensors, to avoid the camera being powered on constantly, the system is designed to work in the following way: If the game does not enter the PIR area of the main sensor and therefore not trigger the main sensor, the camera will power off after 3 seconds.
  • Page 11: Advanced Settings

    Advanced Settings ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the test mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press...
  • Page 12 Advanced Settings Please also refer to the Interval parameter. Video Length (affects Avi 10 s, optional from Videos are in AVI format that can be video clips only) 1s to 60s played back on most media players. Interval 1 Min, optional from Select the length of time that the camera 1S to 60M will wait from when the last picture was...
  • Page 13: File Format

    Advanced Settings take photos/videos at the set interval (Note: in this mode, the PIR sensor is disabled). This is helpful when observing cold-blooded animals like snakes, or the process of flowering, etc. This feature can work together with Timer feature. Side PIR On, Off The default setting is On.
  • Page 14: Set Up Camera On Pc

    Advanced Settings Only in the OFF and TEST mode, you can use the provided USB cable to download the files to a computer. Or you can put the SD card to a SD card reader, plug in a computer, and browse the files on the computer without downloading.
  • Page 15 Advanced Settings Set up the camera based on your need. Click on to retrieve the computer time. Click on to choose the directory to save your settings, usually under the root directory of the SD card (You need to insert the SD card in the SD card reader and plug it in your computer.) Then, click on .
  • Page 16: Set Up Mms Function On Pc

    Advanced Settings At this point, if your camera is Model Ltl-6210MM, or you’ve just upgraded your standard scouting camera, Model Ltl-6210MC, to Model Ltl-6210MM by purchasing the MMS-module battery box (Part # LTL-MM1), skip the following step and go directly to 3.4 Set up MMS Function on PC.
  • Page 17 Advanced Settings First, you need to choose how you like to set up the MMS Mode --Auto or Manual. If you choose Auto, then you need to choose the country and the Mobile Phone Network Operator (MPNO). After doing that, - 16 -...
  • Page 18: Camera Working With Mms

    Advanced Settings the below section will populate with parameters pertaining to the selected MPNO, such as URL, APN, Gateway and Port. Then you can input the phone number and email address you’d like the MMS pictures to be sent to. You can enter up to three different phone numbers or email address. If you choose Manual to manually input all the parameters, you need to contact your Mobile Phone Network Operator (MPNO) to have them provide you all the required information.
  • Page 19: View Local Mnop Name And Signal Strength On Tft Display

    Advanced Settings The Timer function is OFF. If you have the Timer ON, make sure you are in the specified time period when expecting incoming MMS pictures. Make sure MMS Status is not set OFF or SMS. The setting is “0”, or the daily limit has not been reached.
  • Page 20 Advanced Settings CGREG: Not able to register with GPRS network. COPS: Searching for the MNPO of the SIM card. Once it is found, the operator’s name and the signal strength will show on the screen. If No MM1 shows on the screen, it means the MMS-module is not found (installed).
  • Page 21: Ltl-6210M Series Products

    Ltl-6210M Series Products LTL-6210M SERIES PRODUCTS 4.1 Ltl-6210M Series Consists of Three Parts: 1. Ltl-6210M Camera 2. LTL-BM1 Standard battery box (without MMS-module) 3. LTL-MM1 MMS-module battery box 4.2 Models for Purchase: Ltl-6210MM = Ltl-6210M Camera + LTL-MM1 MMS-module battery box...
  • Page 22: Important Information

    5.2 Power Supply and Battery Box Ltl-6210M Series camera can work on up to 12 voltages. The 4 AA batteries in the camera, the 4 AA batteries in the battery box, and the external power supply form a three-path parallel circuit.
  • Page 23: Auto Adjustment On Video Length

    5.5 850nm and 940nm IR LED There are two selects of IR LED on the Ltl-6210M series camera, 850nm and 940nm. The former provides up to 82-foot flash range whereas the latter up to 30-foot flash range. The benefit of 940nm IR LED, however, is it emits very low-glow flash that is almost invisible from 5 feet away.
  • Page 24: Mount On Tripod

    I programmed the camera to constantly take pictures. But some pictures were not sent to my phone. How? The Ltl-6210M series camera is designed to constantly send MMS pictures to the recipient’s phone. However, if the signal is too weak, it may not work stably.
  • Page 25 Important Information The camera was in motion when sending pictures. Or the signal was unstable. I was pretty sure the battery was quite low. But I didn’t get any text alert. Why? The camera “assumes” you install new batteries when you start the camera. It tracks the usage of the batteries and texts you when the power is low.
  • Page 26: Firmware Upgrades

    Firmware Upgrades FIRMWARE UPGRADES 6.1 Firmware Upgrades The manufacturer reserves the right to upgrade the camera and the firmware. Follow the steps below to implement the upgrades: Install batteries and the SD card. Back up SD card the contents to other area. Format the SD card on the camera. Retrieve the SD card and plug it in your computer (SD card reader may needed).
  • Page 27: Warranty Information

    LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a Ltl Acorn product, you are covered under the limited warranty. We guarantee our products to be free of defects in materials and workmanship under normal use and service for a period after registered date of purchase.
  • Page 28: Appendix I Technical Specifications

    Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-6210MC Ltl-6210MM Image Sensor 5 Mega Pixels Color CMOS 2560x1920 Max. Pixel Size F=3.1; FOV=52° ; Auto IR-Cut Lens 82 Feet/25 Meters IR Flash LCD Screen 48x35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color Operation Keypad 6 Keys SD Card (8MB ~32GB)
  • Page 29 Appendix I: Technical Specification MMS E-mail 0 ~ 3 E-mail address Upgradable Upgradable “Battery Low” text alert sent Upgradable Low-Battery SMS Alert Power Supply 4xAA; Expandable to 8xAA Plug Size: 4.0x1.7 External DC 6 ~ 12V (1 ~ 2A) Power Supply Stand-by Current 0.4mA 3~6 Months(4xAA~8xAA)...
  • Page 30: Appendix Ii Package Contents

    Appendix II: Package Contents Appendix II: PACKAGE CONTENTS LTL-MM1 Part Name Quantity Quantity (Ltl-6210MC) ( ( ( ( Ltl-6210MM) ) ) ) MMS-module battery box Digital Camera Additional Battery 1 (Standard) 1 (With MMS 1 (With MMS module) module) TV AV IN Cable USB Cable Strap External DC Cable...
  • Page 31: Appendix Iii Instruction On Installing Battery Box

    Appendix III: Instruction on Installing Battery Box Appendix III: INSTRUCTION ON INSTALLING BATTERY BOX - 30 -...
