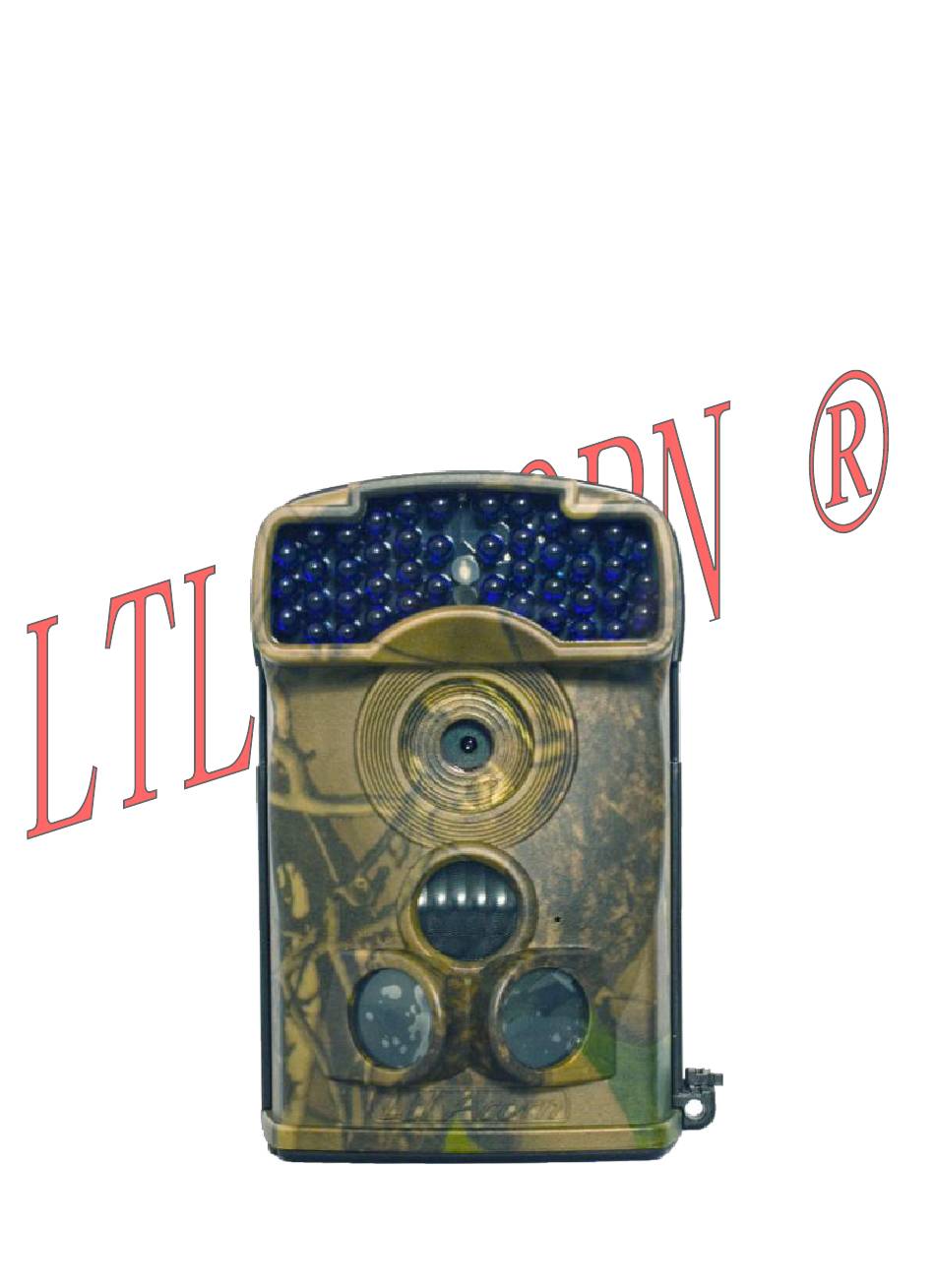

  • Page 1 LTL ACORN ® Infrared Digital Scouting Camera Ltl-5610 Series GPS Coordinate Input 1920×1080 Video USER’S MANUAL...
  • Page 2: Table Of Contents

    3.8 View Local MPNO Name and Signal Strength on TFT Display....28 ... 3.9 Set up Camera on Mobile Phone..........30 Ltl-5610 Series Products And Components..........34 4.1 Ltl-5610 Series Component Parts............34 4.2 Models for Purchase................34 Important Information................35 5.1 Prevent Short Circuit of Electric Contacts..........35 5.2 Power Supply and Battery Box..............36...
  • Page 3: General Information

    This manual applies to model Ltl-5610A, Ltl-5610MC, Ltl-5610MG, Ltl-5610WA, Ltl-5610WMC and Ltl-5610WMG. Ltl-5610 is new generation product of LTL ACORN. With its highly sensitive Pyroelectric Infrared Radial (PIR) Sensor, detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggered to take photos/videos.
  • Page 4  Ultra-long in-field battery life (up to 6 months with 12 AA batteries in standby mode).  With two Preparatory PIR sensors and main photograph PIR sensor, forming a 100 degrees sensing range, so that the camera can be powered on in advance with the status of ready to shoot when the animal enters from side PIR in the 100 degrees sensing rang, at this time, the camera can take pictures immediately within 0.2 seconds if the animal enters into the sensing range of...
  • Page 5  Lockable and password protected.  Users can run Ltl Acorn application software on the computer (with a CD or download from Ltl Acorn website), configure camera parameters and MMS setting parameters, generate settings file separately, or configure the camera parameters directly on the camera menu.
  • Page 6: Application

    1.2 Application Digital scouting camera   Animal or plants observation  Motion-triggered security camera, for home, office and community. 1.3 Illustration Figure 1.1: Front view of the camera (Part # Ltl-5610A)  Figure 1.2: Bottom view of the camera (Part # Ltl-5610A) ...
  • Page 7 Figure 1.2: Bottom view of Ltl-5610A The camera provides the following connections for external devices: Micro USB interface, SD card slot, TV out jack, and external DC port. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST.
  • Page 8: Getting Started

    Figure 1.3: Back view of Ltl-5610A CAUTION: If you are not using the camera for an extended period of time, it is highly recommended to remove the batteries from the camera to avoid possible acid leak that may damage the camera and void the warranty.
  • Page 9: Load Batteries On The Camera

    Figure 2.1 Wireless module battery box 2.2 Load Batteries on the Camera Follow below instruction to load batteries on camera (Part # Ltl-5610A): Figure 2.2 Battery door  Unlock and open the bottom cover of the camera.  Push and release the battery door. ...
  • Page 10: Insert Sd Card

    Please refer to Appendix III Install Battery Box to install additional battery box (Part # Ltl-BM3). Alternatively the camera can run on an external 6V~12V DC power source (optional). When external power and batteries are both connected, the camera will prefer to choose and powered by external power source with higher voltage.
  • Page 11: Enter Test Mode

    Figure 2.3 Attention: Please switch to OFF mode before loading or removing batteries/ SD card. 2.4 Enter Test Mode Switch to the TEST position to enter the Test mode. In this mode, the camera can be used as a regular digital camera to take pictures or video clips, or you can enter the Menu to set up parameters.
  • Page 12 SHOT key to manually take the picture/ video  Press the (depending on the camera setting), the picture/ video would be saved to the SD card. If the display shows “CARD PROTECTED” when you press the SHOT key, please switch the power off, remove the SD card and slide its write-protect switch to OFF.
  • Page 13: Enter Live Mode

    The trigger time varies from different scouting camera brands on the market, generally from 1 to 5 plus seconds. Our LTL ACORN Infra-Red scouting camera has an impressive 0.8 seconds trigger time. If the animal passes across very quickly, the slow speed camera (which trigger time is 1-5 seconds) may only capture the part of the body, or even nothing at all.
  • Page 14: Advanced Settings

    PIR sensor continuously, the whole body of the animal will be captured thanks to the 0.8 seconds response time. Advanced Settings The LTL ACORN Infra-red scouting camera comes with preset manufacturer settings. Users can change the settings in TEST mode as required. 3.1 Parameter Settings Press “MENU”...
  • Page 15 Select picture resolution 1.3MP(MMS camera only) ,5MP or 12MP. Higher resolution 12MP, 5MP, produces better quality photos, but 1.3MP(MMS Photo Size occupies more space and takes camera only) longer time to write to the SD card, which slightly affects the shutter speed.
  • Page 16 Select the sensitivity of the PIR sensor. The High setting suits indoors and environments with little interference, while the Normal/Low suits outdoors and environments High, Normal, with more interference. Sense Level Temperature also affects the Low, Off sensitivity. The High setting is suitable to the high ambient temperature, and the Low setting is helpful in cold weather.
  • Page 17 Select On to assign a serial number to every camera. Use 4 digits (0~9) and/or alphabets (A~Z) to record the location in of photos (e.g. YSP1 for Yellow Stone Park). This helps camera users identify Serial No. Off, On location when organizing photos.
  • Page 18 Click Enter, input the coordinate manually, the GPS information would be saved to photo Enter properties, it is helpful to check Coordinates the location where the camera placed when review pictures. One mobile number could be set on the camera only, please refer to the section 3.4 for setting more mobile number or E-mail account.
  • Page 19: Gps Coordinate

    3.2 GPS Coordinate ●Obtain GPS Coordinate Obtain the GPS coordinate via mobile APP which developed by LTL ACORN, or via the third party map software. ●GPS Coordinate Input The GPS Coordinate could be inputted on camera menu, as well as on PC SETUP software or Mobile SETUP APP, please refer to 3.4 Set up Camera on PC or 3.5 Set up Camera on Mobile Phone for details.
  • Page 20: Set Up Camera On Pc

    The GPS coordinate could be inputted on Ltl-5610 series camera, allows users to check the longitude and latitude where the camera located in photo properties, or locate the photos position by the third party map software. The AVI video can be played on most popular media players, such as Windows Media Player, etc.
  • Page 21 Select language and camera model Ltl 5610A/Ltl 5610MG. Click Camera Setup, enter camera setting interface: Set up the camera based on your requirements. Please refer to section 3.1 Parameter Settings for more details. - 22 -...
  • Page 22 Click to retrieve the computer time. Click choose the save directory, SD card root directory is recommended (insert SD card into computer first). Click , a message window will pop out as below. Click to restore to default settings. Click OK, a file named menu.dat has been created and saved in the selected directory.
  • Page 23: Set Up Mms Function On Pc

    3.5 Set up MMS Function on PC Click to exit from the camera setting interface, back to the following window reminder again. Click MMS Setup, pop up the following interface: - 24 -...
  • Page 24 Firstly, you need to set MMS mode as Auto or Manual. Choose Auto (recommended), then choose country and the Mobile Phone Network Operator (MPNO). If you choose Manual to input all the parameters manually, please contact your Mobile Phone Network Operator (MPNO) to obtain all the required information such as URL, APN, Gateway, and Port.
  • Page 25: Sms Remote Control

    Click on to exit from the MMS setting interface. Retrieve the SD card and insert it into the camera. Switch to the TEST mode. The information “Updated setup.dat Successfully” will show up on the TFT display, indicating the MMS parameters have been successfully upgraded. 3.6 SMS Remote Control DSP SMS receipt content definition ●...
  • Page 26 Side PIR: off (0), on (1) 10*1# MMS status: off (0), VGA (1), 11*2# SMS (2) Phone number Phone No. 2 or Email: 12*15197 Maximum 48 bytes 611542# 15197611542 Email Phone No. 3 or Email: 13*info@lt info@ltlacorn.cn Maximum 48 bytes lacorn.cn# 14*info@lt Email...
  • Page 27 All the order code ends with“*”, all the value ends with“#”.  E.G.: LTL01*0#02*2#06*S30#07*10A3Z#AA Definition: camera mode, 1.3MP, interval: 30s, serial No.: 0A3Z. The message represents: take pictures and send back after receiving the message. For SMS remote control setting, different value with different extra ...
  • Page 28 Set SMS remote control parameters in PC  Click SMTP Setup to popup the following menus: - 29 -...
  • Page 29: Wireless Mms Camera Working

    In Auto mode, first select country and operator. In Manual mode, you need to fill in APN/ Account/ Password. These parameters should be obtained from local mobile operator. Fill in your SMTP server, SMTP port, sender E-mail, sender Password and Recipients E-mail. SMS remote control, the value ranges from “0”...
  • Page 30  The camera is powered on and functioning well. The SD card has enough space. 12AA batteries with enough power capacity. The camera starting up by timing or by induction. Send MMS in Cam mode or Cam+Video mode only, not in Video mode. ...
  • Page 31 correctly in the OFF mode, then switch the camera to the TEST mode and begin to work. It is supported to connect the camera with TV for monitor, the MPNO symbol and the signal strength would be shown on the TV with successful connection in 1 minute. If it’s not connected with the TV, you can separate the battery box and the camera after 1 minute, the information would be shown on the camera TFT display.
  • Page 32: Set Up Camera On Mobile Phone

    3.9 Set up Camera on Mobile Phone  Download and install mobile Setup APP Get the Setup.apk from CD or download it from Ltl Acorn’s website: http://www.ltlacorn.cn/about/downloaden.html (Download →Classification → APP→ Setup) Copy the Setup.apk to mobile phone with USB or by any other methods, and then install the APP.
  • Page 33 Icon of Setup APP: Click to enter the Setup interface: - 34 -...
  • Page 34  Select the directory to save configuration Camera: LTL 5610A is set as default model. Directory: The saving path and LtlAcorn folder would be created in mobile phone and as default saving folder. Directory may be different on different mobile phone. Users can choose other directory by clicking Directory to save configuration, as below picture: - 35 -...
  • Page 35 Attention: Remember the selected directory for searching file. Set up camera  Click , enter camera setup page: Set up the camera according to users’ requirements, please refer to 3.1 Parameter Settings in Advanced Settings to find detailed explanations. Click to obtain the GPS coordinate.
  • Page 36: Ltl-5610 Series Products And Components

    Switch the camera to TEST mode, the massage “Updated menu.dat Successfully” would be shown on TFT LCD screen, the configuration has been updated successfully. Ltl-5610 Series Products And Components 4.1 Ltl-5610 Series Component Parts 1. Ltl-5610A/ WA/ MC/WMC/MG/ WMG camera main unit 2.
  • Page 37: Important Information

    Important Information 5.1 Prevent Short Circuit of Electric Contacts There are 2 or 5 electric contacts above the TFT LCD screen on the camera and 2 or 5 above the battery compartment of the battery box. To avoid short circuit or damage to the camera, please NEVER contact these electric contacts with any metallic materials.
  • Page 38: Power Supply And Battery Box

    5.2 Power Supply and Battery Box The working voltage of Ltl-5610 Series is up to 12V. The 4 AA batteries in the camera main unit, 4 or 8 AA batteries in the battery box and the external power source form a four-path parallel circuit. Each path is isolated and does not charge or discharge each others.
  • Page 39: 850Nm And 940Nm Ir Led

    5.5 850nm and 940nm IR LED There are two types of IR LED for Ltl-5610 series camera, 850nm and 940nm. For Ltl-5610 normal lens angle series camera, 850nm provides 30m flash range and 940nm provides 18m. For Ltl-5610W wide lens angle series camera, 850nm provides 18m flash range and 940nm provides 13.5m.
  • Page 40: Faqs On Mms Function

    5.7 FAQs on MMS Function I set up a new receiving phone number. But the MMS  pictures are still being sent to the old number. What should I do? --Switch the camera OFF. Wait for at least two minutes. Then switch it ON.
  • Page 41: Firmware Upgrades

    • Insert SD card into the camera and load batteries. • Format the SD card. • Obtain the firmware from LTL ACORN’s website http://www.ltlacorn.cn/about/downloaden.html (Download→Classification→Software→Ltl-5610), or from authorized distributor. • Retrieve the SD card and insert it into the computer (SD card reader may be needed).
  • Page 42: Warranty Information

    Warranty Information We take great pride in our products. We always stand behind our promises and provide leading warranty term and service. Every LTL ACORN trail camera comes with a limited warranty period. We guarantee our trail cameras to be free of defects in materials and workmanship under normal use and service for a one-year warranty after the registered date of purchase.
  • Page 43: Appendix I Technical Specifications

    Appendix I:Technical Specifications Ltl- Ltl- Ltl-56 5610 Ltl-561 Model Parameters 5610 10WM WA/W A/MC Image 5 Mega Pixels Sensor Color CMOS FOV=55°; Auto IR-Cut Lens FOV=100°; Auto IR-Cut 850nm LED meters meters meters meters IR Flash 13.5 13.5 940nm LED Distance meters meters...
  • Page 44 High/Normal/Low Sensitivity /Off 20 Meters (below Sensing 77°F/25°C at the Distance Normal level) Left and right Prep PIR light beams form Sensing an angle of 100°; Angle Each one covers 10° Main PIR Sensing 35° Angle Working Day/Night Mode Trigger 0.8 Seconds Time Trigger...
  • Page 45 On/Off; Programmable; Timer2 Accuracy error≤10s 4-digit Password Numbers(0~9) 4 digits and/or alphabets (0~9, A~Z);Turn on the serial No. setting, Device the picture/ video name would start Serial No. with serial No., makes the file easy to be classified. On/Off; 0 Sec ~ 23 Hrs 59 Mins Time 59 Secs;...
  • Page 46 Plug Size: External 4.0mmx1.7mm DC Power 6 ~ 12V (2 ~ 1A) Supply Stand-by 0.4mA Current Stand-by 3~6 Months Time (4xAA~12xAA) Auto power off Auto after 3 minutes Power Off without operation. 150mA (+650mA with 850nm LED Power lights on);150mA Consumpt (+700mA with 940nm LED...
  • Page 47: Appendix Ii Standard Package Contents

    Operation -49°F(-45°C) ~+158 Temperatu °F(+70°C) Operation 5% ~ 95% Humidity FCC & CE & Certificate RoHS Appendix II: Standard Package Contents Quantity Quantity Quantity (Ltl-5610MC/WM (Ltl-5610MG/WM Part Name (Ltl-5610A/WA) Digital Camera Ltl-BM3 Standard Battery Box Ltl-MM3 Wireless Module Battery TV AV IN Cable Micro USB Cable Strap...
  • Page 48: Appendix Iii Install Battery Box

    Appendix III: Install Battery Box - 49 -...
  • Page 49 Load battery: load batteries as figure 1 to match the sign + and -. Place the drawstring and load 4 underlying batteries from left to right side as figure 2 and figure 3, place the drawstring on the underlying batteries and load the upper 4 batteries as figure 4 and figure 5.
  • Page 50 Unload the batteries as below: 1. Pull the drawstring to unload batteries. - 51 -...
  • Page 51 - 52 -...
  • Page 52 § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
