- Page 1 Ltl Acorn® Mobile Scouting Camera Ltl-5210M Series USER’S MANUAL - 0 -...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ......................General Information ........................ 1.1 Features ......................1.2 Application ......................1.3 Illustration ........................Quick Start 2.1 Insert SIM Card ......................2.2 Load Batteries ...................... 2.3 Insert SD Card ..................... 2.4 Enter Test Mode ....................2.5 Enter Live Mode 2.6 Advantages of Prep Sensors ...................... -
Page 3: General Information
GENERAL INFORMATION 1.1 Introduction The Ltl Acorn M Series (Model Ltl-5210MC and Ltl-5210MM) is the second generation of our Ltl-5210 scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM), the regular scouting camera (Part # Ltl-5210M) can be upgraded to work as a remote cellular camera. -
Page 4: Application

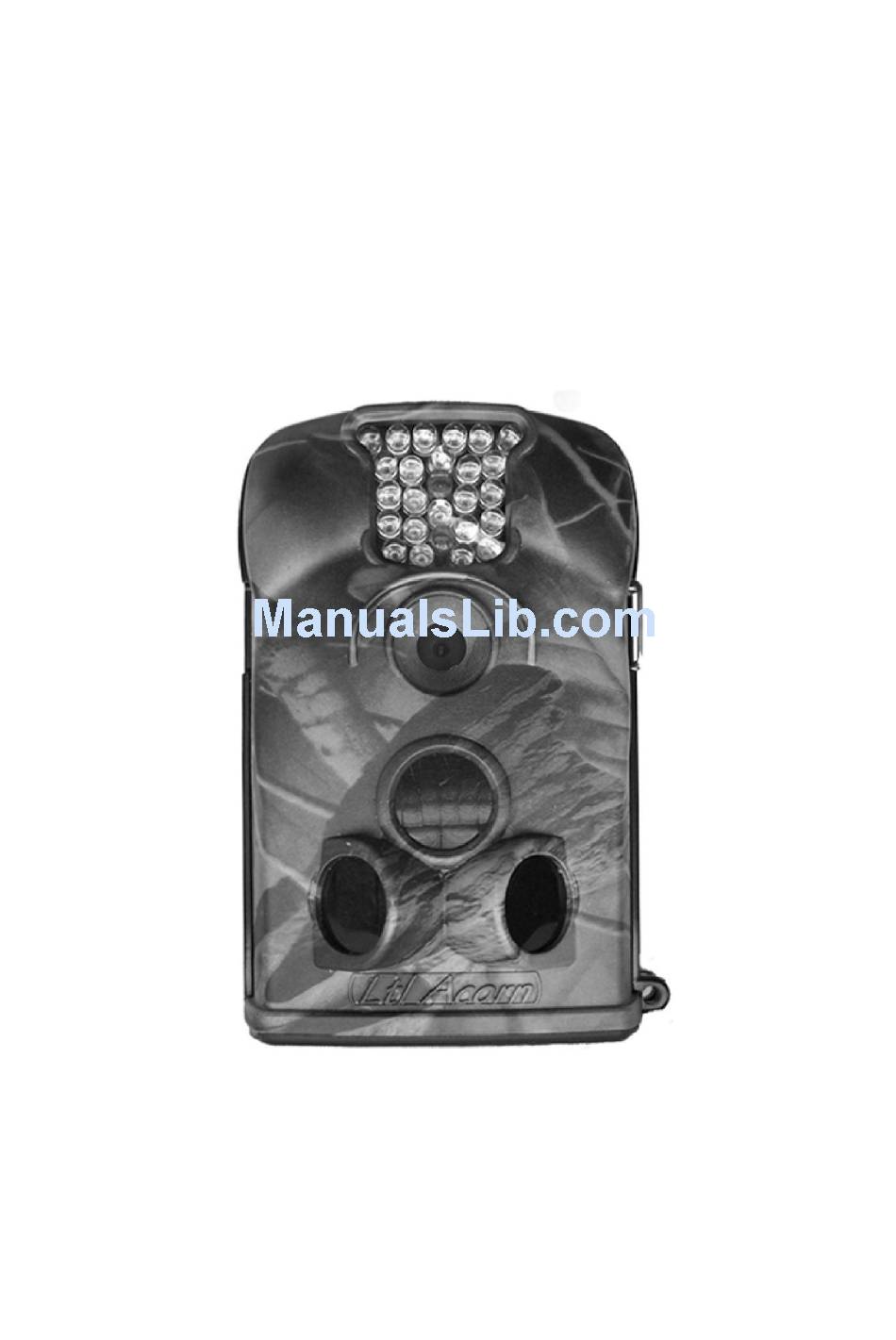

General Information email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market. Automatic text alert when battery power level goes low Check cellular signal information on the built-in TFT display in the field ... - Page 5 General Information Figure 1.1: Front View of Ltl-5210M Figure 1.2: Bottom View of Ltl-5210M - 4 -...
- Page 6 General Information The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To supply power, use four NEW high-performance alkaline or lithium AA batteries.
-
Page 7: Quick Start
Quick Start QUICK START 2.1 Insert SIM Card (Only for Model Ltl-5210MM) You need to purchase the SIM card from your local Mobile Phone Network Operators, making sure they provide Multimedia Messaging Service (MMS). Ask them for the relevant information to configure the MMS settings on your camera. -
Page 8: Enter Test Mode
Quick Start “Lock” position). The supported memory capacity is up to 16GB. If you use a card capable of above 16GB, make sure you test it before putting the camera in use. Figure 2-2 CAUTION: ALWAYS SWITCH THE CAMERA TO OFF MODE BEFORE YOU INSTALL OR REMOVE THE BATTERIES OR THE SD CARD. -
Page 9: Enter Live Mode
PIR sensor. By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground. - Page 10 Quick Start In the case the game browses only in the PIR area of the prep sensors, to avoid the camera being powered on constantly, the system is designed to work in the following way: If the game does not enter the PIR area of the main sensor and therefore not trigger the main sensor, the camera will power off after 3 seconds.
-
Page 11: Advanced Settings
Advanced Settings ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the test mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press... - Page 12 Advanced Settings Please also refer to the Interval parameter. Video Length (affects Avi 10 s, optional from Videos are in AVI format that can be video clips only) 1s to 60s played back on most video players. 1 Min, optional from Select the length of time that the camera Interval 1S to 60M...
-
Page 13: File Format
Advanced Settings take photos/videos at the set interval (Note: in this mode, the PIR sensor is disabled). This is helpful when observing cold-blooded animals like snakes, or the process of flowering, etc. This feature can work together with Timer feature. On, Off The default setting is On. -
Page 14: Set Up Camera On Pc
Advanced Settings MMS pictures in the folder \DCIM\MMS\100IMAGE with the same filename. Pictures are saved with filenames like IMAG0001.JPG and videos like IMAG0001.AVI. In the OFF mode, you can use the provided USB cable to download the files to a computer. Or you can put the SD card to a SD card reader, plug in a computer, and browse the files on the computer without downloading. - Page 15 Advanced Settings Set up the camera based on your need. Click on to retrieve the computer time. Click on to define the directory to save the settings, usually under the root directory of the SD card (You need to insert the SD card in the SD card reader and plug it in your computer.) Then, click on .
-
Page 16: Set Up Mms Function On Pc
Advanced Settings section to set up the MMS function. 3.4 Set up MMS Function on PC You can set up your MMS function on your home PC. Run the Setup.exe file on the enclosed CD. Or download this program in http://www.sendspace.com/folder/7zd6ic . - Page 17 PLEASE NOTE: Place SD card in PC/Laptop when selecting drive to save settings. Then place back in camera!!
-
Page 18: Camera Working With Mms
Advanced Settings First, you need to choose how to set up the MMS Mode --Auto or Manual. If you choose Auto, then you need to choose the country and the Mobile Phone Network Operator (MPNO). After doing that, the below section will populate with the parameters pertaining to the selected MPNO, such as URL, APN, Gateway and Port. -
Page 19: View Local Mnop Name And Signal Strength On Tft Display
Advanced Settings enough power capacity. The camera is in Cam mode and cam+video mode, not Video mode. SIM card is installed. The MMS service is active (some MMS services need pre- paid balance in the account.) The SIM card is not password-protected. Only when the switch is in OFF position, you install the MMS-module additional battery box. - Page 20 Advanced Settings There are three bars indicating the signal strength. To allow the MMS function to perform, at least one bar of signal is required. If a code, instead of the MPNO information, shows on the screen, it indicates something is wrong, missing, or going on.
-
Page 21: Ltl-5210M Series Products
Advanced Settings Attention：The camera MUST be set in OFF position when attaching the MMS-module battery box to the camera. The battery box needs to be secured by locking up the buckle. Otherwise, the MMS function may not perform normally. When trying to view the operator’s name and the signal strength, if you wait less than one minute before detaching the battery box, you will more than likely see one of the codes aforementioned. -
Page 22: Models For Purchase
Advanced Settings 4.1 Ltl-5210M Series Consists of Three Parts: 1. Ltl-5210M Camera 2. LTL-BM1 Additional battery box without MMS-module 3. LTL-MM1 MMS-module additional battery box 4.2 Models for Purchase: Ltl-5210MM = Ltl-5210M Camera + LTL-MM1 MMS-module battery box Ltl-5210MC = Ltl-5210M Camera + LTL-BM1 Battery box ... -
Page 23: Power Supply And Battery Box
Advanced Settings 5.2 Power Supply and Battery Box Ltl-5210M Series camera can work on up to 12 voltages. The 4 AA batteries in the camera, the 4 AA batteries in the battery box, and the external power supply form a three- path parallel circuit. -
Page 24: 850Nm And 940Nm Ir Led
Advanced Settings when battery power gets low, our camera automatically shortens the video length so as to take more clips of more game. As a result, the total number of video clips doubles, even triples that of products of its kind, which provides users with more useful information. Note: Our camera performs at extreme cold environment as low as -30°C (-22°F), in which the battery power capacity deteriorates drastically. -
Page 25: Camera Application Upgraded
Advanced Settings I programmed the camera to constantly take pictures. But some pictures were not sent to my phone. How? The Ltl-5210M series camera is designed to constantly send MMS pictures to the recipient’s phone. However, if the signal is too weak, it may not work stably. ... -
Page 26: Appendix I Technical Specifications
Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-5210MC Ltl-5210MM Image Sensor 5 Mega Pixels Color CMOS Max. Pixel Size 2560x1920 Lens F=3.1; FOV=52°; Auto IR-Cut IR Flash 65 Feet/20 Meters LCD Screen 48x35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color Operation Keypad 6 Keys Memory SD Card (8MB ~16GB) - Page 27 Appendix I: Technical Specification MMS E-mail 0 ~ 1 E-mail address “Battery Low” texted Low-Battery SMS Alert Power Supply 4xAA; Expandable 8xAA (With additional battery box) External DC Plug Size: 4.0x1.7 Power Supply 6 ~ 12V (1 ~ 2A) Stand-by Current 0.4mA Stand-by Time 3～6 Months（4xAA～8xAA）...
-
Page 28: Appendix Ii Package Contents
Appendix II: Package Contents Appendix II: PACKAGE CONTENTS LTL-MM1 Part Name Quantity Quantity （Ltl-5210MM） (Ltl-5210MC) MMS-module battery box Digital Camera Additional Battery 1 (Standard) 1 (With MMS 1 (With MMS module) module) TV AV IN Cable USB Cable Strap External DC Cable (optional) Installation CD Warranty Card... - Page 29 Appendix II: Package Contents - 28 -...
-
Page 30: Appendix Iii Instruction On Installing Additional Battery Box
Appendix III: Instruction on Installing Additional Battery Box Appendix III: INSTRUCTION ON INSTALLING ADDITIONAL BATTERY BOX - 29 -...
