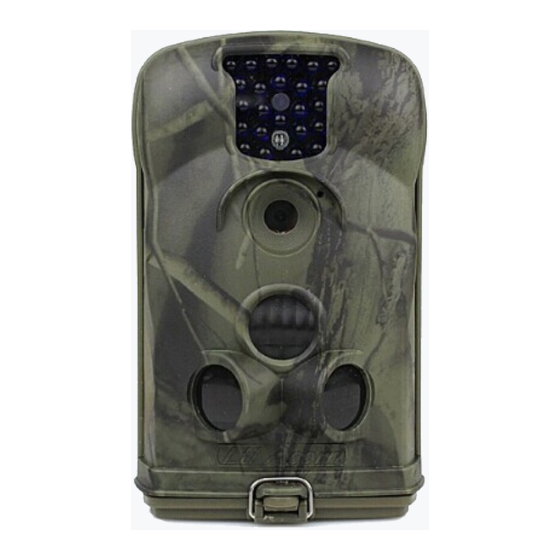

Ltl Acorn Ltl-6210MC User Manual

Mobile hd video scouting camera m series
Hide thumbs Also See for Ltl-6210MC:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Ltl Acorn®
Mobile
Scouting Camera
HD Video
Ltl-6210M Series
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-6210MC and is the answer not in the manual?

Questions and answers

Related Manuals for Ltl Acorn Ltl-6210MC

Summary of Contents for Ltl Acorn Ltl-6210MC

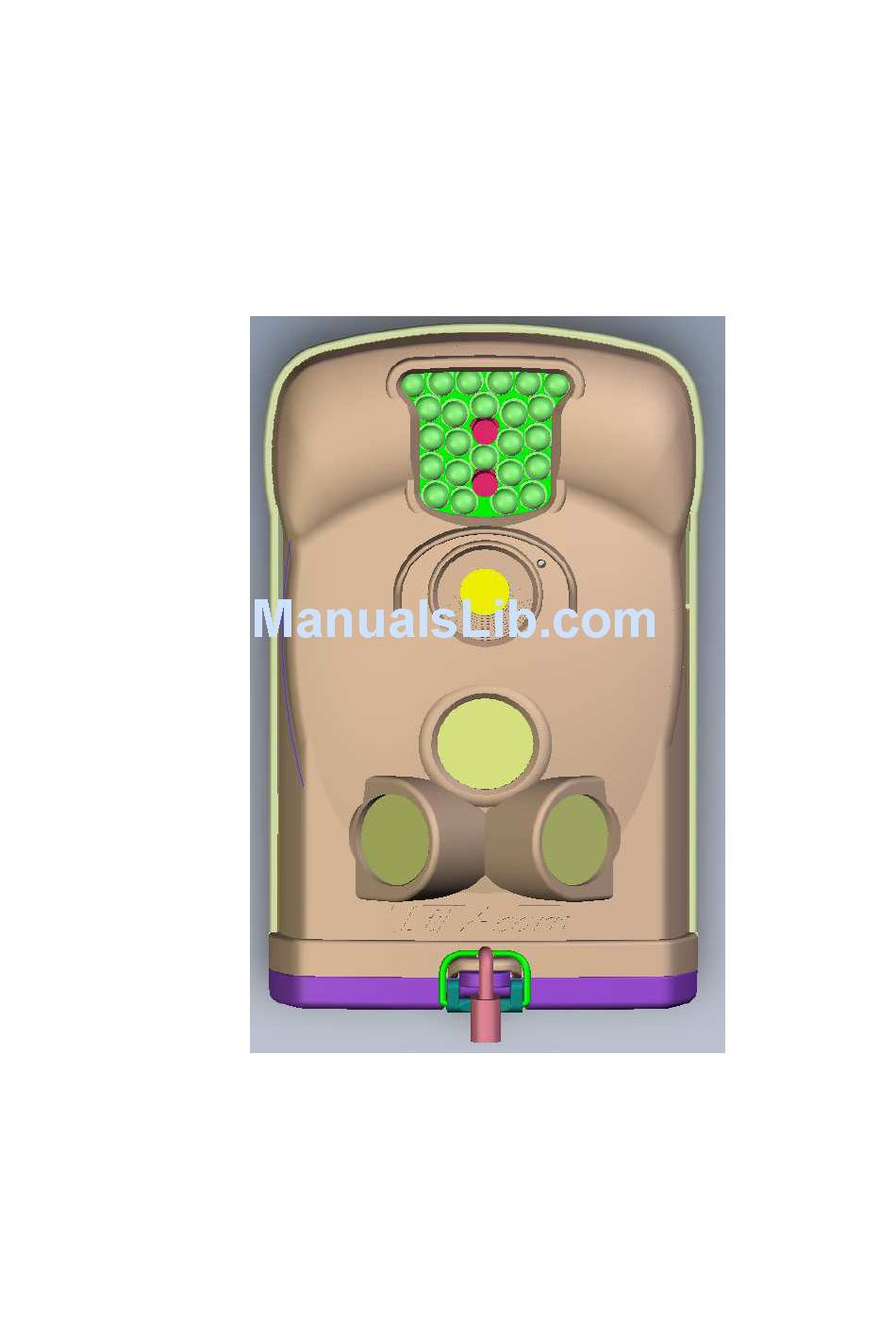

  • Page 1 Ltl Acorn® Mobile Scouting Camera HD Video Ltl-6210M Series USER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information 1.1 Features 1.2 Application 1.3 Illustration Quick Start 2.1 Insert SIM Card 2.2 Load Batteries 2.3 Insert SD Card 2.4 Enter Test Mode 2.5 Enter Live Mode 2.6 Advantages of Prep Sensors Advanced Settings 3.1 Parameter Settings 3.2 File Format 3.3 Set up MMS Function on Camera 3.4 Set up Camera on PC...

  • Page 3: General Information

    GENERAL INFORMATION 1.1 Introduction The Ltl Acorn M Series (Model Ltl-6210MC and Ltl-6210MM) is the first generation of our HD video scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) LTL- MM2, the standard scouting camera (Ltl-6210M) can be upgraded to work as a remote cellular camera.

  • Page 4: Application

    • If local area mobile signal is too weak to send MMS, user may let the camera send text message(SMS) instead. Message content includes the time the picture is taken and the Camera serial number. • Our Advance Remote Cellular Technology transmits images to your cell phone and email account constantly at lower battery consumption and shorter transmission time, compared with products of its kind on the market.
  • Page 5 Figure 1.1: Front View of Ltl-6210M Figure 1.2: Bottom View of Ltl-6210M The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST.
  • Page 6 To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera. FOR BETTER PERFORMANCE, WE RECOMMEND USING ENERGIZER LITHIUM AA BATTERIES. To achieve longer in-field life, always install 12 AA alkaline batteries. Figure 1.3: Back View of Ltl-6210M CAUTION: If you are not using the camera for an extended period of time, it is highly recommended that you remove the batteries from the camera to avoid possible acid leak that may damage the camera which would void the warranty.

  • Page 7: Quick Start

    QUICK START 2.1 Insert SIM Card (Only for Model Ltl-6210MM) You need to purchase the SIM card from your local Mobile Phone Network perators(MPNO), making sure they provide Multimedia Messaging Service (MMS). Ask them for the relevant information to configure the MMS settings on your camera.

  • Page 8: Load Batteries

    2.2 Load Batteries To install batteries on the camera (Part # Ltl-6210M), please follow the instructions below. • Open the bottom cover by pulling down the lock hole. • Push the cover of the battery compartment and release. It will pop out. •...

  • Page 9: Enter Live Mode

    PIR sensor. By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground.
  • Page 10 With other brands of cameras, when game passes across very quickly, the picture may only capture the rear part of the body, and possibly nothing at all. Our Ltl Acorn solves this issue with the unique side prep PIR sensors design. The combination of the two side prep sensors and the main sensor comes up with a 100 to 120°...

  • Page 11: Advanced Settings

    ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the test mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press...
  • Page 12 Parameter. Video Length (affects Avi 10 s, optional from Videos are in AVI format that can be video clips only) 1s to 60s played back on most media players. Interval 1 Min, optional from Select the length of time that the camera 1S to 60Minuter will wait from the moment the last picture was taken and written in the SD card to the...
  • Page 13 Password Set Off, On Set up a password to protect your camera from unauthorized users. Off, On Se lect On to assign a serial number to each Serial No. ca mera you have. You can use t he co mbination of 4 digits and/or alphabets to r ecord the location in the photos (e.g.
  • Page 14 3.2 Set up MMS Parameters on Camera Enter test mode by pushing the switch to the TEST position, then press to enter the setting window of the MMS parameters. Press to select the parameters and to change them. The key must be pressed after the modifications are made, otherwise the changes will not be saved.

  • Page 15: Set Up Camera On Pc

    Then, choose the network carrier according to the SIM card. Finally, press OK to confirm and save the parameters. The pictures are saved under the folder \DCIM\100IMAGE in the SD card following the sequence from IMAG0001.JPG. The video files would end in “.AVI” When the camera is in OFF or TEST mode, the camera can be connected to a computer by a USB cord.
  • Page 16 Click on Camera Setup, and you will see the following interface:...
  • Page 17 (Part # LTL-MM2), skip the following step and go directly to 3.4 Set up MMS Function on PC. If your camera is Model Ltl-6210MC, the standard scouting camera, you’re done with the camera setting. Click on Exit to exit the interface.

  • Page 18: Set Up Mms Function On Pc

    Retrieve the SD card from the computer and insert it in the camera. Switch to the TEST position to enter the TEST mode. A message will show up on the TFT display, indicating the Camera has been successfully set up. You are set with the camera. ATTENTION: THE PASSWORD CAN ONLY BE SET UP ON THE CAMERA, NOT ON THE PC.
  • Page 19 First, you need to choose how you like to set up the MMS Mode --Auto or Manual. If you choose Auto, then you need to choose the country and the Mobile Phone Network Operator (MPNO). After doing that,...

  • Page 20: Camera Working With Mms

    3.5 Camera Working with MMS When you have the Model Ltl-6210MM, or you have upgraded your Model Ltl-6210MC by purchasing the MMS-module (Part # LTL-MM2), not only will your camera work as a standard trail camera, but also send pictures to your cell phone and/or email account, when it meets the following requirements.

  • Page 21: View Local Mnop Name And Signal Strength On Tft Display

    “0”, or the daily limit has not been reached. If the daily limit has been reached, you can reset that number on your computer or on the TFT display. Then the daily limit starts to count from One. • The camera is stationary while sending MMS pictures. 3.6 View Local MNPO name and Signal Strength on TFT Display You can find your local Mobile Phone Network Operator’s name and the signal strength on the TFT display on the camera, just like you can see the information on a regular cell phone.

  • Page 22: Ltl-6210M Series Products

    LTL-6210M SERIES PRODUCTS 4.1 Ltl-6210M Series Consists of Three Parts: 1. Ltl-6210M Camera 2. LTL-MM2 MMS-module 4.2 Models for Purchase: • Ltl-6210MM = Ltl-6210M Camera + LTL-MM2 MMS-module • Ltl-6210MC = Ltl-6210M Camera • LTL-MM2 ----- MMS-module Ltl-6210M Camera LTL-MM2 MMS-module...

  • Page 23: Important Information

    IMPORTANT INFORMATION 5.1 Power Supply Ltl-6210M Series camera can work on up to 12 voltages. The 4 AA batteries in the front of camera, the 8 AA batteries in the of camera, and the external power supply rear form a four-path parallel circuit. Each path is isolated from others and does not charge nor discharge others.

  • Page 24: Faqs On Mms Function

    5.7 FAQs on MMS Function • I set up a new receiving phone number. But the MMS pictures are still being sent to the old number. What should I do? Switch the camera OFF. Wait for at least two minutes. Then switch it ON. Or, switch the camera OFF.

  • Page 25: Limited Warranty

    LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a Ltl Acorn product, you are covered under the limited warranty. We guarantee our products to be free of defects in materials and workmanship under normal use and service for a period after registered date of purchase.

  • Page 26: Appendix I Technical Specifications

    Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-6210MC Ltl-6210MM 5 Mega Pixels Color CMOS Image Sensor 2560x1920 Max. Pixel Size Lens F=3.1; FOV=52° ; Auto IR-Cut 850nM:82 Feet/25 Meters IR Flash 940nM:42 Feet/13 Meters 40.8x30.6mm(2.0"); 960(RGB)*240DOT; LCD Screen 16.7M Color 6 Keys...
  • Page 27 On/Off; SD Card cycle Save VGA=640x480;SMS;OFF Upgradeable MMS Options Programmable MMS Numbers “0” = Unlimited; 0 ~ 99/Day Upgradeable 1 ~ 3 Phone Numbers Upgradeable MMS Phone No. 0 ~ 3 E-mail address Upgradeable MMS E-mail Upgradeable Low-Battery SMS “Battery Low” text alert sent Upgradeable Alert Change Country Can Setting...

  • Page 28: Appendix Ii Package Contents

    Appendix II: PACKAGE CONTENTS Part name LTL-MM2 Quantity（ （ （ （ Ltl- Quantity（ （ （ （ Ltl- Mode 6210MC） ） ） ） 6210MM） ） ） ） Digital camera LTL-MM2 MMS Mode TV AV IN cable USB cable Strap External DC cable (optional) Warranty Card...
  • Page 29 FCC ID: ZF3-LTL-6210MM Model No.: LTL-6210MM Manufacturer: Shenzhen Ltl Acorn Electronics Co., Ltd This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This manual is also suitable for:

Ltl-6210mm
