- Page 1 Ltl Acorn® Mobile Scouting Camera Ltl-5210M Series SMS remote control USER’S MANUAL - 0 -...
-
Page 2: Table Of Contents
3.5 SMS remote control ......................17 3.6 Camera Working with MMS ..................... 21 3.7 View Local MNOP Name and Signal Strength on TFT display........21 Ltl-5210M Series Products......................24 4.1 Parts........................... 24 4.2 Models for Purchase......................24 Important Information ......................... 25 5.1 Prevent From Short-Circuits ..................... -
Page 3: General Information
GENERAL INFORMATION Introduction The Ltl Acorn M Series (Model Ltl-5210MC and Ltl-5210MM) is the second generation of our Ltl-5210 scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM), the standard scouting camera (Part # Ltl-5210M) can be upgraded to work as a remote cellular camera. -
Page 4: Application

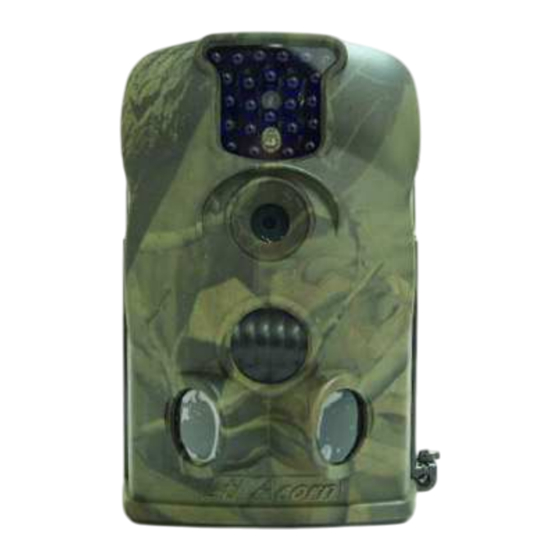

General Information • Separation of the Camera and the MMS module provides users flexibility: starting with the value model as a standard scouting camera, and upgrading to the premium model with MMS function. • If local area mobile signal is bad , Could not send MMS, Also can choose to send a text message(SMS). - Page 5 General Information Figure 1.1: Front View of Ltl-5210M Figure 1.2: Bottom View of Ltl-5210M - 4 -...
- Page 6 General Information The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera.
-
Page 7: Quick Start
Quick Start QUICK START 2.1 Insert SIM Card (Only for Model Ltl-5210MM) You need to purchase the SIM card from your local Mobile Phone Network Operators (MPNO), making sure they provide Multimedia Messaging Service (MMS). Ask them for the relevant information to configure the MMS settings on your camera. -
Page 8: Enter Test Mode
Quick Start Digital) memory card or SDHC (High Capacity) card. Before inserting the SD card into the card slot, please make sure the write-protect switch on the side of the SD card is “off” (NOT in the “Lock” position). The supported memory capacity is up to 16GB. If you use a card capable of above 16GB, make sure you test it before putting the camera in use. -
Page 9: Enter Live Mode
PIR sensor. By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground. - Page 10 Quick Start immediately, therefore catching the whole body of the game. This split-second process could be as short as 0.2 second. In the case the game browses only in the PIR area of the prep sensors, to avoid the camera being powered on constantly, the system is designed to work in the following way: If the game does not enter the PIR area of the main sensor and therefore not trigger the main sensor, the camera will power off after 3 seconds.
-
Page 11: Advanced Settings
Advanced Settings ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the test mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press... - Page 12 Advanced Settings still photos only) 03 Photos sequence per burst in Camera mode. Please also refer to the Interval parameter. Video Length (affects Avi 10 s, optional from Videos are in AVI format that can be video clips only) 1s to 60s played back on most media players.
- Page 13 Advanced Settings photos/videos. This feature can be used together with Time Lapse feature. Password Set Off, On Set up a password to protect your camera from unauthorized users. Serial No. Off, On Select On to assign a serial number to each camera you have.
-
Page 14: File Format
Advanced Settings the MMS function off. To turn it on, choose either VGA or SMS. VGA is to send 640x480 pictures, where SMS text messages (date & time) Default Set Press OK Enter to return all your camera settings back to the manufacturer default. - Page 15 Advanced Settings Set up the camera based on your need. Click on to retrieve the computer time. Click on to choose the directory to save your settings, usually under the root directory of the SD card (You need to insert the SD card in the SD card reader and plug it in your computer.) Then, click on .
-
Page 16: Set Up Mms Function On Pc
Advanced Settings been successfully set up. You are set with the camera. ATTENTION: THE PASSWORD CAN ONLY BE SET UP ON THE CAMERA, NOT ON THE PC. 3.4 Set up MMS Function on PC After you click on Exit on the Camera Setup interface, the following window prompts again: Click on MMS Setup, and you will see the following interface: - 15 -... -
Page 17: Sms Remote Control
Advanced Settings First, you need to choose how you like to set up the MMS Mode --Auto or Manual. If you choose Auto, then you need to choose the country and the Mobile Phone Network Operator (MPNO). After doing that, the below section will populate with parameters pertaining to the selected MPNO, such as URL, APN, Gateway and Port. - Page 18 Advanced Settings Order Function code example meaning code Mode：camera（0） ，video（1） ，camera+ video 01*1# Set to video mode （2） Image size：5MP（0） ，12MP（1） ，1.2MP（2） 02*1# 12MP 03*1# QVGA Video size：VGA(0), QVGA (1) Picture No： 01 photo （0） ， 02 photo （1） ， 03 photo 04*2# 3 photos （2）...
- Page 19 Advanced Settings Order 12 and13are ineffective in SMTP mode All the order code ends with“*”，all the value ends with“#” 。 LTL01*0#02*2#06*S30#07*10A3Z#AA Definition：camera mode，2MP，interval:30s，serial No: 0A3Z。 For SMS remote control setting, different value with different extra power consumption, “0” the highest, “off” zero. Maximum 60 bytes for all the SMS content, for multiple parameters setting please send by more times.
- Page 20 Advanced Settings In Auto mode, first select country and operator. In manual mode, you fill in APN / Account / Password. This parameter you can find from your mobile operator. Write in your E-mail server / port / sender E-mail / Password and Recipients E-mail. - 19 -...
-
Page 21: Camera Working With Mms
Advanced Settings SMS remote control, the value ranges from “0”to “off “which represents the SMS receipt time, “0” indicates 10mins, “1~24” indicates the interval time 1~24h to receive SMS, “off” indicates the close of the SMS remote control. Select the related value based on your own need. Then press save parameter to SD card, generate and insert SD card into camera and power on the camera, done. - Page 22 Advanced Settings have an access to a TV, wait for 1 minute and detach the battery box. Then you can view the information on the TFT display. When appear Mobile operators trademark buzzer will be issued two sound "di, di". There are three bars indicating the signal strength.
- Page 23 Advanced Settings function may not perform normally. When trying to view the operator’s name and the signal strength, if you wait less than one minute before detaching the battery box, you will more than likely see one of the codes aforementioned. You need to switch the camera to OFF position, install the battery box securely, wait for one minute, and then try it again.
-
Page 24: Ltl-5210M Series Products
Ltl-5210M Series Products LTL-5210M SERIES PRODUCTS 4.1 Ltl-5210M Series Consists of Three Parts: 1. Ltl-5210M Camera 2. LTL-BM1 Standard battery box (without MMS-module) 3. LTL-MM1 MMS-module battery box 4.2 Models for Purchase: • Ltl-5210MM = Ltl-5210M Camera + LTL-MM1 MMS-module battery box •... -
Page 25: Important Information
5.2 Power Supply and Battery Box Ltl-5210M Series camera can work on up to 12 voltages. The 4 AA batteries in the camera, the 4 AA batteries in the battery box, and the external power supply form a three-path parallel circuit. -
Page 26: Auto Adjustment On Video Length
5.5 850nm and 940nm IR LED There are two selects of IR LED on the Ltl-5210M series camera, 850nm and 940nm. The former provides up to 65-foot flash range whereas the latter up to 30-foot flash range. The benefit of 940nm IR LED, however, is it emits very low-glow flash that is almost invisible from 5 feet away. -
Page 27: Faqs On Mms Function
• I programmed the camera to constantly take pictures. But some pictures were not sent to my phone. How? The Ltl-5210M series camera is designed to constantly send MMS pictures to the recipient’s phone. However, if the signal is too weak, it may not work stably. -
Page 28: Firmware Upgrades
Firmware Upgrades FIRMWARE UPGRADES 6.1 Firmware Upgrades The manufacturer reserves the right to upgrade the camera and the firmware. Follow the steps below to implement the upgrades: • Install batteries and the SD card. • Back up SD card the contents to other area. Format the SD card on the camera. •... -
Page 29: Firmware Upgrades
LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a Ltl Acorn product, you are covered under the limited warranty. We guarantee our products to be free of defects in materials and workmanship under normal use and service for a period after registered date of purchase. - Page 30 Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-5210MC Ltl-5210MM 5 Mega Pixels Color CMOS Image Sensor 2560x1920 Max. Pixel Size F=3.1; FOV=52°; Auto IR-Cut Lens IR Flash 65 Feet/20 Meters LCD Screen 48x35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color 6 Keys Operation Keypad SD Card (8MB ~16GB) Memory...
-
Page 31: Appendix I Technical Specifications
Appendix I: Technical Specification MMS E-mail 0 ~ 3 E-mail address Upgradable Upgradable Low-Battery SMS “Battery Low” text alert sent Upgradable Alert Power Supply 4xAA; Expandable to 8xAA External DC Plug Size: 4.0x1.7 Power Supply 6 ~ 12V (1 ~ 2A) Stand-by Current 0.4mA 3～6 Months（4xAA～8xAA）... -
Page 32: Appendix Ii Package Contents
Appendix II: Package Contents Appendix II: PACKAGE CONTENTS LTL-MM1 Part Name Quantity Quantity (Ltl-5210MC) （ （ （ （ Ltl-5210MM） ） ） ） MMS-module battery box Digital Camera Additional Battery 1 (Standard) 1 (With MMS 1 (With MMS module) module) TV AV IN Cable USB Cable Strap External DC Cable... -
Page 33: Appendix Iii Instruction On Installing Battery Box
Appendix III: Instruction on Installing Battery Box Appendix III: INSTRUCTION ON INSTALLING BATTERY BOX - 32 -...
