- Page 1 Ltl Acorn MMS Wireless Scouting Camera Ltl-6210M HD Video Series USER’S MANUAL - 0 -...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Information ........................2 1.1 Features ..........................2 1.2 Application .......................... 2 1.3 Illustration ........................... 3 Getting Start ............................ 6 2.1 Insert SIM Card ......................... 6 2.2 Load Batteries on the Front Camera ................... 6 2.3 Insert SD Card and Format It ....................6 2.4 Set up Camera on PC ...................... -
Page 3: General Information
GENERAL INFORMATION 1.1 Introduction The Ltl Acorn Ltl-6210M is a step-up to Ltl-5210M. It provides enhanced features and better performances. Bundled with the MMS-module (Multimedia Messaging Service) (Part # LTL-MM2), the standard scouting camera (Part # Ltl-6210MC) can be upgraded to work as a remote cellular camera. -
Page 4: Application

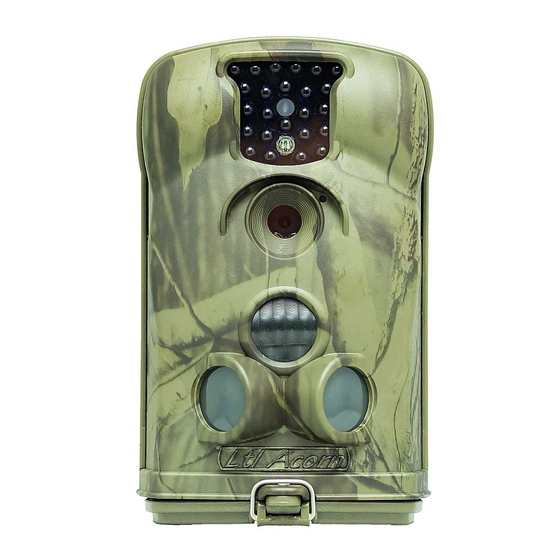

SD card can be set in “Cycling Save” mode, which automatically deletes the earliest photos or videos and makes room for new ones. Advanced Remote Cellular Technology transmits images to your cell phone and/or email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market. - Page 5 Figure 1.1: Front View of Ltl-6210M Figure 1.2: Bottom View of Ltl-6210M The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST.
- Page 6 To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera. FOR BETTER PERFORMANCE, WE RECOMMEND USING ENERGIZER LITHIUM AA BATTERIES. To achieve longer in-field life, always install 12 AA batteries. Figure 1.3: Back View of Ltl-6210M CAUTION: If you are not using the camera for an extended period of time, it is highly recommended that you remove the batteries from the camera to avoid possible acid leak that may damage the camera which would void the warranty.
-
Page 7: Getting Start
GETTING START 2.1 Insert SIM Card (Only for Model Ltl-6210MM) A SIM card is needed from a Mobile Phone Network Operator (MPNO). Make sure they provide Multimedia Messaging Service (MMS). Insert the SIM card into the slot at the bottom of the camera. Push once to insert, twice to get out. -
Page 8: Load Batteries On The Front Camera
2.2 Load Batteries on the Front Camera Open the bottom cover by pulling down the lock hole. Push or dig two battery boxes and release the battery door. Install 4 AA batteries in front of camera and 8 AA batteries in back of camera. Make sure the polarity matches the sign on the cover. -
Page 9: Set Up Camera On Pc
2.4 Set up Camera on PC After formatting it, pull the SD card out from the camera and insert it in your computer. If your computer is too old to read the SD card, you need to purchase an SD card reader. Of course ,you can use the camera's USB port connected to PC directly. - Page 10 Set up the camera based on your own need. Please reference to 3.1 Parameter Settings in Advanced Settings section to find detailed explanations of each setting. Click on to retrieve the computer time. Click on to find and choose the drive where the SD card is placed, usually a letter after E:\.
-
Page 11: Set Up Mms Function On Pc
2.5 Set up MMS Function on PC On the main menu, press MMS Setup. First, you need to choose how you like to set up the MMS Mode --Auto or Manual. Choose Auto (recommended), then the country - 10 -... -
Page 12: View Local Mnop Name And Signal Strength On Tft Display
and the Mobile Phone Network Operator (MPNO). With Auto setup, the URL, APN, Gateway, and Port sections will be grayed. You only need to input the phone number and/or email address you’d like the MMS pictures to be sent to. You can enter up to three different phone numbers and/or email accounts. - Page 13 secure the buckle. Switch to the TEST position. If you like, you can connect the camera to a TV, using provided TV AV IN cable. Wait for up to 40 seconds or until you hear of a short beep, and then you will be able to see the MPNO symbol and the signal strength on the TV.
-
Page 14: Camera Working With Mms
2.7 Camera Working with MMS After being correctly set up, not only will your camera work as a standard trail camera, but also send pictures to your cell phone and/or email account, when it meets the following requirements. The camera is ON and functions. The SD card has enough space. 8 AA batteries with enough power capacity. -
Page 15: Enter Live Mode
By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground. To avoid potential false triggers due to temperature and motion disturbances, please do not aim the camera at a heat source (i.e. -
Page 16: Advanced Settings
ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements, by manually operating on the camera or programming on your computer. 3.1 Parameter Settings Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like a regular digital camera, or enter the Menu to set up parameters. - Page 17 Parameter Settings Description (Bold = default) Mode Camera, Select whether still photos or video clips Video, are taken. In Camera+Video mode, Cam+Video camera takes photos and video on same trigger event. Format Enter All files will be deleted after formatting the SD card.
- Page 18 and environments with more interference. Temperature also affects the sensitivity. The High setting is suitable when the ambient temperature is warm, and the Low setting is helpful in cold weather. Time Stamp (affects On, Off Select On if you want the date & time still photos only) imprinted in every photo.
-
Page 19: Set Up Mms On Camera
made by pressing the keys. Off, On Choosing ON enables the “cycling Cycling Save save” function, which automatically deletes the oldest files when the SD card becomes full to make room for the latest pictures and/or videos. Default Set Press OK Enter to return all your camera settings back to the manufacturer default. - Page 20 Press key to enter/exit the MMS Setup menu. Choose your Country. Choose the Wireless Operator. - 19 -...
-
Page 21: File Format
3.3 File Format The SD card stores all original pictures and videos in the folder \DCIM\100IMAGE, and all MMS pictures in the folder \MMS\ with the same filename. Pictures are saved with filenames like IMAG0001.JPG and videos like IMAG0001.AVI. In the OFF mode, you can use the provided USB cable to download the files to a computer. Or you can insert the SD card into a SD card reader, plug in a computer, and browse the files on the computer without downloading. -
Page 22: Ltl-6210M Series Products
LTL-6210M SERIES PRODUCTS 4.1 Ltl-6210M Series Consists of Three Parts: 1. Ltl-6210M Camera 2. LTL-MM2 MMS-module 4.2 Models for Purchase: Ltl-6210MM = Ltl-6210M Camera + LTL-MM2 MMS-module Ltl-6210MC = Ltl-6210M Camera LTL-MM2 ----- MMS-module Ltl-6210M Camera LTL-MM2 MMS-module - 21 -... -
Page 23: Important Information
IMPORTANT INFORMATION 5.1 Power Supply Ltl-6210M Series camera can work on up to 12 voltages. The 4 AA batteries in the front of camera, the 8 AA batteries in the back of camera, and the external power supply form a four-path parallel circuit. -
Page 24: Faqs On Mms Function
5.6 FAQs on MMS Function I set up a new receiving phone number. But the MMS pictures are still being sent to the old number. What should I do? Switch the camera OFF. Wait for at least two minutes. Then switch it ON. Or, switch the camera OFF, take all battery out of the camera, and then reinstall it. -
Page 25: Firmware Upgrades
code changes to B2. When the battery level gets very low, the code changes to B1, which means it’s time to change the batteries. So you can decide from home when to change batteries. Also, if you use brand new batteries every time you set up your camera, you will receive a text alert message from the camera when the battery level is low. -
Page 26: Limited Warranty
LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a Ltl Acorn trail camera, you are covered under a limited times warranty. We guarantee our trail cameras to be free of defects in materials and workmanship under normal... -
Page 27: Appendix I Technical Specifications
Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-6210MC Ltl-6210M 5 Mega Pixels Color CMOS Image Sensor 2560x1920 Pixel Size Lens F=3.1; FOV=52° ; Auto IR-Cut IR Flash 82 Feet/25 Meters; 42 Feet/13 Meters on No-glow Flash LCD Screen 40.8x30.6mm(2.0");... - Page 28 Appendix I: Technical Specification MMS Options VGA = 640x480; SMS = Text Msg.; OFF Upgradeable Programmable “0” = Unlimited; 1 ~ 99/Day Upgradeable MMS Numbers 1 ~ 3 Phone Numbers Upgradeable MMS Phone No. 1 ~ 3 E-mail addresses Upgradeable MMS E-mail Low-Battery SMS “Battery Low”...
-
Page 29: Appendix Ii Package Contents
Appendix II: PACKAGE CONTENTS Part name Quantity Quantity LTL-MM2 （ （ （ （ Ltl-6210MC） ） ） ） （ （ （ （ Ltl-6210MM） ） ） ） Mode Digital camera LTL-MM2 MMS Mode TV AV IN cable USB cable Strap External DC cable (optional) Warranty Card - 28 -...
