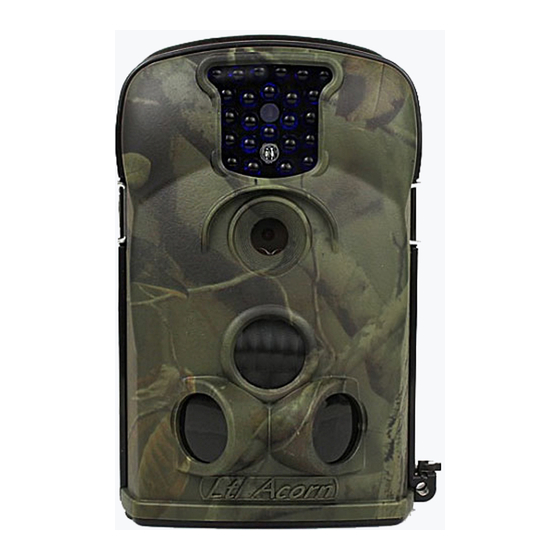

Ltl Acorn Ltl-5210M Series User Manual
  1. Manuals
  2. Brands
  3. Ltl Acorn Manuals
  4. Scouting Camera
  5. Ltl-5210M Series
  6. User manual

Ltl Acorn Ltl-5210M Series User Manual

Mobile scouting camera
Hide thumbs Also See for Ltl-5210M Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual

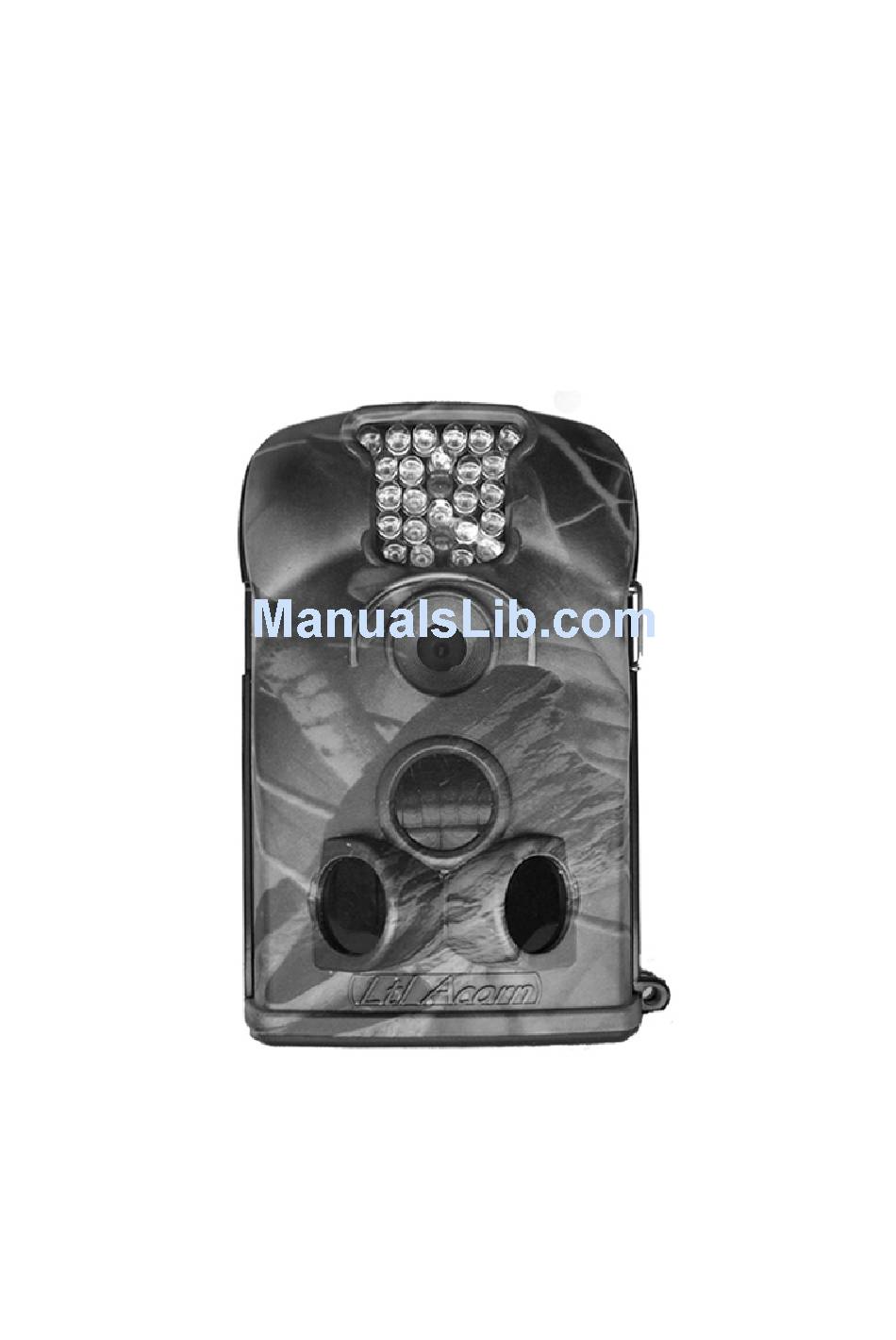

Ltl Acorn®
Mobile Scouting Camera
Ltl-5210M Series
USER'S MANUAL
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-5210M Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ltl Acorn Ltl-5210M Series

Summary of Contents for Ltl Acorn Ltl-5210M Series

  • Page 1 Ltl Acorn® Mobile Scouting Camera    Ltl-5210M Series USER’S MANUAL - 0 -...

  • Page 2: Table Of Contents

    3.3 Set up Camera on PC 3.4 Set up MMS Function on PC 3.5 Camera Working with MMS 3.6 View Local MNOP Name and Signal Strength on TFT display Ltl-5210M Series Products 4.1 Parts 4.2 Models for Purchase Important Information 5.1 Prevent From Short-Circuits...

  • Page 3: General Information

    GENERAL INFORMATION 1.1 Introduction The Ltl Acorn M Series (Model Ltl-5210MC and Ltl-5210MM) is the second generation of our Ltl-5210 scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM), the regular scouting camera (Part # Ltl-5210M) can be upgraded to work as a remote cellular camera.

  • Page 4: Application

    General Information email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market. • Automatic text alert when battery power level goes low • Check cellular signal information on the built-in TFT display in the field •...
  • Page 5 General Information Figure 1.1: Front View of Ltl-5210M Figure 1.2: Bottom View of Ltl-5210M - 4 -...
  • Page 6 General Information The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To supply power, use four NEW high-performance alkaline or lithium AA batteries.

  • Page 7: Quick Start

    Quick Start QUICK START 2.1 Insert SIM Card (Only for Model Ltl-5210MM) You need to purchase the SIM card from your local Mobile Phone Network Operators, making sure they provide Multimedia Messaging Service (MMS). Ask them for the relevant information to configure the MMS settings on your camera.

  • Page 8: Enter Test Mode

    Quick Start “Lock” position). The supported memory capacity is up to 16GB. If you use a card capable of above 16GB, make sure you test it before putting the camera in use. Figure 2-2 CAUTION: ALWAYS SWITCH THE CAMERA TO OFF MODE BEFORE YOU INSTALL OR REMOVE THE BATTERIES OR THE SD CARD.

  • Page 9: Enter Live Mode

    PIR sensor. By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn camera. In general, you are recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground.
  • Page 10 Quick Start In the case the game browses only in the PIR area of the prep sensors, to avoid the camera being powered on constantly, the system is designed to work in the following way: If the game does not enter the PIR area of the main sensor and therefore not trigger the main sensor, the camera will power off after 3 seconds.

  • Page 11: Advanced Settings

    Advanced Settings ADVANCED SETTINGS The Ltl Acorn trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the test mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press...
  • Page 12 Advanced Settings Please also refer to the Interval parameter. Video Length (affects Avi 10 s, optional from Videos are in AVI format that can be video clips only) 1s to 60s played back on most video players. Interval 1 Min, optional from Select the length of time that the camera 1S to 60M will wait from when the last picture was...

  • Page 13: File Format

    Advanced Settings take photos/videos at the set interval (Note: in this mode, the PIR sensor is disabled). This is helpful when observing cold-blooded animals like snakes, or the process of flowering, etc. This feature can work together with Timer feature. Side PIR On, Off The default setting is On.

  • Page 14: Set Up Camera On Pc

    Advanced Settings MMS pictures in the folder \DCIM\MMS\100IMAGE with the same filename. Pictures are saved with filenames like IMAG0001.JPG and videos like IMAG0001.AVI. In the OFF mode, you can use the provided USB cable to download the files to a computer. Or you can put the SD card to a SD card reader, plug in a computer, and browse the files on the computer without downloading.
  • Page 15 Advanced Settings Set up the camera based on your need. Click on to retrieve the computer time. Click on to define the directory to save the settings, usually under the root directory of the SD card (You need to insert the SD card in the SD card reader and plug it in your computer.) Then, click on .

  • Page 16: Set Up Mms Function On Pc

    Advanced Settings section to set up the MMS function. 3.4 Set up MMS Function on PC You can set up your MMS function on your home PC. Run the Setup.exe file on the enclosed CD. Or download this program in http://www.sendspace.com/folder/7zd6ic .

  • Page 17: Camera Working With Mms

    Advanced Settings First, you need to choose how to set up the MMS Mode --Auto or Manual. If you choose Auto, then you need to choose the country and the Mobile Phone Network Operator (MPNO). After doing that, the below section will populate with the parameters pertaining to the selected MPNO, such as URL, APN, Gateway and Port.

  • Page 18: View Local Mnop Name And Signal Strength On Tft Display

    Advanced Settings enough power capacity. The camera is in Cam mode and cam+video mode, not Video mode. • SIM card is installed. The MMS service is active (some MMS services need pre-paid balance in the account.) The SIM card is not password-protected. •...
  • Page 19 Advanced Settings There are three bars indicating the signal strength. To allow the MMS function to perform, at least one bar of signal is required. If a code, instead of the MPNO information, shows on the screen, it indicates something is wrong, missing, or going on.

  • Page 20: Ltl-5210M Series Products

    You need to switch the camera to OFF position, install the battery box securely, wait for at least one minute, and then try it again. LTL-5210M SERIES PRODUCTS - 19 -...

  • Page 21: Models For Purchase

    Advanced Settings 4.1 Ltl-5210M Series Consists of Three Parts: 1. Ltl-5210M Camera 2. LTL-BM1 Additional battery box without MMS-module 3. LTL-MM1 MMS-module additional battery box 4.2 Models for Purchase: • Ltl-5210MM = Ltl-5210M Camera + LTL-MM1 MMS-module battery box • Ltl-5210MC = Ltl-5210M Camera + LTL-BM1 Battery box •...

  • Page 22: Power Supply And Battery Box

    Advanced Settings 5.2 Power Supply and Battery Box Ltl-5210M Series camera can work on up to 12 voltages. The 4 AA batteries in the camera, the 4 AA batteries in the battery box, and the external power supply form a three-path parallel circuit.

  • Page 23: 850Nm And 940Nm Ir Led

    5.5 850nm and 940nm IR LED There are two selects of IR LED on the Ltl-5210M series camera, 850nm and 940nm. The former provides up to 65-foot flash range whereas the latter up to 30-foot flash range. The benefit of 940nm IR LED, however, is it emits very low-glow flash that is almost invisible from 5 feet away.

  • Page 24: Camera Application Upgraded

    • I programmed the camera to constantly take pictures. But some pictures were not sent to my phone. How? The Ltl-5210M series camera is designed to constantly send MMS pictures to the recipient’s phone. However, if the signal is too weak, it may not work stably.

  • Page 25: Warranty Information

    TWO-YEAR LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a Ltl Acorn product, you are covered under a TWO YEAR limited warranty. We guarantee our products to be free of defects in materials and workmanship under normal use and service for a period of TWO years after registered date of purchase.

  • Page 26: Appendix I Technical Specifications

    Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Model Parameters Ltl-5210MC Ltl-5210MM Image Sensor 5 Mega Pixels Color CMOS Max. Pixel Size 2560x1920 F=3.1; FOV=52°; Auto IR-Cut Lens IR Flash 65 Feet/20 Meters LCD Screen 48x35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color Operation Keypad 6 Keys Memory SD Card (8MB ~16GB)
  • Page 27 Appendix I: Technical Specification MMS E-mail 0 ~ 1 E-mail address “Battery Low” texted Low-Battery SMS Alert Power Supply 4xAA; Expandable 8xAA (With additional battery box) External DC Plug Size: 4.0x1.7 Power Supply 6 ~ 12V (1 ~ 2A) 0.4mA Stand-by Current 3～6 Months（4xAA～8xAA）...

  • Page 28: Appendix Ii Package Contents

    Appendix II: Package Contents Appendix II: PACKAGE CONTENTS LTL-MM1 Part Name Quantity Quantity （Ltl-5210MM） (Ltl-5210MC) MMS-module battery box Digital Camera Additional Battery 1 (Standard) 1 (With MMS 1 (With MMS module) module) TV AV IN Cable USB Cable Strap External DC Cable (optional) Installation CD Warranty Card...
  • Page 29 Appendix II: Package Contents - 28 -...

  • Page 30: Appendix Iii Instruction On Installing Additional Battery Box

    Appendix III: Instruction on Installing Additional Battery Box Appendix III: INSTRUCTION ON INSTALLING ADDITIONAL BATTERY BOX - 29 -...
