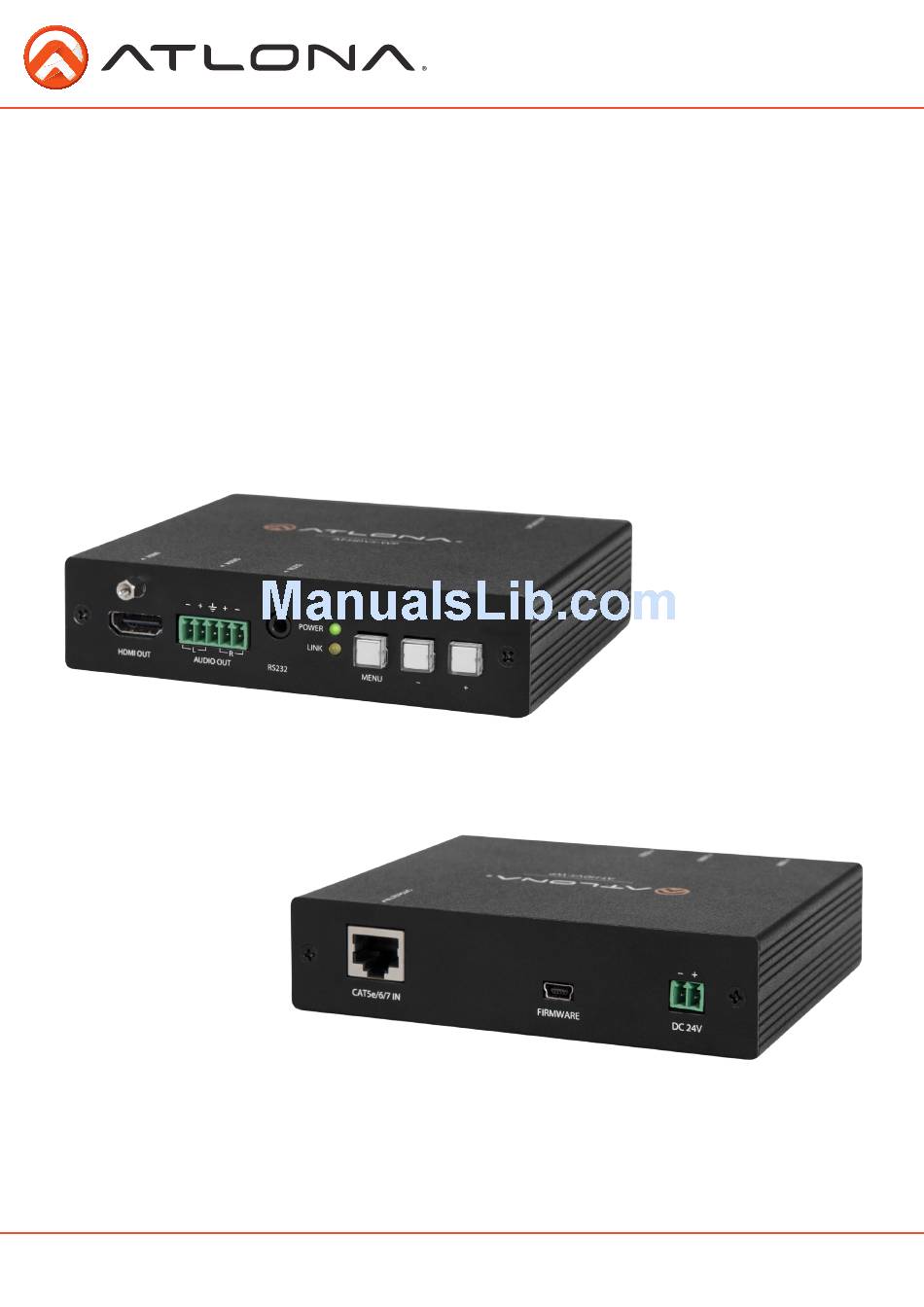

Page 1: User Manual
Atlona HDBaseT to HDMI Receiver/Scaler with Audio De-Embedding AT-HDVS-RX User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
.................. 13 9. Safety Information .................. 14 10. Warranty .................. 15-16 11. Atlona Product Registration .................. 16 Firmware 1.1.0 (5/1/14): Pages 3, 5-10 Added EDID configuration for inputs Auto ON/OFF for display when HDMI source is detected HDCP reporting On/Off/Auto mode added New GUI software Firmware 2.1.0... -
Page 3: Introduction
Introduction Atlona HDVS recei ver was designed to smooth the transition from analog to digital displays in schools and businesses, allowing advanced HDMI display devices to be used with the many VGA computers still in use. Many displays don’t support the resolutions and refresh rates typical of VGA sources. -

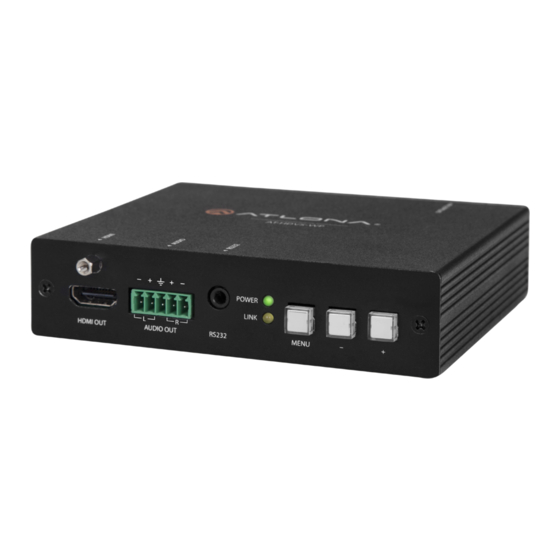

Page 4: Panel Description
2. FIRMWARE: Connect to a PC using a mini USB to USB for firmware updating 3. DC 24V: Connect included 24V DC adapter here to power HDVS-RX and compatible transmitters HDMI OUT AUDIO OUT RS232 MENU Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Osd Menu
Yes or No H Size % 0 to 50% V Size % 0 to 50% Menu Back Audio Audio On/Off On or Off (mute) HDMI Audio On or Off L/R Audio On or Off Menu Back Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 Standby (min.): Adjusts period of time before scaler goes into standby following loss of signal. Default is 0 minutes (standby off) Note: Standby must be active for Display Off to work - Standby time will set display off time as well. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 7: Rs-232 & Software
Not used ---- Not used Set up and Control Software Set up and control software can be found on the AT-HDVS-RX webpage on atlona.com. URL: http://www.atlona.com/HDVS-RX.html ( software found under the “Downloads” tab Set Up 1. Connect the receiver to a PC using a 9 pin serial to USB adapter Note: Receiver must be disconnected from the display for RS-232 set up 2. - Page 8 13. Audio on/off - use to turn audio on and off 14. FW - Press the “GET” button to display the current firmware of the RX and TX units Note: See the chart on page 3 to verify compatibility Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 6. Use these buttons to add a carriage return at the end of the command Note: Carriage return will show a square and circle to confirm the carriage return (see picture A) Note: When switching back to text, any non-ASCII HEX will display as bullets (see picture B) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 Select output aspect ratio WP_AutoSwitch[a]$ [a] ? , On, Off Input Auto Switch enable/disable Input Resolutions: 0 = 800x600, 1 = 1024x768, 2 = 1280x720, 3 = 1280x800, 4 = 1366x768, 5 = 1920x1080, 6 = 1920x1200 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 1. Each command and feedback is terminated with a carriage return. 2. Spaces aren’t allowed except in projector display on/off command strings. 3. AT-HDVS-RX RS-232 port settings: 115200 bps, 8 bit data length, No parity bit, 1 bit stop-bit, No flow control.
-
Page 12: Connection And Installation
Note: BlueRay content, apple TV, and other HDCP complaint source signals will not pass Auto Will report compliant or noncompliant to the source depending on what the display reports. Note: This mode is made to work with direct connection to a display and will not work with Atlona matrices Connection and Installation... -
Page 13: Specifications
H x W x D 30 x 122 x 125 (mm) 1.18 x 4.8 x 4.92 (inch) Weight Device 0.31 kg 0.67 lbs Shipping Certification Unit CE, FCC Power Supply CE, FCC, RoHs, cULus Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 14: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 15: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 16: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
