Summary of Contents for Atlona AT-HDVS-200-RX

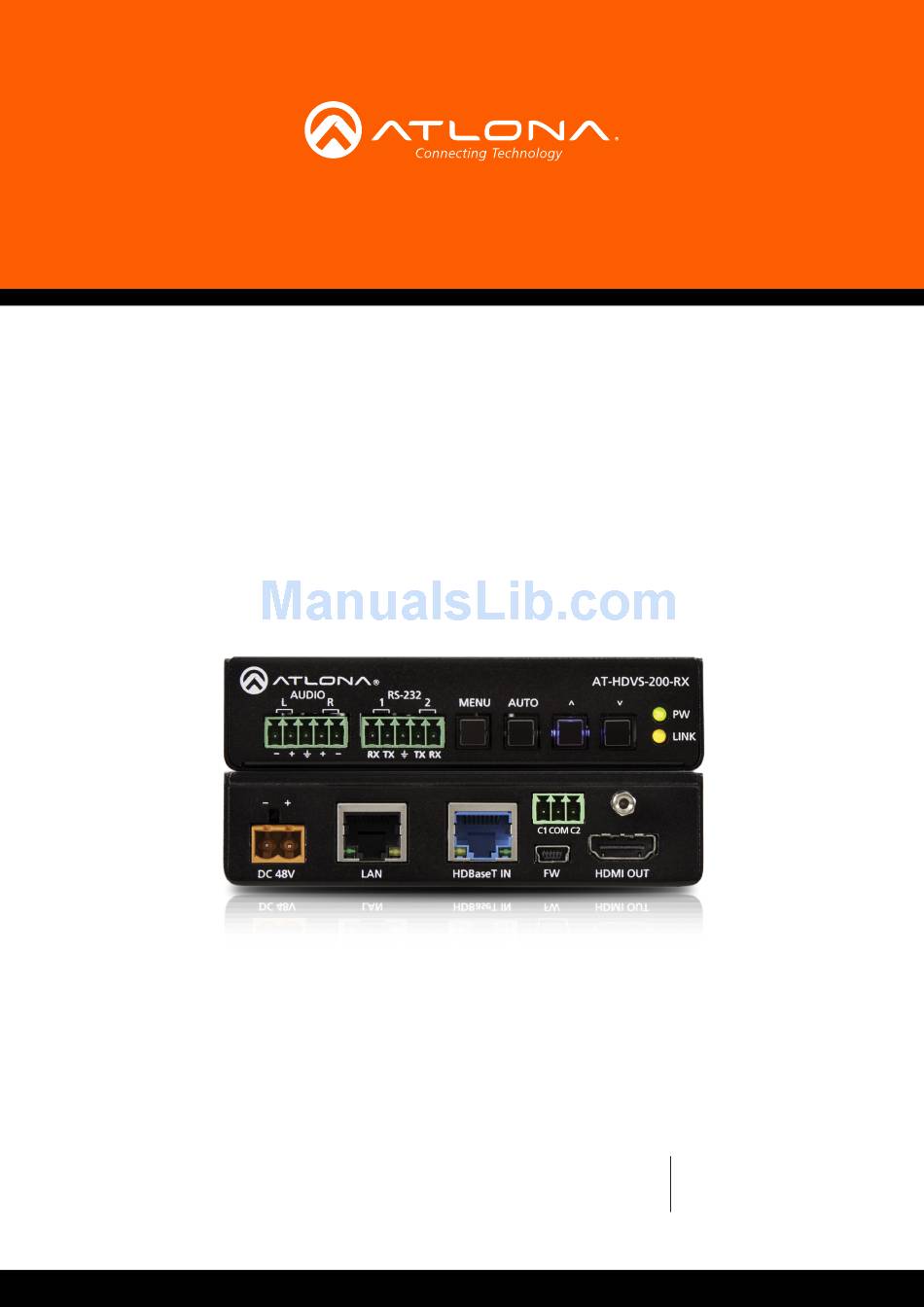

  • Page 1 Ethernet-Enabled HDBaseT Scaler ™ with HDMI and Analog Audio Outputs Atlona Manuals AT-HDVS-200-RX Scalers...
  • Page 2 Version Information Version Release Date Notes 01/16 Initial release 06/17 New format AT-HDVS-200-RX...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Important Safety Information

    Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDVS-200-RX...

  • Page 7: Table Of Contents

    Introduction to the Web GUI Menu Bar Toggles Sliders Buttons Info page Video page Input Output Audio page Picture page RS-232 page Config page System page Relay System Commands Appendix Updating the Firmware Using the Web GUI Using USB Default Settings Specifications Index AT-HDVS-200-RX...

  • Page 8: Introduction

    Introduction The Atlona AT-HDVS-200-RX is an HDBaseT receiver and HD scaler for video signals up to 1080p, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDVS-200-RX is designed for use with the HDVS-200-TX switching transmitters, but can also be used with Atlona switchers, matrix switchers, and distribution amplifiers with HDBaseT outputs.

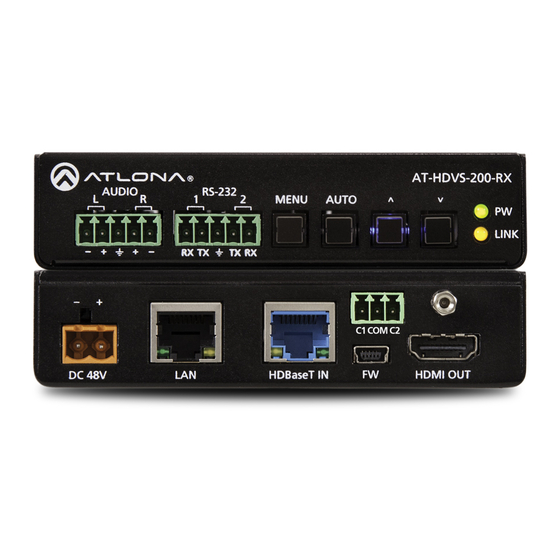

  • Page 9: Panel Description

    Panel Description AT-HDVS-200-RX AUDIO RS-232 MENU AUTO LINK RX TX TX RX Front Rear AT-HDVS-200-RX AUDIO RS-232 MENU AUTO LINK RX TX TX RX DC 48V HDBaseT IN HDMI OUT AUDIO DC 48V Connect the included 5-pin Phoenix block from this...

  • Page 10: Installation

    Installation RS-232 Connector The AT-HDVS-200-RX provides two RS-232 ports. Port 1 is used for controlling a display or other sink device. Port 2 is used to control the AT-HDVS-200-RX. This step is optional. 1. Use wire strippers to remove a portion of the cable jacket.

  • Page 11: Relay Connector

    The AT-HDVS-200-RX provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-HDVS-200-RX is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state. Power Connector Locate the included orange Phoenix terminal block and wire the included power supply to the block, as shown below.

  • Page 12: Connection Instructions

    Audio Amplifier Automation AT-HDVS-200-RX Control System CT OR RE SE 48 V 0 -R -2 0 -H D L IN -2 3 D IO T IN AT-HDVS-200-RX Display (Sink) NOTE: The AT-HDVS-200-RX is designed to be used with the AT-HDVS-200-TX. AT-HDVS-200-RX...

  • Page 13: Menu System

    Menu System Accessing the On-Screen Display The AT-HDVS-200-RX includes a built-in On-Screen Display (OSD) menu system to manage and control all video features. 1. Press and release the MENU button to display the OSD. AT-HDVS-200-RX Main Menu AUDIO RS-232 MENU...

  • Page 14: Input Select

    1280x720 1920x1200 1366x768 800x600 1600x900 Native Menu Back 6. Press the UP/DN buttons to select the desired resolution. 7. Press the MENU button to confirm the selection. 8. Press the Menu Back option to return to the Main Menu. AT-HDVS-200-RX...

  • Page 15: Output Resolution 1

    4. Press the UP/DN buttons to highlight the desired option. Picture Adjust Brightness Contrast Saturation Sharpness Picture Reset Menu Back 5. Press the MENU button to confirm the selection. 6. The current value will be highlighted in green and surrounded by brackets and two arrowheads. AT-HDVS-200-RX...

  • Page 16: Aspect

    4. Press the UP/DN buttons to highlight the Enable option. 5. Press the MENU button to change the Enable value Overscan Overscan Enable Enable H Size % H Size % V Size % V Size % Menu Back Menu Back AT-HDVS-200-RX...

  • Page 17: Audio

    7. Press the UP/DN buttons to select the desired value. Press the UP button to increase the value; press DN to decrease the value. 8. Press the MENU button to confirm the value. 9. Highlight the Menu Back option, then press the MENU button to return to the Main Menu. AT-HDVS-200-RX...

  • Page 18: Osd

    Auto - After the MENU button is pressed, the Main Menu will be displayed for the length of time, specified in the Menu Timer field. • On - Overrides the Menu Timer value. To exit the Main Menu, the Menu Exit option must be selected, within the Main Menu. AT-HDVS-200-RX...

  • Page 19: Others

    Provides control over the transmission of HDCP content for the HDMI IN port on the transmitter (TX). The following options are available: • Compliant - Reports to the source that the AT-HDVS-200-RX is an HDCP-compliant sink device. • Noncompliant - Reports to the source that the AT-HDVS-200-RX is an HDCP-compliant sink device.

  • Page 20: Information

    Grey Information The Information menu displays current information about the AT-HDVS-200-RX. The Information menu consists of two pages. None of the fields within this menu can be edited. 1. Under the Main Menu, highlight the Information menu item using the UP/DN buttons on the front panel.
  • Page 21 Displays the detected resolution of the source. Type (Audio) Displays the audio format. SR (Audio) Displays the sampling rate of the audio signal. FIFO (Audio) Displays the status of the FIFO audio buffer. The IP address of the transmitter. The IP address of the receiver. AT-HDVS-200-RX...

  • Page 22: System Setup

    Menu System System Setup The System Reset menu provides the ability to reset the AT-HDVS-200-RX to factory-default settings. 1. Under the Main Menu, highlight the System Reset menu item using the UP/DN buttons on the front panel. 2. Press the MENU button.

  • Page 23: The Web Gui

    The Web GUI Introduction to the Web GUI The AT-HDVS-200-RX includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-200-RX, as it provides intuitive management of all features. The AT-HDVS-200-RX is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit.

  • Page 24: Menu Bar

    Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. Menu bar In this example, clicking Video, in the menu bar, will display the Video page. AT-HDVS-200-RX...

  • Page 25: Toggles

    Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDVS-200-RX to factory-default settings. AT-HDVS-200-RX...

  • Page 26: Info Page

    Model Name The model SKU of this product. Software Version The version of firmware that the AT-HDVS-200-RX is running. Always make sure to check the AT-HDVS-200-RX product page, on the Atlona web site, for the latest version of firmware. VALENS Version The version of firmware used by the Valens chipset.

  • Page 27: Video Page

    In most situations, adjustment of the VGA signal should not necessary. However, if the VGA signal does not appear correctly, click the Adjust button to automatically correct the clock and phase. Output Format Click this drop-down list to select the desired output timing. Output Resolutions 800x600 1024x768 1280x800 1280x1024 1366x768 1400x105 1600x900 1600x1200 AT-HDVS-200-RX...
  • Page 28 ON position, in order for the overscan to be applied. To disable overscan, click the Enable toggle to the OFF position. H Size Adjust the horizontal scaling of the output image. V Size Adjust the vertical scaling of the output image. AT-HDVS-200-RX...

  • Page 29: Audio Page

    Click and drag the Output Bass slider control to adjust the amount of bass applied to the audio output. Range: -12 to 15. Output Treble Click and drag this slider control to adjust the amount of treble applied to the audio output. Range: -12 to 15. AT-HDVS-200-RX...

  • Page 30: Picture Page

    Adjusts the color saturation of the output signal. Range: 0 to 100 Adjusts the hue of the output signal. Range: 0 to 100 Sharpness Adjusts the sharpness of the output signal. Range: 0 to 100 Reset Pictures Click this button to reset the above picture settings to their factory-default settings. AT-HDVS-200-RX...

  • Page 31: Rs-232 Page

    The following options are available: 1 or 2. Zone When the AT-HDVS-200-RX is connected to the AT-HDVS-200-TX, they are placed in “kit mode”. In this mode, these drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200.

  • Page 32: Config Page

    Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 33: System Page

    Click this toggle to set the IP mode of the AT-HDVS-200-RX. By default, the AT-HDVS-200-RX is set to DHCP mode. Enter the IP address of the AT-HDVS-200-RX in this field. This field will only be available if IP Mode is set to STATIC Netmask Enter the subnet mask in this field.
  • Page 34 Telnet Login Mode Click this toggle to set the login mode to ON or OFF. If this feature is set to on, then the AT-HDVS-200-RX will prompt for both the username and password. Use the same credentials as the web GUI.

  • Page 35: Commands

    Commands The following tables provide an alphabetical list of commands available on the AT-HDVS-200-RX. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 36 Displays system information about the AT-HDVS-200-RX TREBLE Increases / decreases the treble on the output Type Displays model information Version Displays the current firmware version of the AT-HDVS-200-RX VidOutRes Sets the video output resolution VOUT Increases / decreases the audio volume VOUTMute...
  • Page 37 = enables DN button blinking; off = disables DN button blinking; sta = displays the current Blink setting. The default setting is off. Syntax Blink X Parameter Description Range Value on, off, sta Example Feedback Blink on Blink on AT-HDVS-200-RX...
  • Page 38 Example Feedback Broadcast on Broadcast on Sets the picture brightness. Use the sta argument to display the current brightness setting. Syntax BRT X Parameter Description Range Value 0 ... 100, sta Example Feedback BRT 60 BRT 60 AT-HDVS-200-RX...
  • Page 39 CSpara Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 2 port on the AT-HDVS-200-RX. Use this port to control the AT-HDVS-200-RX. Each argument must be separated by a comma; no spaces are permitted. Brackets must be used when typing this command.
  • Page 40 HDCP content. on = enables HDCP detection; off = disables HDCP detection; sta = displays the current HDCPSet setting. Syntax HDCPSet X Parameter Description Range Value on, off, sta Example Feedback HDCPSet on HDCPSet on AT-HDVS-200-RX...
  • Page 41 Displays the list of available commands. To obtain help on a specific command, enter the Help command followed by the name of the command. Syntax help X Parameter Description Range Command name (optional) Command Example Feedback help Command List: ----------------- Aspect HDMIAUD RS232para RS232zone HDCPSet Version Input VidOutRes Zoom HZoom AT-HDVS-200-RX...
  • Page 42 HDMI argument and the input number. Use the sta argument to display the currently active input. Syntax Input X Y Parameter Description Range Input HDMI, VGA, sta HDMI port identifier 1 ... 2 Example Feedback Input HDMI2 Input HDMI2 AT-HDVS-200-RX...
  • Page 43 Password 20 characters (max) Example Feedback IPAddUser BigBoss b055man IPAddUser BigBoss b055man TCP/IP user was added IPCFG Displays the current network settings for the AT-HDVS-200-RX. Syntax IPCFG This command does not require any parameters Example Feedback IPCFG IP Addr: 10.0.1.101 Netmask: 255.255.255.0...
  • Page 44 IPDHCP on IPLogin Enables / disables the use of login credentials when starting a Telnet session on the AT-HDVS-200-RX. If this feature is set to on, then the AT-HDVS-200-RX will prompt for both the username and password. Use the same credentials as the web GUI.
  • Page 45 Commands IPStatic Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDVS-200-RX. Before using this command, DHCP must be disabled on the AT-HDVS-200-RX. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address is 192.168.1.254.
  • Page 46 Commands Mreset Resets the AT-HDVS-200-RX to factory-default settings. Syntax MReset This command does not require any parameters Example Feedback Mreset Mreset PictureRst Resets the picture settings to factory-default settings. This command does not reset the unit to factory-default settings. Refer to the Mreset command for more information.
  • Page 47 2 (C2) might dim the lights. The “manual” control state provides the ability to override the current relay settings. Syntax RelayAuto X Parameter Description Range Value on, off, ? Example Feedback RelayAuto on RelayAuto on AT-HDVS-200-RX...
  • Page 48 RS232para Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 1 port on the AT-HDVS-200-RX. This port is used to send commands to the connected display. Each argument must be separated by a comma; no spaces are permitted.
  • Page 49 Parameter Description Range Sharpness 0 ... 100, sta Example Feedback SHARP 70 SHARP 70 System Displays system information about the AT-HDVS-200-RX. The sta argument must be specified. Syntax System X Parameter Description Range Status Example Feedback System sta Model: AT-HDVS-200-RX...
  • Page 50 This command does not require any parameters Example Feedback Type AT-HDVS-200-RX Version Displays the firmware version of the AT-HDVS-200-RX. No spaces must exist between the command and the argument. MCU = displays the microprocessor firmware, VSRX = displays the Valens firmware. Syntax VersionX Parameter Description...
  • Page 51 1 value, respectively. To display the current value, execute the VOUT command without any arguments. Syntax VOUT Parameter Description Range Value -80 ... 6 Example Feedback VOUT 4 VOUT 4 VOUT + VOUT 5 AT-HDVS-200-RX...
  • Page 52 VZoom 10 VZoom 10 Zoom Enables / disables overscan. on = enables overscan; off = disables overscan; sta = displays the current Zoom setting. Syntax Zoom X Parameter Description Range Value on, off, sta Example Feedback Zoom on Zoom on AT-HDVS-200-RX...

  • Page 53: Appendix

    Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, If a network connection is not available, the AT-HDVS-200-RX firmware can be updated using a USB-A to USB mini-B cable...

  • Page 54: Using Usb

    USB-A to USB mini-B cable AT-HD-SC-500 INPUT HDMI 1. Disconnect power from the AT-HDVS-200-RX. 2. Connect the USB-A to USB mini-B cable from the computer to the FW port on the AT-HDVS-200-RX. DISPLAY FW port HDMI IN 1 VGA IN...
  • Page 55 7. Delete all files from the USB UPDATE drive, if any are present. 8. Drag-and-drop the firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-200-RX. 10. Power-cycle the AT-HDVS-200-RX by disconnecting then reconnecting the power supply.

  • Page 56: Default Settings

    Appendix Default Settings The following tables list the factory-default settings for the AT-HDVS-200-RX. Feature Settings Resolution Preferred Input Timing 1920x1080 Output Format 720p60 Aspect ratio Full Overscan Disabled Audio Mute HDMI Audio L/R Audio Bass Treble Picture Brightness Contrast Saturation...
  • Page 57 Info Timer 10 (seconds) Menu Timer 20 (seconds) Info Display Auto Menu Display Auto Background Grey System IP Mode DHCP Static IP Address (default) 192.168.1.254 Netmask 255.255.255.0 Gateway 192.168.1.1 Telnet Port Telnet Login Mode Telnet Timeout 120 (seconds) Broadcast AT-HDVS-200-RX...

  • Page 58: Specifications

    Feet Meters CAT5e/6 @ 1080p HDMI IN / OUT @ 1080p Signal Bandwidth 6.75 Gbps HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDVS-200-RX...
  • Page 59 Input: 100 - 240 V AC, 50/60 Hz Output: 48 V DC, 0.83 A Dimensions Inches Millimeters H x W x D 1.5 x 5 x 4.02 38 x 127 x 102 Weight Pounds Kilograms Device 1.00 0.45 Certification Unit CE, FCC AT-HDVS-200-RX...

  • Page 60: Index

    IPTimeout Resolution adjusting KitMode input Mreset output 15, 51 PictureRst setting PrefTimg RS-232 Information RelayAct connector displaying RelayAuto Input RS232para selecting RS232zone Installation SATRT Safety information IP address SHARP Saturation default System adjusting TREBLE Sharpness 30, 49 Type adjusting AT-HDVS-200-RX...
  • Page 61 Index Source input Specifications Static IP 33, 45 Subnet mask Telnet listening port login mode timeout TMDS clock sync button Users adding 32, 43 editing removing 32, 43 Volume adjusting Warranty Web GUI AT-HDVS-200-RX...
  • Page 62 • 408.962.0515 • 877.536.3976 © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
