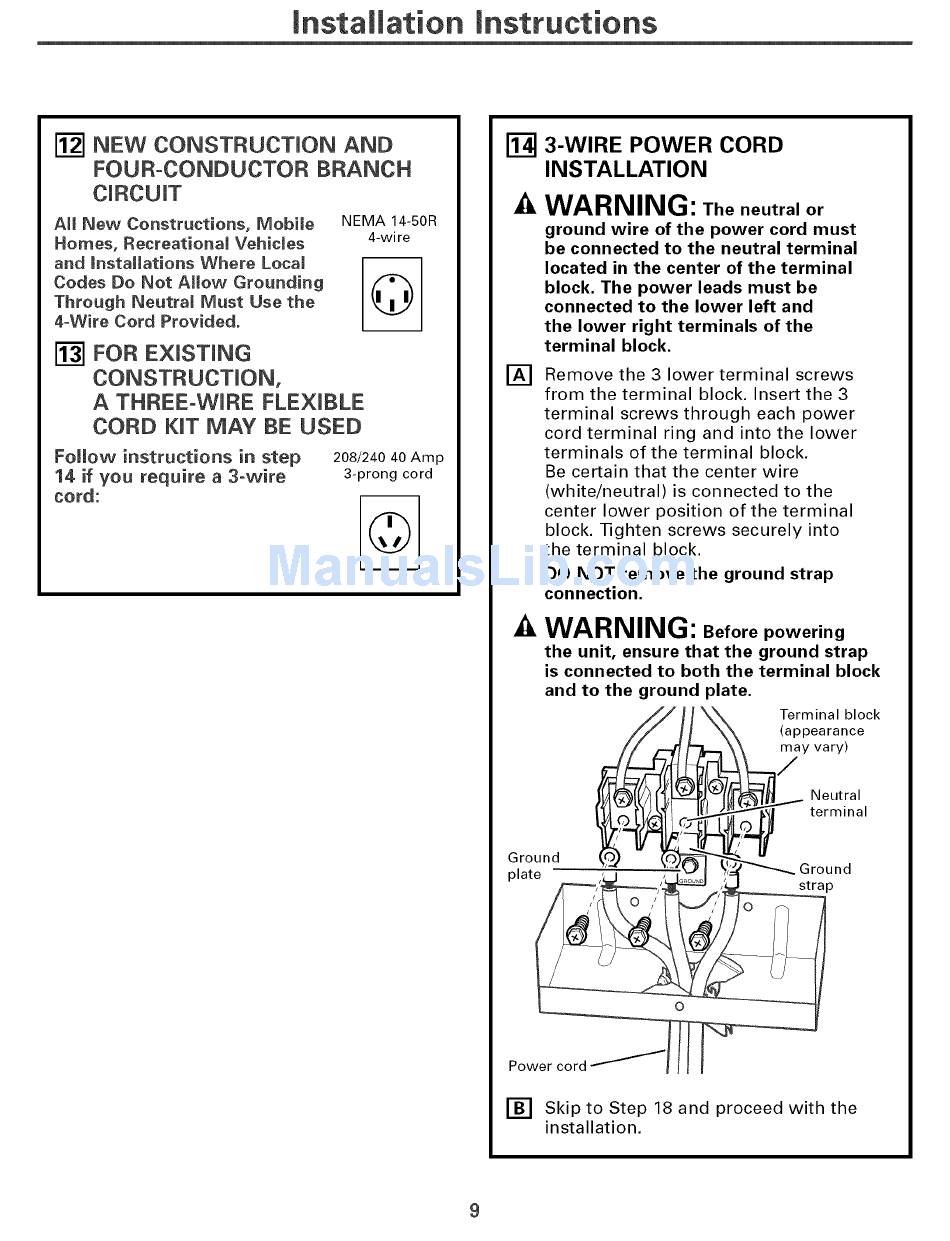

GE P2S975 Installation Instructions Manual page 9

mnstaliation mnstructions
Fi_ NEW CONSTRUCTION AND
FOUR-CONDUCTOR BRANCH
All New Constructions, Mobile
Homes, Recreationam VehicJes
and mnstaHations Where Local
Codes Do Not AHow Grounding
Through Neutral Must Use the
4-Wire Cord Provided.
r_] FOR EXISTING
NEMA 14-50R
4-wi re
A THREE-WiRE FLEXIBLE
CORD KiT MAY BE USED
Follow instructions in stop
14 if you require a 3-wire
cord:
208/240 40 Amp
3-prong cord
[]
Ground
plate
3-WIRE POWER CORD
INSTALLATION
WARNING:
The neutral or
ground wire of the power cord must
be connected to the neutral terminal
located in the center of the terminal
block. The power leads must be
connected to the lower left and
the lower right terminals of the
terminal block.
Remove the 3 lower terminal screws
from the terminal block. Insert the 3
terminal screws through each power
cord terminal ring and into the lower
terminals of the terminal block.
Be certain that the center wire
(white/neutral) is connected to the
center lower position of the terminal
block. Tighten screws securely into
the terminal block.
DO NOT remove the ground strap
connection.
WARNING:
Before powering
the unit, ensure that the ground strap
is connected to both the terminal block
and to the ground plate.
Terminal block
(appearance
O_,_ y vary)
tNe_iralal
'_ Ground
strap
Power cord
[] Skip to Step 18 and proceed with the
installation.
