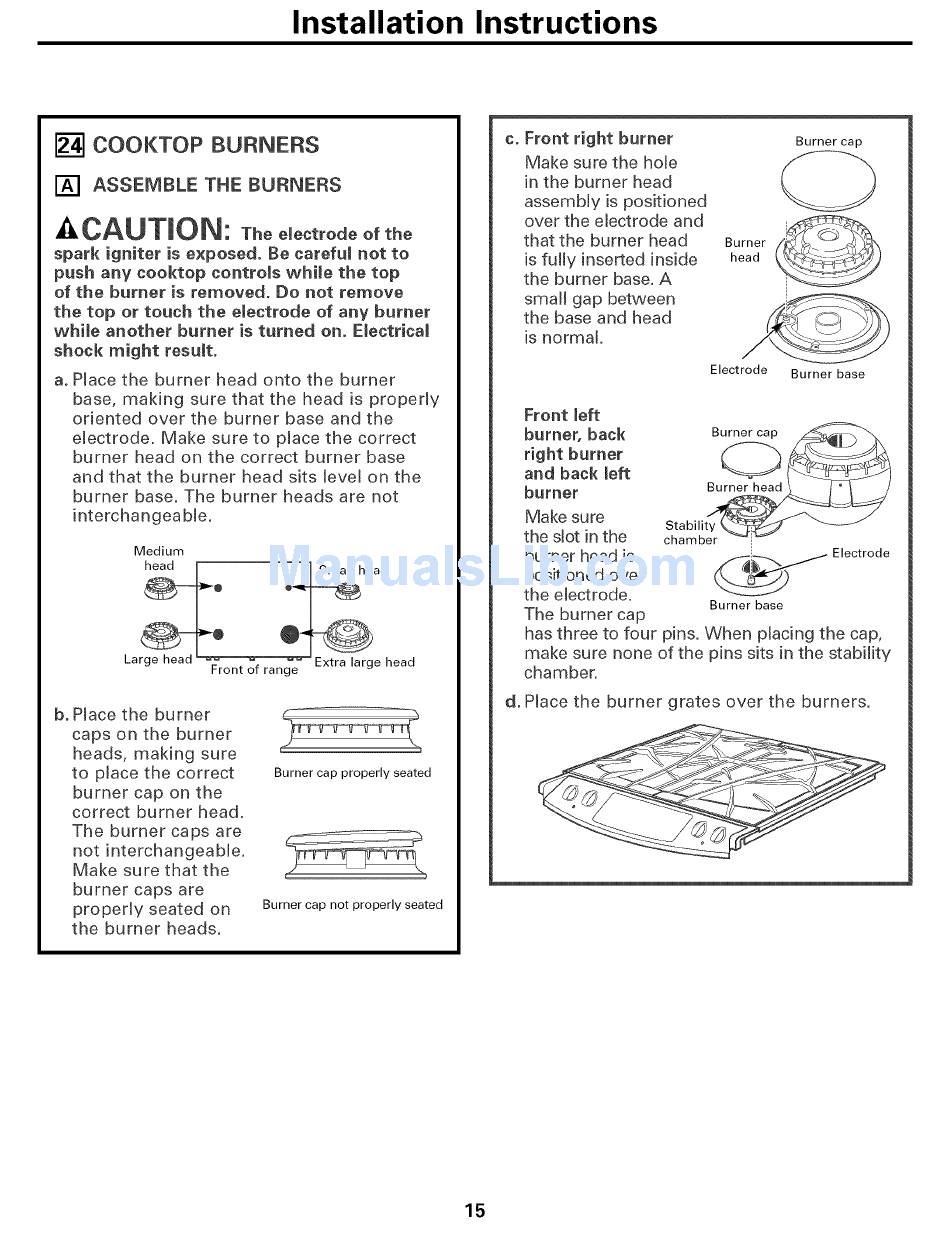

Installation Instructions
[] COOKTOP BURNERS
[] ASSEMBLE THE BURNERS
CAUTION: The emectrode ofthe
spark igniter is exposed. Be carefuJ not to
push any cooktop controJs whiJe the top
of the burner is removed. Do not remove
the top or touch the eJectrode of any burner
while another burner is turned on. ElectricaJ
shock might resuJt.
a. Place the burner head onto the burner
base, making sure that the head is properly
oriented over the burner base and the
electrode. Make sure to place the correct
burner head on the correct burner base
and that the burner head sits level on the
burner base. The burner heads are not
interchangeable.
Medium
Large head _ Extra large head
b. Place the burner
caps on the burner
heads, making sure
to place the correct
burner cap on the
correct burner head.
The burner caps are
not interchangeable.
Make sure that the
burner caps are
properly seated on
the burner heads.
Burner cap properly seated
Burner cap not properly seated
c. Front right burner
Burner cap
Make sure the hole
in the burner head
assembly is positioned
over the electrode and
that the burner head Burner
iS fully inserted inside head
the burner base. A
small gap between
the base and head
is normal.
Electrode
Front left
burner, back
right burner
and back left
burner
Make sure
the slot in the
burner head is
positioned over
the electrode.
The burner cap
Burner base
Burner base
has three to four pins. When placing the cap,
make sure none of the pins sits in the stability
chamber.
d. Place the burner grates over the burners.
