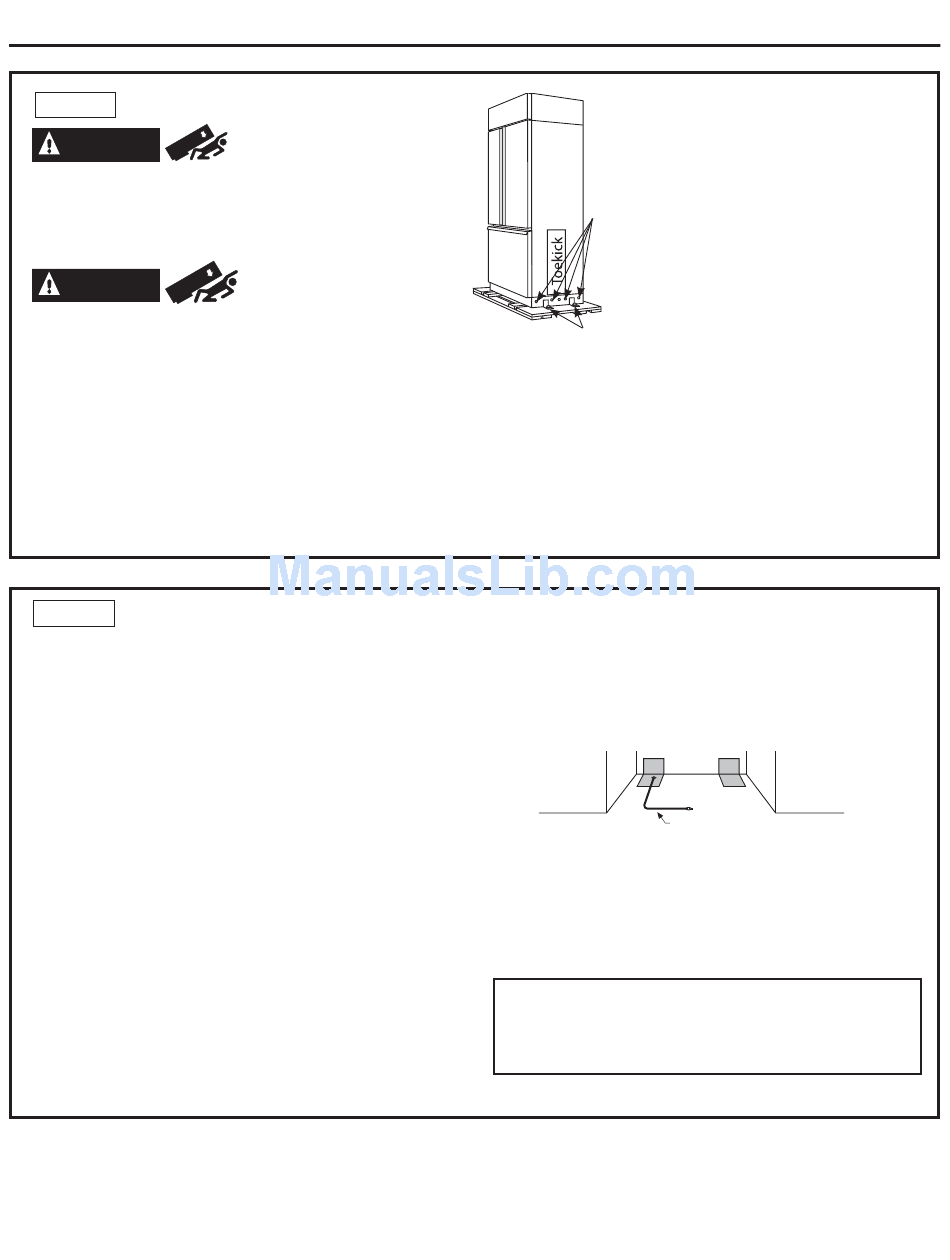

STEP 1 REMOVE PACKAGING
WARNING
Refrigerator is much heavier at the top than at the
bottom. To avoid a risk of death or serious injury, be
careful when moving, and when using a hand truck,
handle only from side.
DO NOT ATTEMPT TO ROLL UNIT OFF SKID.
AVERTISSEMENT
Parce que le haut du réfrigérateur est plus lourd que sa base,
la prudence est de mise lors son déplacement, de l'utilisation
d'un diable-brouette, de sa manipulation faite seulement sur
son côté afin d'éviter les blessures graves ou mortelles.
IL NE FAUT PAS ESSAYER DE FAIRE ROULER L'APPAREIL
MÉNAGER POUR L'ENLEVER DE LAY PALETTE..
• Carefully cut banding at the top and bottom, remove the
outer carton.
• Slide out the back corner posts (2).
• Slide the carton off the top of the cabinet.
NOTE: IT IS NOT NECESSARY TO LAY THE CABINET DOWN
IN ORDER TO REMOVE THE SKID!
STEP 2 INSTALL WATER LINE
• A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
• Route 1/4" OD copper or GE SmartConnect
tubing between house cold water line and the water
connection location.
• Tubing should be long enough to extend to the front of
the refrigerator. Allow enough tubing to accommodate
bend leading into the water line connection.
NOTE: The only GE-approved plastic tubing is supplied
in the GE SmartConnect
™
use any other plastic water supply line because the line
is under pressure at all times. Other types of plastic may
crack or rupture with age and cause water damage to
your home.
GE SmartConnect
Refrigerator Tubing Kits are available
™
in the following lengths:
2' (.6 m)
WX08X10002
8' (2.4 m) WX08X10006
15' (4.6 m) WX08X1 0015
25' (7.6 m) WX08X10025
Installation Instructions
Tip Over Hazard.
Risque de basculement
plastic
™
Refrigerator Tubing kits. Do not
Remove 5
base channel
bolts on each
side
Remove 2 strap
bolts on each side
before the refrigerator is taken off the skid or damage
will occur. Carefully tilt the refrigerator and slide the
blocks out from beneath.
• Remove the toekick and set aside for final installation.
• Lift the refrigerator off the skid with an appliance dolly.
Handle from the sides.
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line of
water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet. The
shut-off valve should be located where it will be easily
accessible.
• Turn on the main water supply and flush debris. Run about
a quart of water through the tubing into a bucket. Shut off
water supply at the shut-off valve.
NOTE: Saddle type shut-off valves are included in many water
supply kits, but are not recommended for this application.
NOTE: Commonwealth of Massachusetts Plumbing Codes
248CMR shall be adhered to. Saddle valves are illegal and
use is not permitted in Massachusetts. Consult with your
licensed plumber.
10
• The unit is secured to the
skid with 2 full-length
tie-down straps. Remove
the ten 5/16" bolts from the
base channels in the tie-
downs.
• Remove the four 7/16"
bolts securing the straps to
the skid.
NOTE: DO NOT ATTEMPT TO
ROLL UNIT OFF SKID.
• The support blocks on the
bottom of the refrigeration
case must be removed
Floor
Waterline Tubing
