Driver Installation

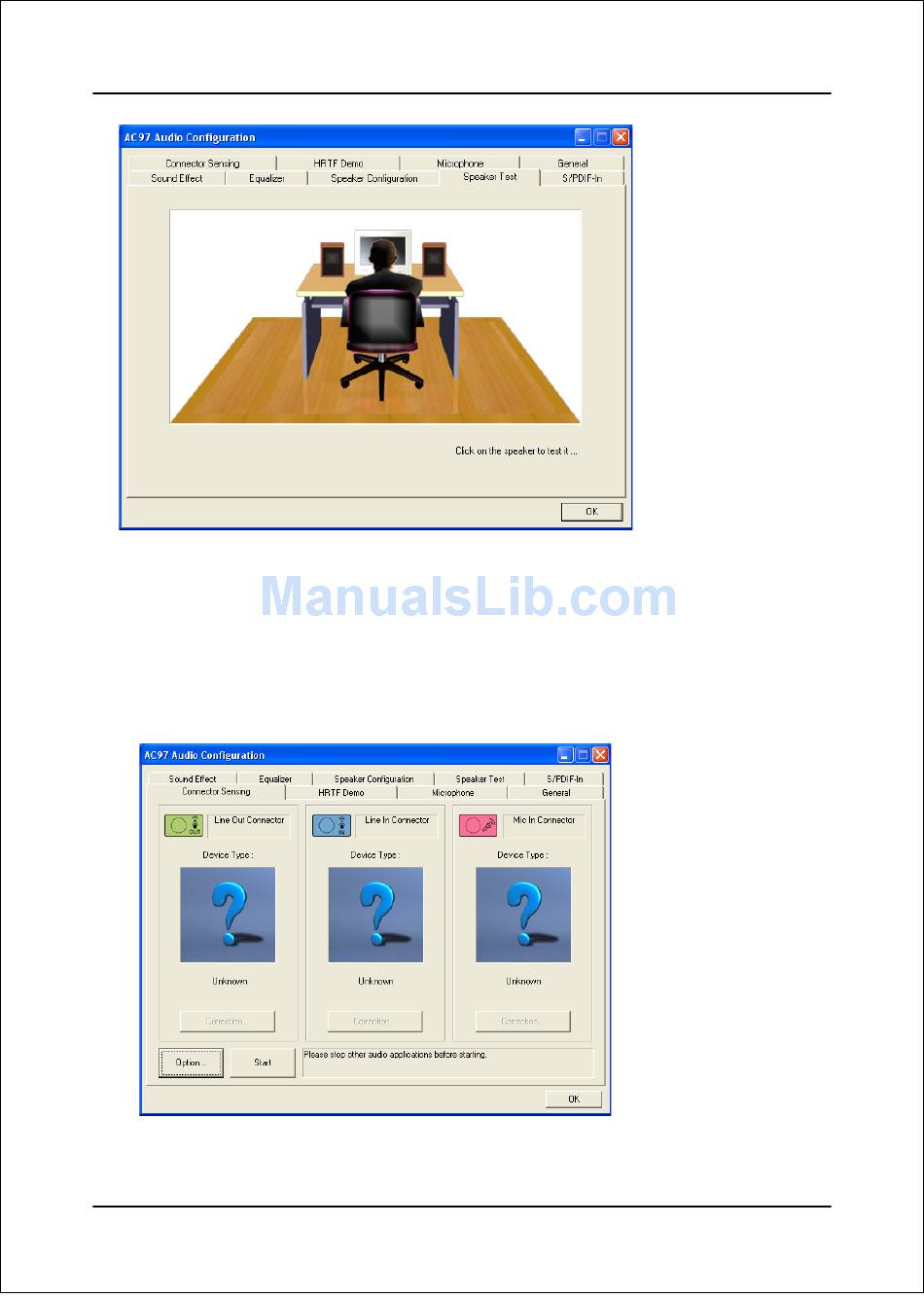

5. To test the speaker , select the "Speaker Test" page and click directly on the
speakers shown on the screen.
This board is equipped with Jack Sensing capability. If an audio device is plugged
into the wrong connector, a warning message will appear to remind users to check
the connection.
6. Push "Start" button to start the sensing. Please remember to terminate all
audio applications before starting the sensing.
Page 6-4
Speaker Test:
<Figure 5>
Connector
Sensing:
<Figure 6>
