3-3 System Memory Configuration
Memory Layout
The mainboard accommodates two PC2100/PC2700/PC3200 184-pin DIMMs (Dual In-
line Memory Modules):
•
Supports up to 2.0GB of 266/333/400MHz DDR SDRAM.
•
Supports unbuffered DIMM configurations defined in JEDEC DDR DIMM
specification.
Memory configurations supported:
S
t o l
N
o
D
M I
M
#
1
D
M I
M
#
2
* DS - Double-sided DIMM, * SS - Single-sided DIMM
NOTES:
Using non-compliant memory with higher bus speeds (overclocking)
•
may severely compromise the integrity of the system.
Memory Installation :
To install, align the notch on the DIMM module with the connector.
Press straight down as shown in the figure below until the white clips
close and the module fits tightly into the DIMM socket.
DDR DIMM 1
DDR DIMM 2
1
D
M I
M
D
S
S /
S
D
S
S /
S
2
D
M I
M
s
D
S
S /
S
D
S
S /
S
Notch
Installation

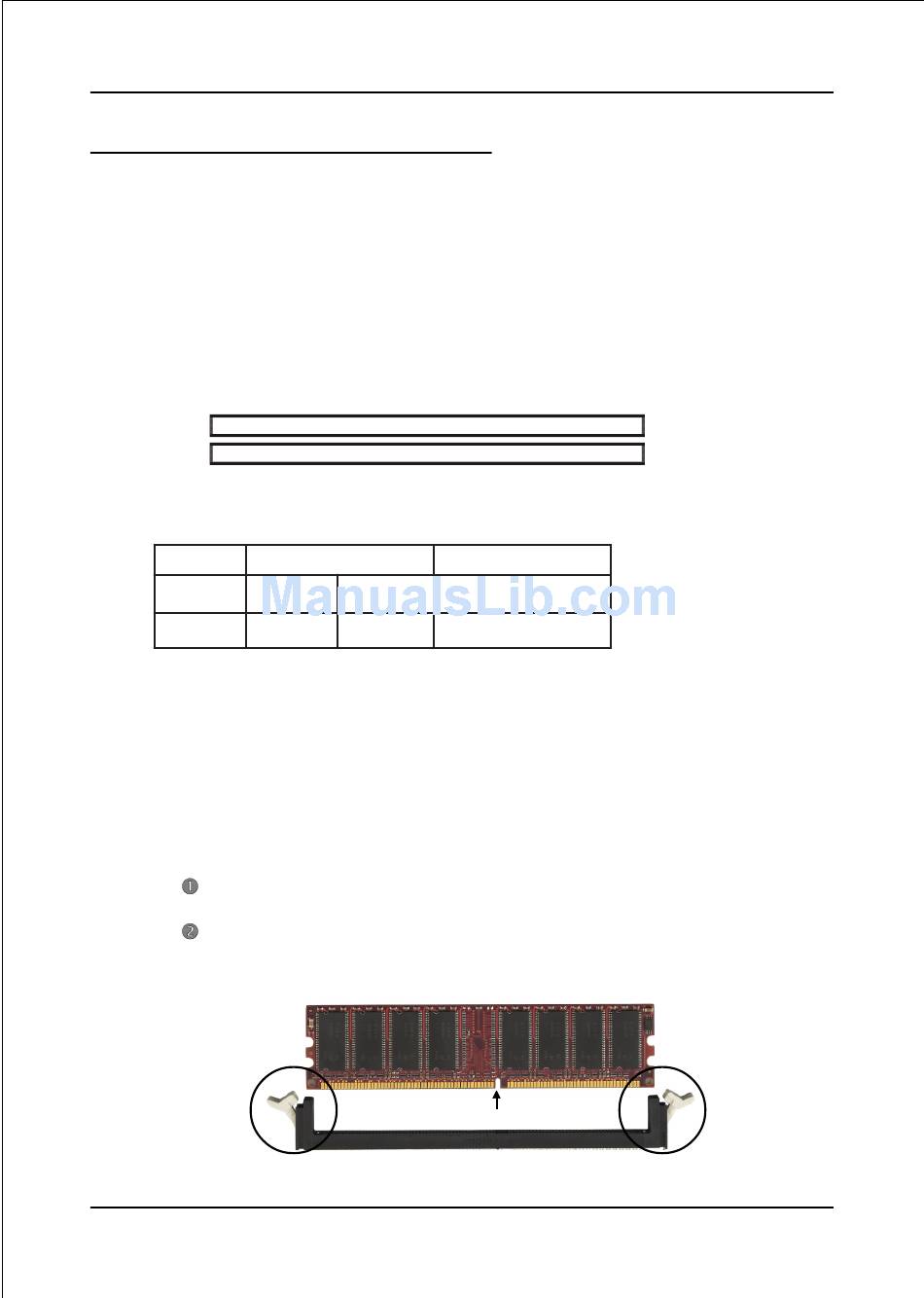

<Figure 6>
Page 3-5
