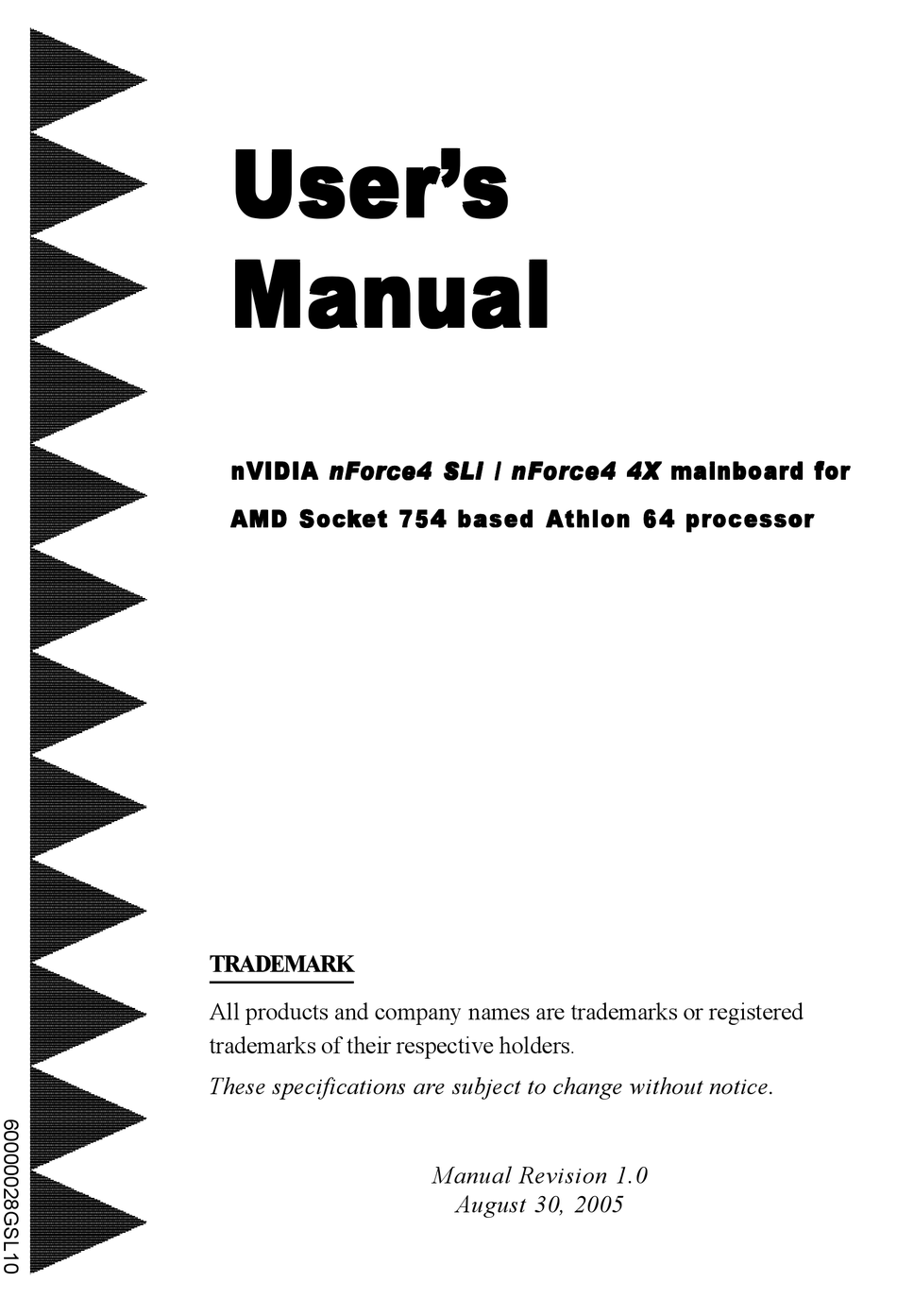

Nvidia nforce4 sli / nforce4 4x mainboard for amd socket 754 based athlon 64 processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User'
User' s s s s s
User'
User'
User'
Manual
Manual
Manual
Manual
Manual
nVIDIA
nVIDIA
nForce
nForce
nVIDIA
nVIDIA nForce
nVIDIA
nForce
nForce4 SLi
AMD Soc
AMD Sock k k k k et
AMD Soc
et et 754 based
et et
AMD Soc
AMD Soc
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
4 SLi
4 SLi
/ nForce4 4X
/ nForce4 4X
4 SLi / nForce4 4X
4 SLi
/ nForce4 4X mainboard for
/ nForce4 4X
754 based
754 based Athlon 64
754 based
Athlon 64
Athlon 64 pr
Athlon 64
754 based
Athlon 64
Manual Revision 1.0
August 30, 2005
mainboard for
mainboard for
mainboard for
mainboard for
pr processor
pr pr
ocessor
ocessor
ocessor
ocessor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 754 and is the answer not in the manual?

Questions and answers

Related Manuals for Nvidia 754

Summary of Contents for Nvidia 754

  • Page 1 SLi 4 SLi 4 SLi / nForce4 4X AMD Soc AMD Sock k k k k et AMD Soc et et et et 754 based 754 based Athlon 64 754 based 754 based AMD Soc AMD Soc 754 based...

  • Page 2: Disclaimer Of Warranties

    DISCLAIMER OF WARRANTIES: THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.
  • Page 3 Post Port Frequently Asked Questions Below is a list of some basic POST Codes, possible problems and solutions. For more detailed information about POST Codes, refer to Appendix C in this manual. P O ST C O D E P r o bl e m FFh o r CFh 1 .B IO S c hip inse rte d inc o rre c tly...

  • Page 4: Table Of Contents

    Table of Contents Section 1 Introduction Package Contents ... 1- 1 Mainboard Features ... 1- 2 System Block Diagram ... 1- 5 Section 2 Specification Mainboard Specification ... 2- 1 Section 3 Installatio Mainboard Layout ... 3- 1 Easy Installation Procedure ... 3- 2 CPU Insertion ...
  • Page 5 Supervisor/User Password Setting ... 4-23 Exit Selecting ... 4- 24 Section 5 RAID Configuration Introduction ... 5- 1 NVidia RAID Features ... 5- 3 Enable RAID Function ... 5- 4 Section 6 Driver Installation Easy Driver Installation ... 6- 1 Realtek Sound Manager Quick User guide ...
  • Page 6 Page Left Blank...

  • Page 7: Introduction

    1-1 Package Contents Contents A. Mainboard B. User’s manual C. Floppy drive cable D. HDD drive cable E. CD (drivers and utilities) INTRODUCTION F. I/O Shield G. S-ATA data and power cable H. SLI bridge I. Extra USB2.0 port cable USER’S MANUAL Introduction...

  • Page 8: Mainboard Features

    Chipset The board is designed with NVIDIA nForce4 SLi/nForce4 4X chipset, featuring performance and stability with the most innovative technology and features. For more details about the NVIDIA nForce4 series, please visit the NVIDIA Web site at http://www.nvidia.com. NVIDIA SLI...
  • Page 9 Introduction Serial ATA (Supported in the NVIDIA nForce 4 4X chipset) Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage interface. Increases the peak data transfer speed up to 150MB/sec and allows future enhancements to the computing platform.
  • Page 10 Introduction BIOS Features: Magic Health Reports your system hardware status for every boot-up to help detect faults early. Monitor hardware status including CPU temperature, CPU/Memory/ Chipset voltage, fan RPM speed for chassis fan, CPU fan & Power supply fan. EZ-Boot Simply press “ESC”...

  • Page 11: System Block Diagram

    Introduction 1-3 System Block Diagram Page 1-5...
  • Page 12 Introduction Page 1-6...

  • Page 13: Specification

    Mainboard Specification Processor Support Socket-754 based AMD Athlon 64/Sempron up to 3700+ with 1.6GTs Hyper Transport processors Chipset nVidia nForce4 SLi / nForce4 4X Chipset Main Memory Two 184-pin DDR SDRAM DIMM sockets Support single-sided or double-sided 2.5v DDR-266/333/400 DIMMs...

  • Page 14: Peripheral Interfaces

    Specification 1Gbps Fast Ethernet with onboard Vitesse VSC8201 LAN chip - nVidia Fireware - nVidia ActiveArmor Secure Network Engine (Optional) Audio Onboard Realtek ALC-655 selectable 2 or 6-CH audio CODEC (AC97 v2.3 compliant) - Support CD-In, AUX-In - Coaxial S/PDIF-out available on rear panel...

  • Page 15: Special Features

    Two ATA-100/133 IDE connector Six extra USB2.0 ports One CD-IN and AUX-IN connector One IR connector Four S-ATA II connectors from nVidia nForce4 SLI or Four S-ATA connectors from nVidia nForce4 4X Three Fan connectors Front Panel Controller Supports Reset & Soft-Off switches Supports HDD &...
  • Page 16 Specification - Support BIOS adjustable CPU Core voltage, Chipset voltage , DIMM voltage settings Form Factor 305mm x 225 mm ATX size Page 2-4...

  • Page 17: Installation

    Installation Section 3 INSTALLATION Mainboard Layout Page 3-1...

  • Page 18: Easy Installation Procedure

    Installation Easy Installation Procedure The following must be completed before powering on your new system: 3-1. CPU Installation 3-2. Jumper Settings 3-3. System Memory 3-4. VGA Card Installation 3-5. Device Connectors 3-1 CPU Installation <Figure 1> Step 1 Open the socket by raising the actuation lever.
  • Page 19 <Figure 3> Step 3 Close the socket by lowering and locking the actuation lever. Apply thermal compound to the top of the CPU. Step 5 Plug the CPU fan power into the mainboard’s CPU fan connector. The installation is complete. <Figure 4>...

  • Page 20: Jumper Settings

    Installation 3-2 Jumper Settings Page 3-4 JCMOS: Clear CMOS data Jumper If the CMOS data becomes corrupted or you forgot the supervisor or user password, clear the CMOS data to reconfigure the system back to the default values stored in the ROM BIOS. Settings: 1-2: Normal (Default) 2-3: Clear CMOS...

  • Page 21: System Memory Configuration

    3-3 System Memory Configuration Memory Layout The mainboard accommodates two PC2100/PC2700/PC3200 184-pin DIMMs (Dual In-line Memory Modules): • Supports up to 2.0GB of 266/333/400MHz DDR SDRAM. • Supports unbuffered DIMM configurations defined in JEDEC DDR DIMM specification. Memory configurations supported: t o l * DS - Double-sided DIMM, * SS - Single-sided DIMM NOTES:...

  • Page 22: Vga Card Installation

    Installation 3-4 VGA Card Installation Important: Please read through the instruction below before you start installing the VGA card. <Figure 7> <Figure 8> <Figure 9> Page 3-6 To install a single VGA card in Single Mode, insert the VGA into the "Primary" VGA slot.
  • Page 23 <Figure 10> After installing VGA driver, enable the Multi-Graphics Processor Unit (GPU) feature in the NVIDIA nView properties as shown below. For SLI Mode, as "SLi Bridge" card (D) must be installed to the golden fingers (E) on the top of both VGA cards in order to link the cards together.

  • Page 24: Device Connectors

    Installation 3-5 Device Connectors The I/O back panel for this mainboard is shown below. When installing the mainboard into the computer case, use the bundled I/O shield to protect this back panel. Parallel Port PS/2 Mouse PS/2 Keyboard S/PDIF-out Coaxial Jack JPWR_FAN JCPU_FAN JSYS_FAN...
  • Page 25 IDE2 IDE1 IDE1/IDE2 PW12 3.3V Ground +12V +12V 5VSB PW-OK Ground Ground +12V +12V Ground Ground Ground Ground Ground PS-ON PW12 Ground Ground 3.3V -12V 3.3V 3.3V Floppy Controller Connector This connects to the floppy disk drive. IDE1/IDE2:Ultra DMA-100/133 Primary/Secondary IDE Connector This mainboard is equipped with 2 IDE connectors to support up to 4 ATA-100/133 IDE drives.
  • Page 26 CD_IN_Right CD_Reference CD_IN_Left SATA1 ~ SATA4: Four Serial ATA Connectors From nVidia nForce4 SLi supports S-ATA II up to 300MB/sec transfer rate. From nVidia nForce4 4X supports S-ATA up to 150MB/sec transfer rate. These connectors enable you to connect Serial ATA HDDs or optical drives type.
  • Page 27 CP80P: Post Port Debug LED Provides two-digit POST code to show why the system fail to boot. Allows quick and easy optimization. EZ-Button — RESET, PW-ON: These onboard buttons lets you turn on/off the system easily, it is especially handy for debugging or testing the system.
  • Page 28 Installation CSPK Page 3-12 CFP: Front Panel Connector HD_LED This LED will light up whenever the hard drive is being accessed. PWR_LED This connects to the power button of the system chassis This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.

  • Page 29: Power-On/Off (Remote)

    3-6 Power-On/Off (Remote) This board has a 24-pin ATX and a 4-pin ATX12V power supply connector to support power supplies with Remote On/Off feature. The 4-pin ATX12V connector must be plugged in for the system to operate safely. The chassis power button should be connected to the mainboard front panel PW_ON header.
  • Page 30 Installation Page 3-14...

  • Page 31: Bios Setup

    Main Menu The ROM BIOS contains a built-in Setup program which allows user to modify the basic system configuration and hardware parameters. The modified data is stored in a battery-backed CMOS, so that data will be retained even when the power is turned off.

  • Page 32: Standard Cmos Setup

    BIOS The main menu displays all the major selection items. Select the item you need to reconfigure. The selection is made by moving the cursor (press any direction (arrow key ) to the item and pressing the ‘Enter’ key. An on-line help message is displayed at the bottom of the screen as the cursor is moved to various items which provides a better understanding of each function.

  • Page 33: Advanced Bios Features

    4-2 Advanced BIOS Features Selecting the “ADVANCED BIOS FEATURES” option in the CMOS SETUP UTILITY menu allows users to change system related parameters in the displayed menu. This menu shows all of the manufacturer’s default values for the board. Pressing the [F1] key displays a help message for the selected item. Figure 3: BIOS Features Setup Removable Device Priority This item allows you to select the hard disk boot priority.
  • Page 34 BIOS Init Display First This item is used to select whether to initialize the PCI-E or PCI first when the system boots. Options: PCI Slot, PCIEx. Virus Warning During and after system boot up, any attempt to write to the boot sector or partition table of the hard disk drive halts the system and an error message appears.
  • Page 35 Security Option This category allows you to limit access to the System and Setup, or just to Setup. System: The system will not boot and access to Setup will be denied unless the correct password is entered at the prompt. Setup: The system will boot, but access to Setup will be denied unless the correct password is entered at the prompt.

  • Page 36: Advanced Chipset Features

    BIOS 4-3 Advanced Chipset Features Choose the “ADVANCED CHIPSET FEATURES” option in the CMOS SETUP UTILITY menu to display following menu. Figure 4: Chipset Features Setup HT Frequency This item allows you select the Hyper Transport Frequency. Options: 1x, 2x, 3x, 4x, 5x. (1x-->200MHz, 2x-->400MHz, 3x-->600MHz, 4x--> 800MHz, 5x-->1000MHz) CPU Spread Spectrum This option reduces the EMI (Electromagnetic Interference) generated by the CPU.
  • Page 37 BIOS DRAM Configuration Scroll to DRAM Configuration and press <Enter>. The following screen appears: 1T/2T Memory Timing For setting DRAM command rate timing. Options: Auto, 1T, 2T. CAS# Latency (Tcl) Enables you to select the CAS latency time. The value is set at the factory depend- ing on the DRAM installed.
  • Page 38 BIOS Row cycle time (Trc) This field specifies the Row Cycle Time. RAS# active to RAS# active or auto refresh of the same bank. Options: Auto, 7T ~ 21T. Row refresh cyc time (Trfc) This field specifies the Row Refresh Cycle Time. Auto-refresh active to RAS# or RAS# to auto refresh.
  • Page 39 BIOS Async Latency Value Options: Auto, 1ns ~ 15ns. IdleCycle Limit Options: Auto, 4, 8, 16, 32, 64, 128, 256. Dynamic IdleCycle Counter Options: Auto, Disabled, Enabled. R/W Queue Bypass Count Options: Auto, 2, 4, 8, 16. Bypass Max Options: Auto, 0 ~ 7. DQS Skew Control Options: Auto, Increase, Decrease.

  • Page 40: Integrated Peripherals

    4-4 Integrated Peripherals Figure 5: Integrated Peripherals nVidia RAID Boot ROM Set this to enabled to setup RAID for drives connected to nVidia chipset. Options: Enabled, Disabled. nVidia Lan PXE Boot ROM Enables/disable the onboard nVidia Lan PXE Boot ROM for booting from LAN.
  • Page 41 Chipset IDE Devices Scroll to Chipset IDE Devices and press <Enter>. The following screen appears: Delay For HDD (Secs) This item allows you to set longer time stand by before system Scan HDD at post screen. Some HDD may need a longer stand by time before it can be detected.
  • Page 42 BIOS Onboard Device Scroll to Onboard Device and press <Enter>. The following screen appears: Onchip USB Enables the USB controller. Options: Disabled, V1.1+V2.0, V1.1. USB Memory Select used memory space to record USB device information Options: Base memory, Shadow memory. USB Mouse Support Enable/Disable support for USB mouse under DOS.
  • Page 43 BIOS Legacy Devices Scroll to Legacy Devices and press <Enter>. The following screen appears: Onboard FDC Controller Select “Enabled” if you wish to use onboard floppy disk controller (FDC). If you install an external FDC or the system has no floppy drive, select “Disabled “in this field.

  • Page 44: Power Management Setup

    BIOS 4-5 Power Management Setup Choose the “POWER MANAGEMENT SETUP” in the CMOS SETUP UTILITY to display the following screen. This menu allows the user to modify the power management parameters and IRQ signals. In general, these parameters should not be changed unless it’s absolutely necessary.

  • Page 45: Pnp/Pci/Pci-E Configuration

    BIOS WOL (PME#) From Soft-Off When enabled, NV LAN activity awakens the system from soft-off state. Options: Enabled, Disabled. Power-On by Alarm When set to Enable alarm resume, you can set the date (of month) and time (hh: mm:ss), that will awaken a system which has been powered down. Options: Enabled, Disabled.
  • Page 46 BIOS Resources Controlled By Determines what controls system PNP/PCI resources. The default is Auto (ESCD). Manual: PNP Card’s resources are controlled manually. The “IRQ Resources” field becomes available and you can set which IRQ-X and DMA-X are assigned to PCI and onboard devices. Auto: BIOS assigns the interrupt resource automatically.

  • Page 47: Pc Health Status

    BIOS 4-7 PC Health Status Figure 8: PC Health Status Show PC Health in POST When this function is enabled the PC Health information is displayed during the POST (Power On Self Test). Options: Enabled, Disabled. Current System /CPU Temperature Displays the current system /CPU temperature.
  • Page 48 BIOS 5VSB The voltage level of the 5V Standby. 3VSB The voltage level of the 3V Standby. Battery (V) The voltage level of the battery. ACPI Shutdown Temperature This is the temperature that the computer will turn off the power to combat the effects of an overheating system.
  • Page 49 BIOS Smart Fan example: Only need to set the items in gray. The system will automatically calculate intermediate temperature Temp LM and Temp MH and the corresponding Duty LM and Duty MH. How effective Smart CPU Fan is will depend on fan design. Most fans have built-in thermistor and may self adjust its speed.

  • Page 50: Power Bios Features

    BIOS 4-8 POWER BIOS Features This page lets you adjust various parameters to obtain improved performance for overclocking. Overclocking requires expert knowledge and risks permanent damage to system components. We recommend you leave these parameters at their default values for proper operation. Figure 9: Frequency/Voltage Control CPU Frequency Enables you to increment the CPU’s clock generator at 1 MHz step.
  • Page 51 BIOS PCIE Clock Enables you to subtle tune the PCIE frequency at increments of 1MHz step. Options: 100 to 145 in 1MHz increments. AMD K8 Cool’n’Quiet Reduce the noise and heat from you PC when AMD’s Cool’n’Quiet technology is enabled. Options: Enabled, Disabled.

  • Page 52: Defaults Menu

    BIOS 4-9 Defaults Menu Selecting “Defaults” from the main menu shows you two options which are described below Load Fail-Safe Defaults When you press <Enter> on this item you get a confirmation dialog box: Load Fail-Safe Defaults (Y/N) ? N Pressing ‘Y’...

  • Page 53: Supervisor/User Password Setting

    4-10 Supervisor/User Password Setting This function lets you set either Supervisor or User Password, or both, to prevent unauthorized changes to BIOS menus. supervisor password: menus. user password: only enter but no rights to change options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

  • Page 54: Exit Without Saving

    BIOS 4-11 Exiting BIOS Save & Exit Setup Pressing <Enter> on this item asks for confirmation: Save to CMOS and EXIT (Y/N)? Y Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selec- tions stored in CMOS.

  • Page 55: Raid Configuration

    Introduction This section gives a brief introduction on RAID-related background knowledge and a general procedure to setup RAID system on this mainboard. RAID Basics RAID (Redundant Array of Independent Disks) is a method of combining two or more hard disk drives into one logical unit known as a RAID array. The advantage of RAID is to provide better performance or data fault tolerance.

  • Page 56: Raid 0 (Striping)

    RAID Configuration RAID 0 (Striping) RAID 0 reads and writes sectors of data interleaved between multiple drives. If any disk member fails, it affects the entire array. The disk array data capacity is equal to the number of drive members times the capacity of the smallest member. The striping block size can be set from 4KB to 64KB.

  • Page 57: Nvidia Raid Features

    RAID Features The nVidia RAID solution uses the nForce4 series chip as a RAID controller, which is a 4-channel S-ATA solution. Listed below are the main features and benefits of nVidia RAID: • Support four S-ATA hard disk drives.

  • Page 58: Enable Raid Function

    RAID Configuration Enable RAID Function For any RAID controller, the general procedure to enable RAID function are shown below: Note: If you are not installing O/S into the RAID disks, you may skip Step 3 & Step 4. Step 1: Enable RAID ROM The system BIOS may disable all RAID function by default.
  • Page 59 Step 2: Create RAID Array RAID arrays are created using the RAID controller’s BIOS Boot ROM utility. NVIDIA nForce4 SLi / nForce4 4X Power-on the system and wait for the RAID BIOS Setting utility message on the screen. Press the ”F10” key to enter its BIOS configuration utility.
  • Page 60 RAID Configuration 2. A main menu screen will appear (Autorun feature) 3. Select the page “RAID floppy” 4. Insert a blank floppy into the A:drive 5. Click on the required driver to begin copy into the floppy Step 4: Install O/S into RAID disk Proceed to install Windows XP/2000/NT4.0.

  • Page 61: Driver Installation

    This item can installs all drivers automatically. Method 2 This item can allows you to install the drivers selectively. Step 1 : Click “nVIDIA nForce Driver” to install chipset driver. Step 2 : Click “USB V2.0 Driver” to install USB 2.0 driver. Step 3 : Click “AC’97 AUDIO Driver”...

  • Page 62: Realtek Sound Manager Quick User Guide

    Driver Installation Realtek Sound Manager Quick User-guide Introduction To obtain the best performance from your audio system, run the "Sound Manager" utility to adjust the settings to suit your needs. This section of the manual is intended to provide a quick user-guide to setup "Sound Manager". For more detailed information, refer to "Sound Manager manual"...

  • Page 63: Speaker Configuration

    3. There are 10 bands of equalizer control, check "ON" when you want to adjust the equalizer. 4. This page displays the mainboards's phone jack function when a corresponding audio mode (no. of speaker) is selected. Figure 4 above shows the phone jack setup for 2 channel mode. Driver Installation Equalizer: <Figure 3>...

  • Page 64: Speaker Test

    Driver Installation 5. To test the speaker , select the “Speaker Test” page and click directly on the speakers shown on the screen. This board is equipped with Jack Sensing capability. If an audio device is plugged into the wrong connector, a warning message will appear to remind users to check the connection.
  • Page 65 7. EZ-Connection shows the result of the detection. “Audio Connector” column reflects the settings used in the "Speaker Configuration" page. “Current Connection” column shows the type of device detected. If the results do not match, an exclamation mark will appear on the right side. 8.
  • Page 66 Driver Installation HRTF Demo: <Figure 9> 9. This page lets you test the HRTF 3D Positional Audio features. Microphone: <Figure 10> 10. The “Noise Suppression” feature uses software to reduce background delay microphone recording. Page 6-6...
  • Page 67 Driver Installation General: <Figure 11> ALC655 11. This page displays information regarding the audio hardware and software. To remove "Sound Manager" icon from Windows Task bar, uncheck "Show icon in system tray". Page 6-7...
  • Page 68 Driver Installation Page 6-8...

  • Page 69: Appendix

    A-1 Update Your System BIOS Download the xxxxx.EXE file corresponding to your model from our website to an empty directory on your hard disk or floppy. Run the downloaded xxxxx.EXE file and it will self extract. Copy these extracted files to a bootable floppy disk. Note: The floppy disk should contain NO device drivers or other programs.
  • Page 70 Appendix 5. Key in File Name to save previous BIOS to file. XXXX 6. To confirm and proceed, please key in [Y] to start the programming. XXXX 7. The BIOS update is finished. XXXX F1 : Reset XXXXX xxxxx.bin xxxxx.bin XXXXX xxxxx.bin xxxxx.bin...

  • Page 71: Nvidia Raid Bios Utility

    B-1 NVIDIA RAID BIOS Utility Power-on the system and wait for the RAID BIOS Setting utility message on the screen. Press the ”F10” key to enter its BIOS configuration utility. Using the Define a New Array Window If necessary, press the tab key to move from field to field until the appropriate field is highlighted.
  • Page 72 Appendix To designate a free disk to be used as a RAID array disk, 1) Tab to the Free Disks section. The first disk in the list is selected 2) Move it from the Free Disks block to the Array Disks block by pressing the rightarrow key (->...
  • Page 73 Use the arrow keys to select the array that you want to set up, then press Enter. The Array Detail window appears. The Array Detail window shows information about the array that you selected, such as Striping Block used, RAID Mode, Striping Width, Disk Model Name, and disk capacity.
  • Page 74 Appendix...

  • Page 75: Post Codes

    C-1 POST CODES POST (hex) DESCRIPTION Test CMOS R/W functionality. Early chipset initialization: - Disable shadow RAM - Disable L2 cache (socket 7 or below) - Program basic chipset registers Detect memory - Auto-detection of DRAM size, type and ECC. - Auto-detection of L2 cache (socket 7 or below) Expand compressed BIOS code to DRAM Call chipset hook to copy BIOS back to E000 &...
  • Page 76 Appendix Detect CPU information including brand, SMI type (Cyrix or Intel) and CPU level (586 or 686). 19-1Ah Reserved Initial interrupts vector table. If no special specified, all H/W interrupts are directed to SPURIOUS_INT_HDLR & S/W interrupts to SPURIOUS_soft_HDLR. Reserved Initial EARLY_PM_INIT switch.
  • Page 77 Test 8259 functionality. Reserved 45-46h Reserved Initialize EISA slot Reserved Calculate total memory by testing the last double word of each 64K page. Program writes allocation for AMD K5 CPU. 4A-4Dh Reserved Program MTRR of M1 CPU Initialize L2 cache for P6 class CPU & program CPU with proper cacheable range.
  • Page 78 Appendix Reserved Initialize floppy controller Set up floppy related fields in 40:hardware. 70-72h Reserved (Optional Feature) Enter AWDFLASH.EXE if : -AWDFLASH is found in floppy drive. -ALT+F2 is pressed Reserved Detect & install all IDE devices: HDD, LS120, ZIP, CDROM….. Reserved Detect serial ports &...
