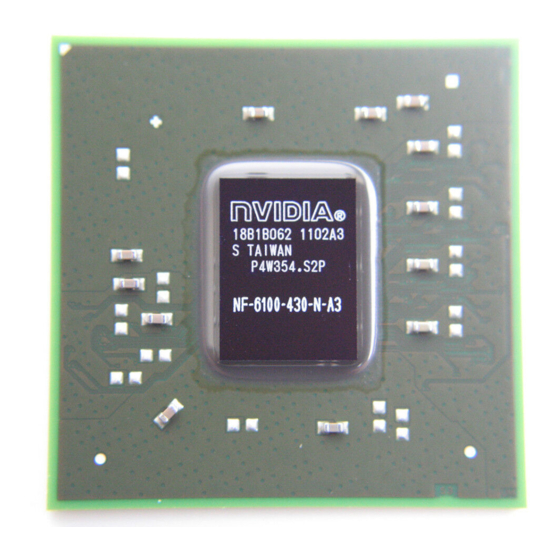

USER'S MANUAL
Of
NVIDIA
NF6100-430
Platform Processor Chipset
M/B For Socket AM2 64-bit Dual Core
AMD Processor
NO. G03-M26GT4-F
Rev:3.0
Release date: July. 2009
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF6100-430 and is the answer not in the manual?

Questions and answers

Related Manuals for Nvidia NF6100-430

Summary of Contents for Nvidia NF6100-430

  • Page 1 USER'S MANUAL NVIDIA NF6100-430 Platform Processor Chipset M/B For Socket AM2 64-bit Dual Core AMD Processor NO. G03-M26GT4-F Rev:3.0 Release date: July. 2009 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are...

  • Page 2: Table Of Contents

    TABLE OF CONTENT CHAPTER 1 INTRODUCTION OF NVIDIA NF6100-400/405MOTHERBOARD SERIES FEATURES OF MOTHERBOARD ..................1 1-1.1 SPECIAL FEATURES OF MOTHERBOARD............ 2 SPECIFICATION........................3 ITEM CHECKLIST ......................3 LAYOUT DIAGRAM & JUMPER SETTING …………………………………………..4 CHAPTER 2 HARDWARE INSTALLATION INSTALL SOCKET AM2 SUPPORTED AMD PROCESSOR ........5 INSTALL MEMORY......................

  • Page 3: Features Of Motherboard

    Introduction of NVIDIA NF6100-430 Motherboard Series Features of motherboard The NVIDIA NF6100-430 Platform Processor Chipset motherboard series are based on the latest NVIDIA NF6100-430(MCP61P) Platform Processor Chipset which supports the innovative and supercharged new generation 64-bit AMD Socket AM2 Athlon64 and Sempron processors with Hyper Transport Technology up to 1000MHz.

  • Page 4: 1-1.1 Special Features Of Motherboard

    future USB demands which are also equipped with hardware monitor function on system to monitor and protect your system and maintain your non-stop business computing. Some special features---CPU Thermal Throttling/ CPU Vcore 7-shift/ CPU Smart Fan ) in this motherboard are designed for power user to use the over-clocking function in more flexible ways.

  • Page 5: Specification

    ∗ USB2.0 port x 4 and headers x 4 (connecting cable option) ∗ Audio connector (Line-in, Line-out, MIC/ 6CH Audio) Item Checklist NVIDIA NF6100-430 Platform Processor Chipset based motherboard CD for motherboard utilities Cable for Serial ATA IDE Port NVIDIA NF6100-430 Platform Processor Chipset motherboard User’s Manual Back panel...

  • Page 6: Layout Diagram & Jumper Setting

    Layout Diagram & Jumper Setting CPU Socket AM2 KBMS/USB Power On Jumper (JP1) PS2 KB/Mouse Port DDR2 Socket x 2 COM Connector CPU FAN ATX Power Conn. VGA Connector ATX 12V Power Connector USB Port RJ45 Over USB Connector Audio Connector ATA 133 IDE 10/100 LAN Conn.

  • Page 7: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2-1 Install Socket AM2 Supported AMD Processor This motherboard provides a 940-pin surface mount, Zero Insertion Force (ZIF) socket, referred to as the mPGA940 socket supports AMD Athlon64 processor in the 940 Pin package utilizes Flip-Chip Pin Grid Array package technology. The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating.

  • Page 8: Expansion Cards

    DIMM module very firmly and fit into its indention on both sides. Expansion Cards NVIDIA NF6100-430(MCP61P) motherboard series offer one 16-LANE PCI-Express x16 graphics slot of 4Gbyte/sec data transfer rate at each relative direction which get 3.5 times of bandwidth more than AGP8X and it’s up to a peak concurrent bandwidth of 8Gbyte/sec at full...

  • Page 9: Connectors

    PCI-E x16 by 16 Slot 32-bit PCI Slot Chapter 3 Connectors, Headers & Jumpers Setting 3-1 Connectors Power Connector (24-pin block): ATXPWR1 Power Supply connector. This is a new defined 24-pins ROW1 ROW2 connector that usually comes with ROW1 ROW2 ROW1 ROW2 3.3V 3.3V...
  • Page 10 connector for support extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system. (3) PS/2 Mouse & PS/2 Keyboard Connector: KB1 The connector is for PS/2 keyboard and PS/2 Mouse. (4) USB Port connector: The connectors are 4-pin connector that connects USB devices to the system board.
  • Page 11 (7) Floppy drive Connector (34-pin block): FDD1 This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. Pin 1 Floppy Drive Connector (8) Secondary IDE Connector (40-pin block): IDE1 This connector connects to the next set of Master and Slave hard disks.

  • Page 12: Headers

    (9) Serial-ATA Port connector: SATA1 / SATA2/SATA3/SATA4 This connector supports the provided Serial ATA and Serial ATA2 IDE hard disk cable to connecting the motherboard and serial ATA hard disk. SATA1 SATA2 SATA3 SATA4 Serial-ATA1,2,3,4 Compatible Connectors (10) D-Sub 15-pin Connector: VGA VGA is the 15-pin D-Subminiature female connector, it is for the display devices, such as the CRT monitor, LCD monitor and so on.
  • Page 13 (2) USB Port Headers (9-pin) : USB1/USB2 / USB3 These headers are used for connecting the additional USB port plug. By attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel. USB1 USB3 USB2...
  • Page 14 (8) FAN Power Headers: CHAFAN1, SYSFAN1, CPUFAN (4-pin) These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.
  • Page 15 (10) Parallel Port Connector (25-pin female): PARALLEL1 The On-board Parallel Port can be disabled through the BIOS SETUP. Pin 1 PARALLEL Connector (11) SPDIF Out header: SPDIF Out The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder.

  • Page 16: Chapter 4 Useful Help

    Chapter 4 USEFUL HELP 4-1 HOW TO UPDATE BIOS STEP 1. Prepare a boot disc. (You may make one by click START click RUN type SYS A: click OK) STEP 2. Download upgrade tools and the latest BIOS files of the motherboard from official website and then make a copy of it to your bootable floppy disk after...
