3-5 Device Connectors

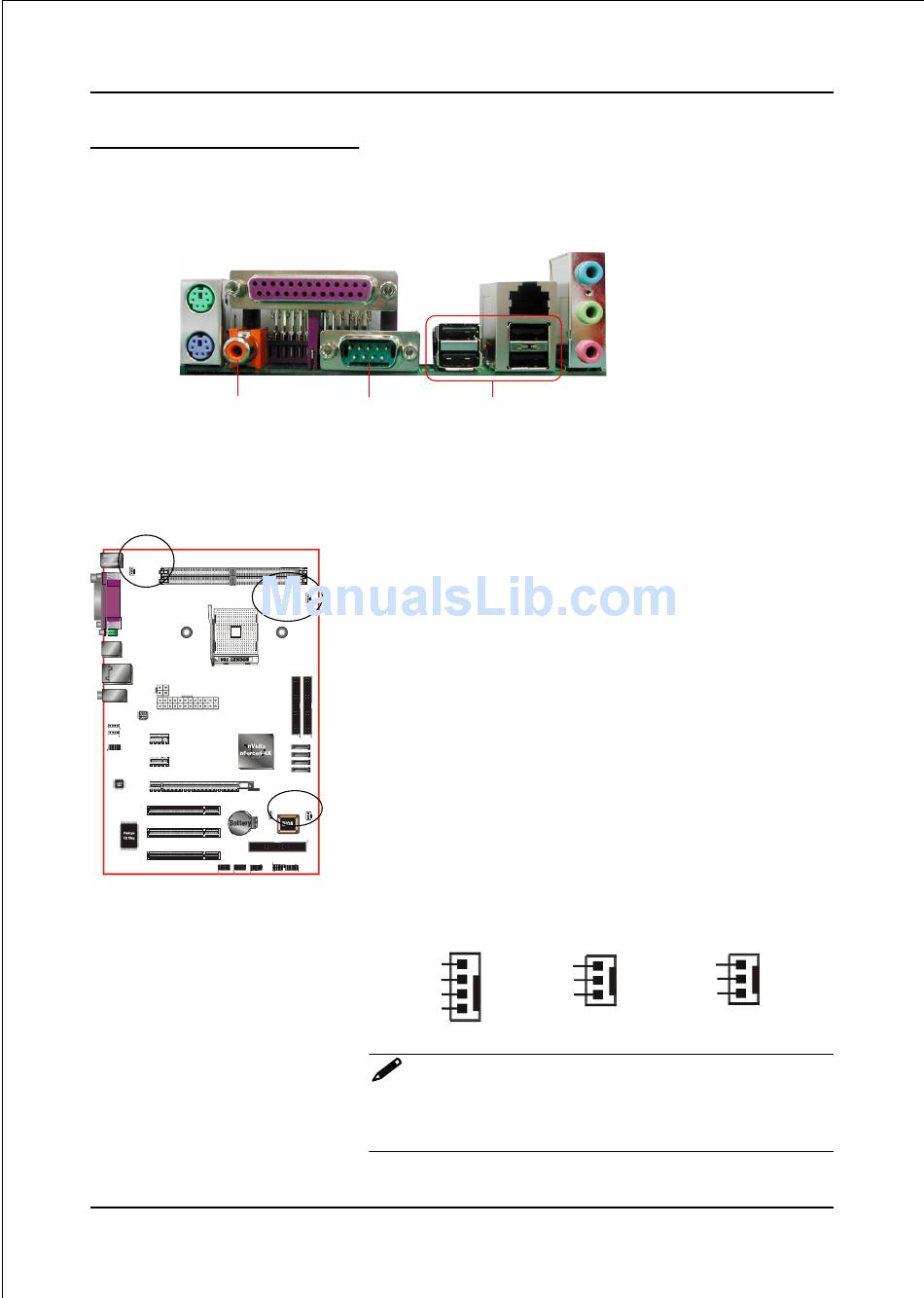

The I/O back panel for this mainboard is shown below. When installing the mainboard
into the computer case, use the bundled I/O shield to protect this back panel.
Parallel Port
PS/2
Mouse
PS/2
Keyboard
S/PDIF-out
Coaxial Jack
JPWR_FAN
JCPU_FAN
USB2.0 x 4 ports
COM1
Figure 7 - I/O Ports
JCPU_FAN / JPWR_FAN / JSYS_FAN:
CPU/Power/Chassis Fan Power Connectors
JCPU_FAN: The CPU must be kept cool by using a
JPWR_FAN: If you are installing an additional fan
JSYS_FAN: The chassis fan will provide adequate
JSYS_FAN
JCPU_FAN
Control
Sense
+12V
Ground
This mainboard is equipped with intelligent fan
speed control. Refer to the PC Health Status
submenu of the BIOS.
RJ45
LAN
Line-in/Rear out (Light Blue)
Line-out/Front out (Lime)
Mic-in/Center&Subwoofer (Pink)
heatsink with fan assembly.
in the unit, connect to this fan
connector.
airflow throughout the chassis to
prevent overheating the CPU.
JPWR_FAN
Sense
+12V
Ground
Installation
JSYS_FAN
Sense
+12V
Ground
Page 3-7
