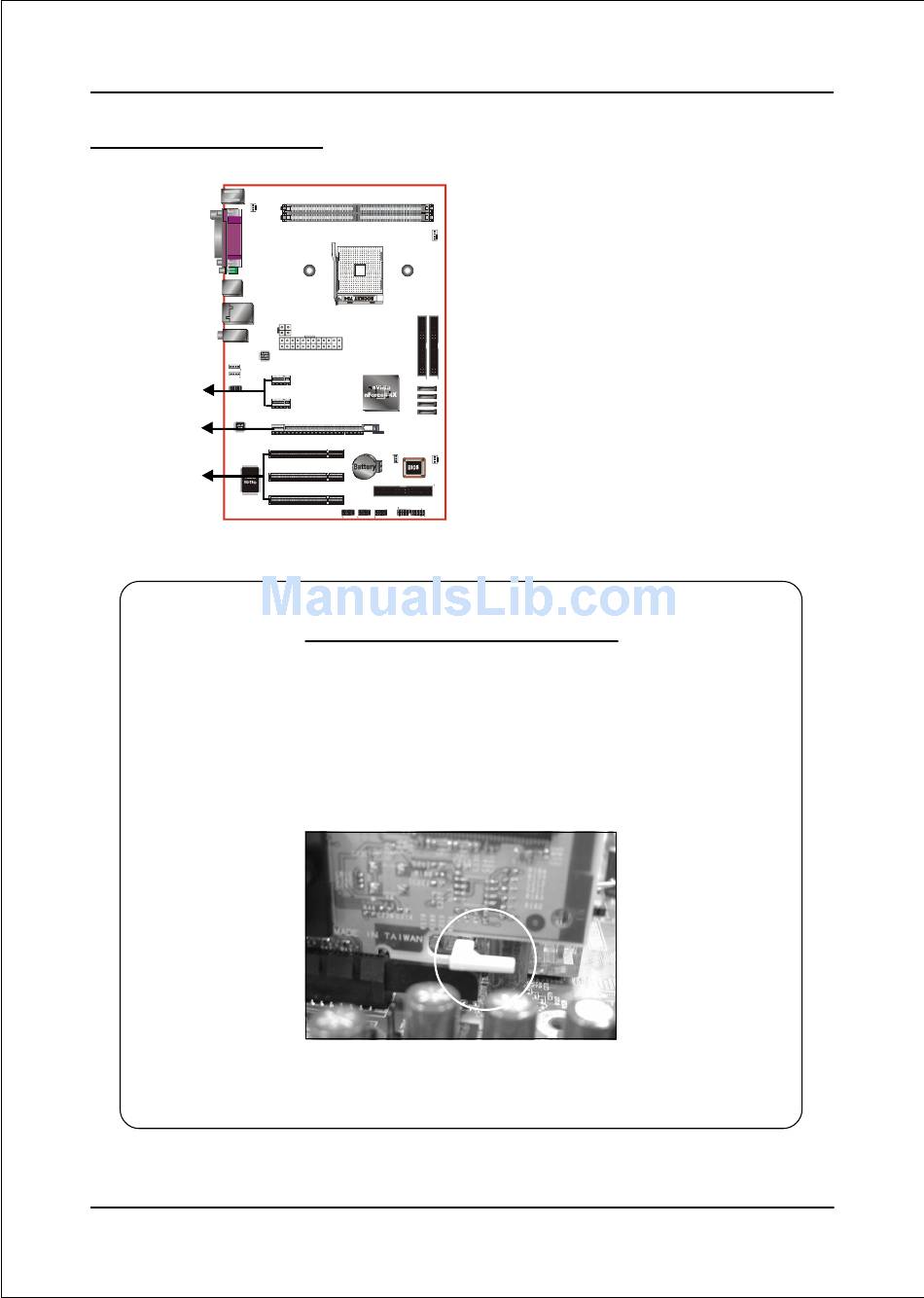

Installation
3-4 Expansion Slots
PCI-E Slots
PCI-E VGA Slot
PCI Slots
1. Remove the bracket (on the PC case) for the slot you intend to use.
2. Firmly press down the card into the slot until it is completely
seated. Ensure the VGA slot clicker is locked as shown in the
picture below.
3. Secure the card's bracket to the PC case with a screw.
Page 3-6
VGA Card Installation Caution
PCI-E Slots
The mainboard is equipped with two
PCI-E*1 compliant with PCI Express 1.0a.
PCI-E VGA Slots
The elongated PCI-E*16 is intended for
PCI-E VGA card installation.
PCI Slots
The mainboard is equipped with three
PCI slots.
